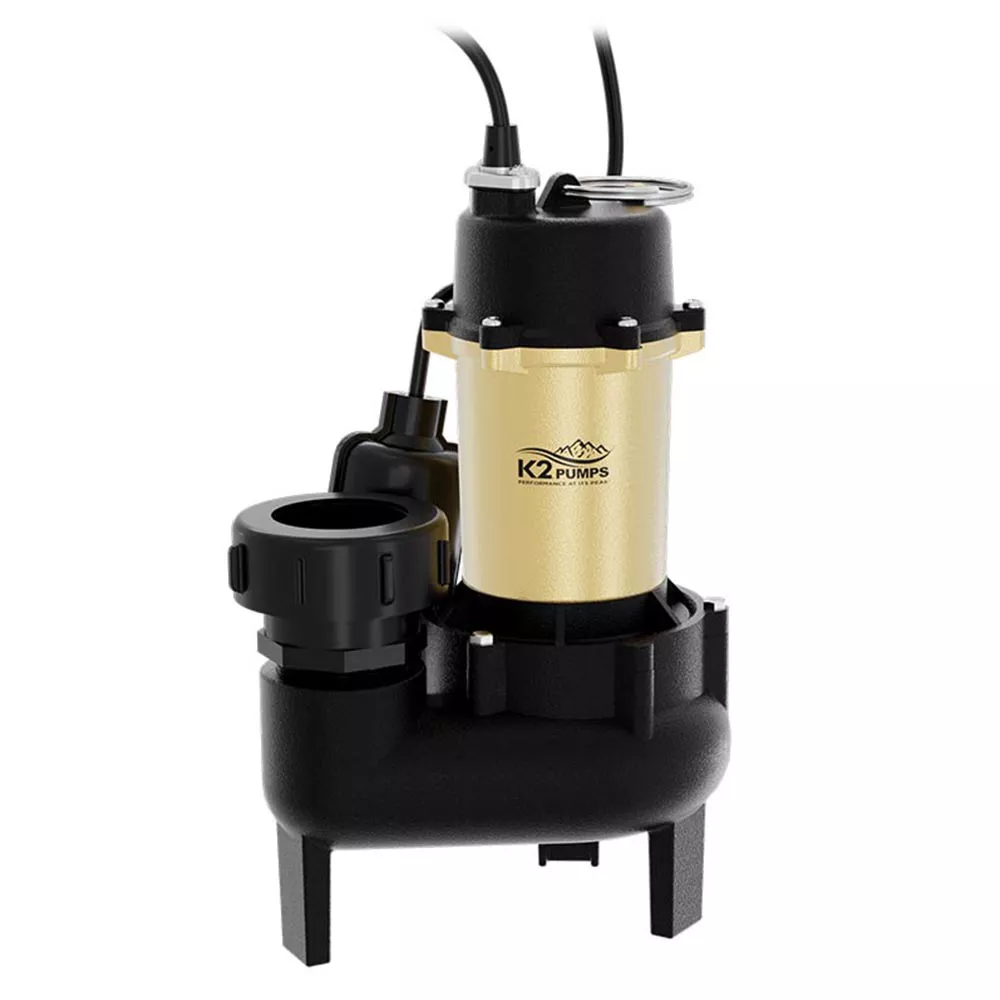

K2 Pumps SWW05002TPK 1/2 HP Cast Iron Sewage Pump with Attached Piggyback Switch Sump Pumps Farm & Ranch

The K2 Pumps 1/2 HP Sewage Pump is constructed of heavy-duty cast iron which is ideal for applications requiring a rugged submersible pump. The innovative Quick-Connect fitting features a metal ring with teeth that firmly grip PVC pipes.The pump discharges up to 6,500 GPH at 0 ft. of lift, with a maximum lift of 18 ft. It features a non-clog vortex impeller that will handle 2 in. solids. Powered by an energy-efficient, oil-filled PSC motor.

Constructed of heavy-duty cast iron
Discharges up to 6,500 GPH at 0 ft. of lift, with a maximum lift of 18 ft.

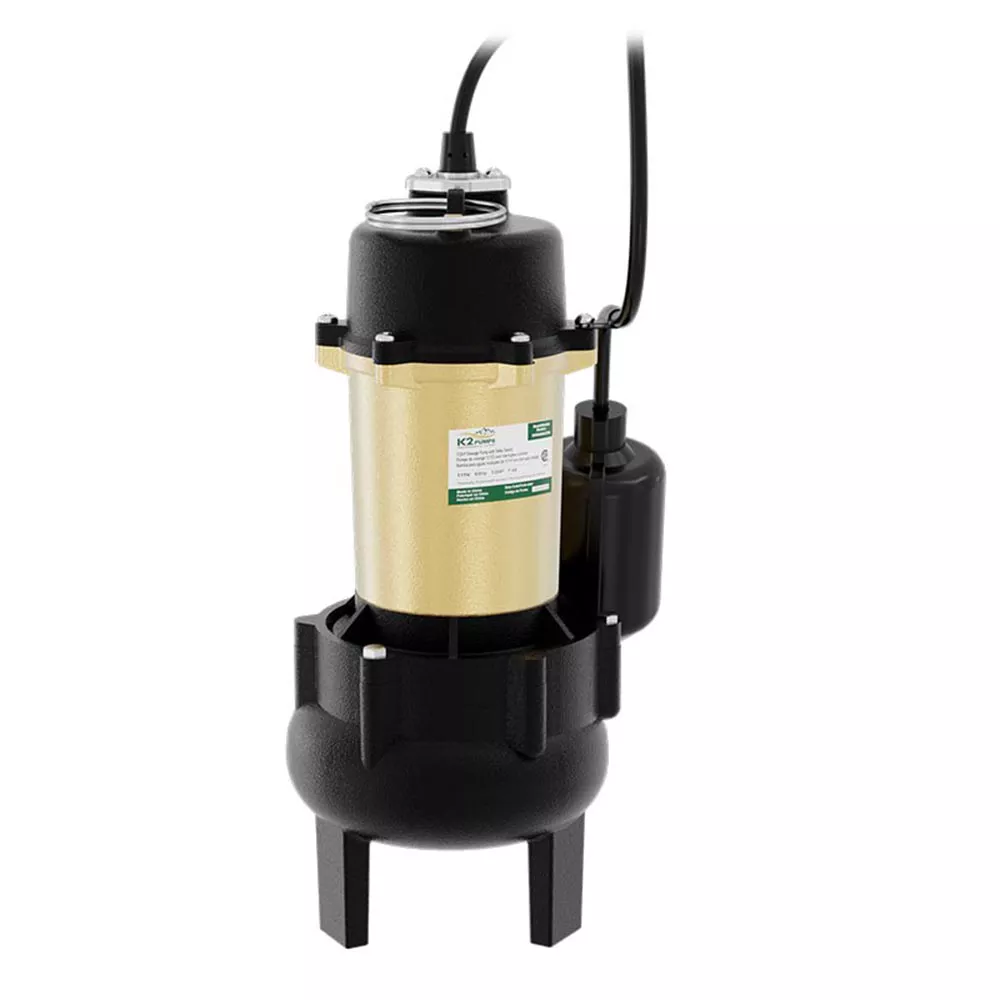

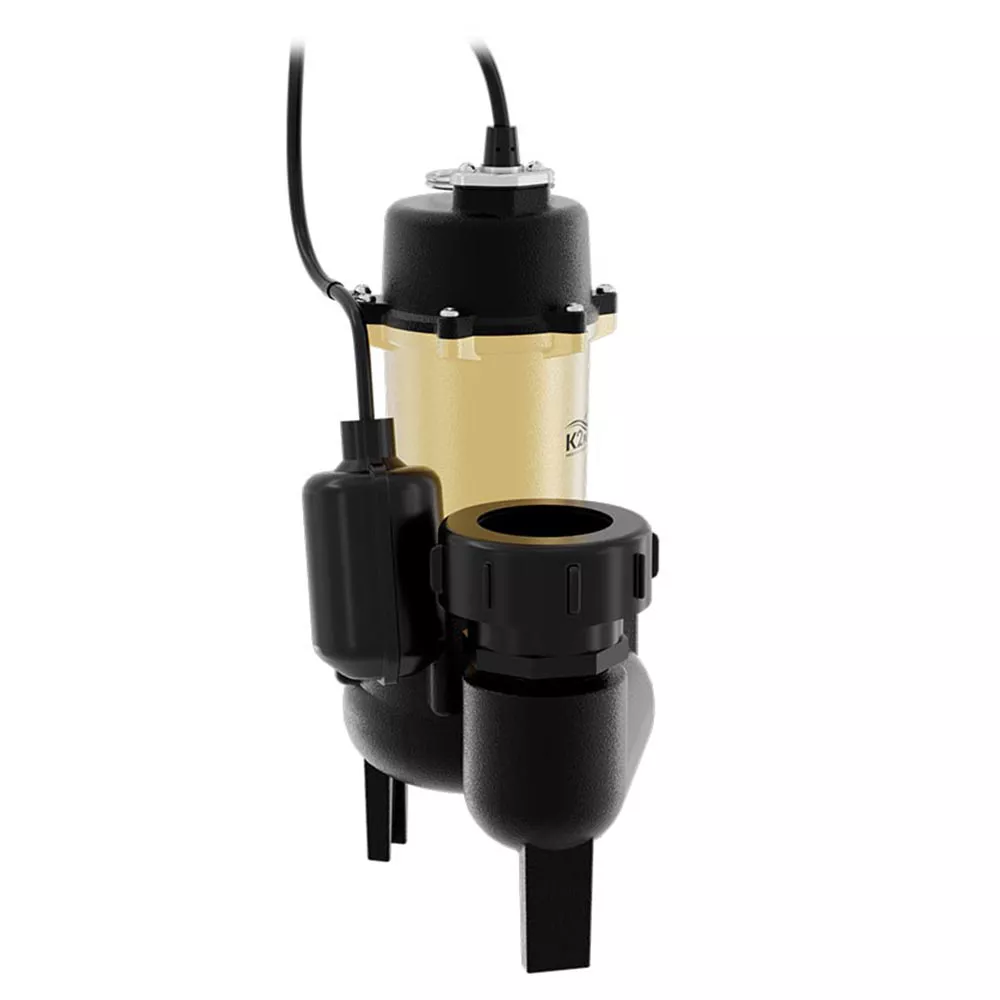

Piggyback tethered float switch for manual or automatic operation
Includes a Quick Connect fitting which eliminates the need for PVC primer, glue or plumber's tape

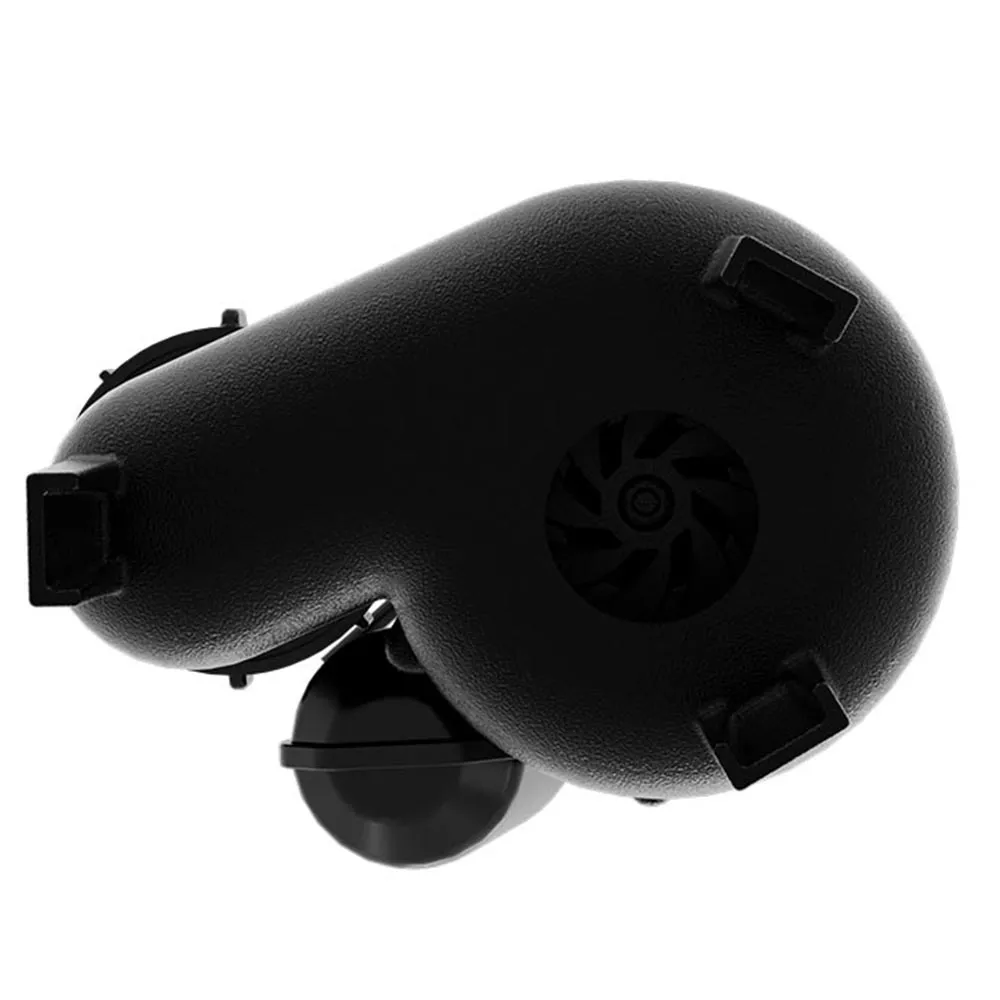

Non clog vortex impeller handles up to 2 in. solids
2 in. FNPT Discharge and 10 ft. power cord
Comes with a 10 ft. power cord
5 Year Warranty

K2 Pumps SWW05002TPK 1/2 HP Cast Iron Sewage Pump with Attached Piggyback Switch Sump Pumps Farm & Ranch> Tanks & Pumps> Water Pumps> Sump Pumps

Specification	Description
Brand	K2 Pumps
Country of Origin	Imported
Amperage	7.4 Amp

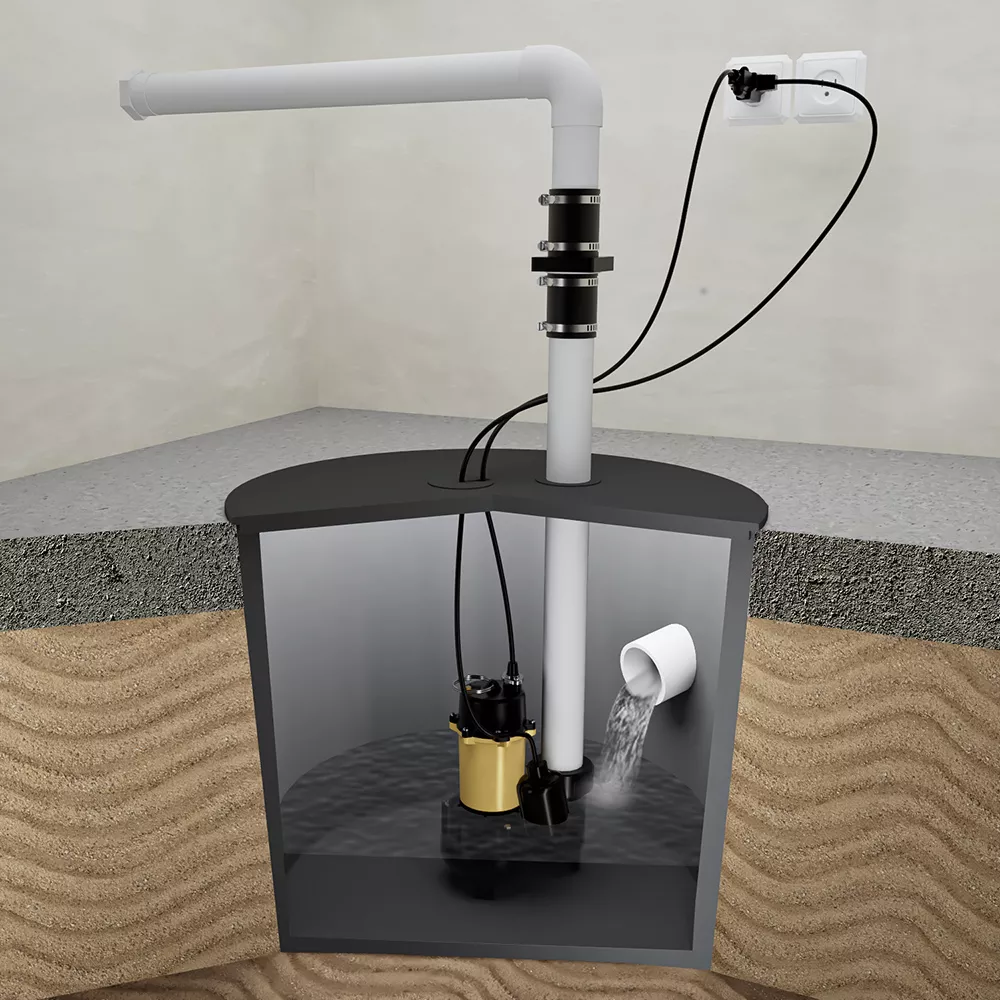

Basin Diameter	18 in.
Body Material	Cast iron
Compatible Pipe Material	PVC
Discharge Connection	Threaded Female
Discharge Port Diameter	2 in.
Discharge Rate at 0 ft.	108 GPM
Discharge Rate at 10 ft.	70 GPM
Engine Displacement	0 N/A
Features	2 in. Quick Connect Fitting eliminates the need for PVC primer, glue or plumber's tape
Horsepower	1/2 HP
Hose Diameter	2 in.
Impeller Material	Thermoplastic
Inlet Connection	None
Inlet Diameter	5.3 in.
Maximum Flow Rate	108 GPM
Maximum Head Lift	18 ft.
Maximum Operating Pressure	0 N/A
Maximum Operating Temperature	131 deg.
Maximum Solids Diameter	2 in.
Maximum Suction Lift	18 ft.
Minimum Operating Pressure	0 N/A
Minimum Operating Temperature	32 deg.
Power Cord Length	10 ft.
Power Type	Corded/Plug-in
Product Height	14.61 in.
Product Length	6.52 in.
Product Weight	24.15 in.
Product Width	9.53 in.
Pump Mechanism	Centrifugal
Motor Type	Permanent Split Capacitor (PSC)
Switch-Off Height	5 in.
Switch-On Height	13.3 in.
Voltage	115 V
Warranty	5 Years
Manufacturer PartNumber	SWW05002TPK
