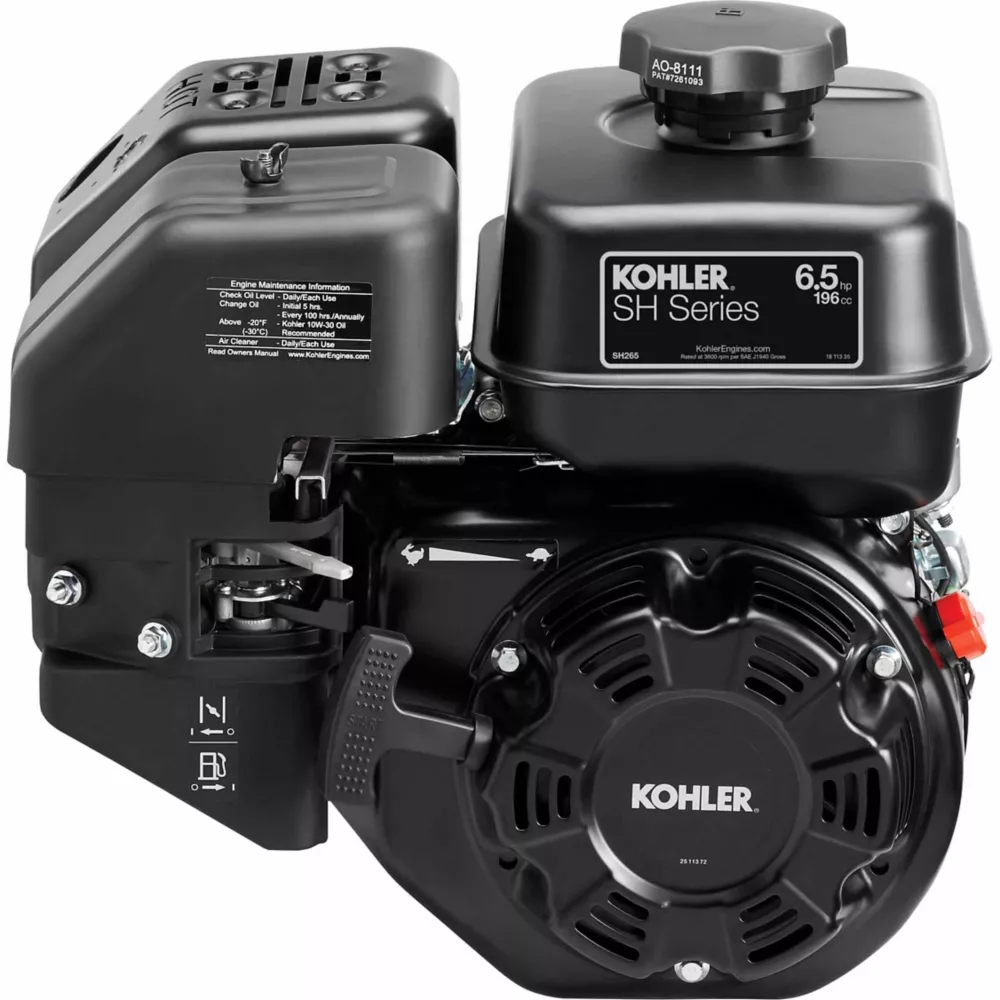

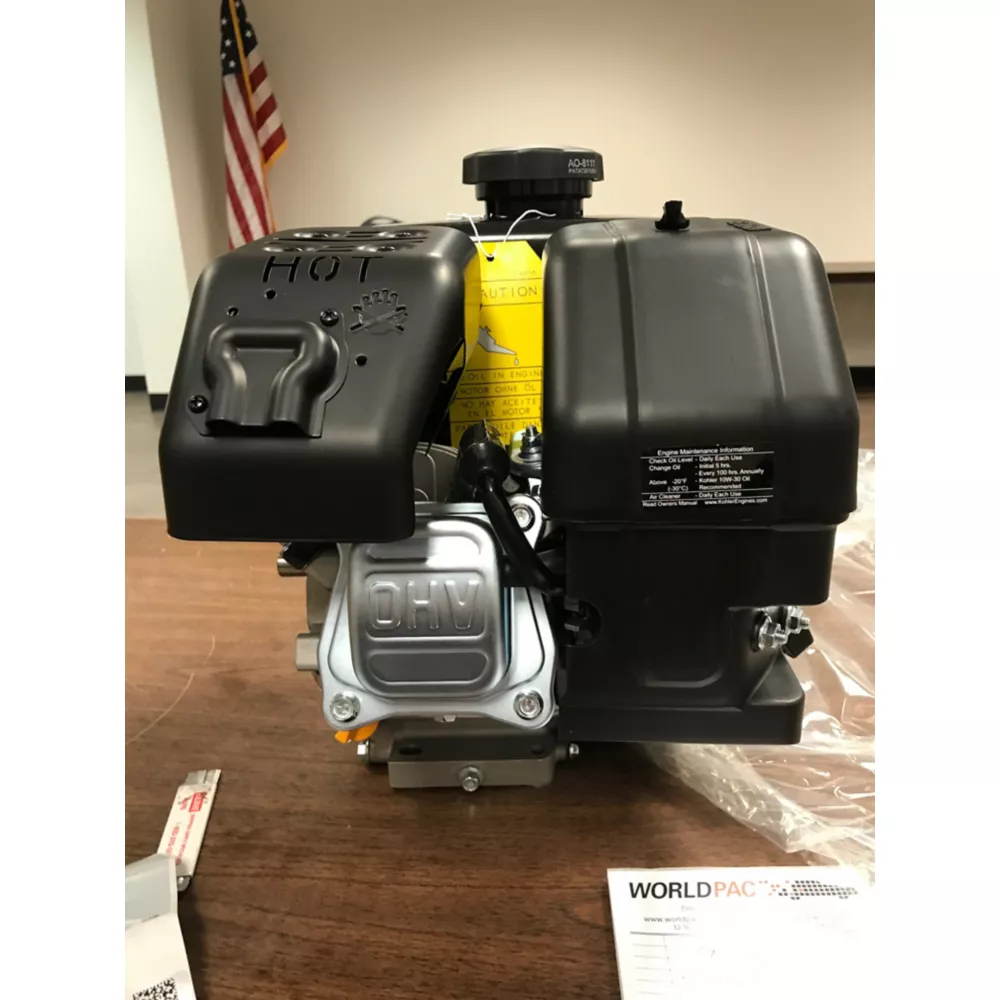

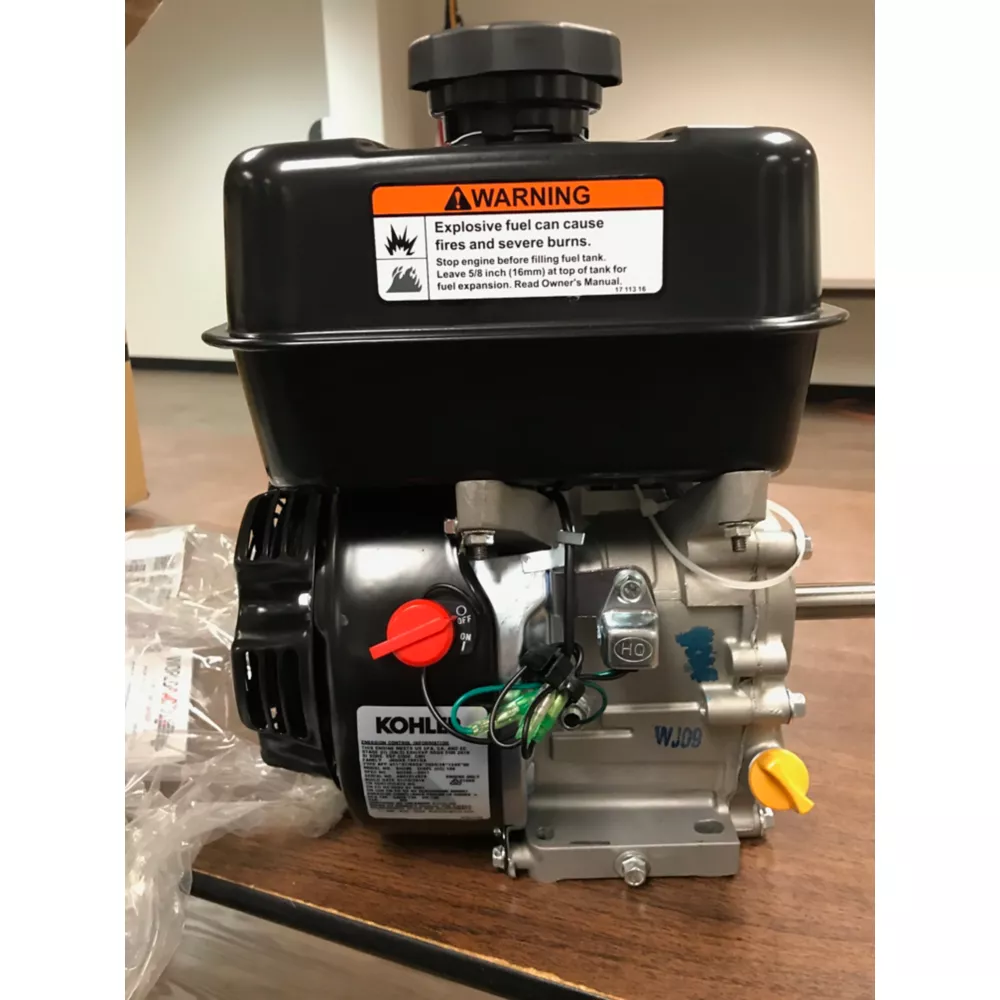

Kohler 6.5 HP 5/8 in Horizontal Single Cylinder Engine Recoil Start Mower Engines & Parts Mower Parts

Experience the power of Kohler with this water pump engine. The Kohler 6.5 HP (Horizontal) Single Cylinder engine. Engine has a threaded crankshaft and 5/8 in. threaded pump shaft and is a replacement engine for water and transfer pumps only. Complete with a cast iron cylinder liner, dual oil fill locations and a PTO face, this Kohler engine has it all. Add this transfer pump engine to your gear today.

Transfer pump engine offers overhead valve design
Variable speed options
Water pump engine has electronic ignition
Dual element air cleaner (unless otherwise mentioned)
Dual oil fill locations and drains
Carb Tier III, EPA phase 3 and RFI compliant
Cast iron cylinder liner included with Kohler engine
Offers 3.3 L. metal fuel tank with strainer
Fuel shut-off valve included (unless otherwise mentioned)
Engine mounted throttle and choke controls, remote throttle ready
Oil sentry switch installed (no light)
Dual ball bearings, PTO and flywheel
Metal blower housing
Index-able recoil starter
PTO face offered
For engines with SAE crankshaft with 3.625 in. (92.08 mm) diameter (4 and 1 holes) 5/16-24 UNF-2B thread
Large capacity muffler with heat shield
Multi-lingual owner's manual included
Black with cast aluminum
Crankshaft - 5/8 in. diameter x 2.44 in. PTO length, Threaded pump shaft.

2 years

Kohler 6.5 HP 5/8 in Horizontal Single Cylinder Engine Recoil Start Mower Engines & Parts Lawn & Garden> Lawn Mowers & Attachments> Mower Parts> Mower Engines & Parts

Specification	Description
Brand	Kohler
Country of Origin	Imported
Brand Compatibility	Universal
Engine Displacement	196cc
Engine Make	Kohler
Engine Type	4-cycle
Features	CARB Compliant
Fuel Capacity	3.3 L
Fuel Type	Gasoline
Horsepower	6.5 HP
Model Compatibility	Universal Water Pump replacement engine
Oil Capacity	0.6 qt.
Orientation	Horizontal
Product Type	Pulleys
Primary Material	Aluminum
Product Height	14.6 in.
Product Length	9.9 in.
Product Weight	35.3 lb.
Product Width	14.5 in.
Recommended Oil Type	Kohler 10W 30WT
Warranty	2 Year
Manufacturer PartNumber	PA-SH265-3014

Kohler 6.5 HP Horizontal Single Cylinder 5/8 in. Engine, Recoil Start Specifications expand/collapse Specification Description Brand Kohler Country of Origin Imported Brand Compatibility Universal Engine Displacement 196cc Engine Brand Kohler Engine Type 4-Stroke Features CARB Compliant Fuel Capacity 3.3L Fuel Type Gasoline Power 6.5 HP Model Compatibility Replacement Universal Water Pump Engine Oil Capacity 0.6 qt. Horizontal Orientation Product Type Pulleys Primary Material Aluminum Product Height 14.6 in. Product length 9.9 in. Product weight 35.3 lbs. Product width 14.5 in. Recommended Oil Type Kohler 10W 30WT 2 Year Warranty Manufacturer Part Number PA-SH265-3014
