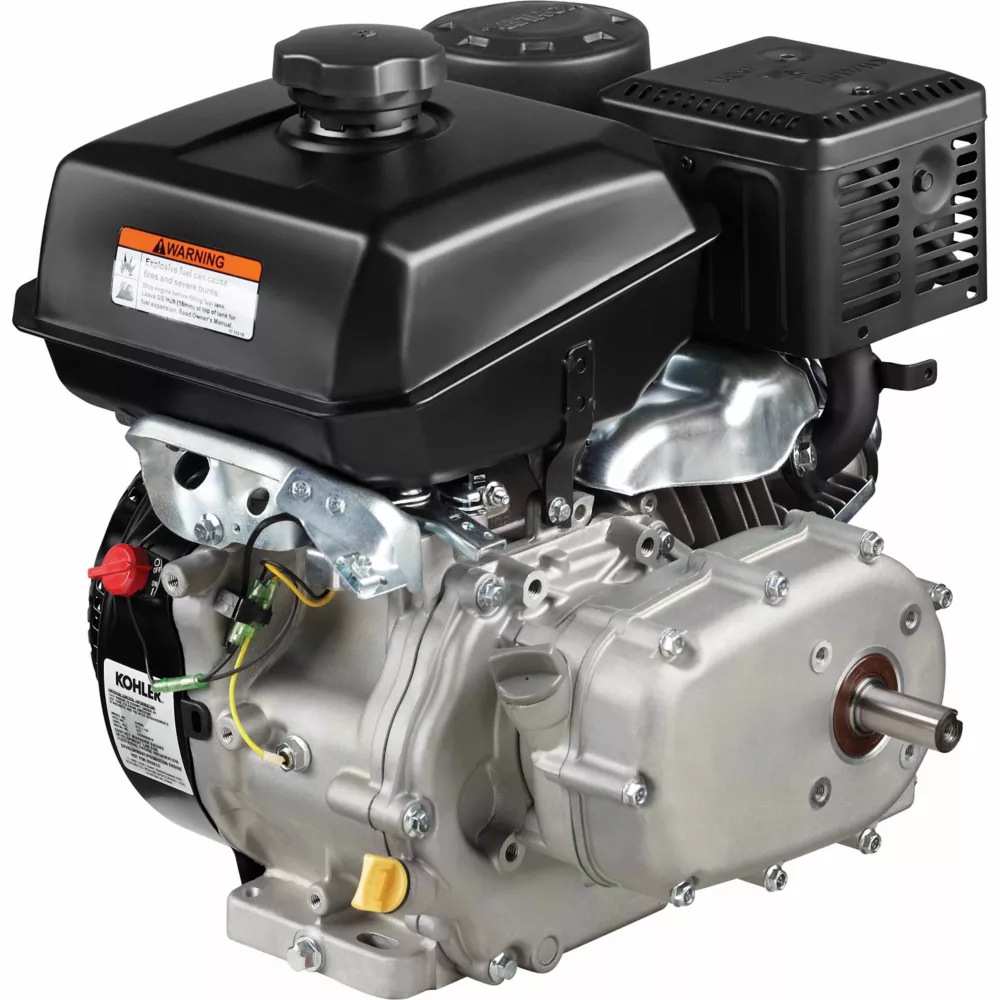

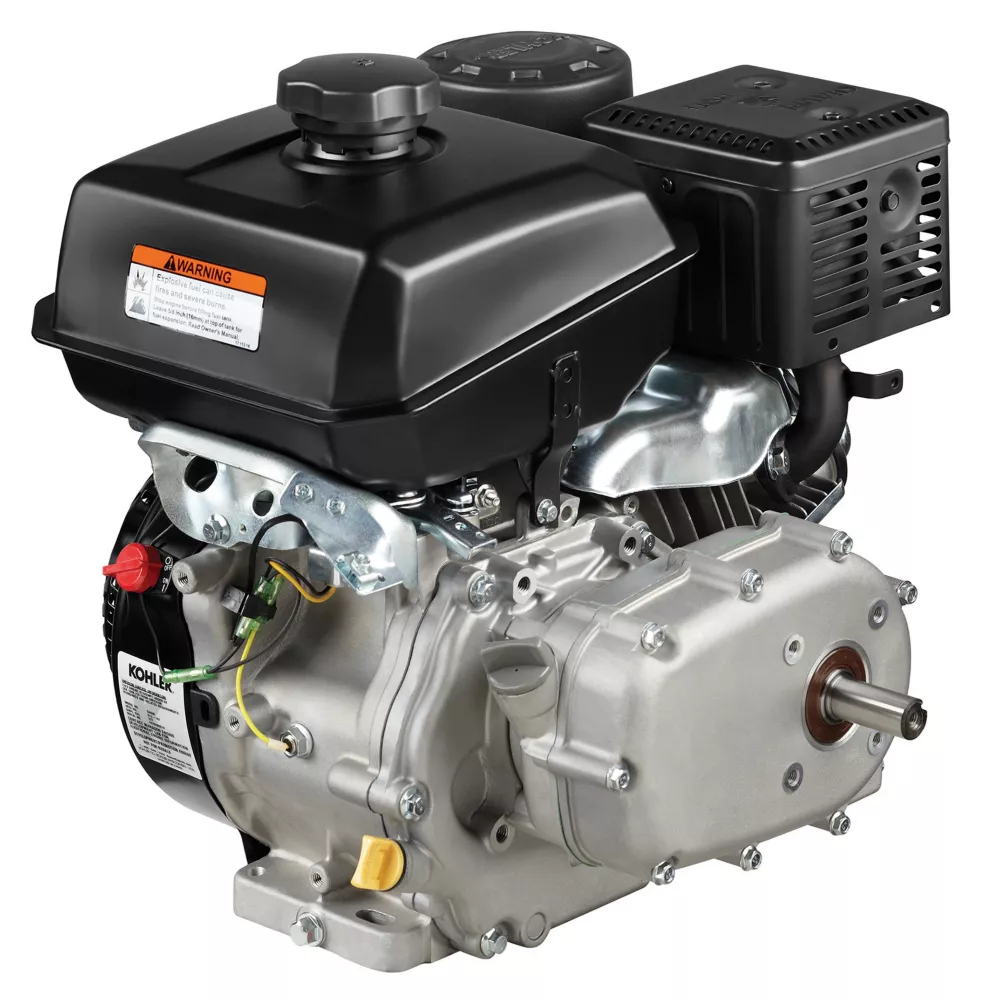

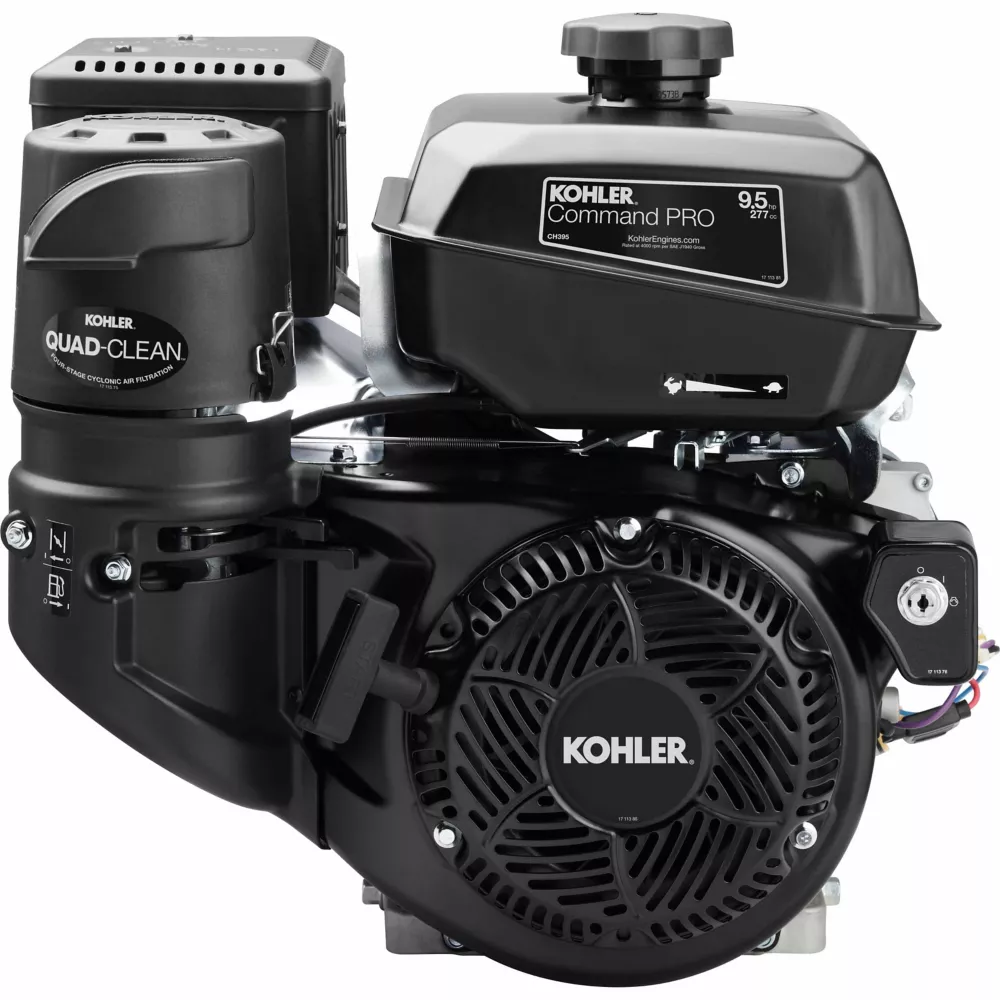

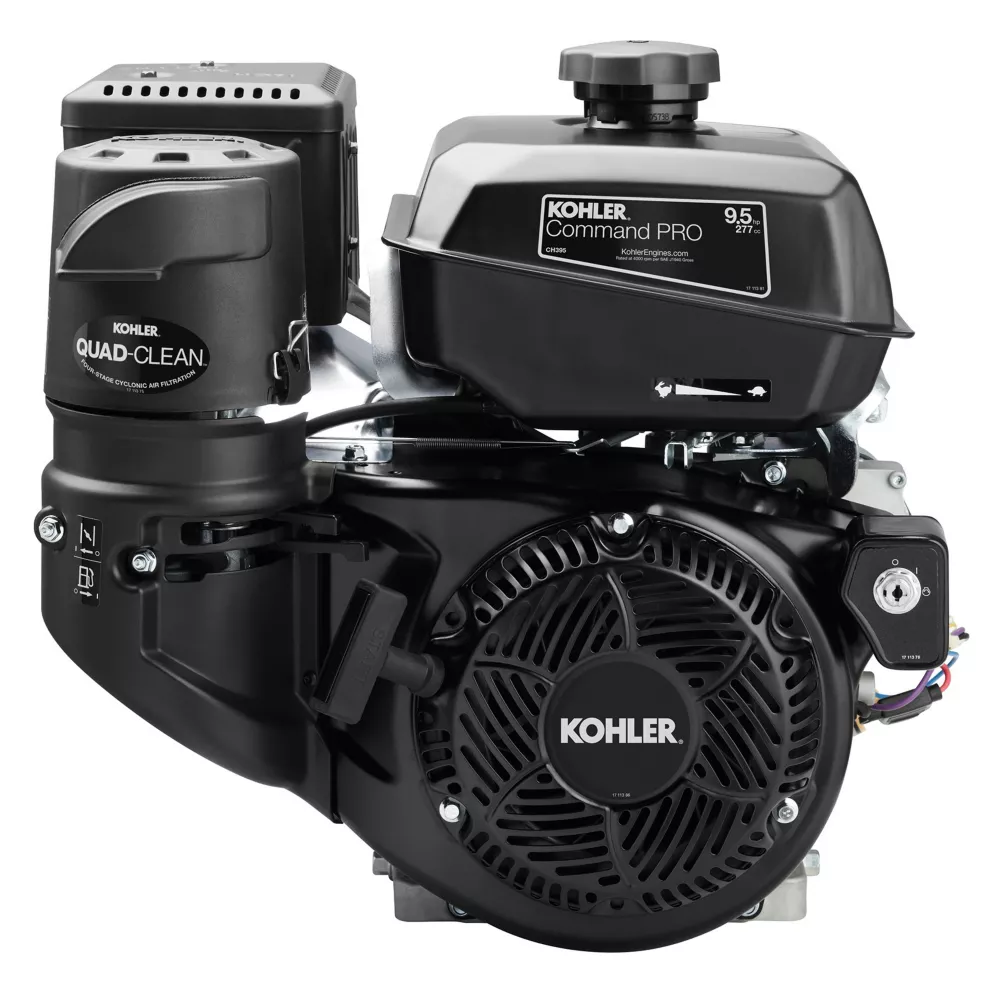

Kohler Command Pro Commercial Series 9.5 HP Engine Recoil Start 2:1 Wet Clutch Transmission Mower Engines & Parts Mower Parts

Invest in a quality Kohler engine for your gear. The Kohler Command PRO Commercial Series 9.5HP Engine has an 2:1 wet clutch gear box the output shaft that is 22mm diameter x 52.5mm length, a stellite exhaust valve and 10 A charging system. Complete with a balance shaft and oil sentry switch, this Kohler engine has it all. Experience true Kohler power when you install this Kohler replacement engine.

Overhead valve design
Features electronic ignition
Quad-clean 4-stage all-season heavy-duty cyclonic air cleaner
Kohler 9.5hp engine offers variable speed options
Dual oil fill locations and oil drains
Kohler engine includes cast iron cylinder liner
7-liter metal tank with strainer
Fuel shut-off valve (unless otherwise mentioned)
Stellite exhaust valve
Engine mounted throttle and choke controls, remote throttle ready
Oil sentry switch installed (no light)
Dual ball bearings, PTO and flywheel
Features balance shaft
Metal blower housing offered
Engine has index-able recoil starter
For engines with SAE crankshaft: 6.5 in. diameter bolt circle (4 holes) 3/8-16 UNC thread x 0.71 in. deep and 5 in. diameter bolt circle (4 and 2 Holes) 5/16-24 UNF threads x 0.71 in. deep
Large capacity muffler with heat shield and spark arrestor
Multi-language owner's manual
Black with cast aluminum
Compliance Information: Carb Tier III, EPA phase 3 and RFI compliant

3 years

Kohler Command Pro Commercial Series 9.5 HP Engine Recoil Start 2:1 Wet Clutch Transmission Mower Engines & Parts Lawn & Garden> Lawn Mowers & Attachments> Mower Parts> Mower Engines & Parts

Specification	Description
Brand	Kohler
Country of Origin	Imported
Brand Compatibility	Universal
Engine Displacement	277cc
Engine Make	Kohler
Engine Type	4-cycle
Features	CARB Compliant
Fuel Capacity	7 L
Fuel Type	Gasoline
Horsepower	9.5 HP
Model Compatibility	For engines with 2:1 gearbox
Oil Capacity	0.6 qt.
Orientation	Horizontal
Product Type	Mower Engines
Primary Material	Aluminum
Product Height	16.8 in.
Product Length	12.4 in.
Product Weight	61.5 lb.
Product Width	17.8 in.
Recommended Oil Type	10W30
Warranty	3 Year
Manufacturer PartNumber	PA-CH395-3038
