Kohler Command Pro Commercial Series 9.5 HP Lawn Mower Engine Recoil Start Mower Engines & Parts Mower Parts

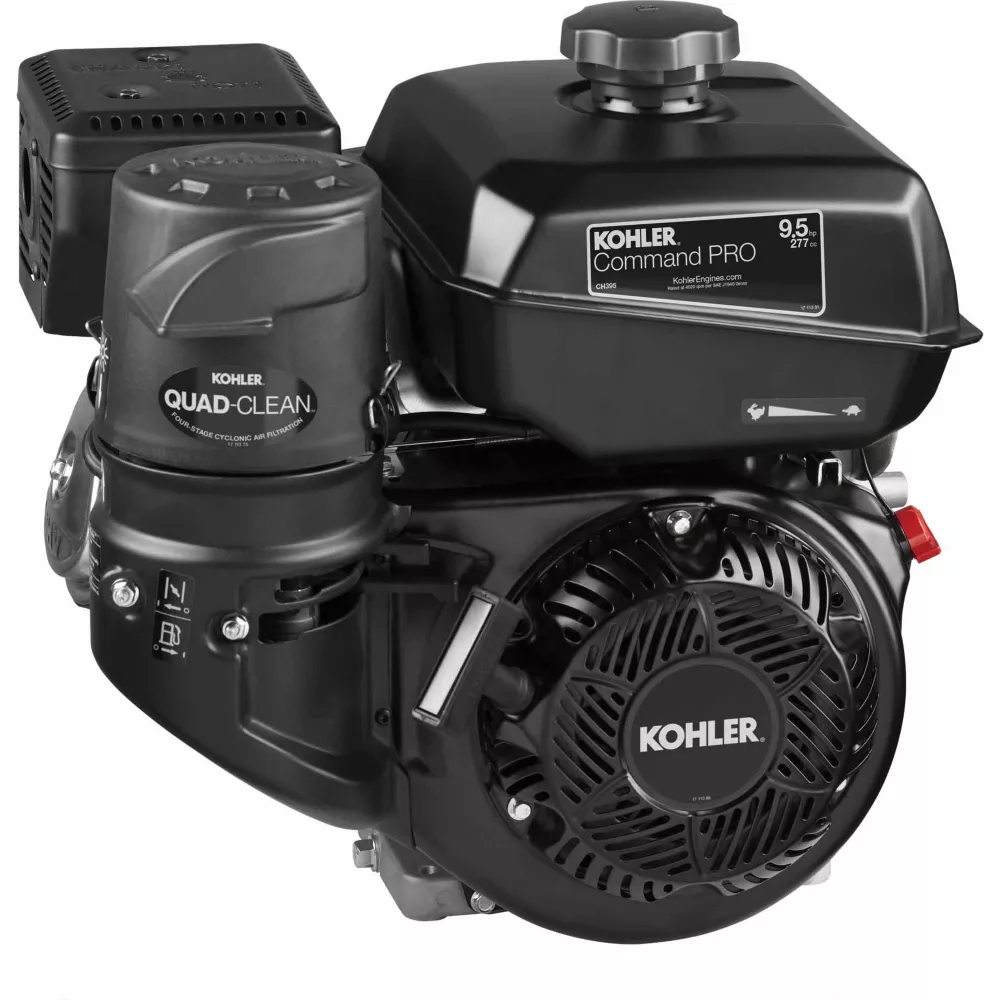

Experience true power when you try this lawn mower engine. The Kohler Command PRO Commercial Series 9.5 HP Engine is equipped with a 1.0 in. (25.4mm) dia. x 3.49 in. PTO length crankshaft. with a satellite exhaust valve and dual ball bearings, this Kohler lawn mower engine has an electronic ignition feature. Complete with a cast-iron cylinder liner, this riding mower engine is the ultimate in durability.

Fuel secure auto-fuel shut off
Overhead valve design
Kohler lawn mower engine features electronic ignition
Quad-Clean 4-stage all-season heavy-duty cyclonic air cleaner
Lawn mower engine has variable speed options
Dual oil fill locations and oil drains
Cast iron cylinder liner
7-liter metal tank with strainer
Fuel shut-off valve (unless otherwise mentioned)
Satellite exhaust valve
Engine-mounted throttle and choke controls, remote throttle ready
Oil Sentry switch installed (no light)
Dual ball bearings, PTO and flywheel balance shaft
Metal blower housing
Index-able recoil starter
PTO face included with riding mower engine
For engines with SAE crankshaft: 6.5 in. dia. bolt circle (4 holes) 3/8-16 UNC thread x 0.71 in. D and 5 in. dia. bolt circle (4 + 2 holes) 5/16-24 UNF threads x 0.71 in. D
Large capacity muffler with heat shield and spark arrestor
Multi-language owner's manual
Color: black with cast aluminum
Compliance Information: CARB Tier III, EPA Phase 3, RFI compliant
3 year commercial and consumer limited warranty
Engine includes keyway for ease

3 years

Kohler Command Pro Commercial Series 9.5 HP Lawn Mower Engine Recoil Start Mower Engines & Parts Lawn & Garden> Lawn Mowers & Attachments> Mower Parts> Mower Engines & Parts

Specification	Description
Brand	Kohler
Country of Origin	Imported
Brand Compatibility	Universal
Engine Displacement	429cc
Engine Make	Kohler
Engine Type	4-cycle
Features	CARB Compliant
Fuel Capacity	7.4 L
Fuel Type	Gasoline
Horsepower	9.5 HP
Model Compatibility	Universal
Oil Capacity	1.16 qt.
Orientation	Horizontal
Product Type	Mower Engines
Primary Material	Aluminum
Product Height	16.8 in.
Product Length	12.4 in.
Product Weight	61.5 lb.
Product Width	17.8 in.
Recommended Oil Type	Kohler 10W-30
Warranty	3 Year
Manufacturer PartNumber	PA-CH395-3149

Kohler Command Pro Commercial Series 9.5 HP Lawn Mower Engine, Recoil Start Specifications expand/collapse Specification Description Brand Kohler Country of Origin Imported Brand Compatibility Universal Engine Displacement 429cc Engine Brand Kohler Engine Type 4-Stroke Features CARB Compliant Fuel Capacity 7.4L Fuel Type Gasoline Power 9.5 HP Model Compatibility Universal Oil Capacity 1.16 qt. Horizontal Orientation Product Type Mower Engines Primary Material Aluminum Product Height 16.8 in. Product length 12.4 in. Product weight 61.5 lbs. Product width 17.8 in. Recommended Oil Type Kohler 10W-30 3 Year Warranty Manufacturer Part Number PA-CH395-3149
