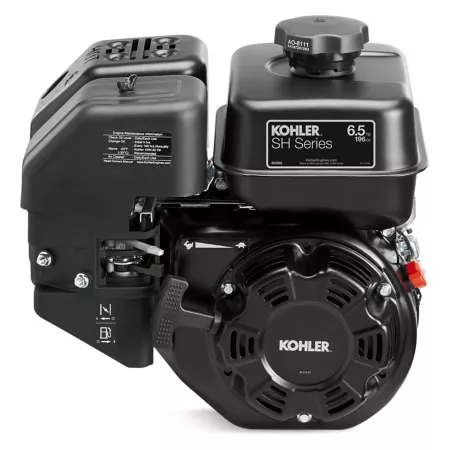

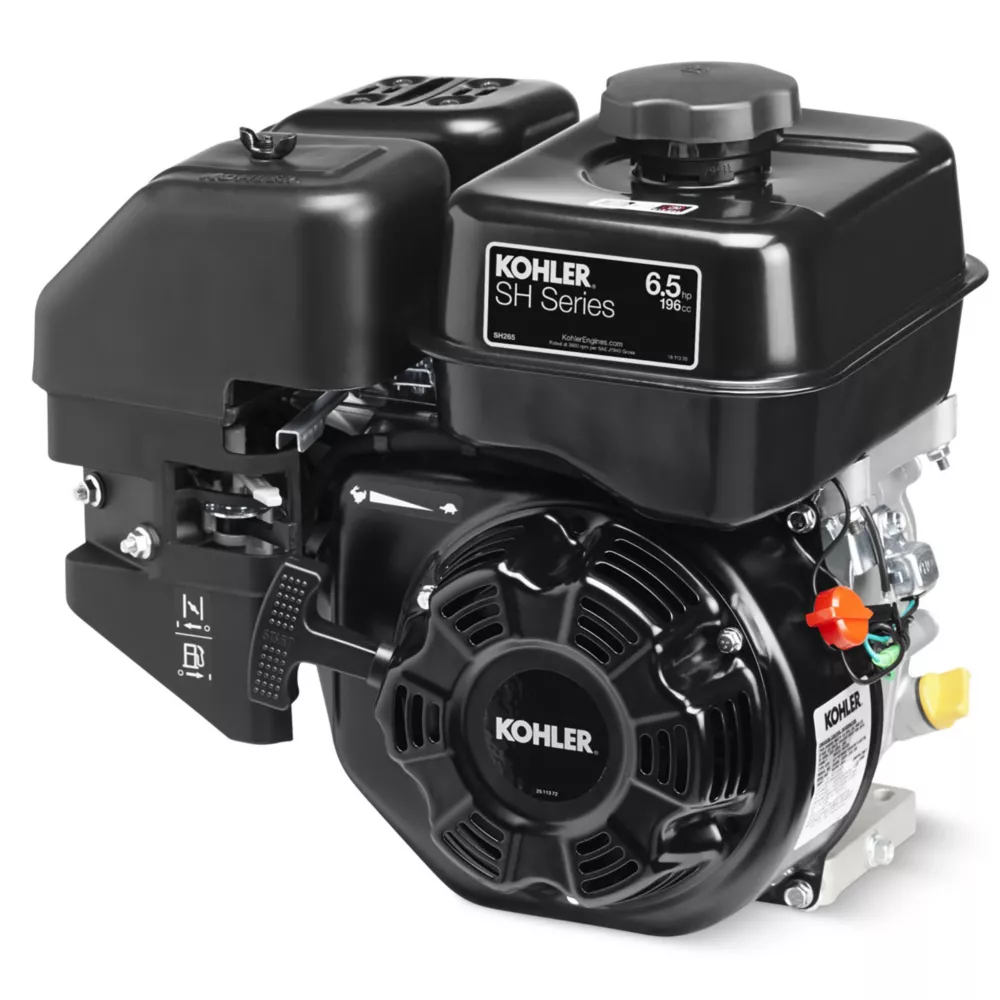

Kohler SH Series 6.5 HP Engine 3/4" Crankshaft Recoil Start Mower Engines & Parts Mower Parts
Feel the power of Kohler when you use this SH Series engine. The Kohler 6.5 HP Engine has a crankshaft that is 0.75 in. in diameter and 2.42 in. in PTO length and tapped 5/16-24 UNF. with dual oil drains, variable speed options and dual ball bearings, this Kohler SH-Series engine features an overhead valve design. Add this Kohler Engine to your gear today.- Features overhead valve design
- Variable speed options available
- Electronic ignition for ease
- Engine has dual element air cleaner (unless otherwise mentioned)
- Dual oil fill land drain locations available
- Carb Tier III, EPA phase 3 and RFI compliant
- Cast iron cylinder liner
- 3.3 L metal fuel tank with strainer
- Fuel shut-off valve (unless otherwise mentioned)
- Engine mounted throttle and choke controls, remote throttle ready
- Oil sentry switch installed (no light)
- Dual ball bearings, PTO and flywheel
- Metal blower housing
- Indexable recoil starter
- PTO face included with lawn mower engine
- For engines with SAE crankshaft with 3.625 in. (92.08 mm) diameter (4 and 1 holes) 5/16-24 UNF-2B thread
- Large capacity muffler with heat shield
- Multi-lingual owner's manual included
- Black with cast aluminum
Kohler SH Series 6.5 HP Engine 3/4" Crankshaft Recoil Start Mower Engines & Parts Lawn & Garden> Lawn Mowers & Attachments> Mower Parts> Mower Engines & Parts
| Specification | Description |
|---|---|
| Brand | Kohler |
| Country of Origin | Imported |
| Brand Compatibility | Universal |
| Engine Displacement | 196cc |
| Engine Make | Kohler |
| Engine Type | 4-cycle |
| Features | CARB Compliant |
| Fuel Capacity | 3.3 L |
| Fuel Type | Gasoline |
| Horsepower | 6.5 HP |
| Model Compatibility | Universal |
| Oil Capacity | 0.6 qt. |
| Orientation | Horizontal |
| Product Type | Mower Engines |
| Primary Material | Aluminum |
| Product Height | 14.6 in. |
| Product Length | 9.9 in. |
| Product Weight | 39 lb. |
| Product Width | 14.5 in. |
| Recommended Oil Type | Kohler 10W-30 |
| Warranty | 2 Year |
| Manufacturer PartNumber | PA-SH265-3011 |
