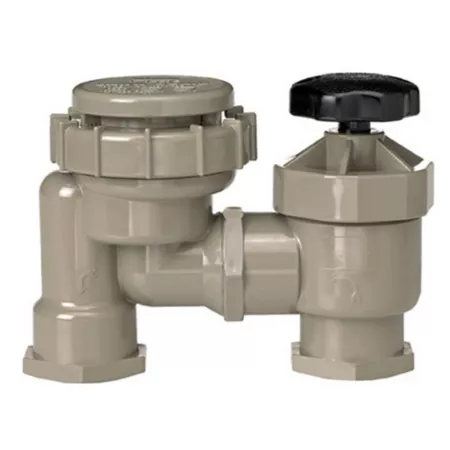

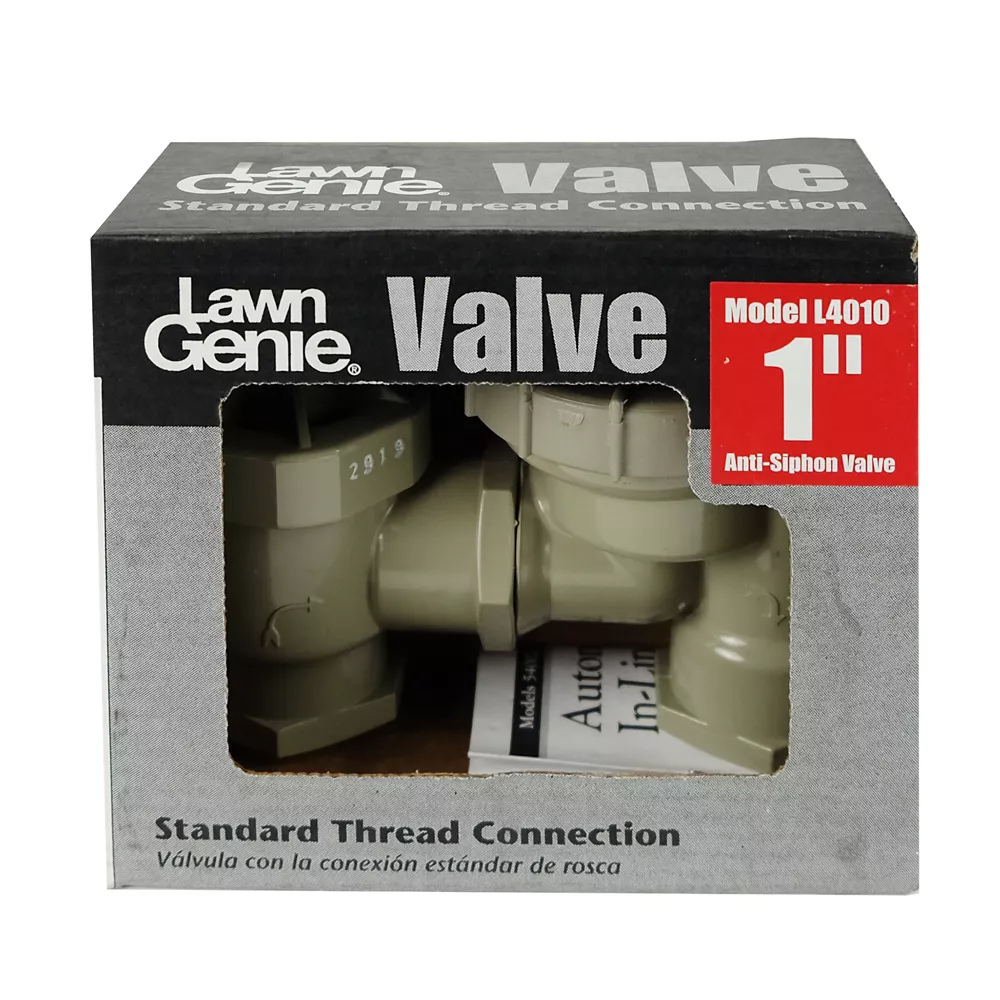

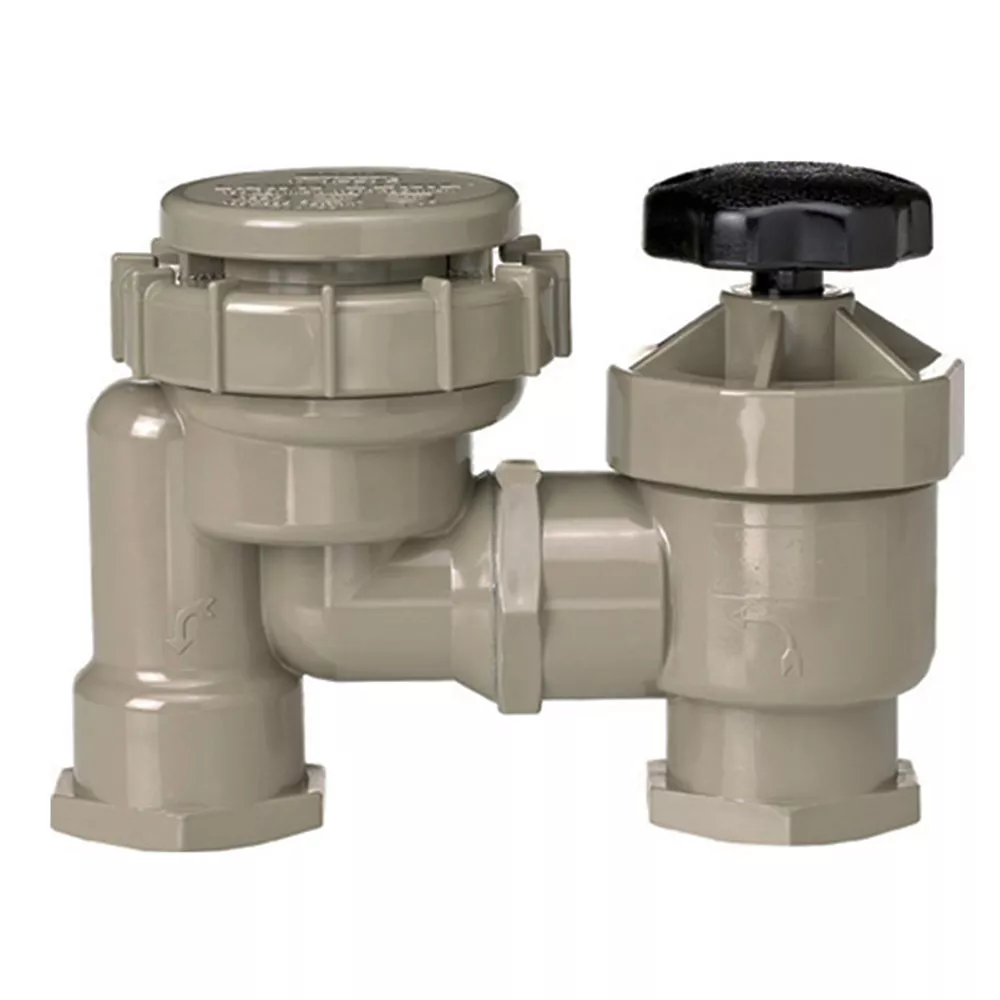

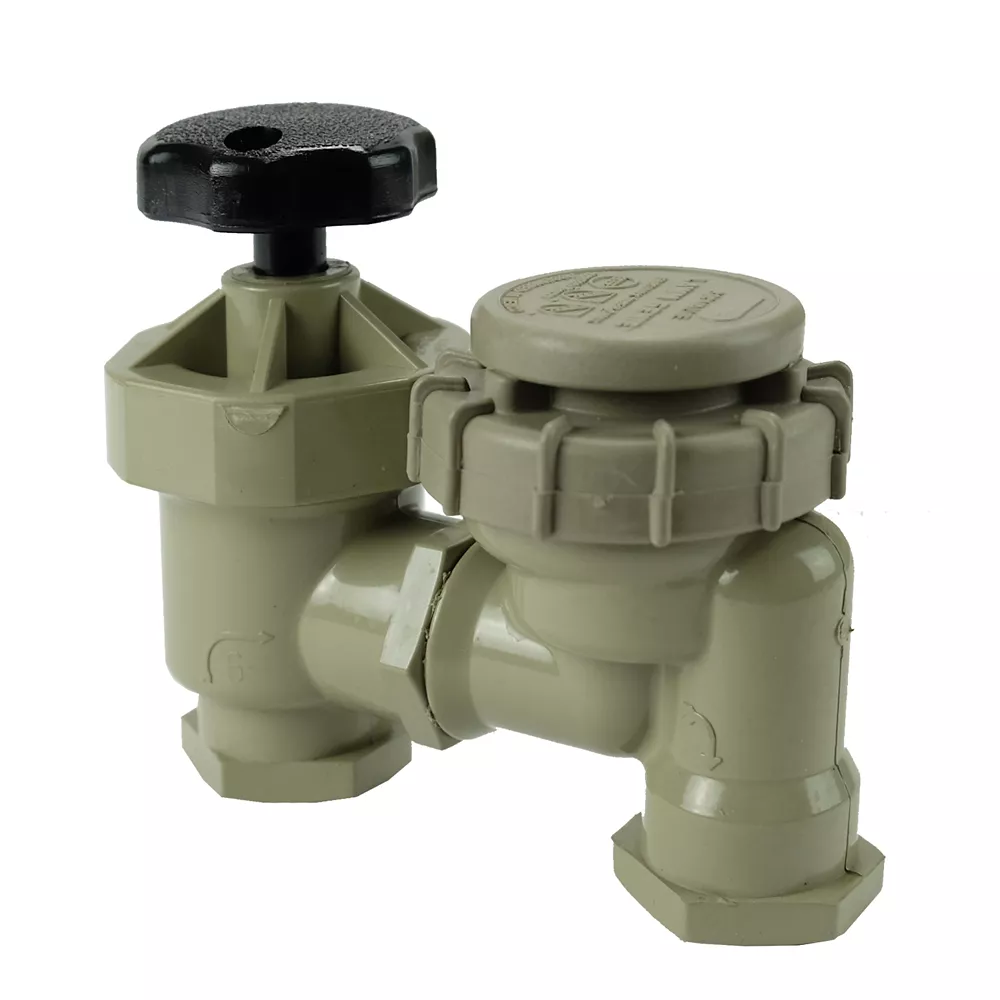

Lawn Genie 1 in Manual Anti-Siphon Valve Lawn Sprinklers Lawn & Garden

Get the Lawn Genie 75 psi Manual Anti-Siphon Thread Valve to manually operate the sprinklers in your irrigation system. A built-in backflow prevention mechanism helps provide optimum performance in both potable and dirty water conditions.

Anti-siphon valve for the manual operation of irrigation sprinklers

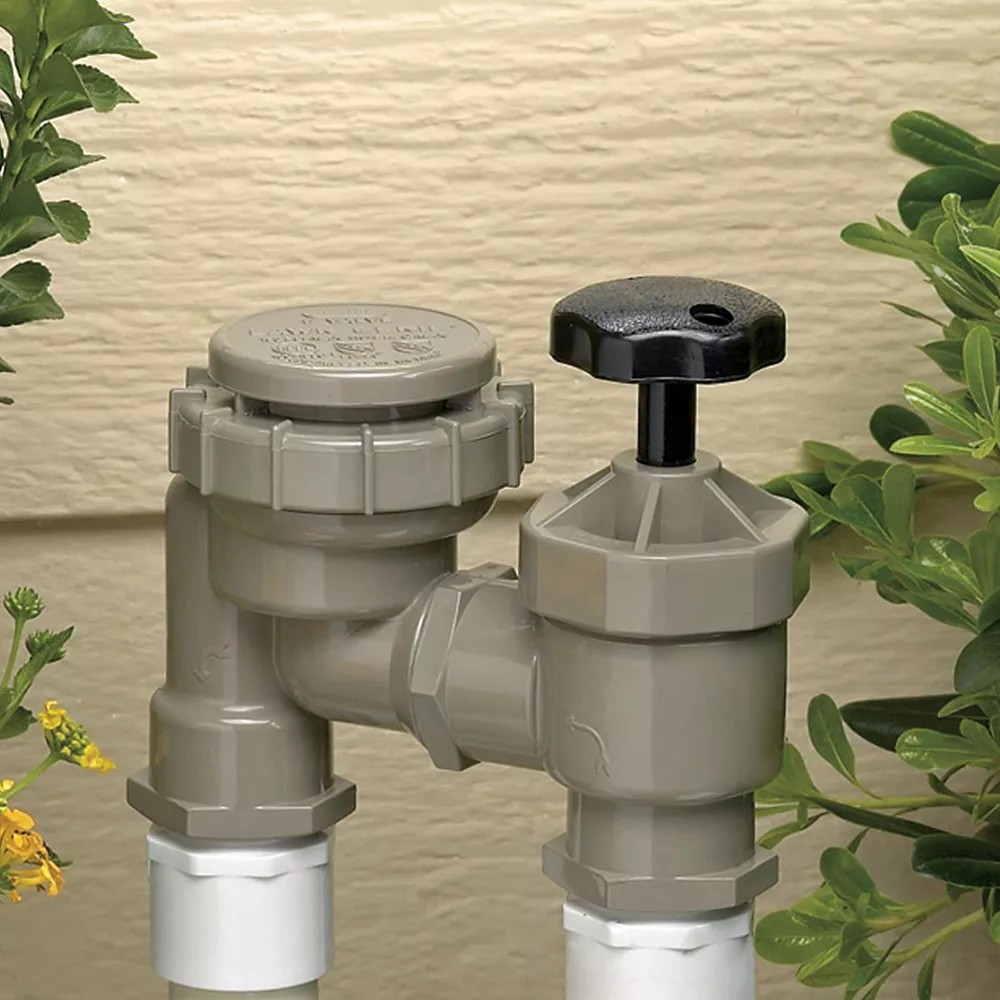

Install 6 - 12 in. above the highest downstream outlet in sprinkler systems
0 - 30 GPM flow range
Combine with the Lawn Genie 1 in. valve adapter for plastic valves (model L2010, sold separately) to convert to automatic operation
1 in. FNPT inlet and outlet
Durable construction
Jar-top, threaded bonnet offers easy, no-tools access to the diagram for easy inspection and maintenance
Built-in atmospheric backflow preventer helps protect against contamination
Manually activates zone sprinklers with the turn of a handle
Provides optimum performance in both potable and dirty water conditions
Optimal operating pressure: 10 to 85 PSI

Lawn Genie 1 in Manual Anti-Siphon Valve Lawn Sprinklers Lawn & Garden> Watering & Irrigation> Lawn Sprinklers

Specification	Description
Brand	Lawn Genie
Country of Origin	Imported
Base Material	PVC
Features	Built-in atmospheric backflow preventer; manually activates zone sprinklers with a twist of the handle; thread connection
Head Type	Other
Maximum Flow Rate	30 GPM
Maximum Operating Pressure	150 PSI
Maximum Spray Distance	0 ft.
Package Quantity	1
Product Height	9 in.
Product Length	4 in.
Product Weight	7 lb.
Product Width	7 in.
Sprinkler Base Type	None
Warranty	1 year limited
Manufacturer PartNumber	L4010

Lawn Genie 1 in. Manual Anti-Siphon Valve Specifications expand/collapse Specification Description Brand Lawn Genie Country of Origin Base Material Imported PVC Features Built-in backdraft preventer; manually activates zone sprinklers by turning the handle; threaded connection Head Type Other Maximum Flow 30 GPM Maximum Operating Pressure 150 PSI Maximum Spray Distance 0 ft. Package Quantity 1 Product Height 9 in. Product length 4 in. Product weight 7 lbs. Product width 7 in. Watering Base Type None Warranty 1 Year Limited Manufacturer Part Number L4010
