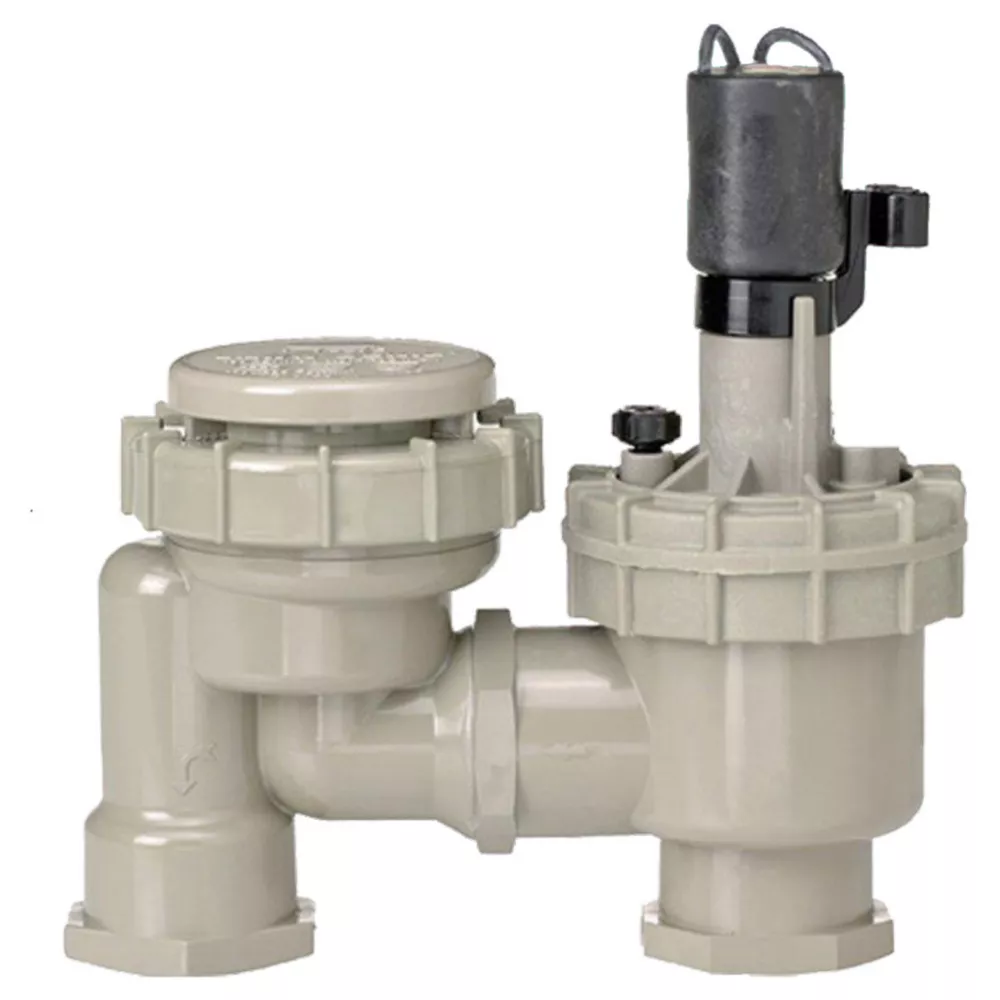

Lawn Genie 3/4 in Anti-Siphon Valve with Flow Control Lawn Sprinklers Lawn & Garden
Use this Lawn Genie 3/4 in. Anti-Siphon Valve with Flow Control to help prevent irrigation water contaminants from entering the drinking water supply. This anti-siphon valve features a jar-top bonnet for quick diaphragm repair access, internal and external bleed, as well as flow control. Constructed from corrosion- and UV-resistant material with a stainless-steel metering pin, this valve is built for durability and longevity. 0.25 - 25 GPM flow rate. 4 in. footprint size.- Jar-top bonnet for easy access to diaphragm
- Stainless-steel metering pin
- Captive solenoid plunger to help prevent lost parts during maintenance
- Glass-filled construction
- Use in 24 VAC systems to help prevent irrigation water contaminants from entering the drinking water supply
- Recommended installation in sprinkler system is 6 - 12 in. above highest downstream outlet
- 0.25 - 25 GPM flow rate
- Precise flow control adjustment reduces misting and fogging at the sprinkler to save water
- Internal bleed allows for system check-ups or just extra watering at the manifold location
- 4 in. footprint size (center to center of inlet/outlet)
Lawn Genie 3/4 in Anti-Siphon Valve with Flow Control Lawn Sprinklers Lawn & Garden> Watering & Irrigation> Lawn Sprinklers
| Specification | Description |
|---|---|
| Brand | Lawn Genie |
| Country of Origin | Imported |
| Base Material | Polypropylene |
| Features | N/A |
| Head Type | Other |
| Maximum Flow Rate | 7.6 GPM |
| Maximum Operating Pressure | 150 PSI |
| Maximum Spray Distance | 0 ft. |
| Package Quantity | 1 |
| Product Height | 7 in. |
| Product Length | 4 in. |
| Product Weight | 1 lb. |
| Product Width | 8 in. |
| Sprinkler Base Type | None |
| Warranty | 1 year limited |
| Manufacturer PartNumber | L7034 |
