Liquidynamics battery-powered digital meter with 1/4 in flexible spout Auto tip 0.26-8 GPM Fuel Transfer Tank Accessories Truck & Automotive

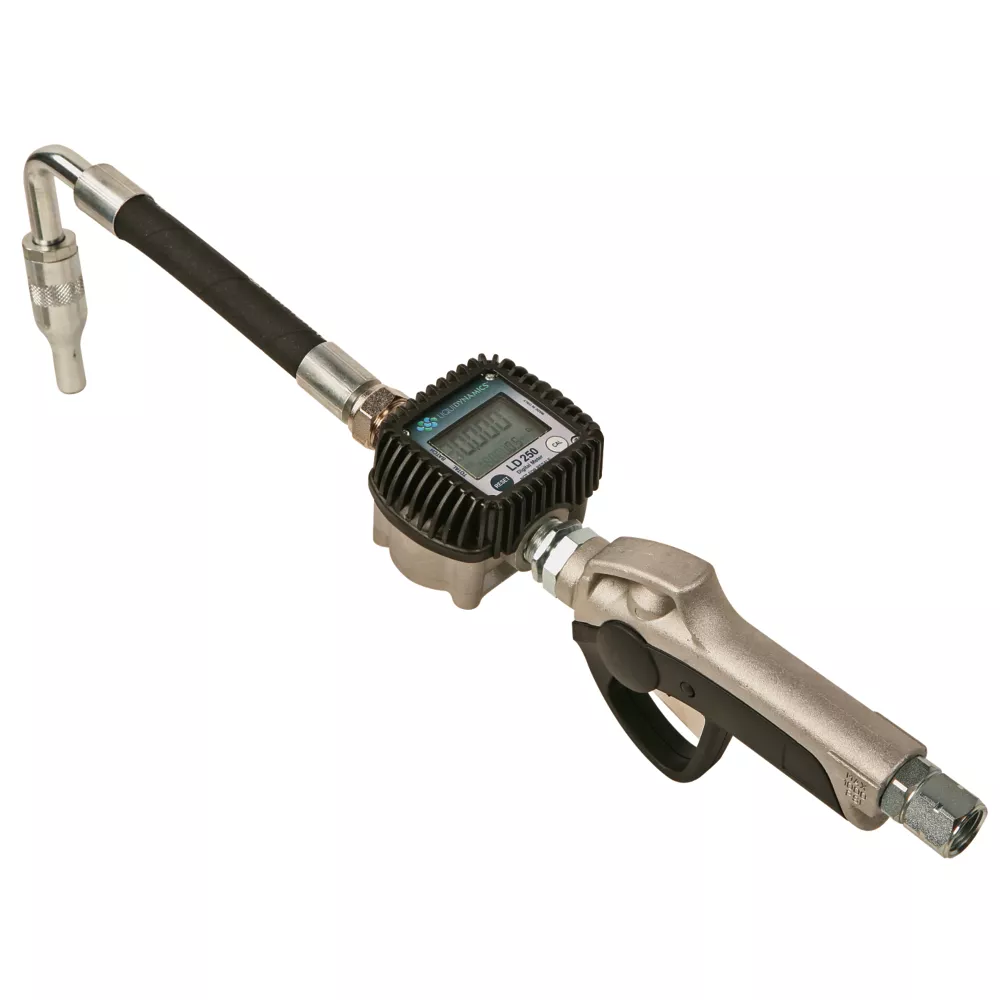

The Liquidynamics Battery Operated 0.26 to 8 GPM Digital Meter with Flex Spout 1/4 in. Auto Tip has a non preset oil control handle with flex hose, automatic tip and electronic digital meter for measuring fluids such as engine oil, gear oil, transmission fluid, and 100% antifreeze (ethylene glycol). The fuel transfer pump has meters that are powered by 2 field replaceable AAA alkaline batteries, with a minimum one year life expectancy. This battery powered fuel transfer pump as an accuracy of +/- 0.5% over a flow range of 0.26 to 8 GPM and maximum operating pressure of 1,000 PSI. The inlet measures 1/2 in. NPTF swivel. The units of measure are shown on the LCD display and easily changed from quarts to pints, gallons and liters. The cumulative total indicates gallons (or liters).

Non preset oil control handle with flex hose, automatic tip and electronic digital meter help you measure a variety of fluids
Meter has an LCD screen that is easy to read
Accuracy of +/- 0.5% over a flow range of 0.26 to 8 GPM
Maximum operating pressure of 1,000 PSI exerts strength
1-year limited warranty
Inlet measures 1/2 in. NPTF swivel
Units of measure are shown on the LCD display and easily changed from quarts to pints, gallons and liters
Cumulative total indicates gallons (or liters)
Convenient battery-operated fuel transfer pump meter
Powered by 2 field replaceable AAA alkaline batteries

Liquidynamics battery-powered digital meter with 1/4 in flexible spout Auto tip 0.26-8 GPM Fuel Transfer Tank Accessories Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Tank Accessories

Specification	Description
Brand	Liquidynamics
Country of Origin	Imported
AC or DC Powered	DC
Amperage	1A
Body Materials	Die Cast Aluminum
Compatible Fluids	Gear Oil, Transmission Fluid
Discharge Connection	None
Discharge Diameter	14 in.
Duty Cycle	1
Features	Compact & Lightweight
Horsepower	1 HP
Hose Diameter	1/4 in.
Inlet Connection	Threaded Female
Inlet Diameter	1/2 in.
Intended Use Grade	Industrial
Maximum Flow Rate	0.26 to 8 GPM
Maximum Head Lift	6 ft.
Maximum Operating Pressure	1,000 PSI
Maximum Operating Temperature	180 deg.
Minimum Operating Pressure	1,000 PSI
Minimum Operating Temperature	50 deg.
Power Cord Length	0 ft.
Power Type	Battery
Product Height	22 in.
Product Length	22 in.
Product Weight	4 lb.
Product Width	3-1/2 in.
Voltage	1V
Warranty	1 Year Limited
Manufacturer PartNumber	100200-FA

Liquidynamics Battery Powered Digital Meter with Flex Spout 1/4 in. Auto Tip, 0.26-8 GPM Specifications Expand/Collapse Specification Description Brand Liquidynamics Country of Origin Imported AC or DC Power Supply DC Amperage 1A Body Materials Die Cast Aluminum Compatible Fluids Gear Oil, Transmission Fluid Discharge Fitting None Discharge Diameter 14 in. Duty Cycle 1 Features Compact and lightweight Power Hose 1 HP Diameter 1/4 in. Inlet connection Female threaded Inlet diameter 1/2 in. Intended Use Industrial Grade Maximum Flow Rate 0.26 to 8 GPM Maximum Head Lift 6 Feet Maximum Operating Pressure 1,000 PSI Maximum Operating Temperature 180 Degrees. Minimum operating pressure 1,000 PSI Minimum operating temperature 50 degrees. Power cord length 0 ft. Power Type Battery Product Height 22 in. Product length 22 in. Product weight 4 lbs. Product width 3-1/2 in. Voltage 1 V Warranty 1 year limited Manufacturer part number 100200-FA
