Littelfuse 12 Gauge Glass In-Line Fuse Holder with 30 Amp Fuse Automotive Fuse Holders Truck & Automotive

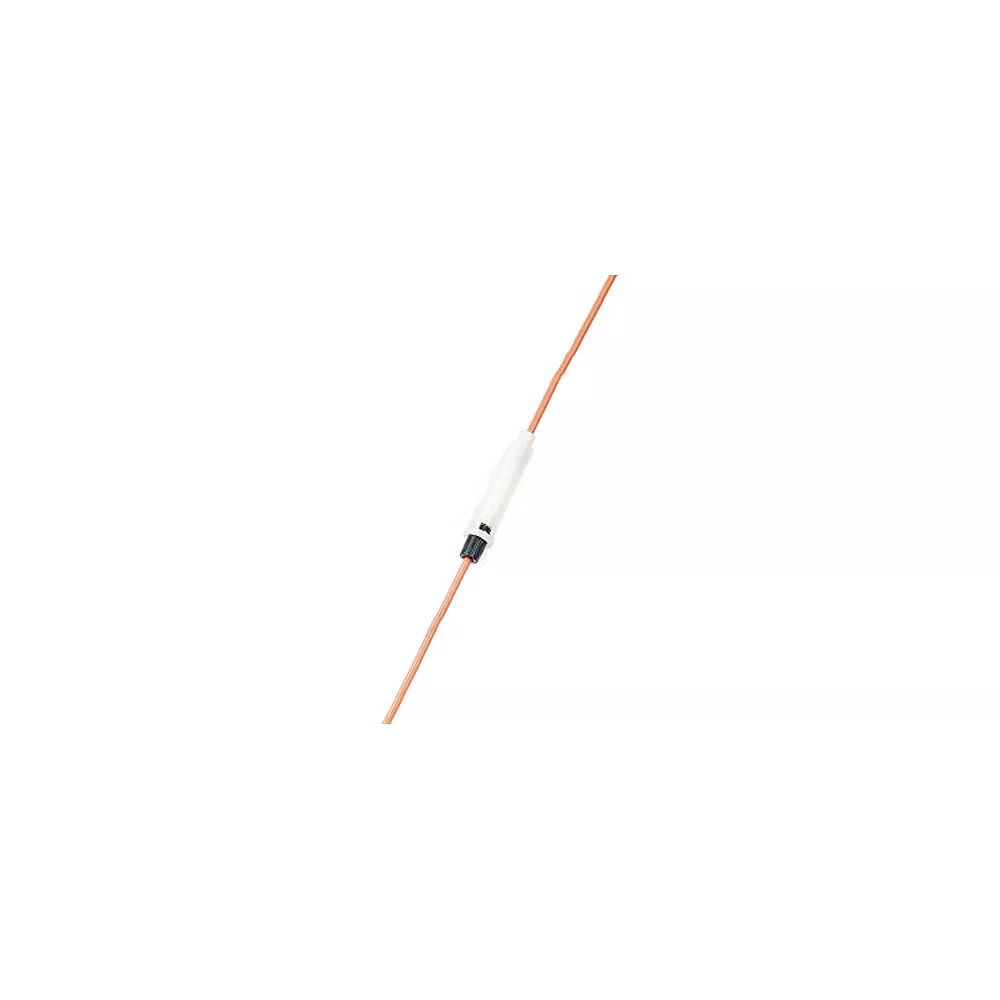

The Littelfuse Glass In-Line Fuseholder with 30A Fuse includes an AGC 30 Amp fuse for GM air conditioners, heater blower motors or other heavy-duty applications. A simple twist-lock knob and body design provides this in-line fuseholder with easy fuse installation and replacement. This Littelfuse fuseholder features standard-duty, 8-inch looped UL 1015 wire leads for cut-and-install, in-line installation.

Littelfuse in-line fuseholder with 2 heavy-duty, 4-inch GXL wire leads for easy in-line installation
Standard-duty, 8-inch looped UL 1015 wire leads offer cut-and-install, in-line installation
Accepts SFE, AGA, AGC, AGW, and AGX Series glass fuses for a wide range of compatibility
Spring-loaded, twist-lock body offers easy fuse installation and replacement
Weather-resistant nylon body offers this glass in-line fuseholder durability
32V DC max voltage for optimal power capability
Ideal for use with air conditioners, blower motors and other heavy-duty applications
12 ga. Orange wire offers added durability
-40-degrees C to + 80-degrees C operating temp for optimal conditions

Littelfuse 12 Gauge Glass In-Line Fuse Holder with 30 Amp Fuse Automotive Fuse Holders Truck & Automotive> Automotive Electrical> Automotive Fuses & Accessories> Automotive Fuse Holders

Specification	Description
Brand	Littelfuse
Country of Origin	Imported
Amperage Rating	30A
Compatible Fuse Sizes	SFE, AGA, AGC, AGW, and AGX Series glass fuses
Maximum Operating Temperature	80 deg. C
Minimum Operating Temperature	-40 deg. C
Number Of Fuses Held	1
Package Quantity	1
Primary Color	Multicolor
Primary Material	Nylon
Product Height	0.56mm
Product Length	10.5mm
Product Weight	0.05 lb.
Product Width	2.54mm
Voltage Rating	32VDC
Warranty	1 Year
Wire Gauge	12 Gauge
Manufacturer PartNumber	0FNY0030XP

Littelfuse 12-Gauge Glass In-Line Fuse Holder with 30A Fuse Specifications expand/collapse Specification Description Brand Littelfuse Country of origin Imported current rating 30A Compatible fuse sizes SFE, AGA, AGC, AGW and AGX series glass fuses Maximum operating temperature 80 deg. C Minimum operating temperature -40 degrees. C Number of fuses held 1 Quantity per pack 1 Primary color Multicolor Main material Nylon Product height 0.56 mm Product length 10.5 mm Product weight 0.05 lbs. Product Width 2.54mm Rated Voltage 32V DC 1 Year Warranty Wire Gauge 12 Gauge Manufacturer Part Number 0FNY0030XP
