Malone Microsport 2-Tier Low Bed Kayak Trailer 800 lb Capacity Kayak & Canoe Carriers Sports Equipment Racks & Carriers

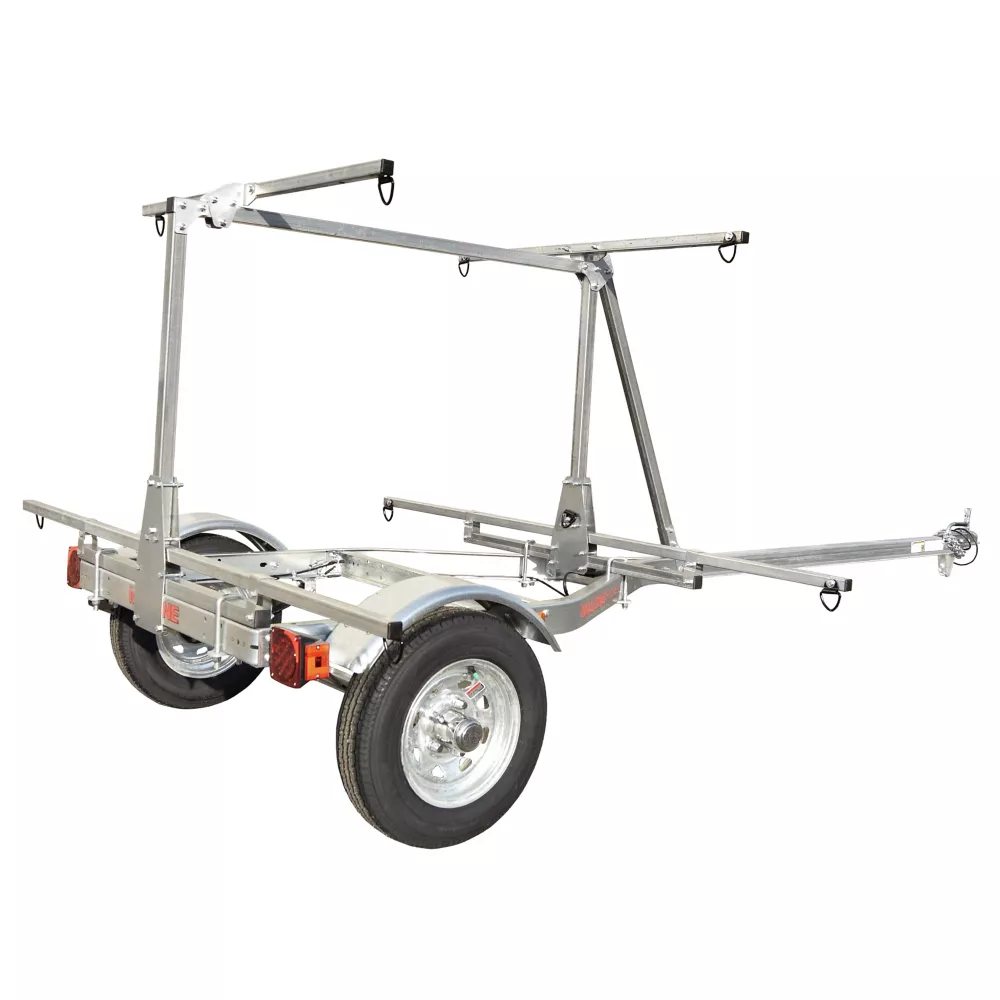

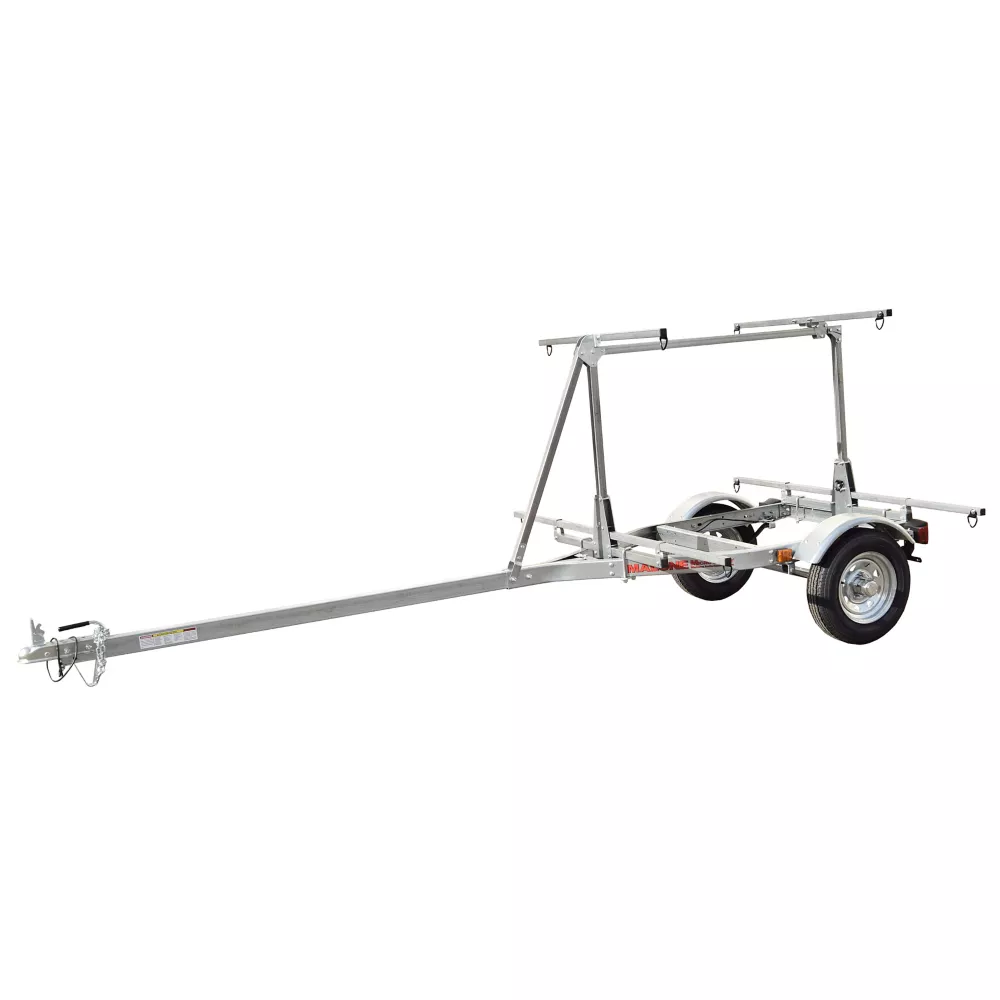

The MPG464-LBT MicroSport LowBed is a modified Base Trailer fitted with a 2nd Tier Kit. The trailer's bottom load bar supports have been redesigned to extensively lower the bar height. Now just 22" from the ground, the lower bars make loading and unloading heavy kayaks easier and much safer. These galvanized marine grade trailers can be backed down a boat ramp in order to launch directly into the water. Featuring submersible LED lighting and 78" lower load bars for up to six kayaks. The 2nd Tier has a 100 lb. load rating and provides transport for additional gear. The 50" upper load bars provide a comfortable height (58") to access a cargo box, bike or boat. This 800 lb. load rated trailer is DOT and Transport Canada approved. Assembles in approximately three to four hours with standard tools. Five Year Warranty. Made in the USA.

Pre-assembled hubs for a clean and simple installation
12 in. galvanized wheels with marine grade sealed bearings
Reinforced steel tongue can transport boats up to 20 ft. in length
78 steel, 1 square load bars featuring d-ring tie-downs
50 in. steel, 1 square upper load bars w/ 2nd Tier Kit
11 gauge pre-galvanized steel construction for years of service
Made in the USA
Five Year Limited Warranty
Load Capacity: 800 lb. / 20 ft. canoe or kayak
Dimensions: 13 ft. 3 in. (length)
Width (Without crossbars): 55 in.
Frame Width Assembled (Width within Fenders): 40 in.
Weight (Without accessories): 197 lb.
Frame: Marine grade galvanized steel
Hitch: 2 in. Class II receiver
Required Ball Size for Vehicle Attachment: 2 in.
Ball Height: 18 in. From Ground - To Top Of Ball
Recommended Tire Pressure: 35 to 40 PSI
Tongue Weight (Unloaded): 25 lb.
Lower Cross Bar Spread (Adjustable): 44 in. - 63 in.
Height of Upper Cross Bars from Ground: 58 in.
Height of Lower Cross Bars from Ground: 22 in.

Malone Microsport 2-Tier Low Bed Kayak Trailer 800 lb Capacity Kayak & Canoe Carriers Truck & Automotive> Cargo Management> Sports Equipment Racks & Carriers> Kayak & Canoe Carriers

Specification	Description
Brand	Malone
Country of Origin	Imported
Assembly Required	Yes
Compatibility	Kayaks, Paddle Boards, Canoes
Mounting Type	Compatible with carriers fitting a 1.25 in. square bar
Compatibility	2 in. ball
Features	Pre-assembled hubs for a clean and simple installation 12 in. galvanized wheels with marine grade sealed bearings Reinforced steel tongue can transport boats up to 20 ft. in length 78 in. steel, 1 1/4 in. square load bars featuring d-ring tie-downs
Maximum Weight Capacity	800 lb.
Number Carried	N/A
Primary Color	Gray
Primary Material	Galvanized Steel
Product Depth	13 ft. 3 in.
Product Height	58 in.
Product Weight	197 lb.
Product Width	78 in.
Warranty	Five Year Limited Warranty
Manufacturer PartNumber	MPG464-LBT

Malone 800 lb. Capacity Microsport Low Bed 2-Tier Kayak Trailer Specifications expand/collapse Specification Description Brand Malone Country of origin Imported Assembly required Yes Compatibility Kayaks, paddleboards, canoes Mounting type Compatible with mounts that fit a 1.25" square bar 2" ball compatibility Features Pre-mounted hubs assembled for a clean, simple installation 12" galvanized wheels with marine grade sealed bearings. Reinforced steel tongue can carry boats up to 20 ft in length. 78 in., 1 1/4 in. square steel load bars with D-ring tie-downs. 800 lb. maximum weight capacity. Number Carried N/A Main Color Gray Main Material Galvanized Steel Product Depth 13 ft. 3 in. Product height 58 in. Product weight 197 lbs. Product width 78 in. Warranty Five-year limited warranty Manufacturer part number MPG464-LBT
