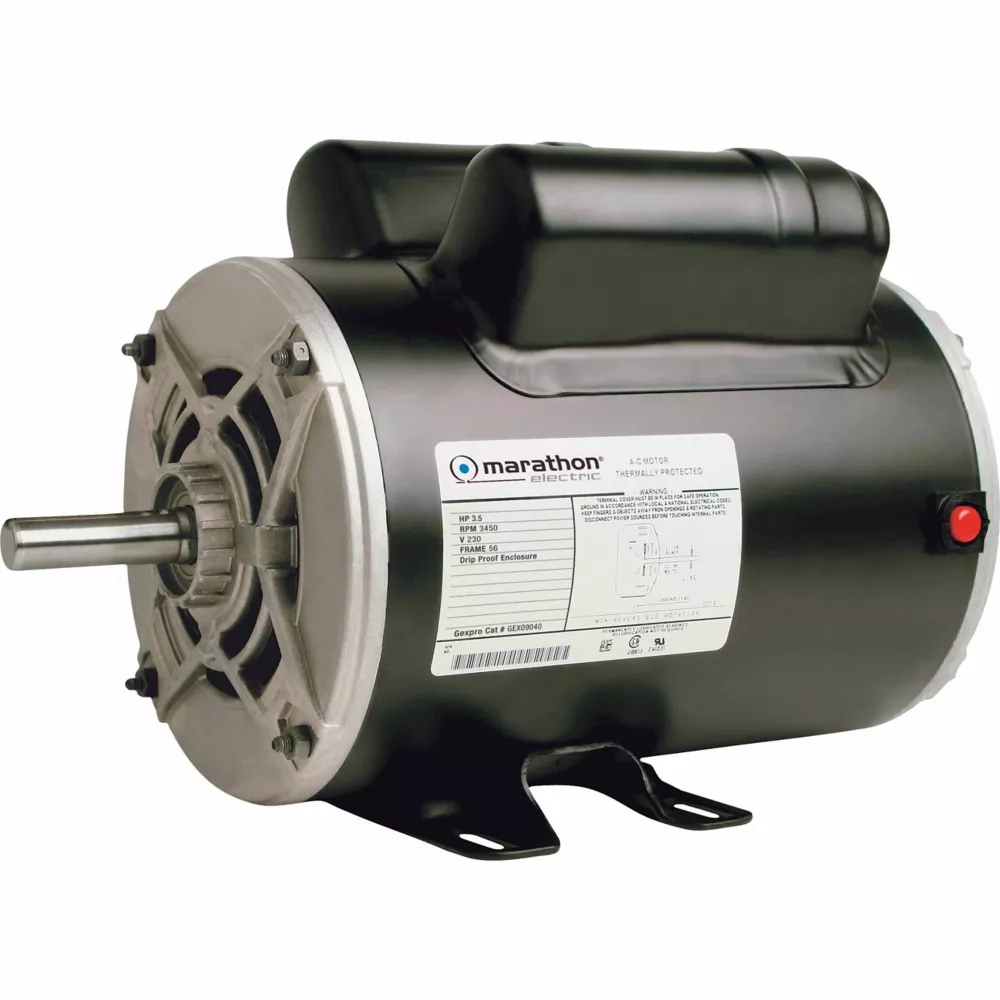

Marathon Motors 3-1/2 HP 230V 3600 RPM Electric Air Compressor Motor Air Compressor Motors Air Compressor Accessories & Parts

The Marathon Motors 3-1/2 HP Electric Air Compressor Motor is made to get the job done right. This air compressor motor can be used for commercial and residential air compressors, fans, dairy and poultry equipment and table saws. The capacitor start/capacitor run design of the air compressor motor reduces the amperage needed. The electric air compressor motor has manual reset thermal protection and a rigid base. Made with carbon steel, this compressor motor is designed for durability and strength.

Power: 3-1/2 HP
Backed by a 1-year limited warranty
Speed: 3,600 RPM
230V
Fl amps: 15
56 frame
Shaft size: 5/8 in.
Drip-proof electric air compressor motor
Rigid base air compressor motor
Ball bearings
Manual reset thermal protection
Capacitor start/capacitor run design for reduced amperage
Single phase footed air compressor motor
Single direction (clockwise rotation)
General-purpose air compressor motor
Applications of the air compressor motor include: Commercial and residential air compressors, fans, dairy and poultry equipment and table saws

Marathon Motors 3-1/2 HP 230V 3600 RPM Electric Air Compressor Motor Air Compressor Motors Tools> Air Compressors & Air Tools> Air Compressor Accessories & Parts> Air Compressor Motors

Specification	Description
Brand	Marathon Motors
Country of Origin	Imported
Amperage	15A
Compatibility	NONE
Hertz	60 Hz
Horsepower	3.5 HP
Maximum RPM	3,600 RPM
Minimum RPM	3,450 rpm
Frame Type	56
Phase	Single
Primary Material	Carbon Steel
Product Height	8.16 HEIGTH
Product Length	12.64 LENGTH
Product Weight	35 lb.
Product Width	6.42 WIDTH
Shank Diameter	9/14 in. x 1-6/7 in.
Stage Type	N/A
Voltage	230V
Warranty	1 Year Limited
Manufacturer PartNumber	GEX09040

Marathon Motors 3-1/2 HP 230V Electric Air Compressor Motor, 3,600 RPM Specifications expand/collapse Specification Description Brand Marathon Motors Country of Origin Imported Amperage 15A Compatibility NONE Hertz 60 Hz Power 3.5 HP Maximum RPM 3,600 RPM Minimum RPM 3,450 RPM Frame Type 56 Phase Single Main Material Carbon Steel Product Height 8.16 HEIGHT Product Length 12.64 LENGTH Product Weight 35 lbs Product Width 6.42 WIDTH Shank Diameter 9/14 in. x 1-6/7 in. Stage Type N/A Voltage 230 V 1 Year Limited Warranty Manufacturer Part Number GEX09040
