Maxim Single Acting Snow Plow Cylinder 1.5 in Bore x 10 in Stroke 1.5 in Shank Diameter 288501 Hydraulic Cylinders Tractor Repair & Parts

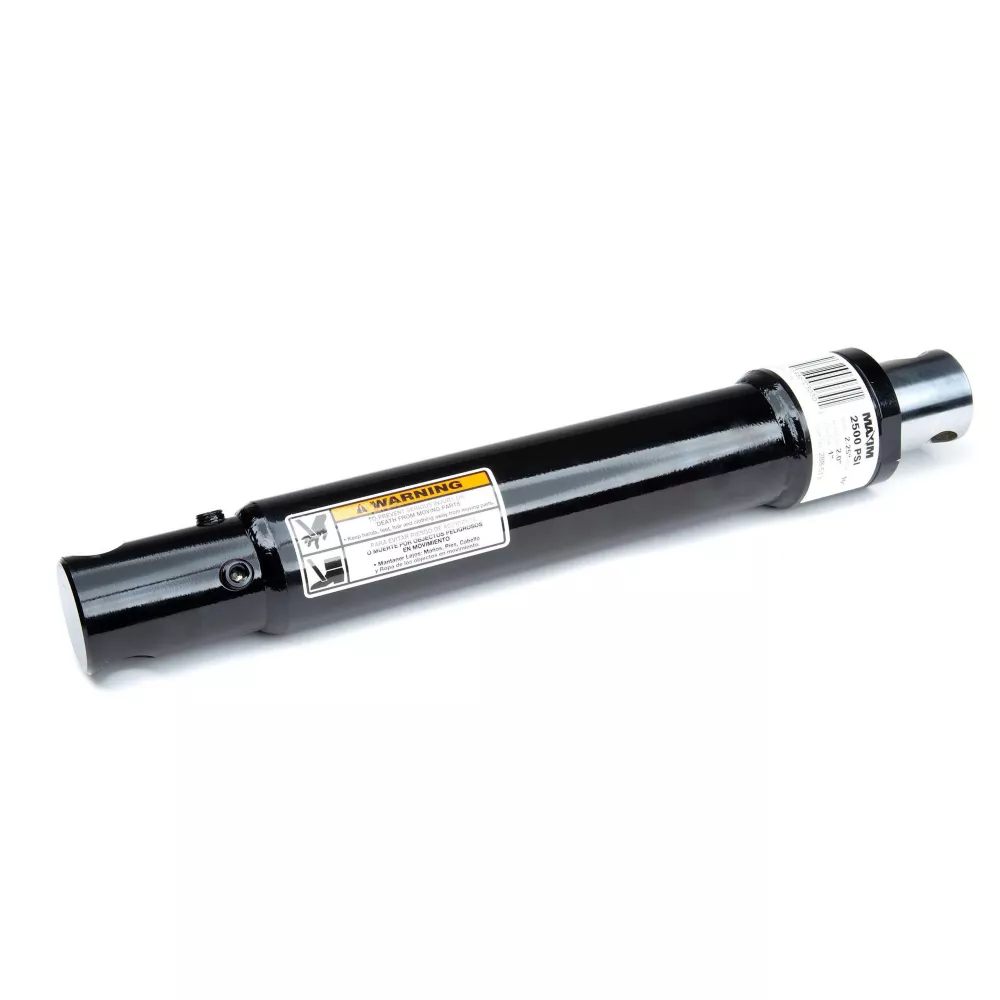

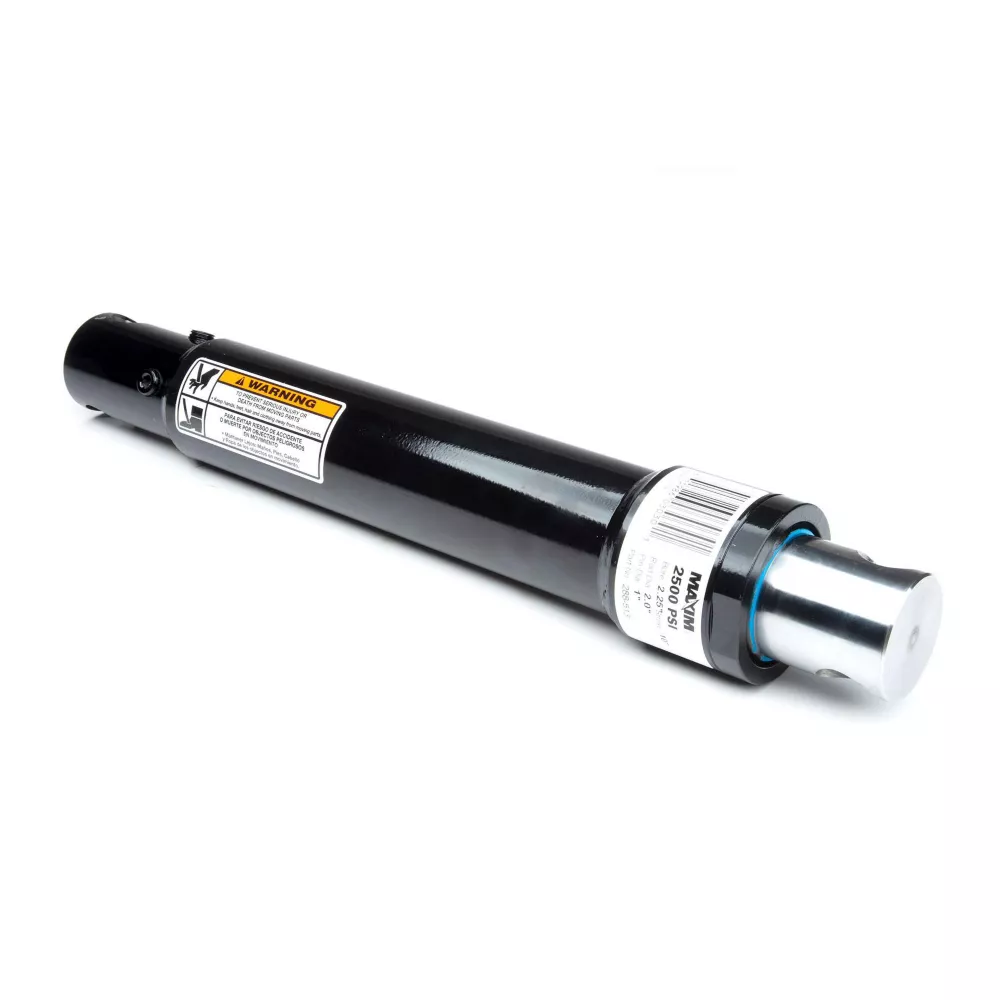

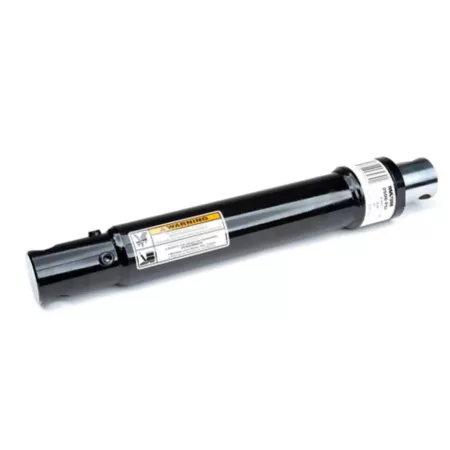

The Maxim 1.5 in. Bore x 10 in. Stroke Single-Acting Snowplow Cylinder features pin holes at base and rod end. This single acting hydraulic cylinder has two 1/4 in. ports 90 degrees apart to accommodate variable installation requirements. Made for hard winter work, this hydraulic cylinder has a 1.5 in. bore and 10 in. stroke length.

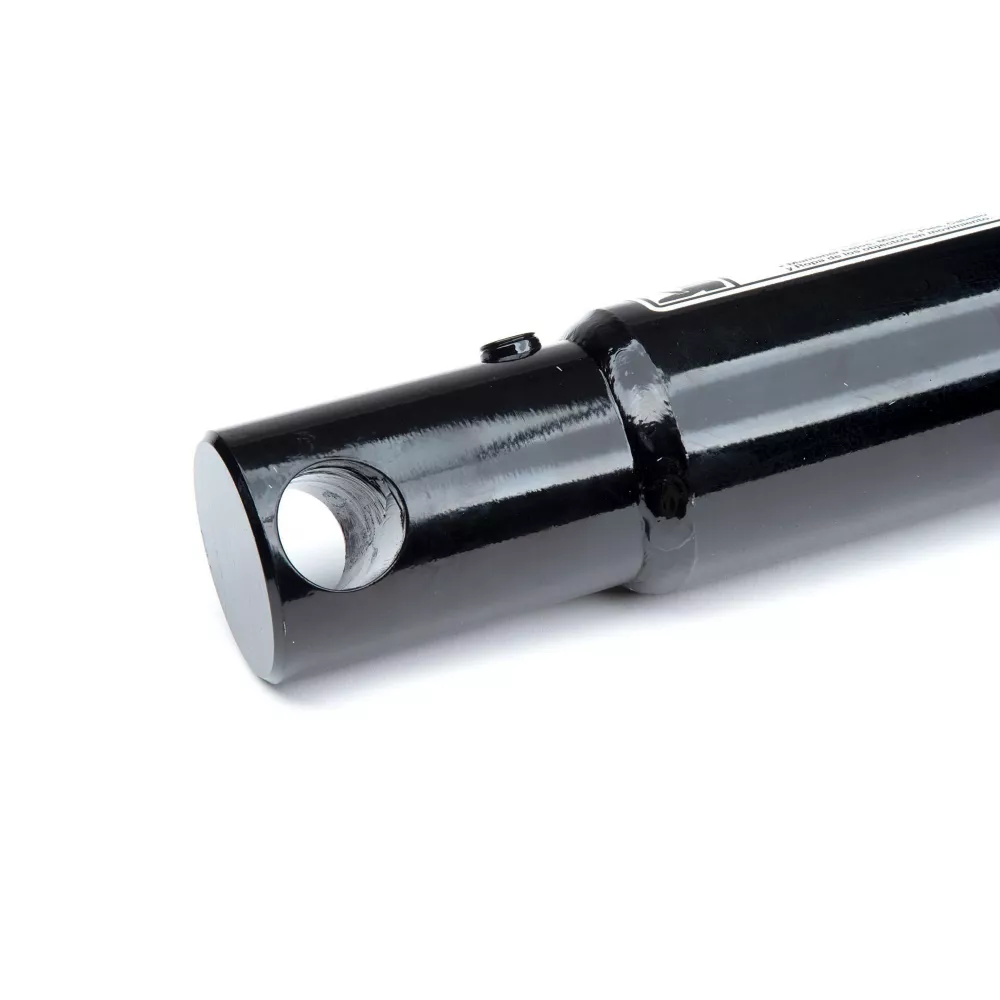

Two 1/4 in. ports 90 deg apart; 1 parallel to and 1 perpendicular to the pins in order to accommodate variable installation requirements
2,500 PSI

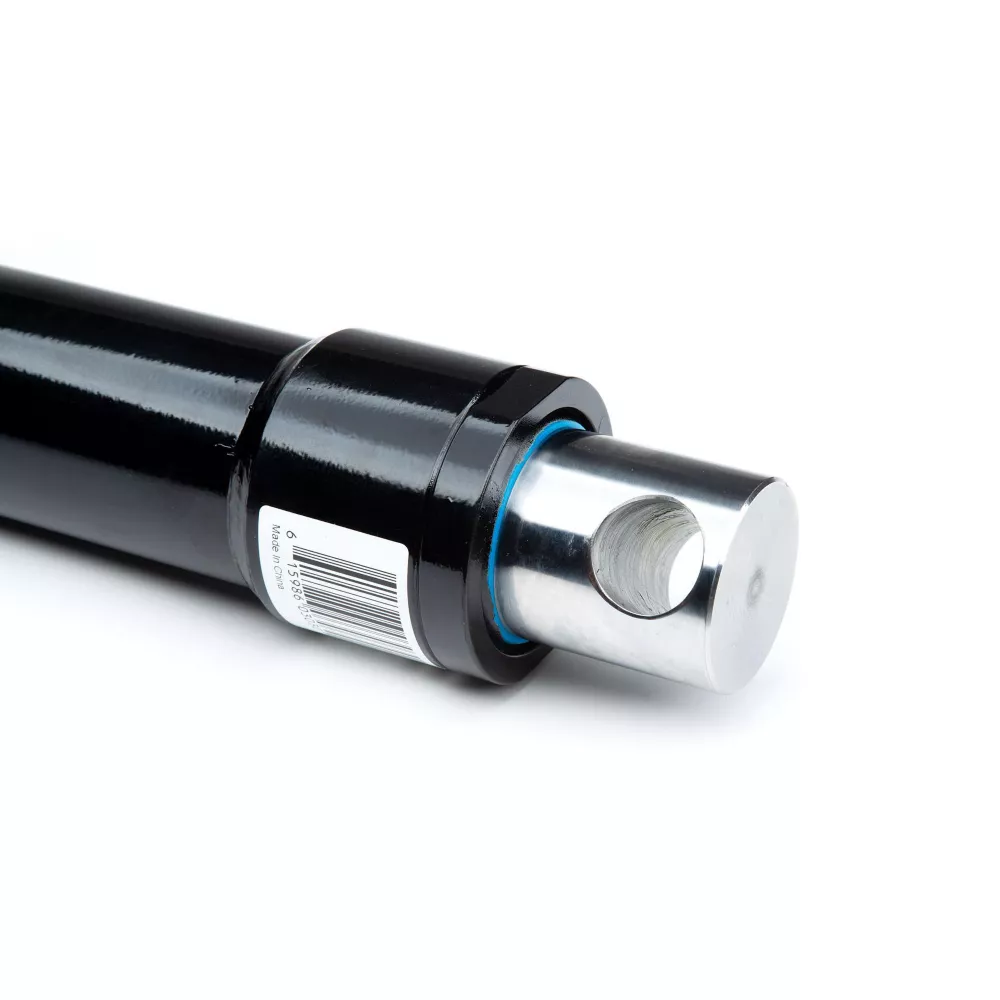

Pin hole center in the single acting hydraulic cylinder is 11/16 in. from rod end
Painted black for a simple look
Hydraulic cylinder has a 1.5 in. bore and 10 in. stroke length
Pin diameter: .625 in.
Rod diameter: 1.5 in.
Measures 16.25 in. retracted and 26.25 in. extended
1 year warranty

Note: This product may require up to 2 additional days for order processing prior to shipping

Maxim Single Acting Snow Plow Cylinder 1.5 in Bore x 10 in Stroke 1.5 in Shank Diameter 288501 Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders

Specification	Description
Brand	Maxim
Country of Origin	Imported
Bore Diameter	1.5 in.
Brand Compatibility	Universal
Compatibility	2 in.
Extended Length	26.25 in.
Hydraulic Cylinder Type	Snowplow
Maximum Operating Pressure	3,000 PSI
Maximum Weight Capacity	13 lb.
Model Compatibility	Universal
Package Quantity	1
Pin Diameter	0.625 in.
Port Size	1.4 NPT
Primary Material	Steel
Product Height	N/A
Product Length	N/A
Product Weight	13 lb.
Product Width	N/A
Retracted Length	16.25 in.
Rod Diameter	1-1/2 in.
Stroke Distance	10 in.
Warranty	1 Year
Manufacturer PartNumber	288501
