Maxim Single Acting Snow Plow Cylinder 1.5 in Bore x 12 in Stroke 1.5 in Shank Diameter Hydraulic Cylinders Tractor Repair & Parts

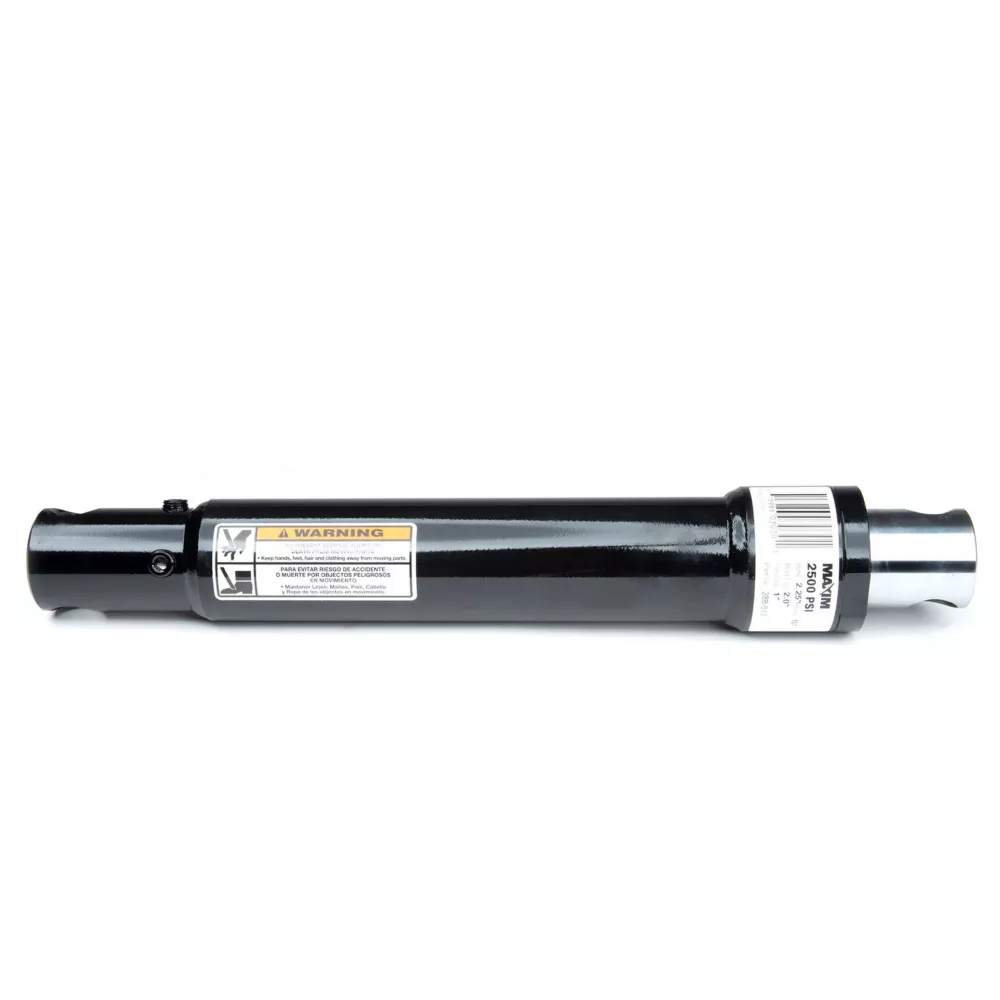

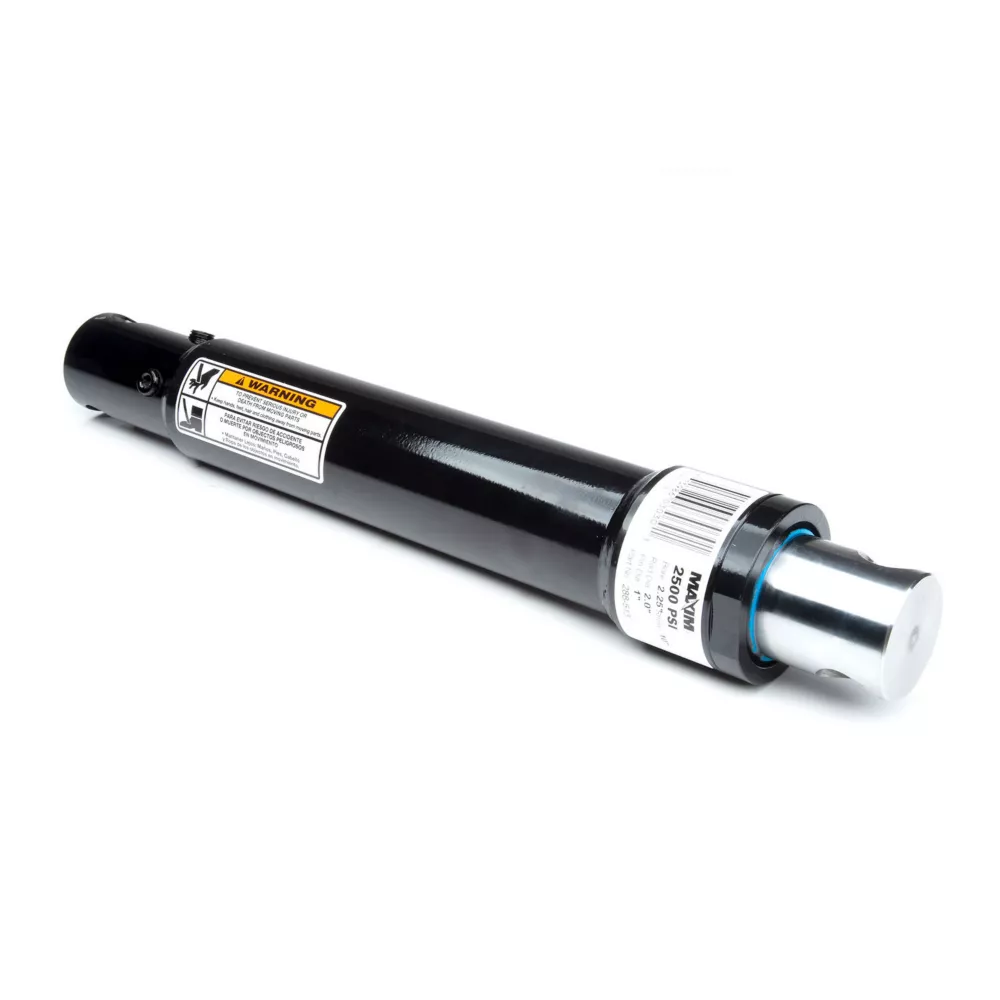

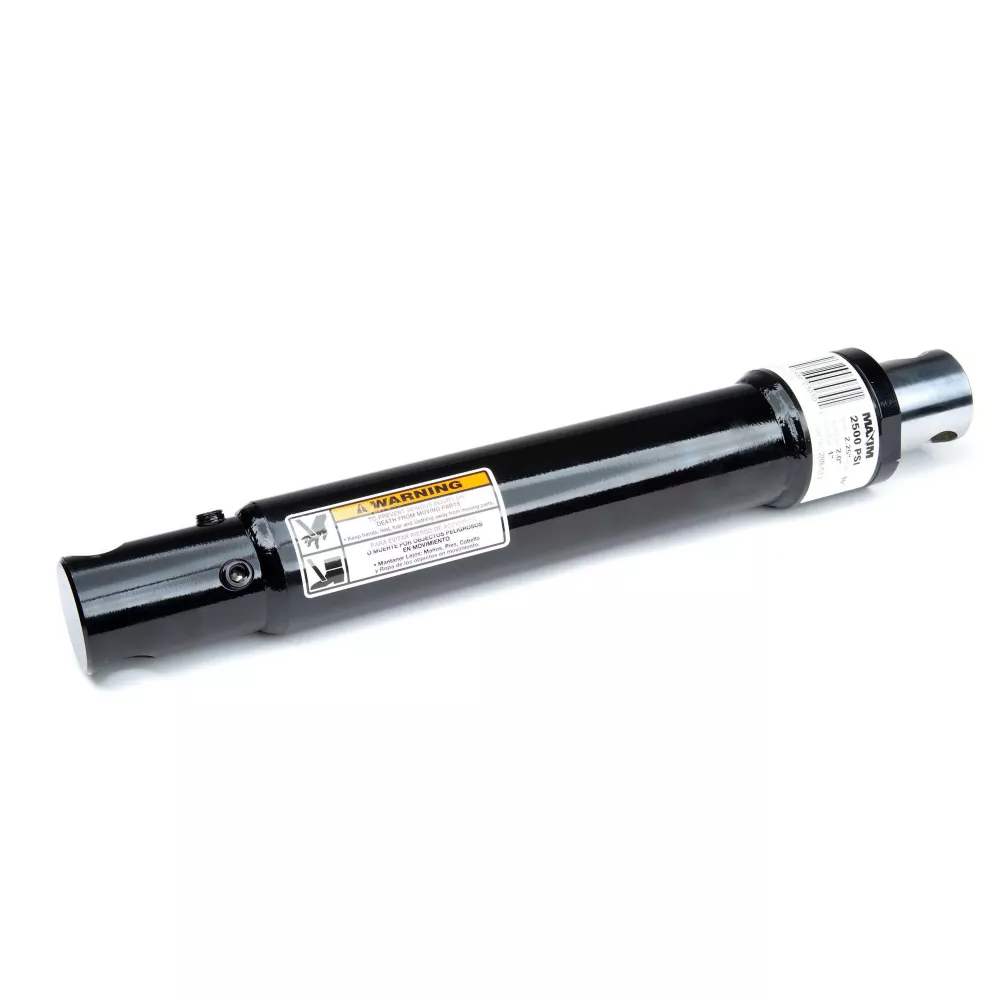

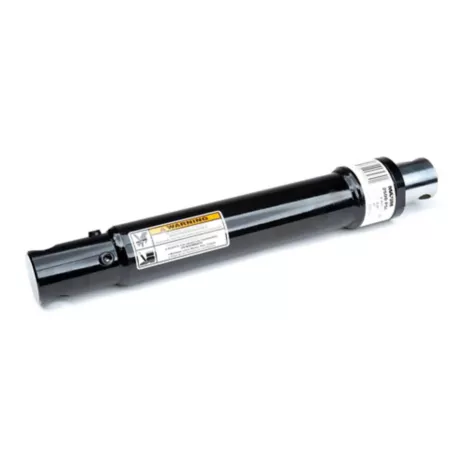

The Maxim 1.5 in. Bore x 12 in. Stroke Single-Acting Snowplow Cylinder features pin holes at base and rod end. This single acting hydraulic cylinder has two 1/4 ports 90 degrees apart to accommodate variable installation requirements. Hard work is never fun, that's why this hydraulic cylinder has been made with exacting precision to help make your work easier and faster!

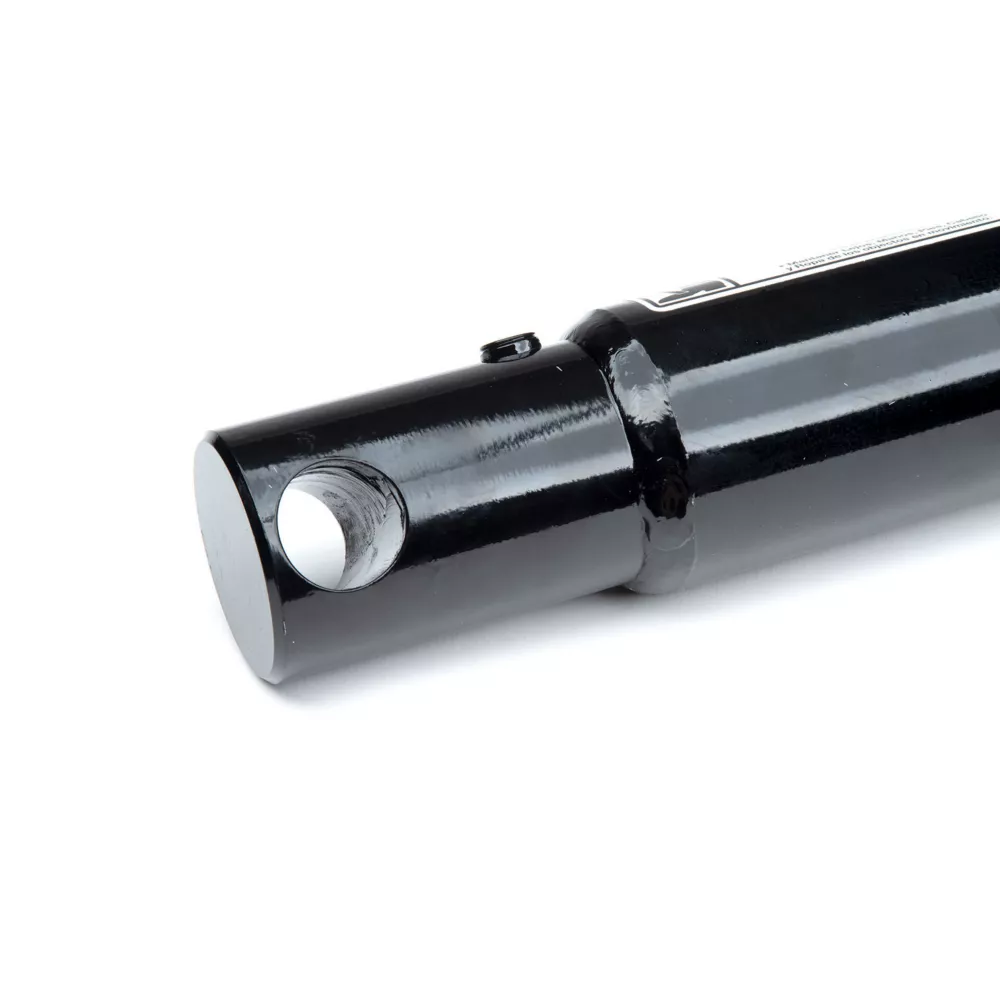

Two 1/4 ports 90 degrees apart; 1 parallel to and 1 perpendicular to the pins in order to accommodate variable installation requirements
Max PSI: 2,500

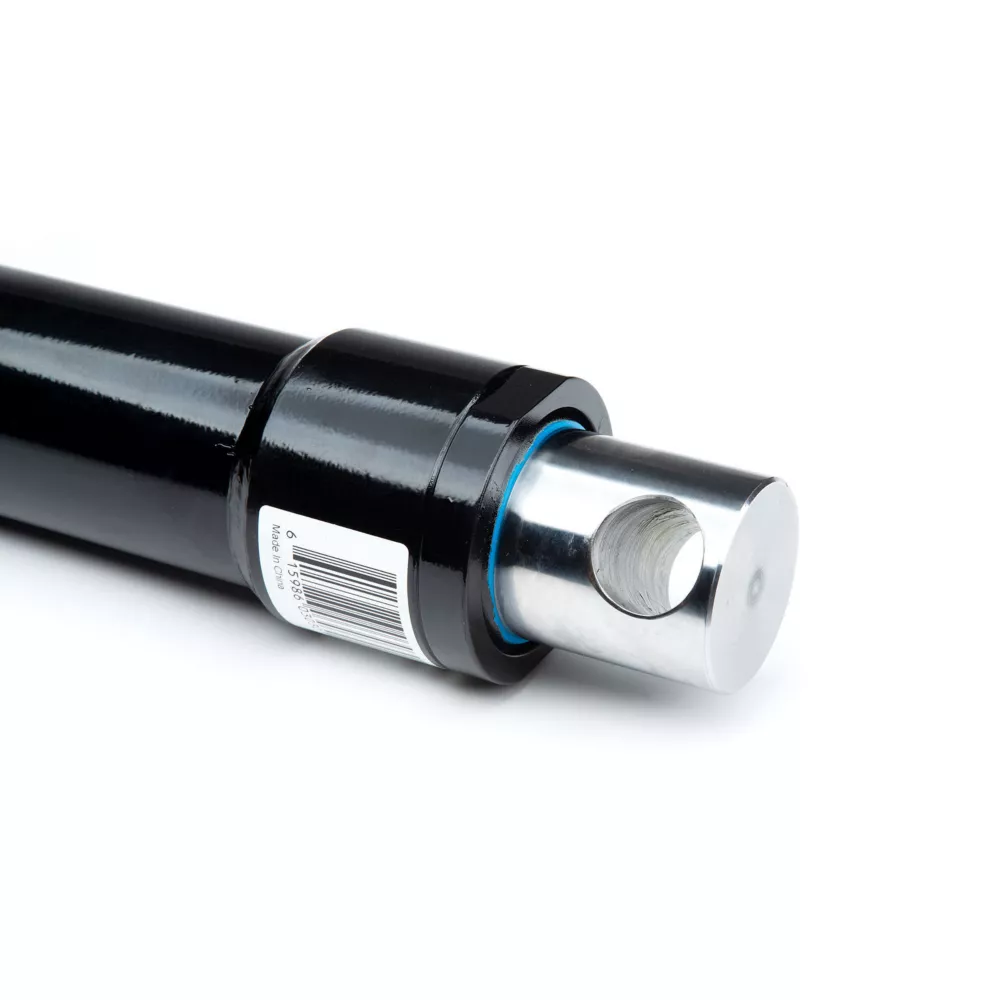

Pin hole center in the single acting hydraulic cylinder is 11/16 in. from rod end
Painted black
Hydraulic cylinder measures 19.38 in. retracted and 31.38 in. extended
Pin diameter of 1 in. and rod diameter of 1.5 in.
1 year warranty

Note: This product may require up to 2 additional days for order processing prior to shipping

Maxim Single Acting Snow Plow Cylinder 1.5 in Bore x 12 in Stroke 1.5 in Shank Diameter Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders

Specification	Description
Brand	Maxim
Country of Origin	Imported
Bore Diameter	1.5 in.
Brand Compatibility	Universal
Compatibility	3 in.
Extended Length	31.38 in.
Hydraulic Cylinder Type	Snowplow
Maximum Operating Pressure	3,000 PSI
Maximum Weight Capacity	14 lb.
Model Compatibility	Universal
Package Quantity	1
Pin Diameter	1 in.
Port Size	N/A
Primary Material	Steel
Product Height	N/A
Product Length	N/A
Product Weight	14 lb.
Product Width	N/A
Retracted Length	19.38 in.
Rod Diameter	1-1/2 in.
Single/Double Acting	Single acting
Stroke Distance	12 in.
Warranty	1 Year
Manufacturer PartNumber	288509
