Maxim Single Acting Snow Plow Cylinder 1.5 in Bore x 6 in Stroke 1.5 in Shank Diameter 288500 Hydraulic Cylinders Tractor Repair & Parts

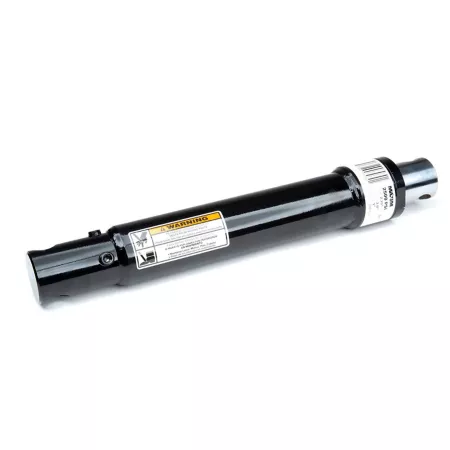

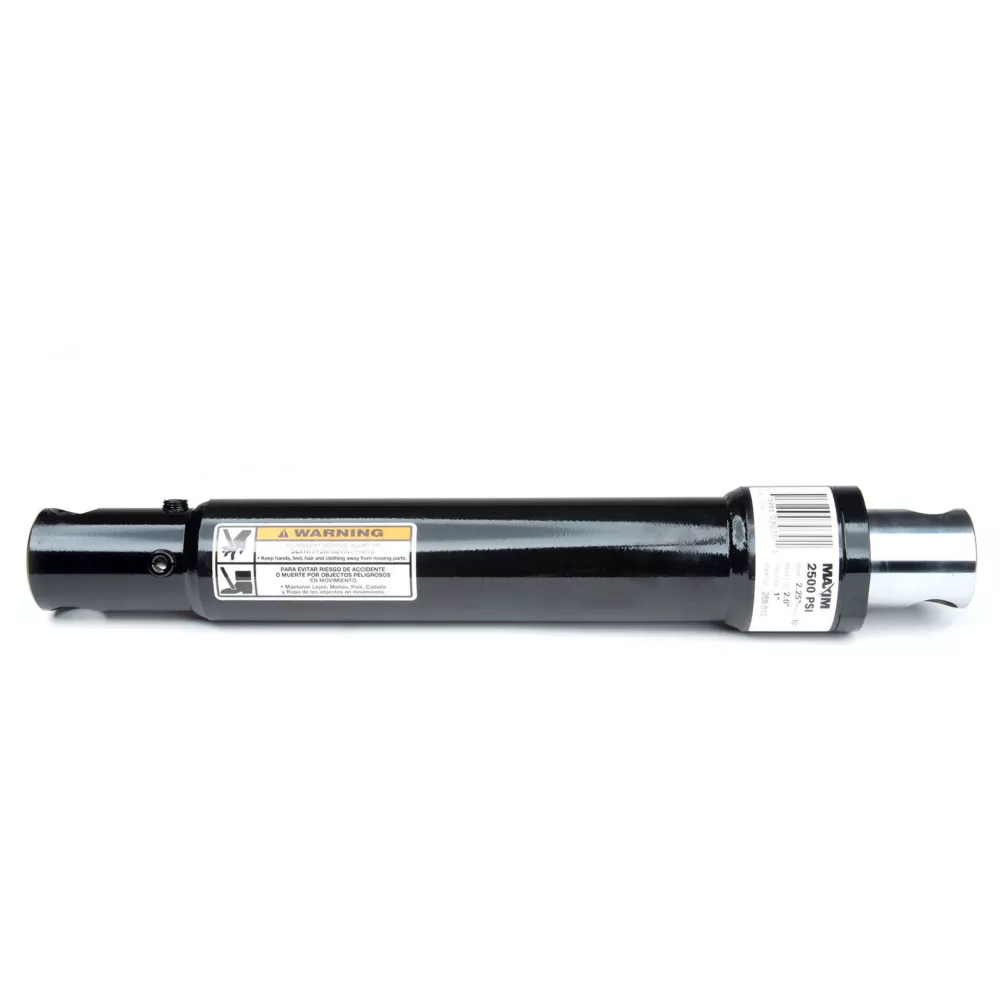

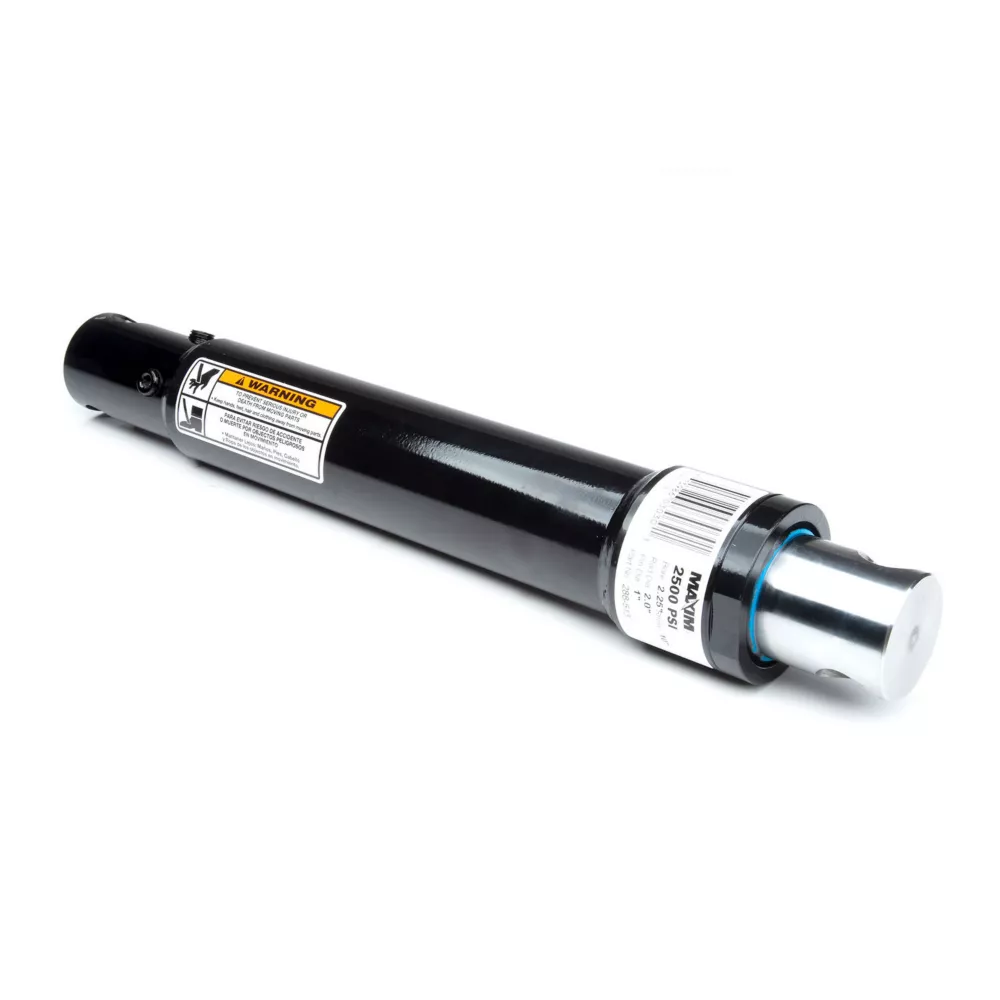

The Maxim 1.5 in. Bore x 6 in. Stroke Single-Acting Snowplow Cylinder features pin holes at base and rod end. This single acting hydraulic cylinder has two 1/4 ports 90 degrees apart to accommodate variable installation requirements. Hard work is never fun, that's why this hydraulic cylinder has been made with exacting precision to help make your work easier and faster!

Two 1/4 ports 90 degrees apart; 1 parallel to and 1 perpendicular to the pins in order to accommodate variable installation requirements
Max PSI: 2,500

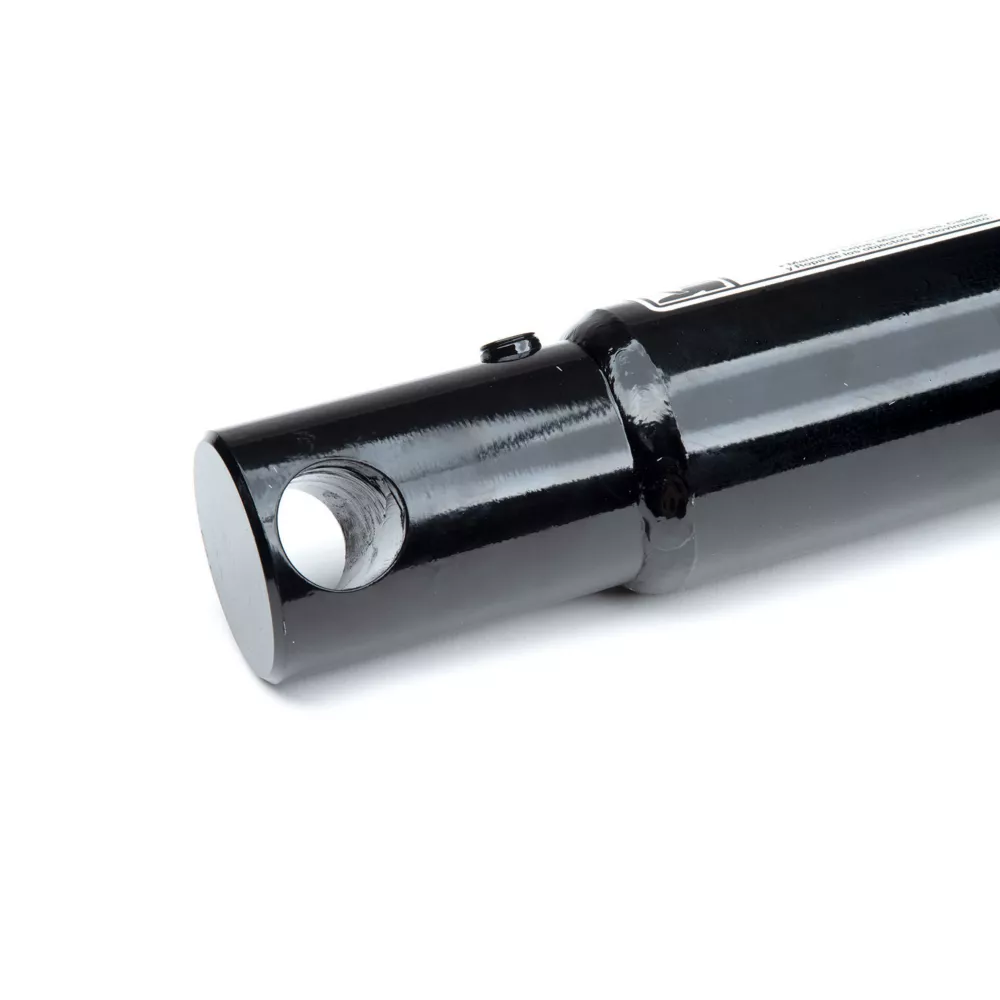

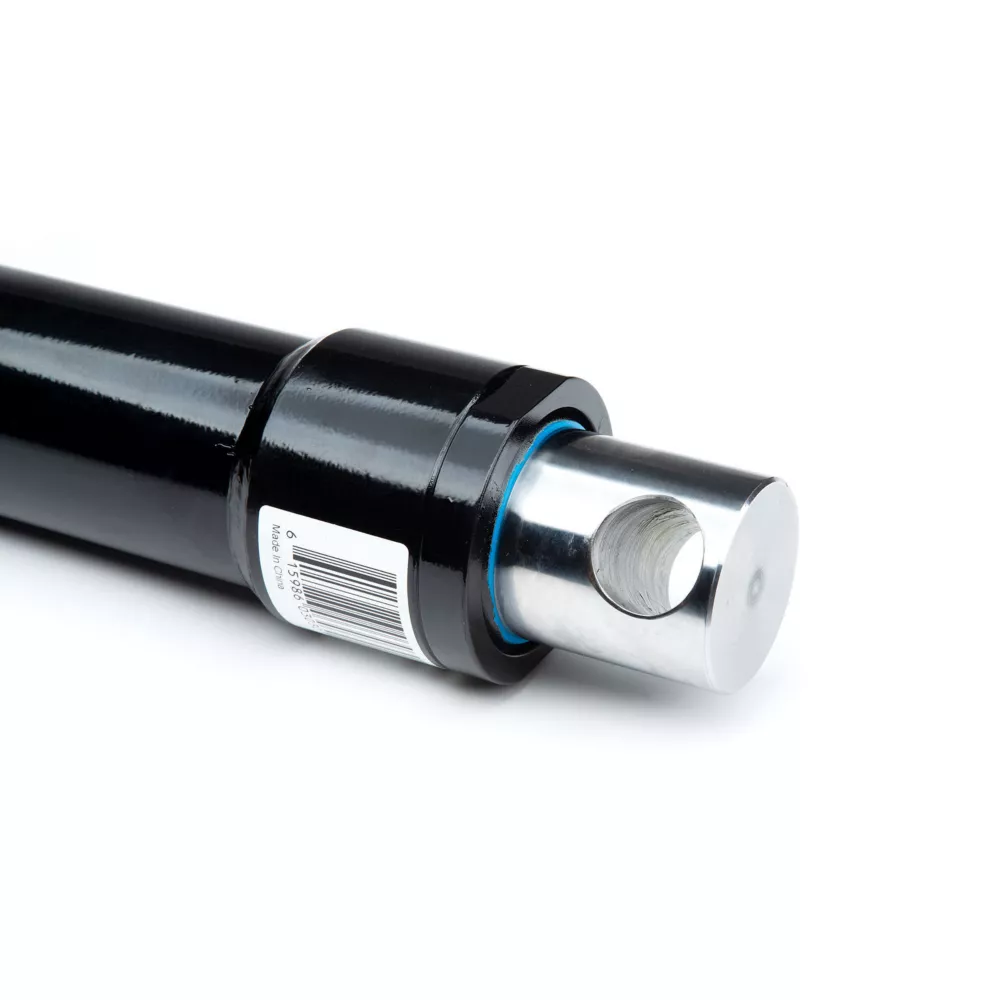

Pin hole center in the single acting hydraulic cylinder is 11/16 in. from rod end
Painted black
Hydraulic cylinder measures 12 in. retracted and 18 in. extended
Pin diameter of 0.625 in. and rod diameter of 1.5 in.
1 year warranty

Note: This product may require up to 2 additional days for order processing prior to shipping

Maxim Single Acting Snow Plow Cylinder 1.5 in Bore x 6 in Stroke 1.5 in Shank Diameter 288500 Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders

Specification	Description
Brand	Maxim
Country of Origin	Imported
Bore Diameter	1.5 in.
Brand Compatibility	Universal
Compatibility	2 in.
Extended Length	18 in.
Hydraulic Cylinder Type	Snowplow
Maximum Operating Pressure	3,000 PSI
Maximum Weight Capacity	12 lb.
Model Compatibility	Universal
Package Quantity	1
Pin Diameter	0.625 in.
Port Size	1.4NPT
Primary Material	Steel
Product Height	N/A
Product Length	N/A
Product Weight	12 lb.
Product Width	N/A
Retracted Length	12 in.
Rod Diameter	1-1/2 in.
Single/Double Acting	Single acting
Stroke Distance	6 in.
Warranty	1 Year
Manufacturer PartNumber	288500

Maxim 1.5 in. Bore x 6 in. Stroke Single-Acting Snowplow Cylinder, 1.5 in. Rod Diameter, 288500 Specifications expand/collapse Specification Description Brand Maxim Country of Origin Imported Bore Diameter 1.5 in. Brand Compatibility Universal compatibility 2 in. Extended length 18 in. Hydraulic Cylinder Type Snow Plow Maximum Operating Pressure 3,000 PSI Maximum Weight Capacity 12 lbs. Model Compatibility Universal Package Quantity 1 Pin Diameter 0.625 in. Port Size 1.4 NPT Primary Material Steel Product Height N/A Product Length N/A Product Weight 12 lbs. Product Width N/A Retracted Length 12 in. Shank diameter 1-1/2 in. Single/Double Acting Single Acting Stroke Distance 6 in. 1 year warranty Manufacturer part number 288500
