Maxim Single Acting Snow Plow Cylinder 1.5 in Bore x 6 in Stroke 1.5 in Shank Diameter 288503 Hydraulic Cylinders Tractor Repair & Parts

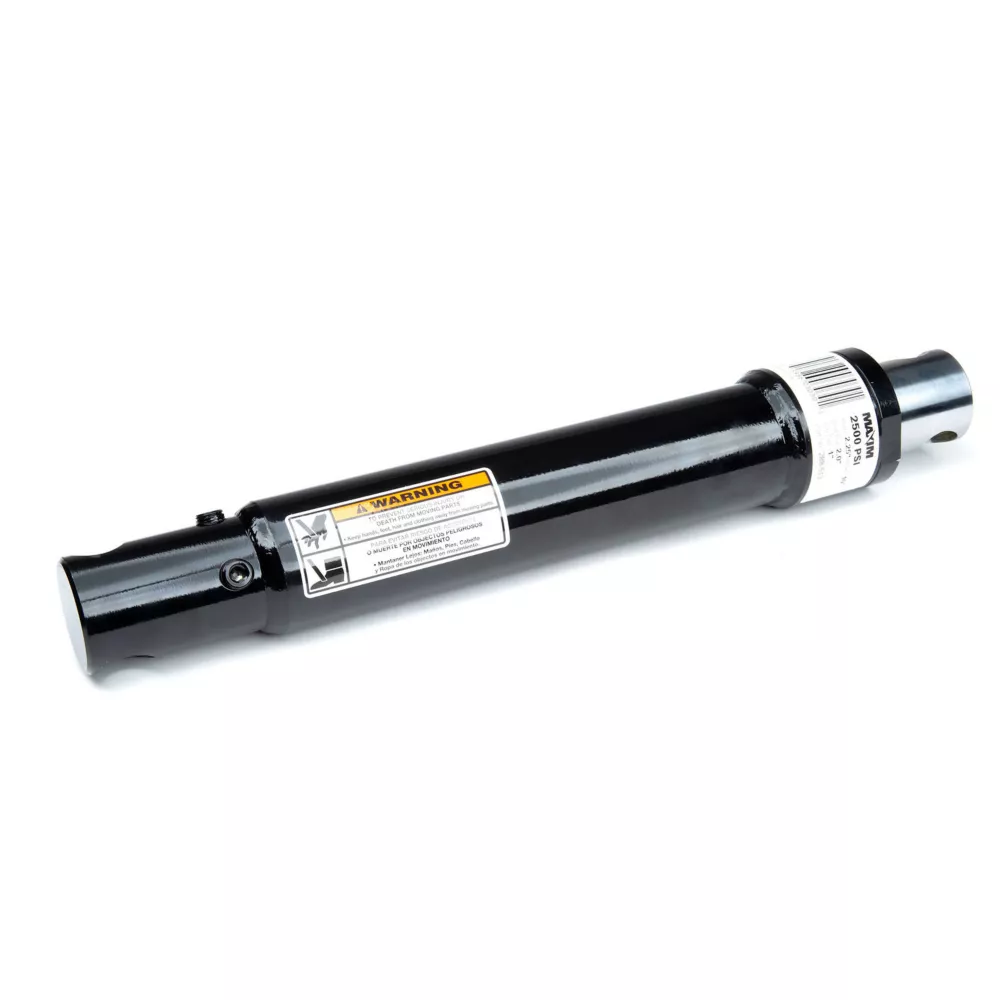

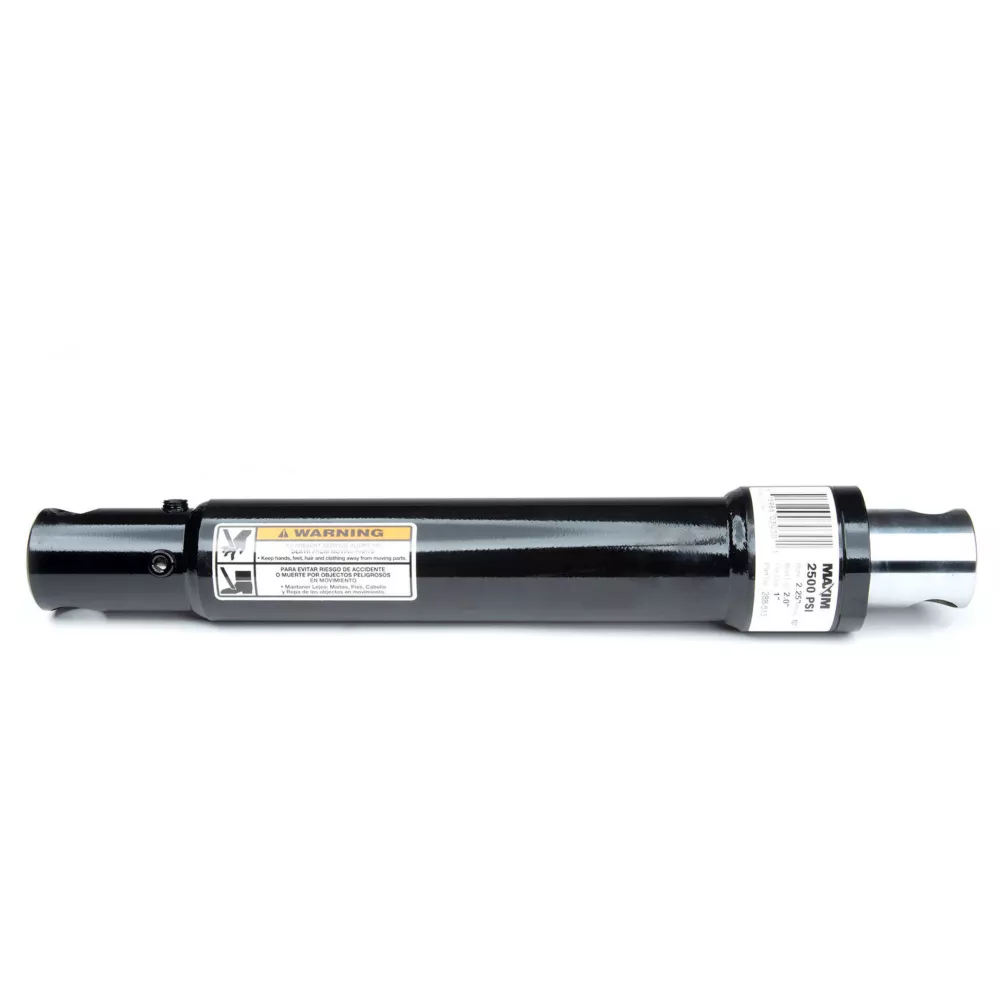

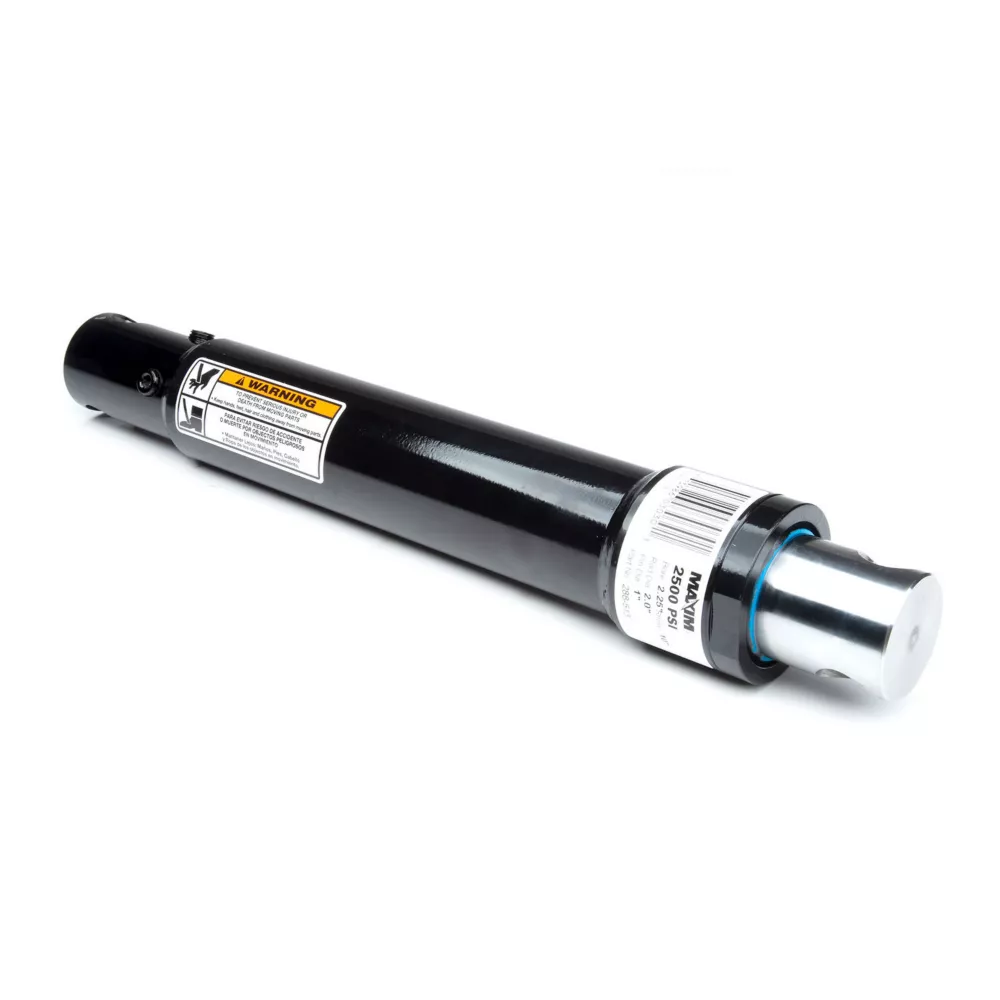

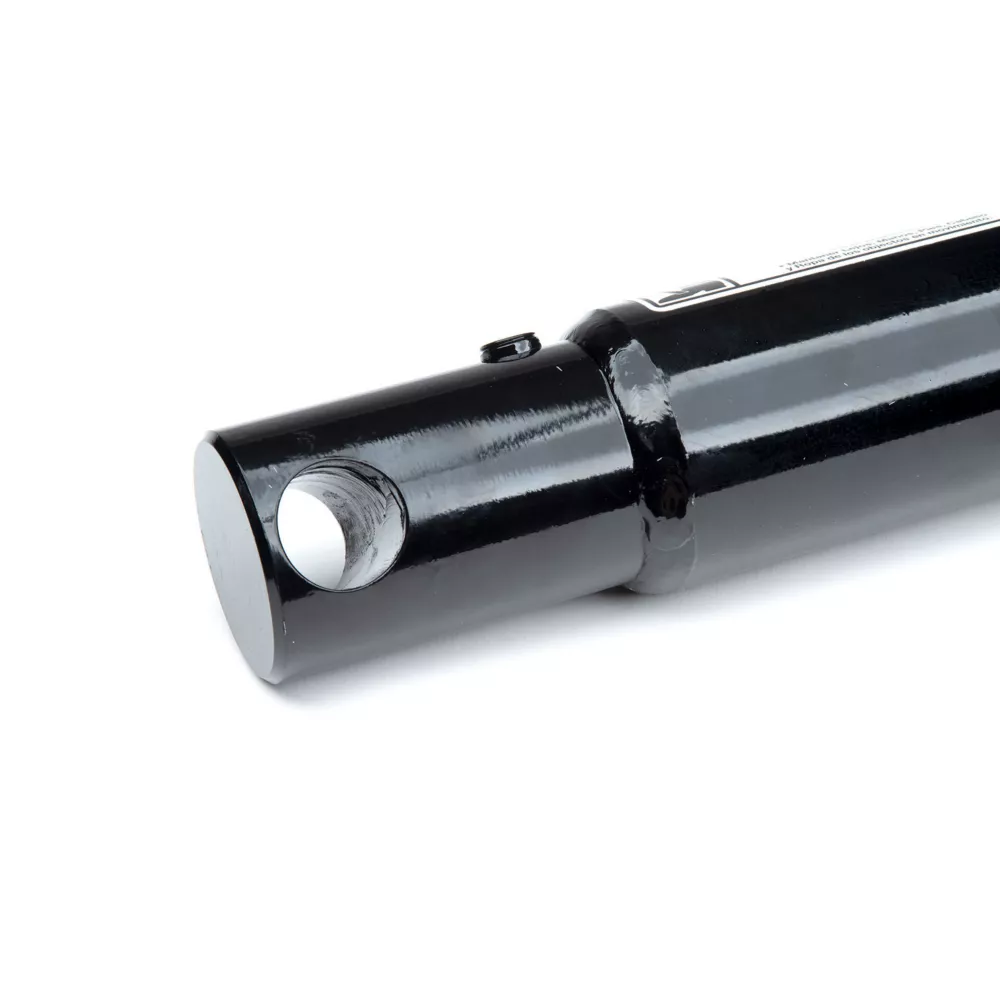

The Maxim 1.5 in. Bore x 6 in. Stroke Single-Acting Snowplow Cylinder features pin holes at base and rod end. This single acting hydraulic cylinder has two 1/4 in. ports 90 degrees apart to accommodate variable installation requirements. Made for hard winter work, this hydraulic cylinder has a 1.5 in. bore and 6 in. stroke length.- Two 1/4 in. ports 90 degrees apart; 1 parallel to and 1 perpendicular to the pins in order to accommodate variable installation requirements
- Maximum PSI: 2,500 PSI

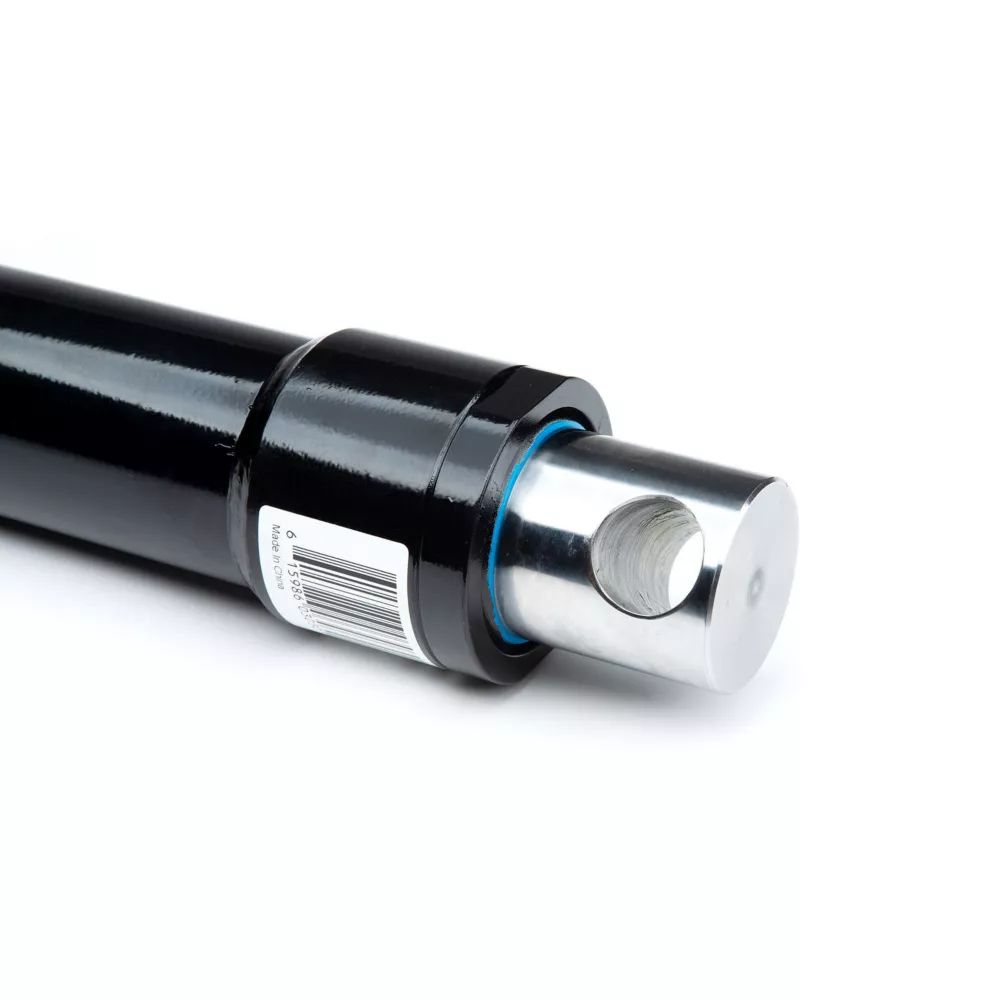

- Pin hole center in the single acting hydraulic cylinder is 11/16 in. from rod end
- Painted black for a simple and stylish hydraulic cylinder
- Pin diameter: .75 in.
- Rod diameter: 1.5 in.
- Measures 13 in. retracted and 19 in. extended
- 1 year warranty
- Weight: 10.58 lb.
Maxim Single Acting Snow Plow Cylinder 1.5 in Bore x 6 in Stroke 1.5 in Shank Diameter 288503 Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders
| Specification | Description |
|---|---|
| Brand | Maxim |
| Country of Origin | Imported |
| Bore Diameter | 1.5 in. |
| Brand Compatibility | Universal |
| Compatibility | 2 in. |
| Extended Length | 19 in. |
| Hydraulic Cylinder Type | Snowplow |
| Maximum Operating Pressure | 3,000 PSI |
| Maximum Weight Capacity | 10.58 lb. |
| Model Compatibility | Universal |
| Package Quantity | 1 |
| Pin Diameter | 0.75 in. |
| Port Size | 1.4 NPT |
| Primary Material | Steel |
| Product Height | N/A |
| Product Length | N/A |
| Product Weight | 13 lb. |
| Product Width | N/A |
| Retracted Length | 13 in. |
| Rod Diameter | 1-1/2 in. |
| Single/Double Acting | Single acting |
| Stroke Distance | 6 in. |
| Warranty | 1 Year |
| Manufacturer PartNumber | 288503 |
