Maxim Top Link Tie Rod Cylinder 2.5 in Bore x 10 in Stroke 1.25 in Rod Diameter Hydraulic Cylinders Tractor Repair & Parts

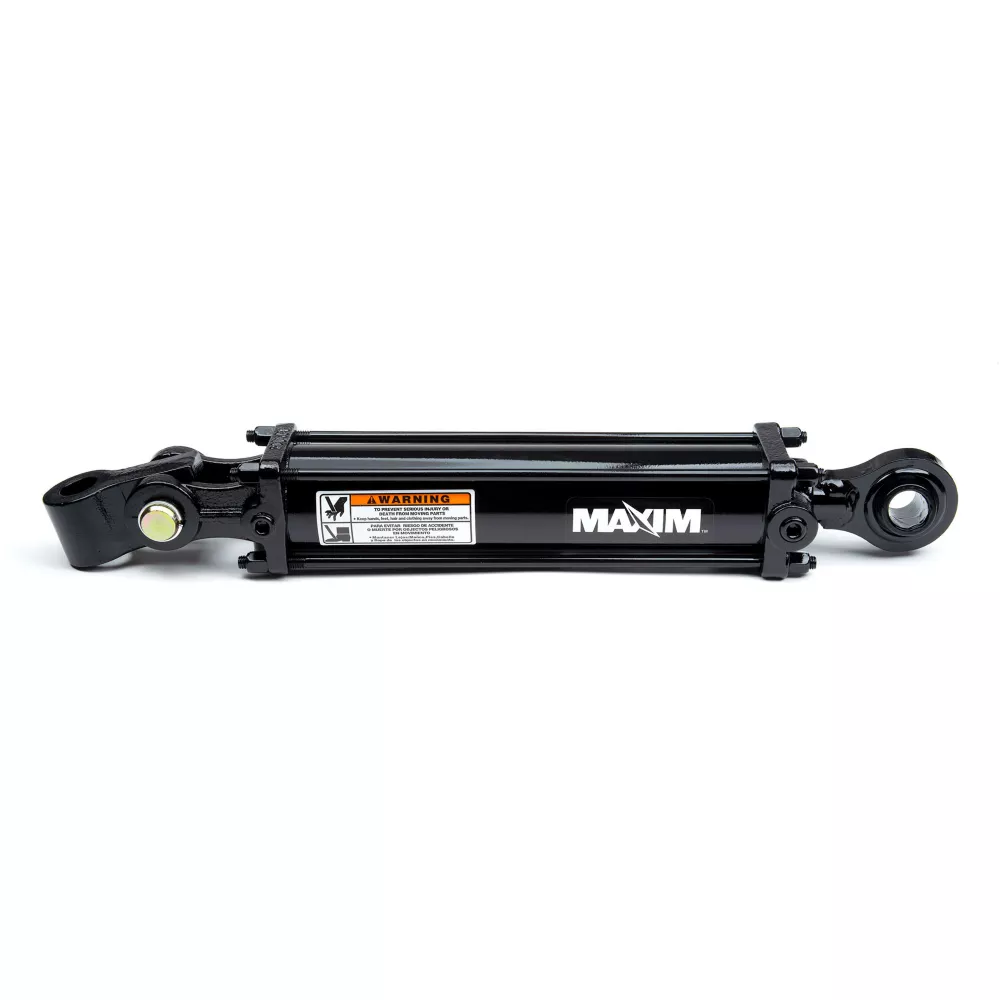

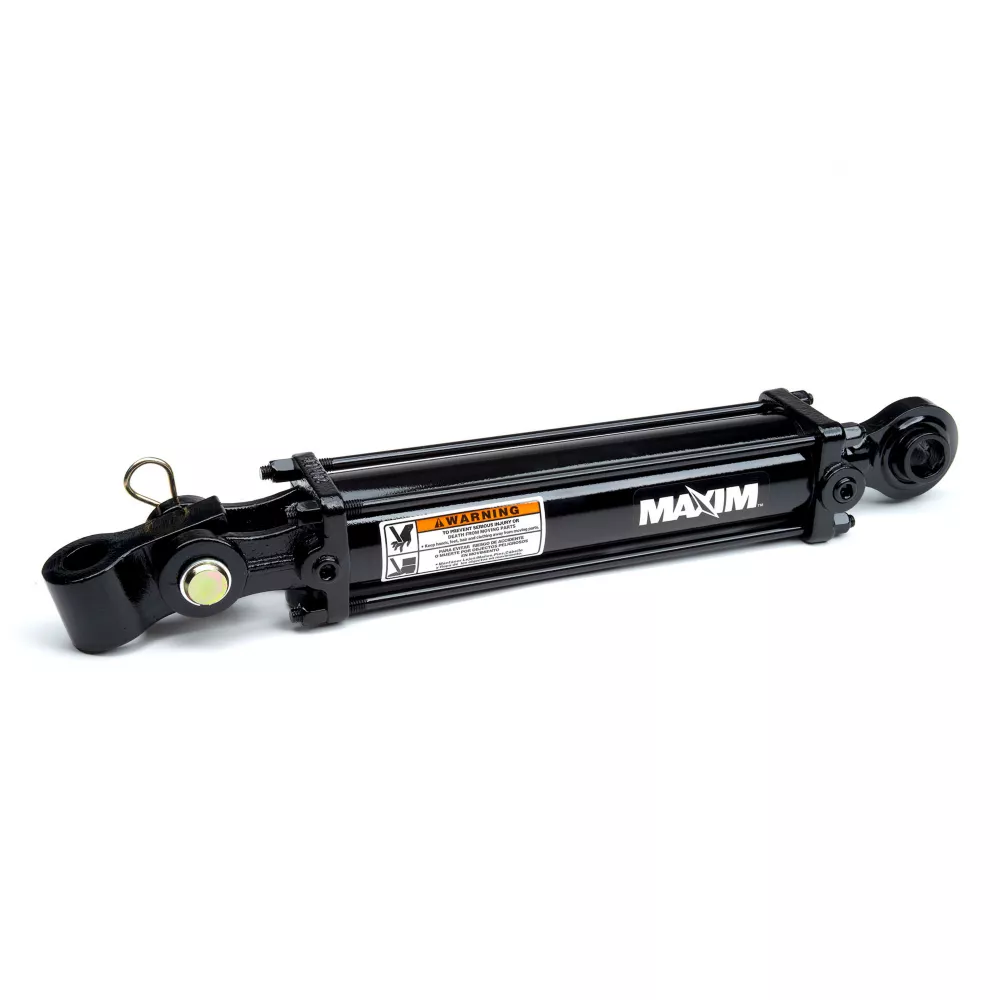

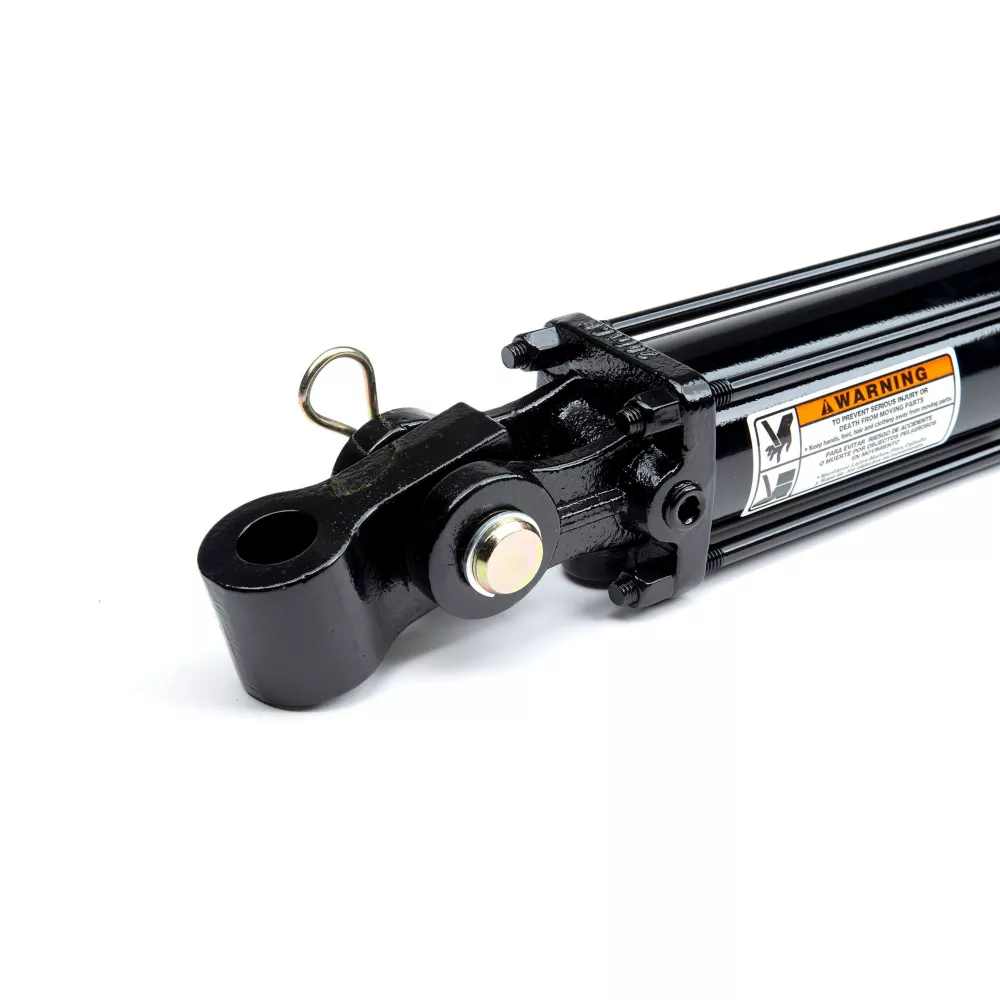

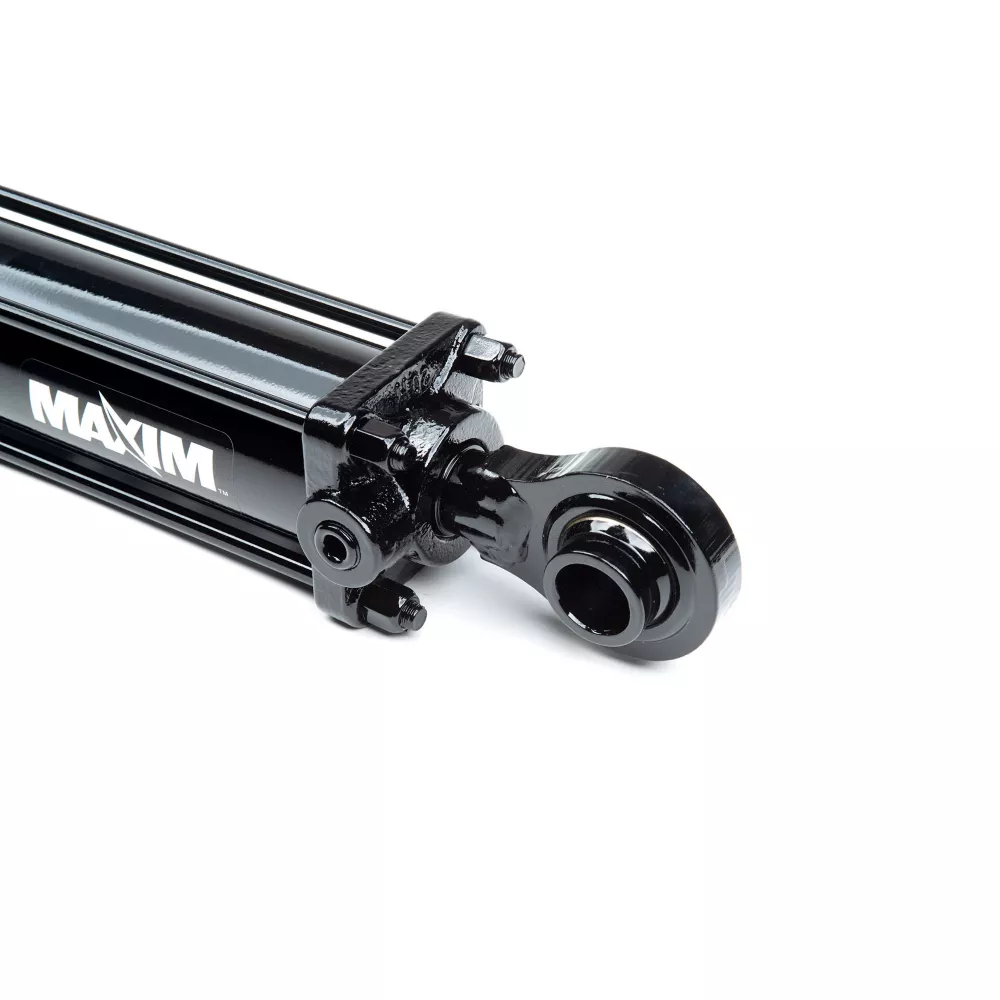

The Maxim 2.5 in. Bore x 10 in. Stroke Top-Link Tie-Rod Cylinder is a Category 2 top-link cylinder that takes the difficulty out of 3-point hitch operations. The top-link hydraulic cylinder is used to control the forward-aft movement of the hitch when connecting implements to tractors and can be operated by connecting to the tractor's existing remote circuit. Category 2 top-links, like this one, are designed to work with systems that have a tractor drawbar HP of 40-100. Once you try it, you will never go back to a standard linkage pin!

Hydraulic cylinder with 2.5 in. bore and 10 in. stroke length
Painted black
Used to control the forward-aft movement of the hitch when connecting implements to tractors
Can be operated by connecting to the tractor's existing remote circuit
Tractor top-link hydraulic cylinder designed to work with systems that have a tractor drawbar HP of 40-100
Pin diameter: 1 in.
Rod diameter: 1.25 in.
Measures 21.5 in. retracted and 31.5 in. extended
Column load: 12,270 lb.
1 year warranty
Maximum PSI: 2,500 PSI
Weight: 22 lb.

Note: This product may require up to 2 additional days for order processing prior to shipping

Maxim Top Link Tie Rod Cylinder 2.5 in Bore x 10 in Stroke 1.25 in Rod Diameter Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders

Specification	Description
Brand	Maxim
Country of Origin	Imported
Bore Diameter	2.5 in.
Brand Compatibility	Universal
Compatibility	Most applications
Extended Length	31.5 in.
Maximum Operating Pressure	3,000 PSI
Maximum Weight Capacity	2,500 lb.
Model Compatibility	Most applications
Package Quantity	1
Pin Diameter	1 in.
Port Size	3.8 in. NPTF
Primary Material	Steel
Product Height	N/A
Product Length	N/A
Product Weight	22 lb.
Product Width	N/A
Retracted Length	21.5 in.
Rod Diameter	1-1/4 in.
Stroke Distance	10 in.
Warranty	1 Year
Manufacturer PartNumber	218566

Maxim 2.5 in. Bore x 10 in. Stroke Top-Link Tie-Rod Cylinder, 1.25 in. Rod Diameter Specifications expand/collapse Specification Description Brand Maxim Country of Origin Imported Bore Diameter 2.5 in. Brand Compatibility Universal Compatibility Most Applications Extended Length 31.5 in. Maximum operating pressure 3,000 PSI Maximum weight capacity 2,500 lbs. Model Compatibility Most Applications Package Quantity 1 Pin Diameter 1 in. Port Size 3.8 in. NPTF Primary Material Steel Product Height N/A Product Length N/A Product Weight 22 lbs. Product Width N/A Retracted Length 21.5 in. Shank diameter 1-1/4 in. Travel distance 10 in. Guarantee. 1 year manufacturer part number 218566
