Maxim Welded Toilet Cylinder 2.5 in Bore x 6 in Stroke 1.5 in Shank Diameter Hydraulic Cylinders Tractor Repair & Parts

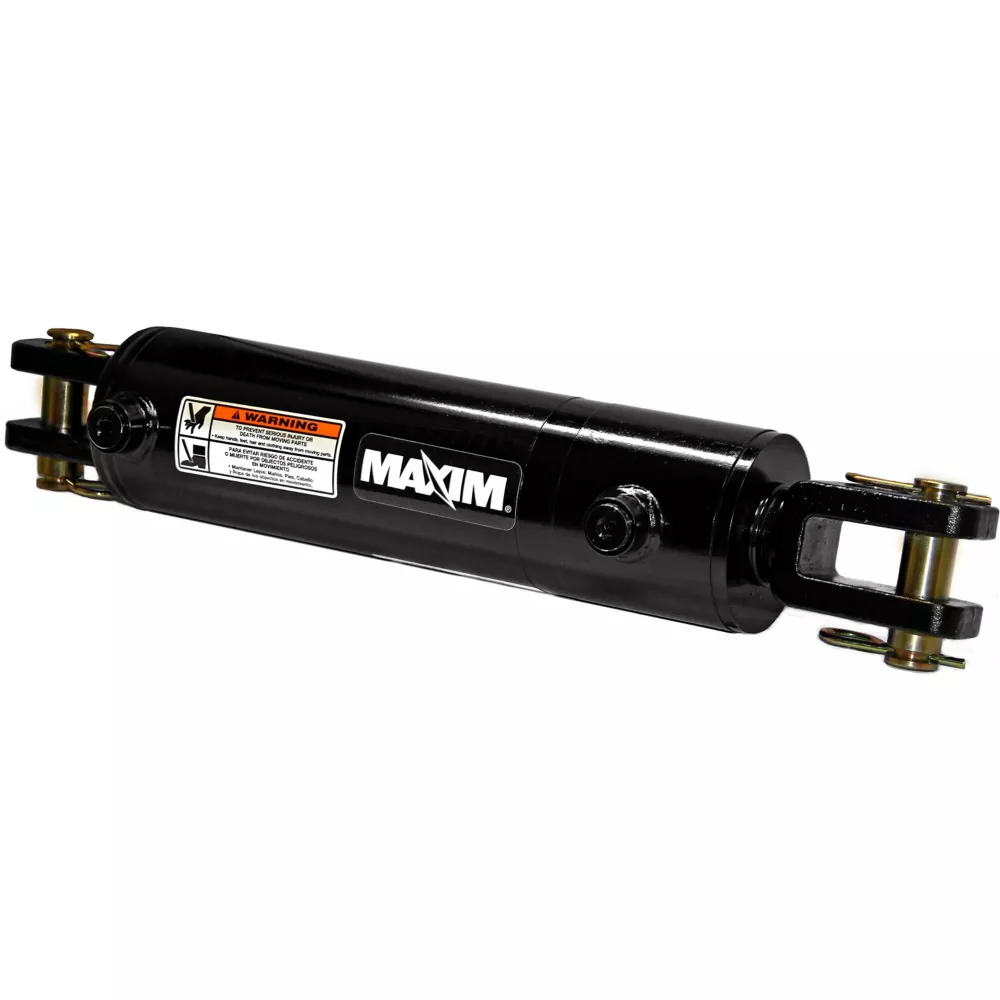

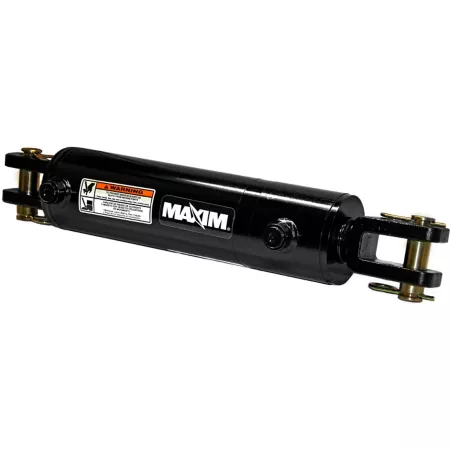

The Maxim 2.5 in. Bore x 6 in. Stroke WC Welded Cylinder is clevis-mounted and exceeds the highest standards. You can rely on this hydraulic cylinder; it's been designed for demanding applications and built to ensure maximum reliability and performance. This welded cylinder is intended to be used in double-acting applications, and it has cast female clevises with pins and clips included as end mounts.

Painted black for a simple and effective hydraulic cylinder design
Intended use: double-acting applications
Piston: ductile iron ASTM A536 65-45-12 for excellent life
Piston lock nut: grade 8, high-tensile zinc-plated
Gland: ductile iron ASTM A536 65-45-12
Tube: high-tensile cold drawn tube, precision-honed for extended seal life
Tube seal: nitrile O-ring with polytemp hytrel back-up
Rod: high-tensile ground and polished hard chrome-plated rod
Rod seal: standard PolyPak with B-lip design (polyurethane U-cup with nitrile O-ring expander)
Wiper: polyurethane
End mounts: cast female clevises with pins and clips included
Pin and pin clip: high-tensile zinc-plated steel
Piston ID seal: O-ring
Piston OD seal: Hallite 755 piston seal
Ports: SAE O-rings
Welded hydraulic cylinder with a 2.5 in. bore and 6 in. stroke length
Measures 16.25 in. retracted and 22.25 in. extended
Column load: 14,720 lb.
Pin diameter of 1 in. and rod diameter of 1.5 in.
1 year warranty

Note: This product may require up to 2 additional days for order processing prior to shipping

Maxim Welded Toilet Cylinder 2.5 in Bore x 6 in Stroke 1.5 in Shank Diameter Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders

Specification	Description
Brand	Maxim
Country of Origin	Imported
Bore Diameter	2.5 in.
Brand Compatibility	Universal
Extended Length	22.25 in.
Hydraulic Cylinder Type	Welded
Maximum Operating Pressure	3,000 PSI
Maximum Weight Capacity	14,720 lb.
Model Compatibility	Universal
Package Quantity	1
Pin Diameter	1 in.
Primary Material	Steel
Product Weight	22 lb.
Retracted Length	16.25 in.
Rod Diameter	1-1/2 in.
Single/Double Acting	Double acting
Stroke Distance	6 in.
Warranty	1 Year
Manufacturer PartNumber	288414

Maxim 2.5 in. Bore x 6 in. Stroke WC Welded Cylinder, 1.5 in. Rod Diameter Specifications expand/collapse Specification Description Brand Maxim Country of Origin Imported Bore Diameter 2.5 in. Brand Compatibility Universal Extended Length 22.25 in. Welded Hydraulic Cylinder Type Maximum Operating Pressure 3,000 PSI Maximum Weight Capacity 14,720 lbs. Model Compatibility Universal Packing Quantity 1 Pin Diameter 1 in. Main Material Steel Product Weight 22 lbs. Retracted Length 16.25 in. Shank Diameter 1-1/2 in. Single/Double Acting Double Acting Stroke Distance 6 in. 1 year warranty Manufacturer part number 288414.
