Maxim Welded Toilet Cylinder 2" Bore x 6" Stroke 1.25" Shank Diameter Hydraulic Cylinders Tractor Repair & Parts

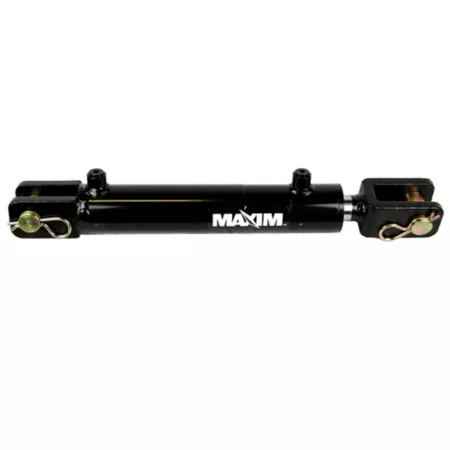

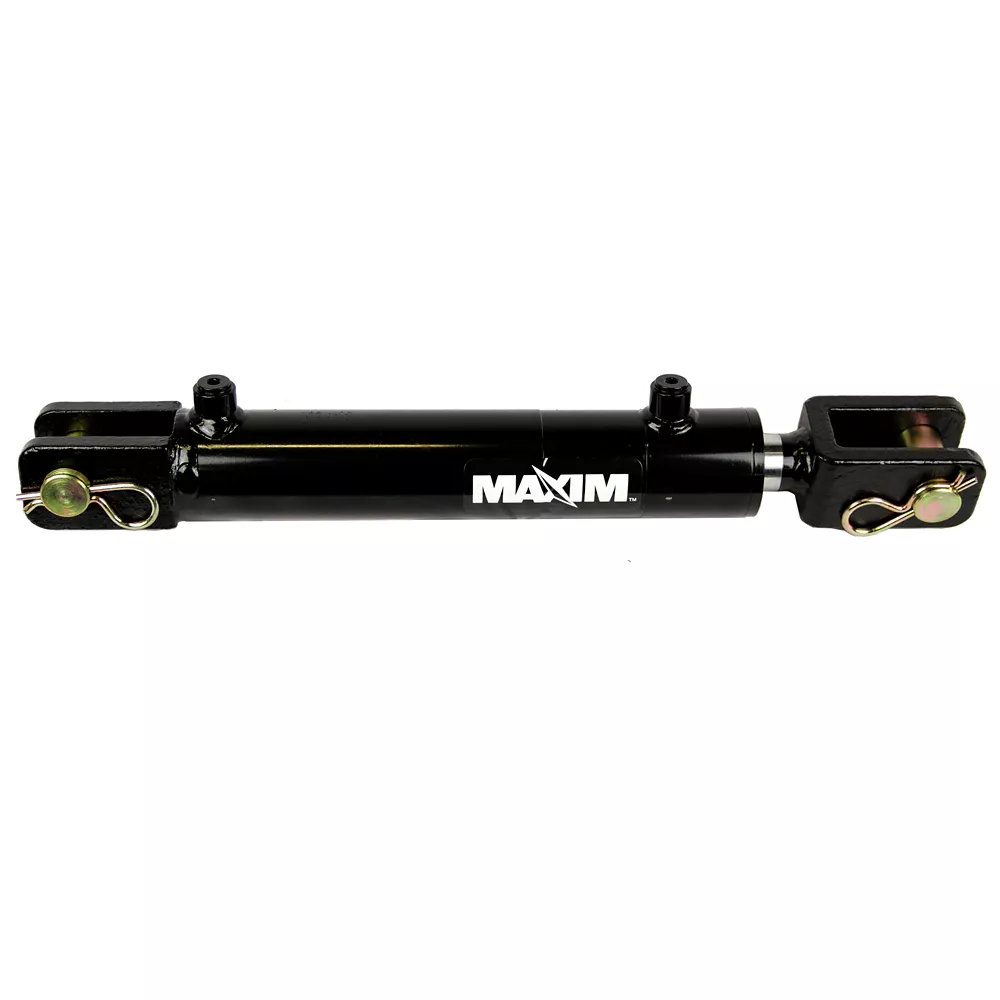

The Maxim 2 in. Bore x 6 in. Stroke WC Welded Cylinder is clevis-mounted and exceeds the highest standards. The hydraulic cylinder is designed for demanding applications and is built to ensure maximum reliability and performance. Designed to be easy to use, this welded hydraulic cylinder has cast female clevises with pins and clips included as end mounts.

Painted black for simple style
Intended for double-acting applications
Piston: ductile iron ASTM A536 65-45-12 for excellent life
Piston lock nut: grade 8, high-tensile zinc-plated
Gland: ductile iron ASTM A536 65-45-12
Tube: high-tensile cold drawn tube, precision-honed for extended seal life
Tube seal: nitrile O-ring with polytemp hytrel back-up
High-tensile ground and polished hard chrome-plated rod for a powerful welded cylinder
Rod seal: standard PolyPak with B-lip design (polyurethane U-cup with nitrile O-ring expander)
Wiper: polyurethane
End mounts: cast female clevises with pins and clips included
Pin and pin clip: high-tensile zinc-plated steel
Piston ID seal: O-ring
Piston OD seal: Hallite 755 piston seal
Ports: SAE O-rings
Hydraulic cylinder has a 2 in. bore and 6 in. stroke length
1 year warranty

Note: This product may require up to 2 additional days for order processing prior to shipping

Maxim Welded Toilet Cylinder 2" Bore x 6" Stroke 1.25" Shank Diameter Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders

Specification	Description
Brand	Maxim
Country of Origin	Imported
Bore Diameter	2 in.
Brand Compatibility	Universal
Compatibility	Universal
Extended Length	22.25 in.
Hydraulic Cylinder Type	Welded
Maximum Operating Pressure	3,000 PSI
Maximum Weight Capacity	9,420 lb.
Model Compatibility	Universal
Package Quantity	1
Pin Diameter	1 in.
Port Size	SAE 6
Primary Material	Steel
Product Height	N/A
Product Length	N/A
Product Weight	17 lb.
Product Width	N/A
Retracted Length	16.25 in.
Rod Diameter	1-1/4 in.
Single/Double Acting	Double acting
Stroke Distance	6 in.
Warranty	1 Year
Manufacturer PartNumber	288401

Maxim 2 in. Bore x 6 in. Stroke WC Welded Cylinder, 1.25 in. Rod Diameter Specifications expand/collapse Specification Description Brand Maxim Country of Origin Imported Bore Diameter 2 in. Brand Compatibility Universal Compatibility Universal Extended Length 22.25 in. Hydraulic Cylinder Type Welded Maximum Operating Pressure 3,000 PSI Maximum Weight Capacity 9,420 lbs. Model Compatibility Universal Packing Quantity 1 Pin Diameter 1 in. Port Size SAE 6 Primary Material Steel Product Height N/A Product Length N/A Product Weight 17 lbs. Product Width N/A Retracted Length 16.25 in. Shank diameter 1-1/4 in. Single/double acting Double acting Stroke distance 6 in. 1 Year Warranty Manufacturer Part Number 288401
