Maxim Welded Toilet Cylinder 2 in Bore x 8 in Stroke 1.25 in Shank Diameter Hydraulic Cylinders Tractor Repair & Parts

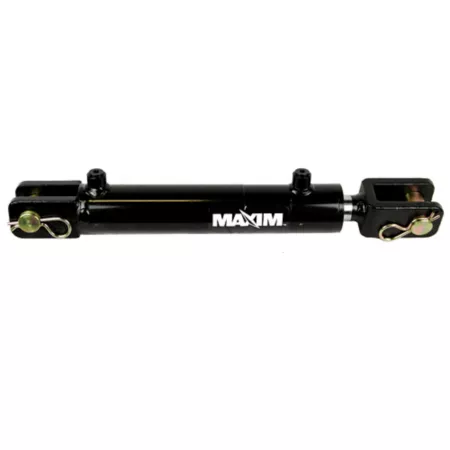

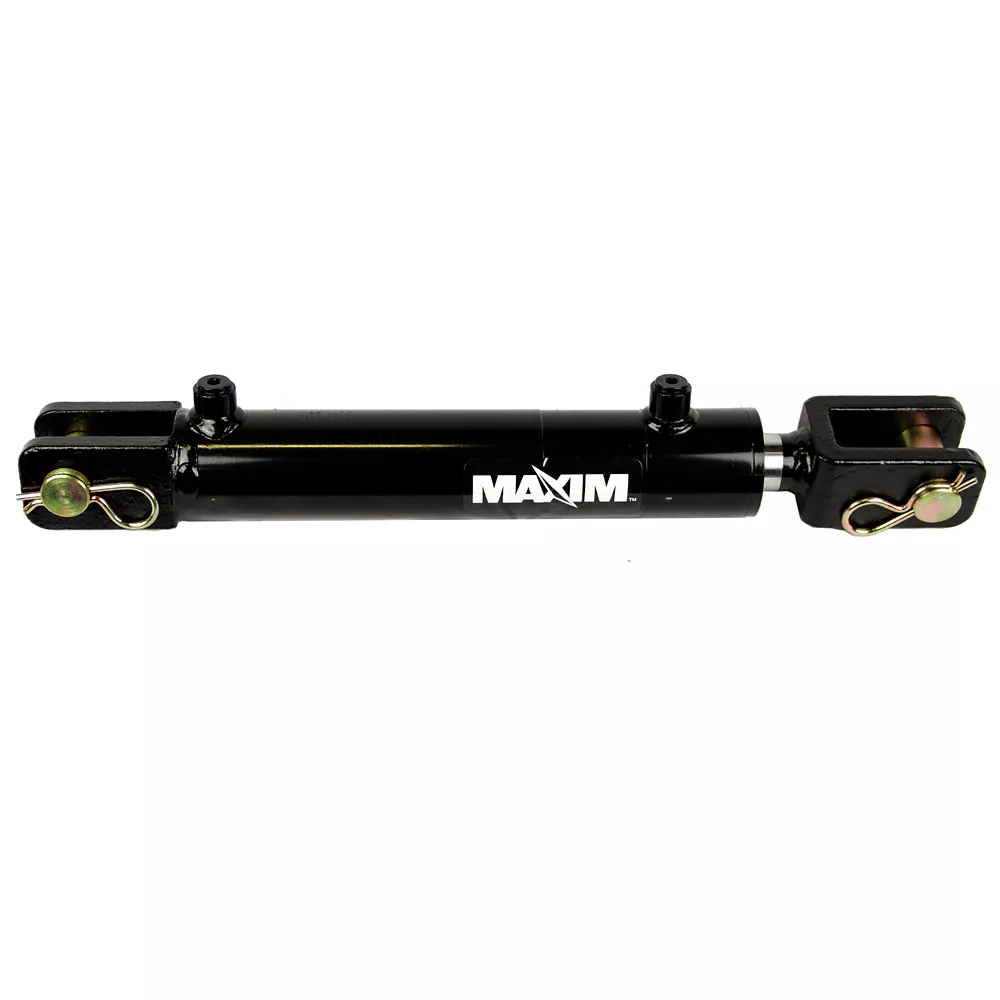

The Maxim 2 in. Bore x 8 in. Stroke WC Welded Cylinder is clevis-mounted and exceeds the highest standards. The hydraulic cylinder is designed for demanding applications and is built to ensure maximum reliability and performance. Designed to be easy to use, this welded hydraulic cylinder has cast female clevises with pins and clips included as end mounts.- Painted black for simple style
- Intended for double-acting applications
- Piston: ductile iron ASTM A536 65-45-12 for excellent life
- Piston lock nut: grade 8, high-tensile zinc-plated
- Gland: ductile iron ASTM A536 65-45-12
- Tube: high-tensile cold drawn tube, precision-honed for extended seal life
- Tube seal: nitrile O-ring with polytemp hytrel back-up
- High-tensile ground and polished hard chrome-plated rod for a powerful welded cylinder
- Rod seal: standard PolyPak with B-lip design (polyurethane U-cup with nitrile O-ring expander)
- Wiper: polyurethane
- End mounts: cast female clevises with pins and clips included
- Pin and pin clip: high-tensile zinc-plated steel
- Piston ID Seal: O-ring
- Piston OD seal: Hallite 755 piston seal
- Ports: SAE O-rings
- Hydraulic cylinder has a 2 in. bore and 8 in. stroke length
- 1 year warranty
- Retracted length of 18.25 in. and extended length of 26.25 in.
- Column load: 9,420 lb.
- Weight: 16.09 lb.
Maxim Welded Toilet Cylinder 2 in Bore x 8 in Stroke 1.25 in Shank Diameter Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders
| Specification | Description |
|---|---|
| Brand | Maxim |
| Country of Origin | Imported |
| Bore Diameter | 2 in. |
| Brand Compatibility | Universal |
| Compatibility | Universal |
| Extended Length | 26.25 in. |
| Hydraulic Cylinder Type | Welded |
| Maximum Operating Pressure | 3,000 PSI |
| Maximum Weight Capacity | 9,420 lb. |
| Model Compatibility | Universal |
| Package Quantity | 1 |
| Pin Diameter | 1 in. |
| Port Size | SAE 6 |
| Primary Material | Steel |
| Product Height | N/A |
| Product Length | N/A |
| Product Weight | 16 lb. |
| Product Width | N/A |
| Retracted Length | 18.25 in. |
| Rod Diameter | 1-1/4 in. |
| Single/Double Acting | Double acting |
| Stroke Distance | 8 in. |
| Warranty | 1 Year |
| Manufacturer PartNumber | 288403 |
