Maxim Welded Top Link Cylinder 2.5 in Bore x 10 in Stroke 1.25 in Rod Diameter Hydraulic Cylinders

Maxim Welded Top Link Cylinder 2.5 in Bore x 10 in Stroke 1.25 in Rod Diameter Hydraulic Cylinders Tractor Repair & Parts

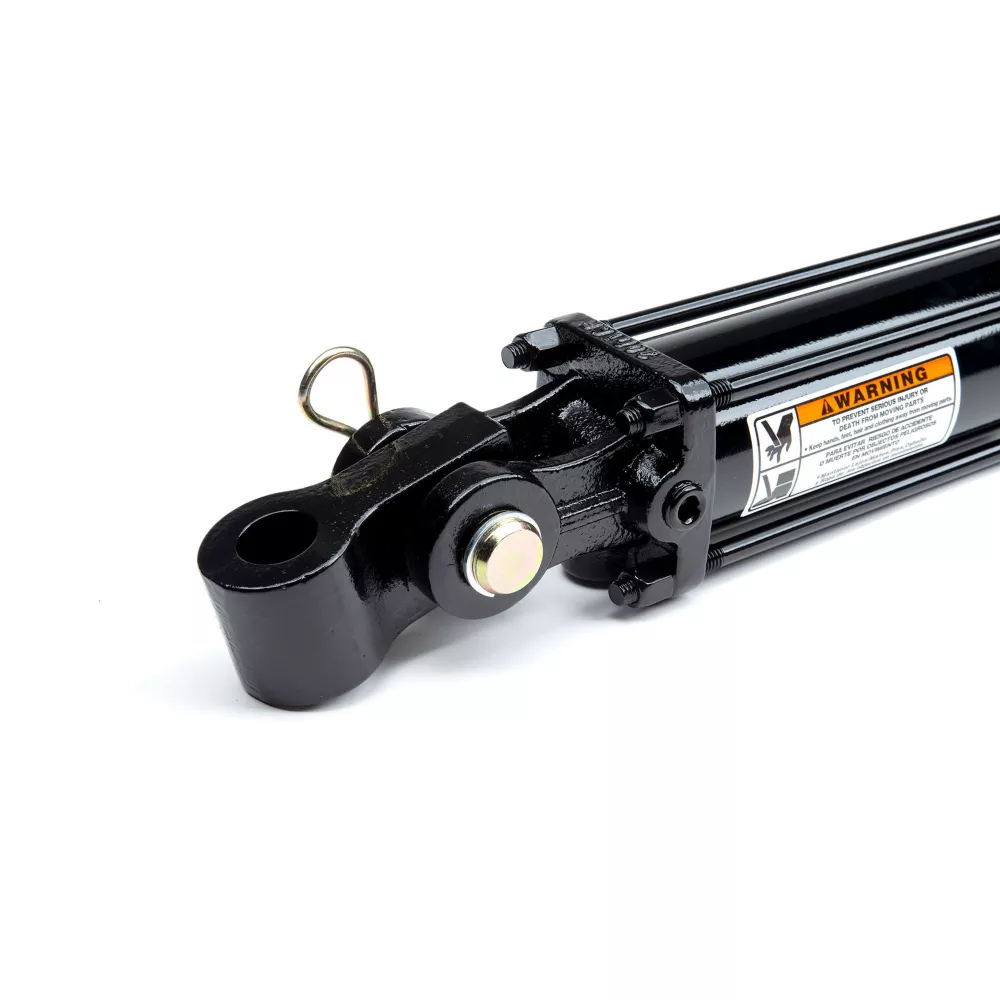

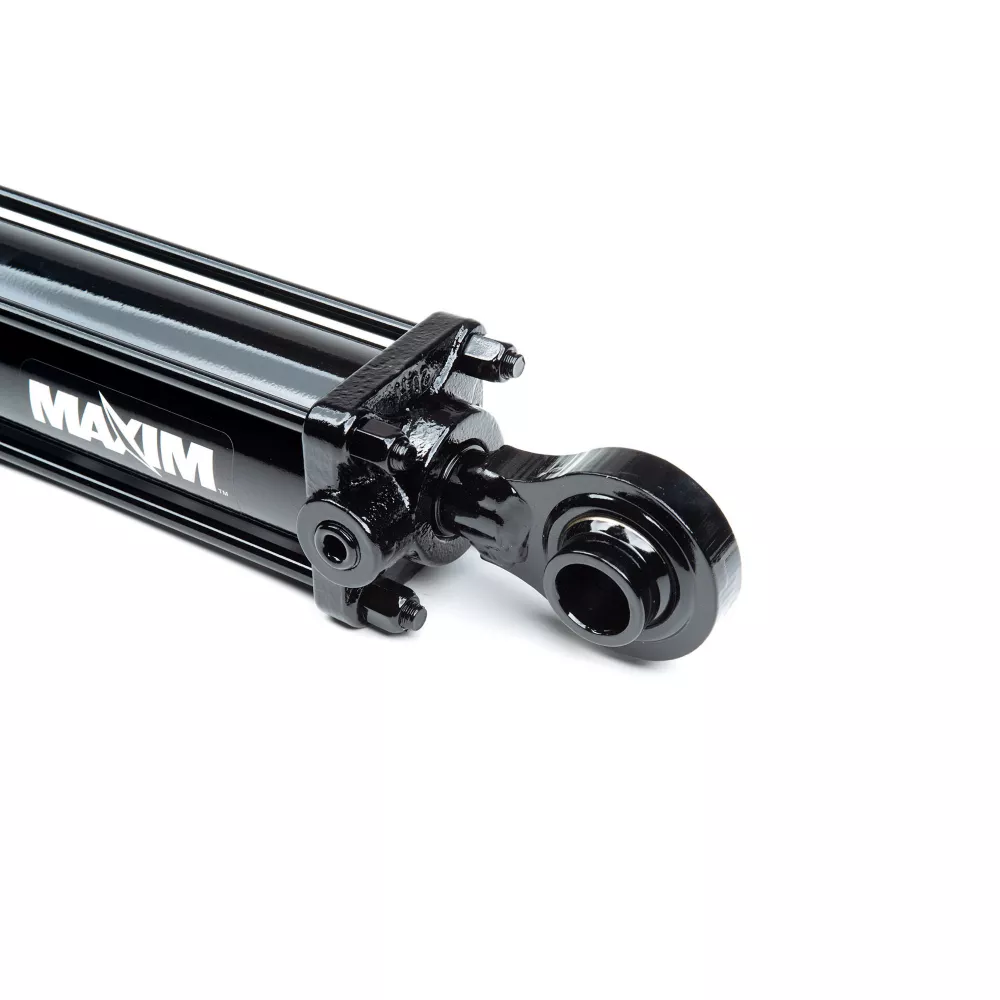

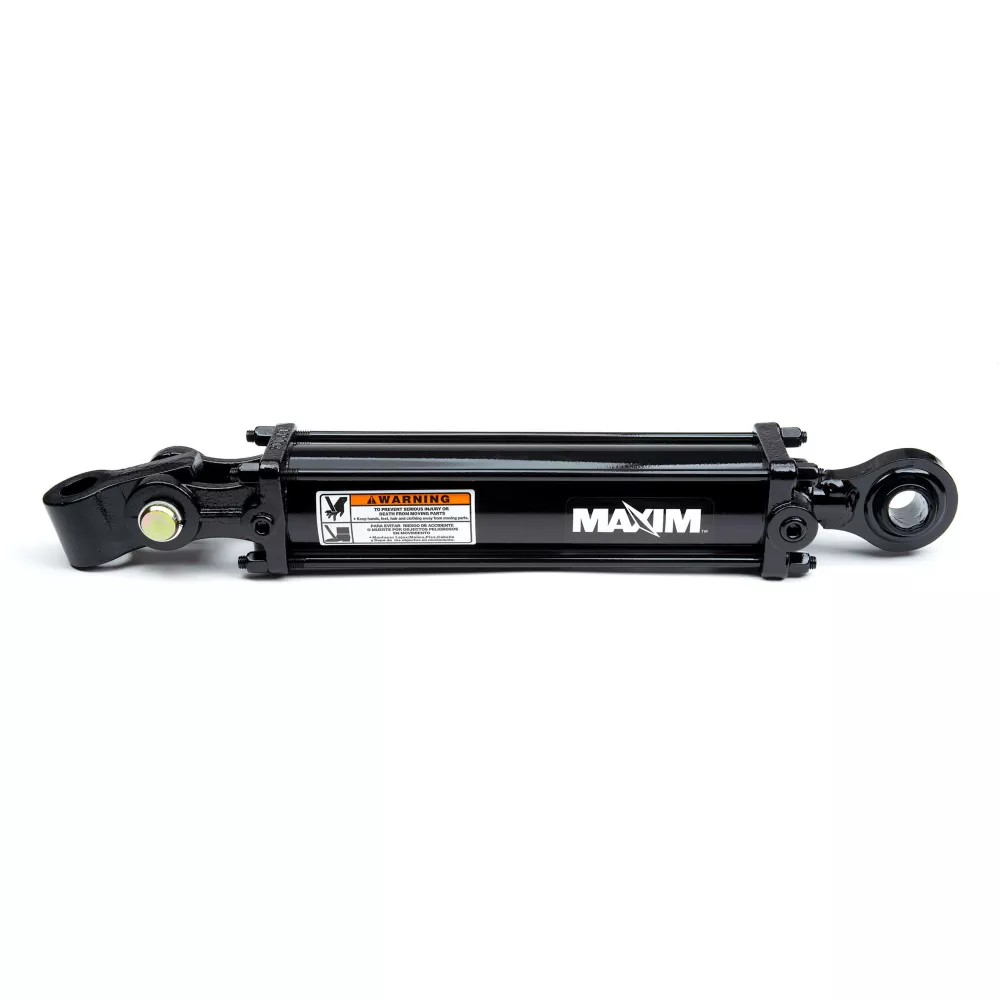

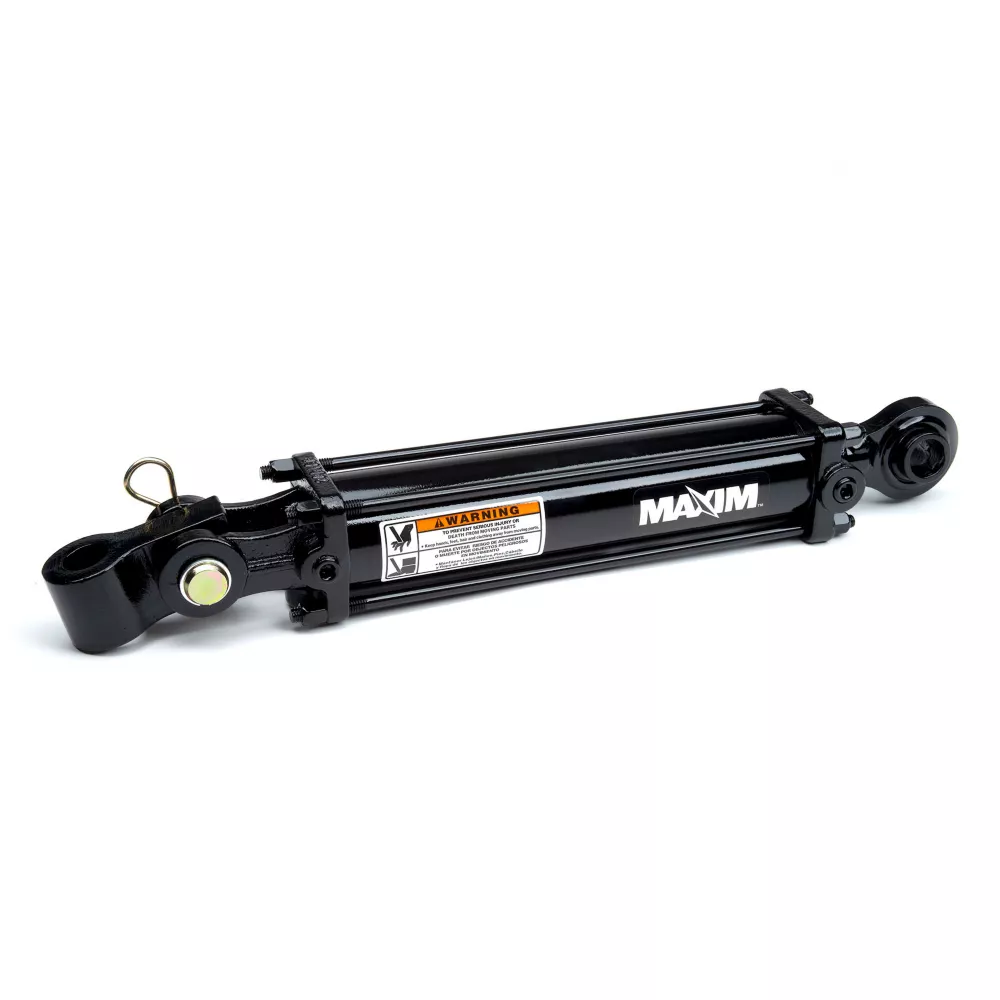

The Maxim 2.5 in. Bore x 10 in. Stroke Top-Link Welded Cylinder is a Category 2 top-link cylinder that takes the difficulty out of 3-point hitch operations. The top-link hydraulic cylinder is used to control the forward-aft movement of the hitch when connecting implements to tractors and can be operated by connecting to the tractor's existing remote circuit. Category 2 top-links, like this one, are designed to work with systems that have a tractor drawbar HP of 40-100.

• Hydraulic cylinder with 2.5 in. bore and 10 in. stroke length
• Painted black for simple style
• Used to control the forward-aft movement of the hitch when connecting implements to tractors
• Can be operated by connecting to the tractor's existing remote circuit
• Tractor top-link hydraulic cylinder designed to work with systems that have a tractor drawbar HP of 40-100
• Pin diameter: 1 in.
• Rod diameter: 1.25 in.
• Measures 21.5 in. retracted and 31.5 in. extended
• 1 year warranty
• Column load: 14,720 lb.
• Weight: 22 lb.
• Maximum PSI: 3,000 PSI

Note: This product may require up to 2 additional days for order processing prior to shipping

Maxim Welded Top Link Cylinder 2.5 in Bore x 10 in Stroke 1.25 in Rod Diameter Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders

Specification	Description
Brand	Maxim
Country of Origin	Imported
Bore Diameter	2.5 in.
Brand Compatibility	Universal
Compatibility	Most applications
Extended Length	31.5 in.
Hydraulic Cylinder Type	Welded
Maximum Operating Pressure	3,000 PSI
Maximum Weight Capacity	3,000 lb.
Model Compatibility	Most applications
Package Quantity	1
Pin Diameter	1 in.
Port Size	SAE 8
Primary Material	Steel
Product Height	N/A
Product Length	N/A
Product Weight	22 lb.
Product Width	N/A
Retracted Length	21.5 in.
Rod Diameter	1-1/4 in.
Stroke Distance	10 in.
Warranty	1 Year
Manufacturer PartNumber	218567

Maxim 2.5 in. Bore x 10 in. Stroke Top-Link Welded Cylinder, 1.25 in. Rod Diameter Specifications expand/collapse Specification Description Brand Maxim Country of Origin Imported Bore Diameter 2.5 in. Brand Compatibility Universal Compatibility Most Applications Extended Length 31.5 in. Hydraulic Cylinder Type Welded Maximum Operating Pressure 3,000 PSI Maximum Weight Capacity 3,000 lbs. Model Compatibility Most Applications Package Quantity 1 Pin Diameter 1 in. Port Size SAE 8 Primary Material Steel Product Height N/A Product Length N/A Product Weight 22 lbs. Product Width N/A Retracted Length 21.5 in. Shank diameter 1-1/4 in. Travel distance 10 in. 1 year warranty Manufacturer part number 218567.
