Maxim Welded WSB Swivel Ball Cylinder 2.5 in Bore x 8 in Stroke 1.5 in Rod Diameter Hydraulic Cylinders Tractor Repair & Parts

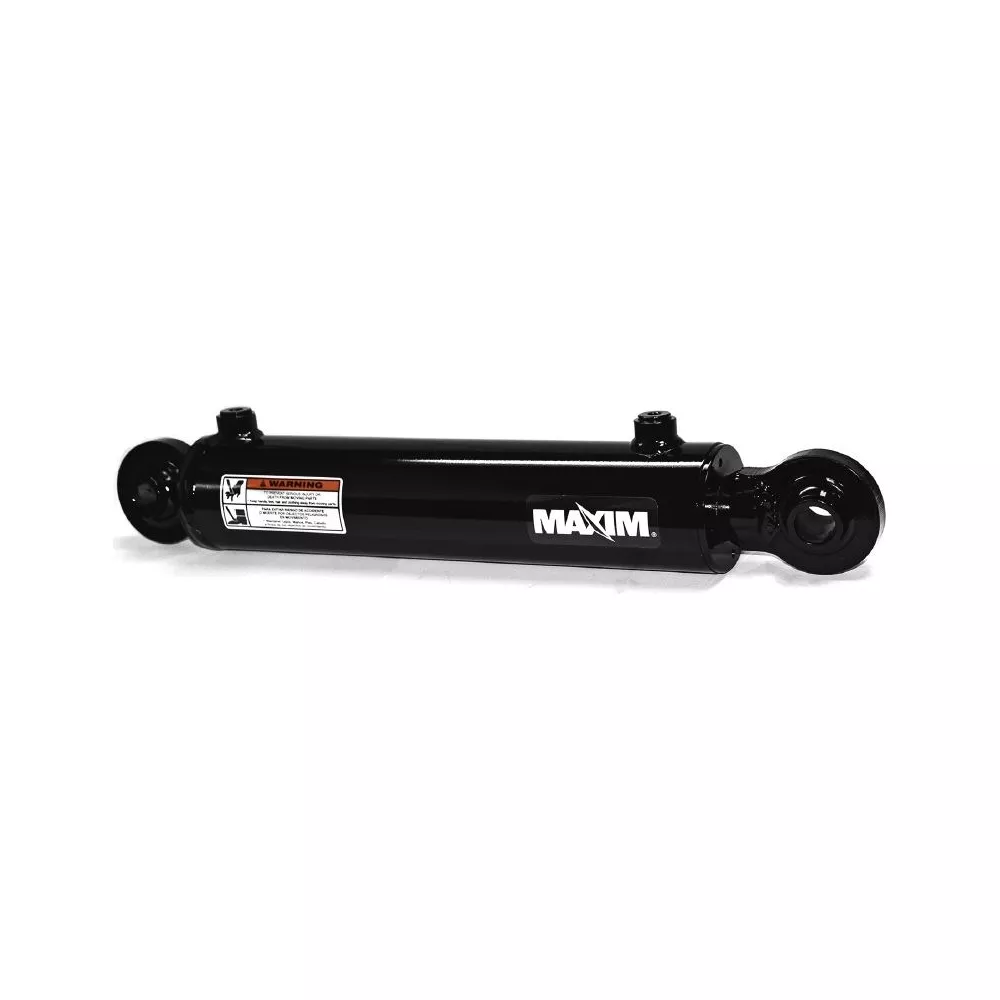

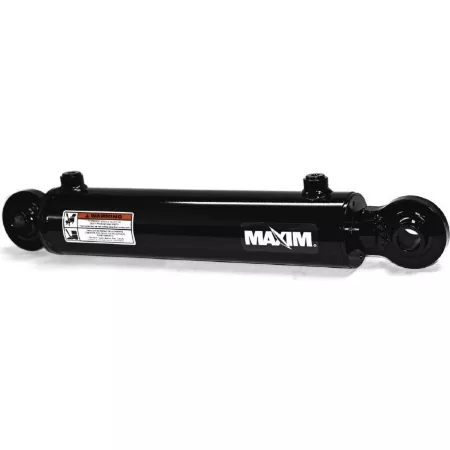

The Maxim 2.5 in. Bore x 8 in. Stroke WSB Swivel Ball Welded Cylinder features swivel ball mounts, which make it great for use on compact equipment. This swivel ball hydraulic cylinder is designed for demanding applications and is built to ensure maximum reliability and performance. Made for versatility, this hydraulic cylinder is designed for use in any double-acting applications.

Intended use of swivel ball hydraulic cylinder: double-acting applications
Piston: ductile iron
Piston lock nut: nylock nut
Gland: ductile iron with rod wear band
Tube: steel tube honed or skived for extended seal life
Tube seal: O-ring and backup
Rod: ground and polished hard chrome-plated rod
Rod seal: U-cup
Wiper: polyurethane
End mounts: spherical
All seals are manufactured to US specifications
Ports: O-ring boss
Max PSI: 3,000
Column load: 14,720 lb.
Hydraulic cylinder measures 15.5 in. retracted and 23.5 in. extended
Pin diameter of 1 in. and rod diameter of 1.5 in.
1 year warranty

Note: This product may require up to 2 additional days for order processing prior to shipping

Maxim Welded WSB Swivel Ball Cylinder 2.5 in Bore x 8 in Stroke 1.5 in Rod Diameter Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders

Specification	Description
Brand	Maxim
Country of Origin	Imported
Bore Diameter	2.5 in.
Brand Compatibility	Universal
Extended Length	23.5 in.
Hydraulic Cylinder Type	Welded
Maximum Operating Pressure	3,000 PSI
Maximum Weight Capacity	14,720 lb.
Model Compatibility	Universal
Package Quantity	1
Pin Diameter	1 in.
Primary Material	Steel
Product Weight	19 lb.
Retracted Length	15.5 in.
Rod Diameter	2-3/4 in.
Single/Double Acting	Double acting
Stroke Distance	8 in.
Warranty	1 Year
Manufacturer PartNumber	400520

Maxim 2.5 in. Bore x 8 in. Stroke WSB Swivel Ball Welded Cylinder, 1.5 in. Rod Diameter Specifications expand/collapse Specification Description Brand Maxim Country of Origin Imported Bore Diameter 2.5 in. Brand Compatibility Universal Extended Length 23.5 in. Welded Hydraulic Cylinder Type Maximum Operating Pressure 3,000 PSI Maximum Weight Capacity 14,720 lbs. Model Compatibility Universal Packing Quantity 1 Pin Diameter 1 in Main Material Steel Product Weight 19 lbs. Retracted length 15.5 in. Shank diameter 2-3/4 in. Single/double acting Double acting Stroke distance 8 in. 1 year warranty Manufacturer part number 400520.
