Milton 1/2 in FNPT Heavy Duty Full Port Brass Ball Valve Air Hose Fittings Air Compressor Accessories & Parts

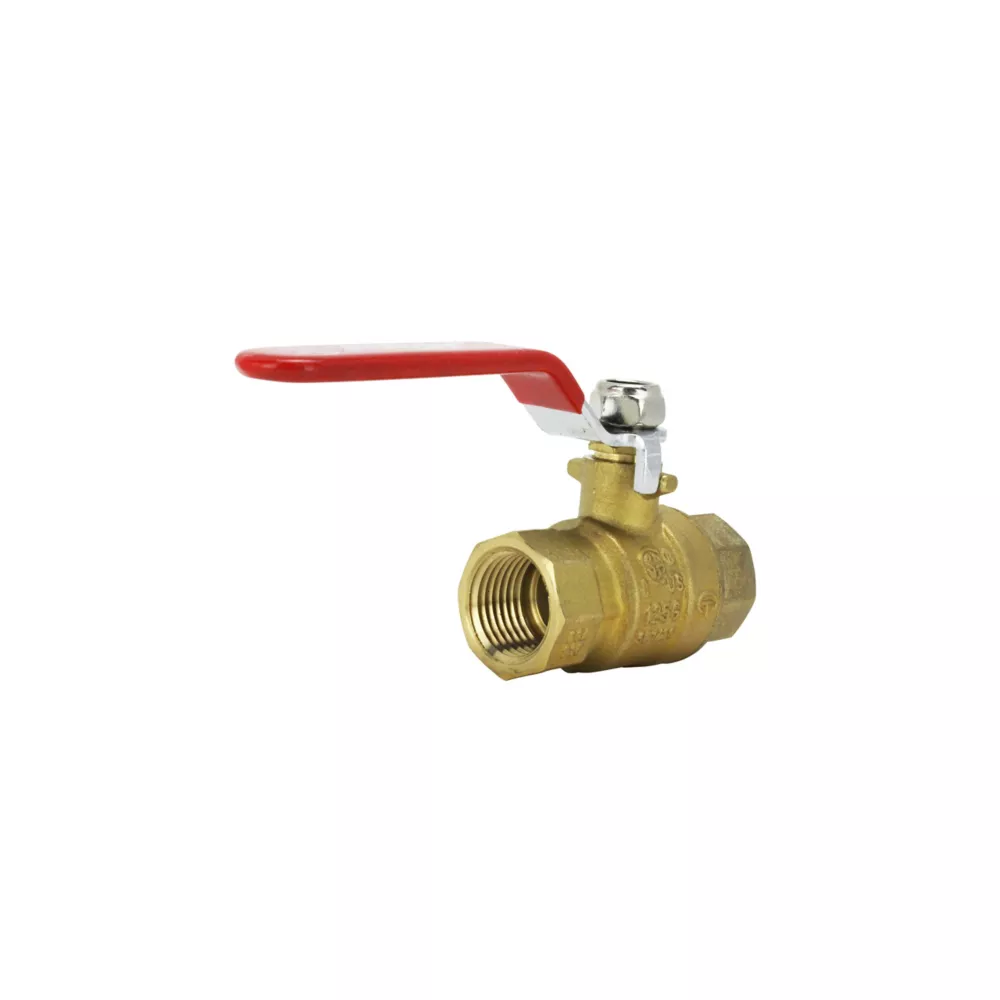

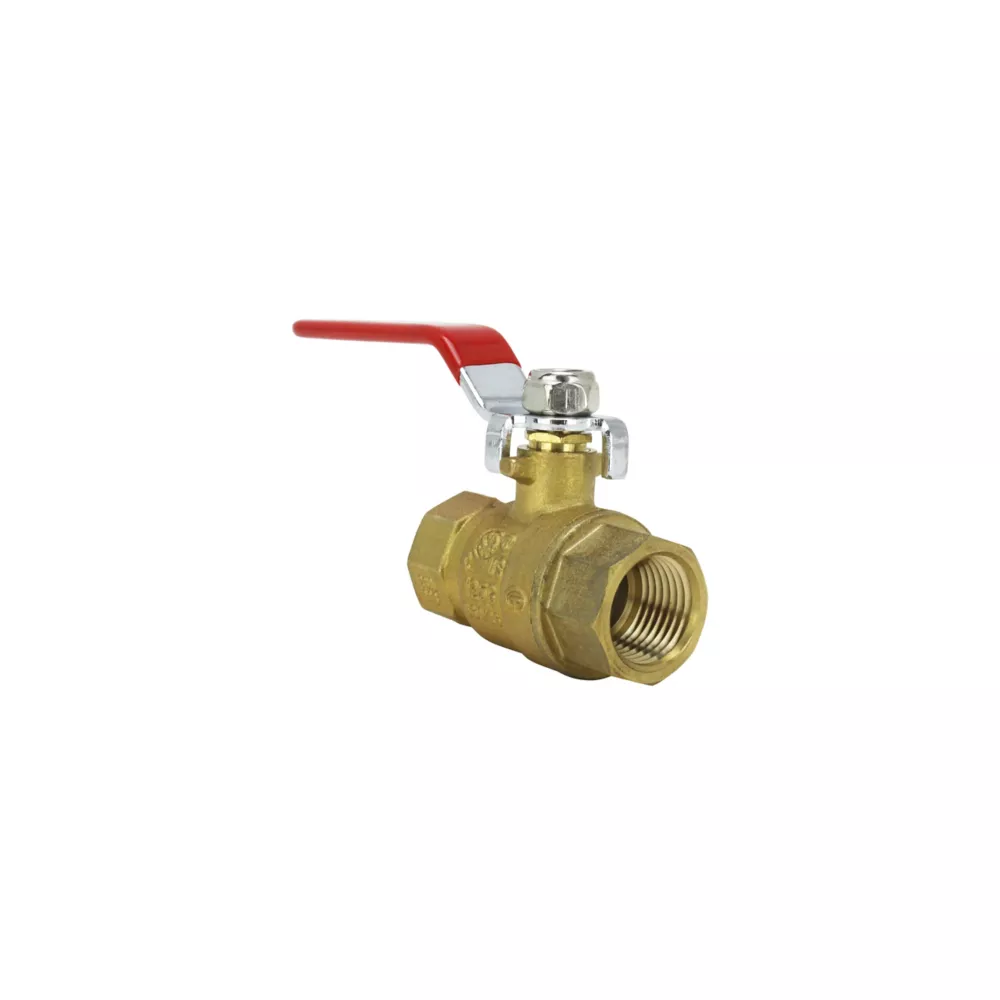

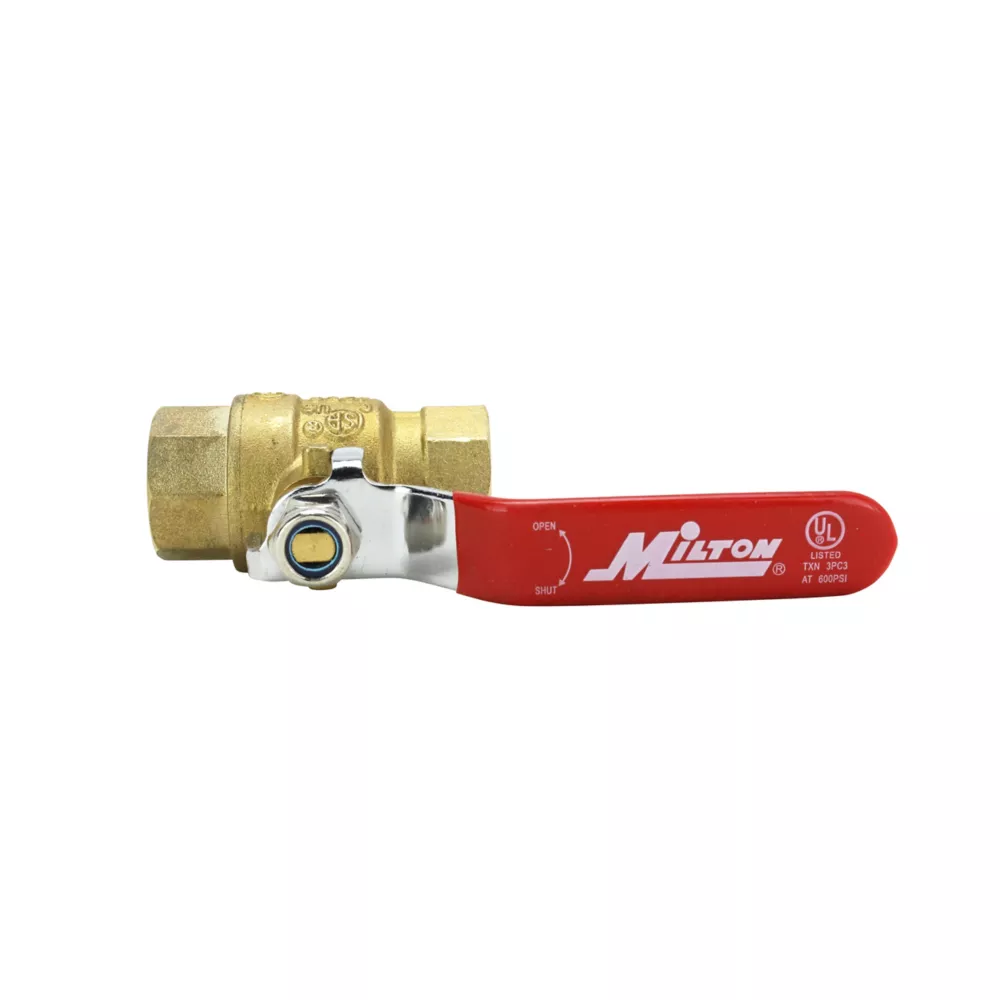

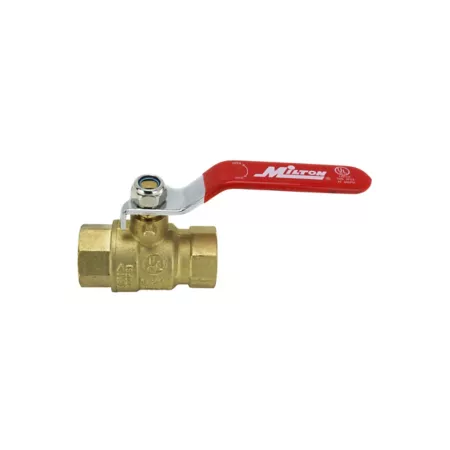

Milton (S-1094-8) 1/2" FNPT Full Port Heavy-Duty Brass Ball Valve Milton's full port high capacity ball valves are designed to be used with compressed air, water or oil. This universal full port ball valve isolates segments of your supply system without disrupting service. Manufactured with an all brass body, plated steel ball, Teflon seals and a plated 1/4 turn handle with a plastic coated grip for comfort and slip-resistance. PRODUCT SPECIFICATIONS: -1/2" FNPT x 1/2" FNPT on both sides -Maximum pressure (Air/Water/Oil): 400 PSI -Maximum pressure (Steam): 150 PSI -Temperature: -20° F to 350° F -2" total body length

UNIVERSAL DESIGN: To be used with any system supplying compressed air, water or oil without disruption.
QUARTER-TURN VALVE: will not restrict flow and ensures full pressure coming through the valve.
NPT: 1/2" female national pipe threads.
MAXIMUM PRESSURE: Air/Water/Oil 400 PSI; Steam 150 PSI.

Milton 1/2 in FNPT Heavy Duty Full Port Brass Ball Valve Air Hose Fittings Tools> Air Compressors & Air Tools> Air Compressor Accessories & Parts> Air Hose Fittings

Specification	Description
Brand	Milton
Country of Origin	Imported
Compatibility	0.5 in. FNPT
Connector 1 Size	0.5 in.
Connector 1 Type	NPT
Connector 2 Size	0.5 in.
Connector 2 Type	Female
Maximum Operating Pressure	400 PSI Air/Water/Oil , 150 PSI Steam.
Package Quantity	1
Primary Material	Brass
Product Height	8 in.
Product Length	1.7 in.
Product Weight	0.5 lb.
Product Width	3.8 in.
Warranty	1 year limited warranty.
Manufacturer PartNumber	S-1094-8

Milton 1/2 in. FNPT Full Port Heavy-Duty Brass Ball Valve Specifications expand/collapse Specification Description Brand Milton Country of Origin Imported Compatibility 0.5 in. FNPT Connector. 1 Size 0.5 in. Connector 1 Type NPT Connector 2 Size 0.5 in. Connector 2 Type Female Maximum Operating Pressure 400 PSI Air/Water/Oil, 150 PSI Steam. Package Quantity 1 Main Material Brass Product Height 8 in. Product length 1.7 in. Product weight 0.5 lbs. Product width 3.8 in. Warranty One-year limited warranty. Manufacturer part number S-1094-8
