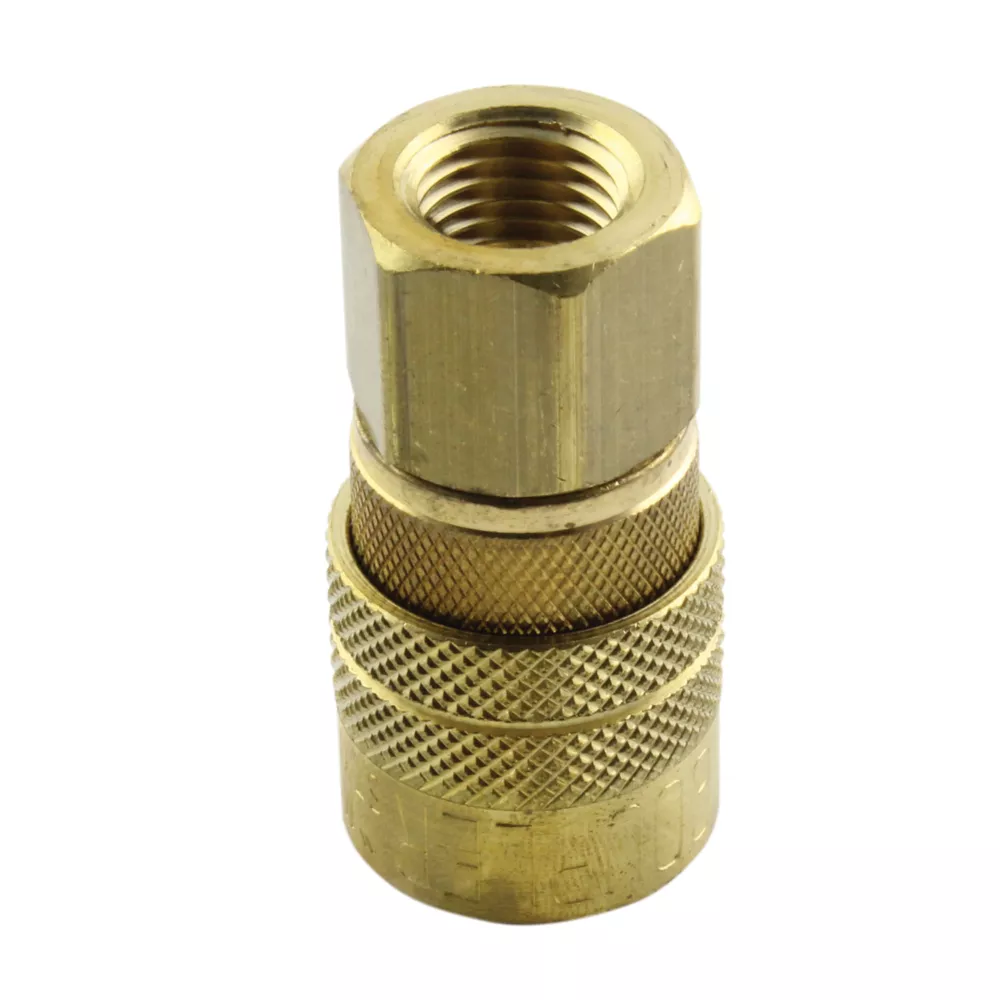

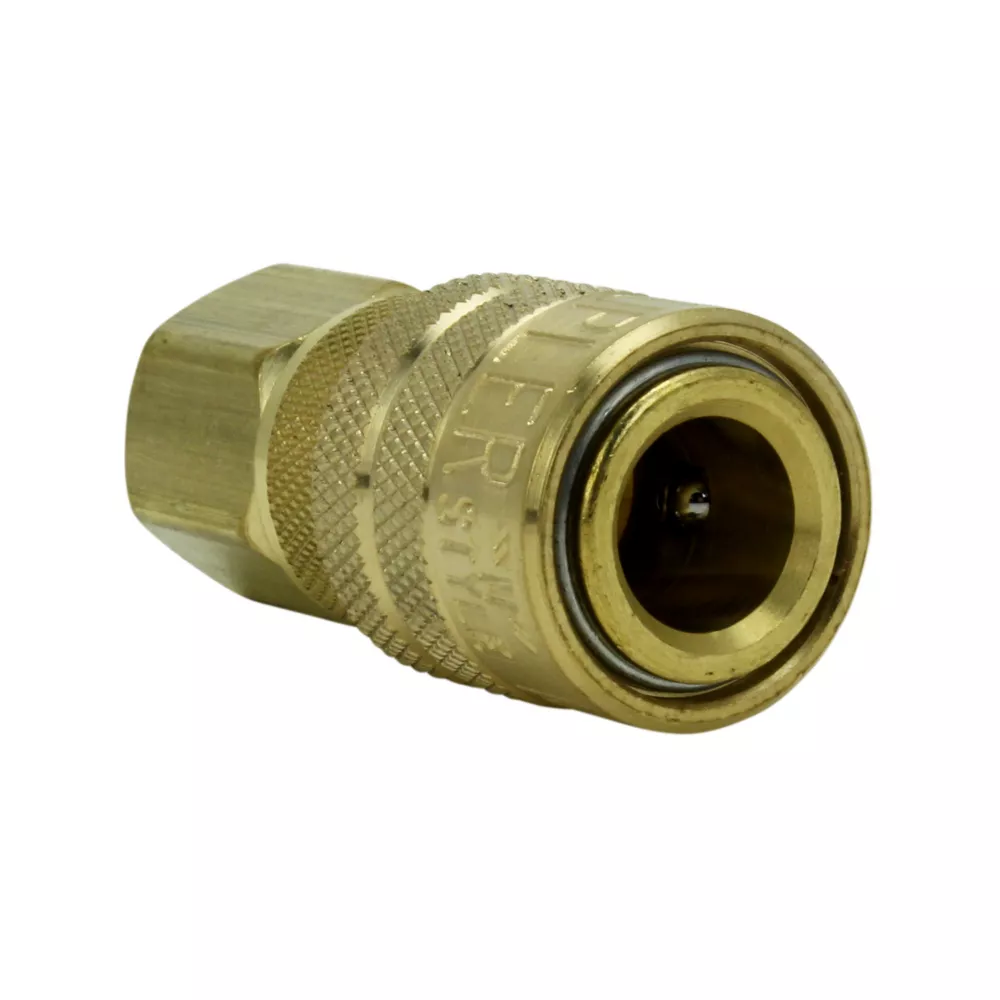

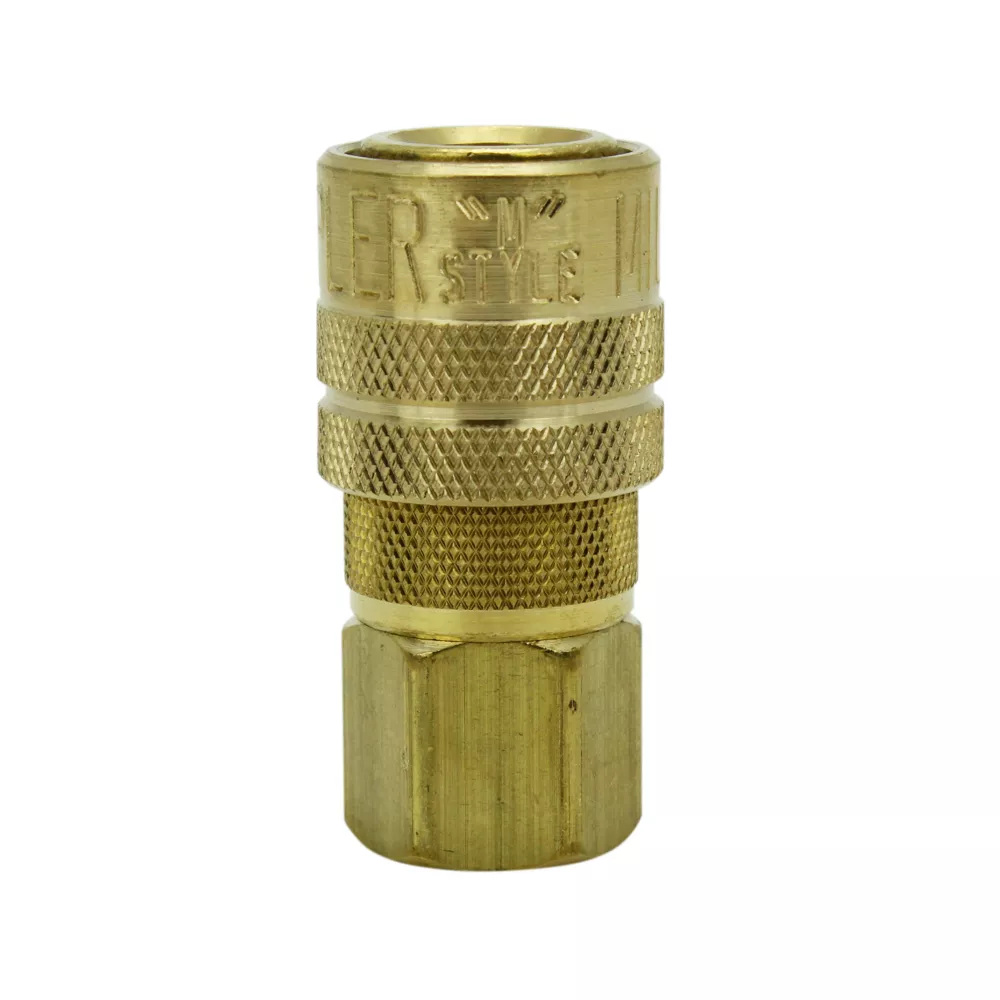

Milton Kwik M-Style Shift Couplers FNPT 1/4 in S-715 Air Hose Fittings Air Compressor Accessories & Parts
Introducing the Milton 1/4 in. FNPT M-Style Kwik Change Couplers - Your Versatile Pneumatic Solution. These couplers are designed to seamlessly interchange with all manufacturers adhering to the dimensional specifications of military specification MIL-C-4109, ensuring universal compatibility in your pneumatic setup. Featuring a 1/4 in. basic flow size, these M-Style couplers deliver a robust performance with a maximum pressure rating of up to 300 PSI, making them ideal for various applications. Complete with a Buna-N Seal for enhanced sealing efficiency, these couplers boast a durable brass body and sleeve, providing longevity and reliability. With an impressive airflow capacity of 40 SCFM, these couplers optimize air transfer, contributing to the efficient operation of your pneumatic tools. Elevate your pneumatic connections with the precision and durability of the 1/4 in. FNPT M-Style Kwik Change Couplers.- PREMIUM QUALITY MATERIAL: Crafted from industrial-grade solid brass to provide exceptional corrosion resistance and a significantly extended lifespan, ideal for heavy-duty applications.
- SECURITY & PROTECTION: Body is equipped with a drag guard sleeve to reduce the risk of accidental disconnects and 3 locking ball connection to provide a powerful hold.
- KWIK-CHANGE FEATURE: Allows for a easy quick connect and disconnect the air fitting from airlines (air compressor or air tool) while eliminating the need for a shut-off valve.
- NPT: 1/4 in. Female national pipe thread flow size.
- MAX PSI: 300 PSI - 40 SCFM - Temperature up to 250 degrees F.
- M-STYLE: Industry standard coupler - Adapts to all Industrial M-Style plug fittings.
- Made in USA.
Milton Kwik M-Style Shift Couplers FNPT 1/4 in S-715 Air Hose Fittings Tools> Air Compressors & Air Tools> Air Compressor Accessories & Parts> Air Hose Fittings
| Specification | Description |
|---|---|
| Brand | Milton |
| Country of Origin | Made in USA |
| Compatibility | Universal M-Style 0.25 FNPT Coupler |
| Connector 1 Size | 0.25 in. |
| Connector 1 Type | Coupler |
| Connector 2 Size | 0.25 in. |
| Connector 2 Type | FNPT |
| Maximum Operating Pressure | 300 PSI |
| Package Quantity | 1 |
| Primary Material | Brass |
| Product Height | 4.7 in. |
| Product Length | 1 in. |
| Product Weight | 0.24 lb. |
| Product Width | 3.7 in. |
| Warranty | 1-year |
| Manufacturer PartNumber | S-715 |
