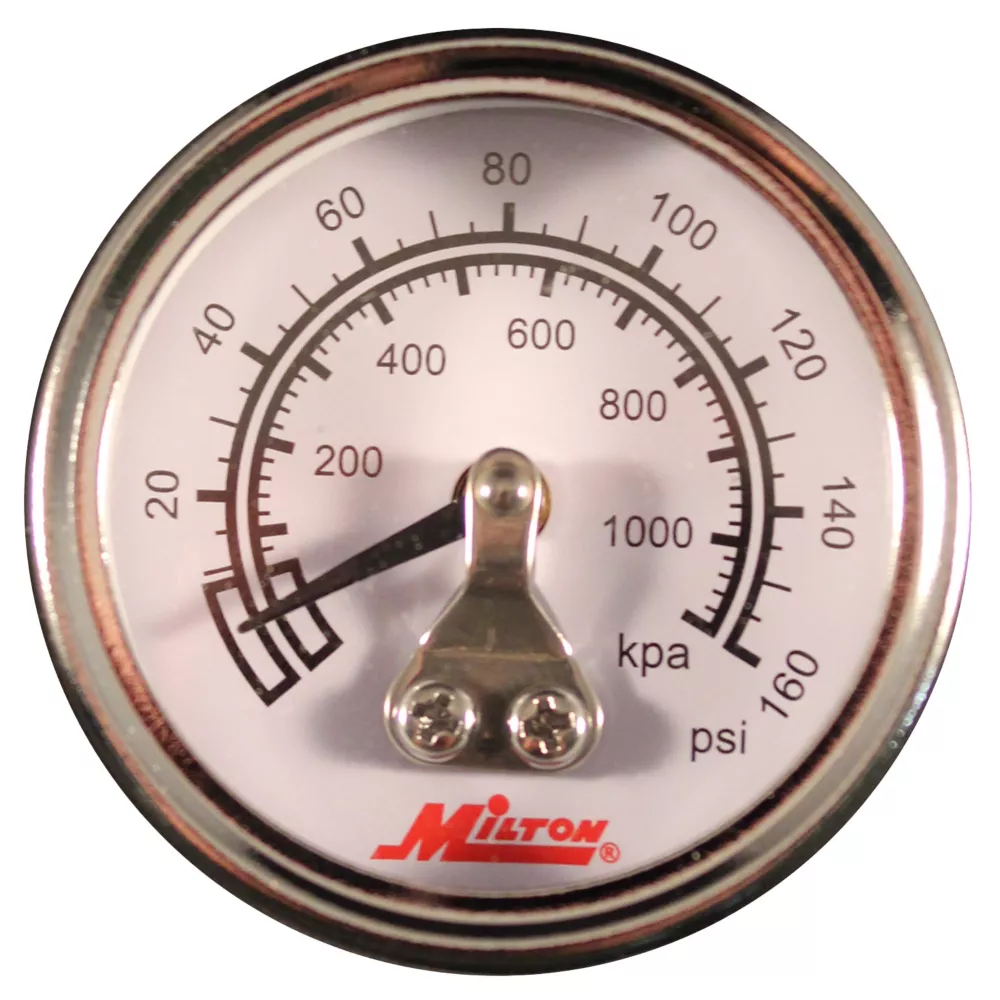

Milton Mini High Pressure Gauge 1/8 in NPT Tire Pressure Gauges Tire Equipment & Tools

Use this mini pressure gauge for reliable service with compressors, regulators, air lines, pneumatic tools and equipment. Made up of a brass mechanism, ABS case and a polycarbonate lens, this gauge is resistant to heat, corrosion, water, salt water and oil. Can also be used in steam applications if less than 120 degrees Fahrenheit. The 1/8 in. NPT pressure gauge has a center back mount and offers a pressure range of 0 to 160 PSI. 1-1/2 in. face diameter.

1/8 in. male national pipe thread.
Pressure range of 0 to 160 pounds per square inch.
Temperature range of 40 degrees Fahrenheit to 140 degrees Fahrenheit.
Package Dimensions: 6.604 L x 5.08 H x 11.176 W.

Milton Mini High Pressure Gauge 1/8 in NPT Tire Pressure Gauges Truck & Automotive> Tires & Wheels> Tire Equipment & Tools> Tire Pressure Gauges

Specification	Description
Brand	Milton
Country of Origin	Imported
Battery Size	None
Connection Type	MNPT
Features	Use this mini pressure gauge for reliable service with compressors, regulators, air lines, pneumatic tools and equipment.
Inlet Size	0.125 in.
Maximum Operating Pressure	160 PSI
Increments	PSI, kPa
Minimum Operating Pressure	0 PSI
Number of Batteries Required	None
Primary Color	Black
Primary Material	Brass
Product Height	2.125 in.
Product Length	4.875 in.
Product Weight	0.23 lb.
Product Width	3.875 in.
Units Measured	PSI, kPa
Warranty	1-year warranty.
Manufacturer PartNumber	1189

Milton Mini High Pressure Gauge, 1/8 in. NPT Specifications expand/collapse Specification Description Brand Milton Country of Origin Imported Battery Size None Connection Type MNPT Features Use this mini pressure gauge for reliable service with compressors, regulators, air lines, pneumatic tools and equipment. Inlet size 0.125 in. Maximum Operating Pressure 160 PSI Increments PSI, kPa Minimum Operating Pressure 0 PSI Number of Batteries Required None Primary Color Black Primary Material Brass Product Height 2.125 in. Product length 4.875 in. Product weight 0.23 lbs. Product width 3.875 in. Measured units PSI, kPa Warranty 1 year warranty. Manufacturer part number 1189
