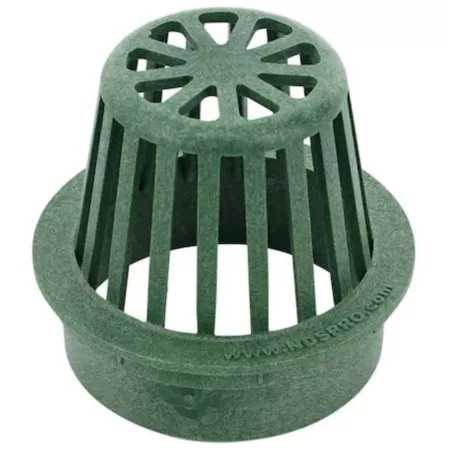

NDS 4" Round Plastic Atrium Grille Green Culvert Parts & Accessories Culverts

Got lots of mulch and debris in the area you're draining? The 4 in. Atrium Drain Grate is designed for the job. The domed design rises above the surface of the ground to block leaves, mulch and other debris near the base of the drain grate, while letting stormwater drain from the above. Use in mulched landscape beds, natural areas, and window wells to drain moderate flows of excess stormwater. The 4 in. atrium dome drain grate has an open surface area of 17.0 sq. in. and a flow rate of 52 GPM. Connect to 4 in. sewer and drain pipe & fittings, 4 in. single-wall corrugated pipe, and 4 in. triple-wall pipe for a soil-tight fit. Built to stand up to the elements, the atrium drain grate is made of polyethylene, a type of plastic, using a combination of virgin and recycled content treated with UV inhibitors to prevent fading and cracking from the sun. As part of a complete drainage system, the pipe grate drains water entering drain pipes. The pipes carry the water to a discharge point downstream such as a pop-up emitter, or to percolate into the ground with a dry well or infiltration trench. NDS offers free tools such as the Home Drainage Center, Calculators, and NDS Stormwater Drainage mobile app to help make your project a success. Founded in 1972, NDS is the preferred choice of professionals and the leader in stormwater management solutions.

Protect your drainage system by using a grate on top of drain pipe to block debris from entering and potentially clogging the pipeline while letting excess surface water flow through
Ideal for draining moderate water flows from mulched landscape beds, natural areas, and window wells
Grate is 4-7/16 in. high; top is 2-3/4 in. wide in diameter; grate openings are in. wide
4 in. Atrium Drain Grates are available in a variety of colors and materials
Fits 4 in. Sewer and Drain Pipe & Fittings, 4 in. Single-Wall Corrugated Pipe, 4 in. Triple-Wall Pipe
17.0 sq. in. open surface area
52 GPM flow rate
Comes with one 4 in. Atrium Grate, Green
Made in the USA

NDS 4" Round Plastic Atrium Grille Green Culvert Parts & Accessories Home Improvement> Plumbing> Culverts> Culvert Parts & Accessories

Specification	Description
Brand	NDS
Country of Origin	Made in USA
Culvert Accessory Type	Grates
Features	4 in. Plastic Round Atrium Drainage Grate in Green
Inside Diameter	4 in.
Outside Diameter	4.19 in.
Package Quantity	1
Primary Color	Green
Primary Material	HDPE
Product Length	4.4 in.
Product Weight	0.3 Ib.
Recommended Usage	Drainage
Wall Type	Single Wall
Warranty	Limited Lifetime
Manufacturer PartNumber	75

NDS 4 in. Round Plastic Atrium Grate, Green Specifications expand/collapse Specification Description Brand NDS Country of Origin Made in USA Culvert Accessory Type Grates Features 4" Round Plastic Atrium Drainage Grate in Green Inside Diameter 4" Outer diameter 4.19 in. Package Quantity 1 Primary Color Green Main Material HDPE Product Length 4.4 in. Product Weight 0.3 lb. Recommended Use Drain Wall Type Single Wall Warranty Limited Lifetime Warranty Manufacturer Part Number 75
