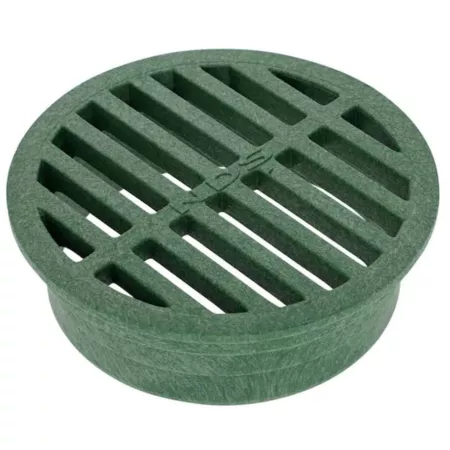

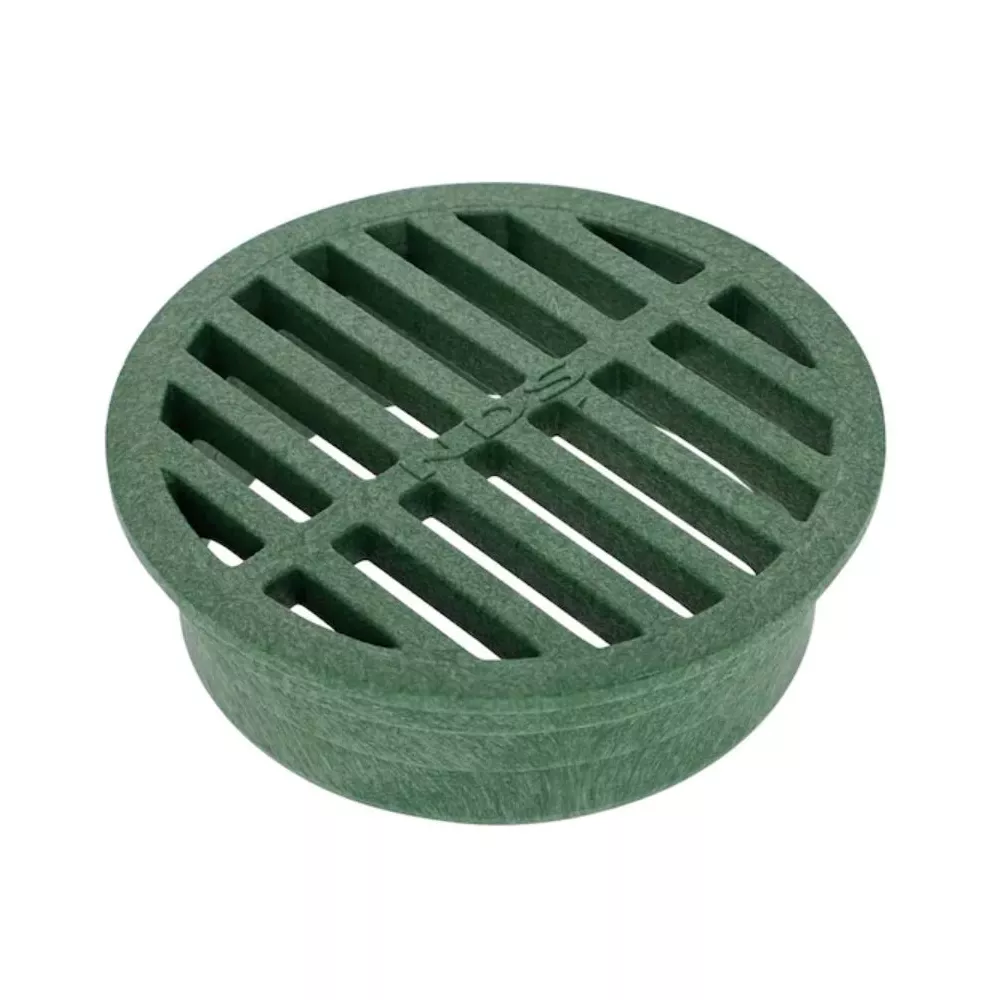

NDS 4" Round Plastic Grate Green Culvert Parts & Accessories Home Improvement

When you need to drain surface water before it can damage your property, you don't need pesky leaves and debris getting in the way. The 4 in. Round Drain Grate blocks these intruders from entering and potentially clogging the pipeline, and is ideal for draining light flows of stormwater from small lawns, landscaped areas, patios, and walkways. The 4 in. Round Drain Grate, also known as a drain cover, has an open surface area of 3.9 sq. in. and a flow rate of 12 GPM. Connects to 4 in. sewer and drain pipe & fittings, 4 in. single-wall corrugated pipe, and 4 in. triple-wall pipe for a soil-tight fit. The pipe grate is ADA Compliant and heel-proof. Built to stand up to the elements, it's made of polyethylene, a type of plastic, using a combination of virgin and recycled content treated with UV inhibitors to prevent fading and cracking from the sun. As part of a complete drainage system, the grate blocks leaves and debris as it drains water entering drain pipes. The pipes carry the water to a discharge point downstream such as a pop-up emitter, or to percolate into the ground with a dry well or infiltration trench. NDS offers free tools such as the Home Drainage Center, Calculators, and NDS Stormwater Drainage mobile app to help make your project a success. Founded in 1972, NDS is the preferred choice of professionals and the leader in stormwater management solutions.

Protect your drainage system by using a grate on top of drain pipe to block debris from entering and potentially clogging the pipeline while letting excess surface water flow through
Ideal for draining light water flows from small lawns, landscaped areas, walkways, and patios
Grate is 1-1/2 in. high; top is 4-5/8 in. wide in diameter; openings are 1/4 in. wide
4 in. Round Drain Grates are available in a variety of colors
Fits 4 in. Sewer and Drain Pipe & Fittings, 4 in. Single-Wall Corrugated Pipe, 4 in. Triple-Wall Pipe
3.9 sq. in. open surface area
12 GPM flow rate
Rated for NDS Class A loads (up to 60 psi) when properly installedrecommended for pedestrians, bicycles, and wheelchair traffic; ADA compliant and heel-proof
Comes with one 4 in. Round Grate, Green
Made in USA

NDS 4" Round Plastic Grate Green Culvert Parts & Accessories Home Improvement> Plumbing> Culverts> Culvert Parts & Accessories

Specification	Description
Brand	NDS
Country of Origin	Made in USA
Culvert Accessory Type	Grates
Features	4 in. Round Plastic Grate, Green
Inside Diameter	4 in.
Outside Diameter	4.63 in.
Package Quantity	1
Primary Color	Green
Primary Material	HDPE
Product Length	4.6 in.
Product Weight	0.2 Ib.
Recommended Usage	Drainage
Wall Type	Single Wall
Warranty	Limited Lifetime
Manufacturer PartNumber	13

NDS 4 in. Round Plastic Grate, Green Specifications expand/collapse Specification Description Brand NDS Country of Origin Made in USA Culvert Accessory Type Features 4" Round Plastic Grate, Green Inside Diameter 4" Outer diameter 4.63 in. Package Quantity 1 Primary Color Green Main Material HDPE Product Length 4.6 in. Product Weight 0.2 lb. Recommended Use Drain Wall Type Single Wall Warranty Limited Lifetime Warranty Manufacturer Part Number 13
