NDS 50 gal Flo-Well Stormwater Dry Well System Kit 3 Sided and Top Culvert Parts & Accessories Home Improvement

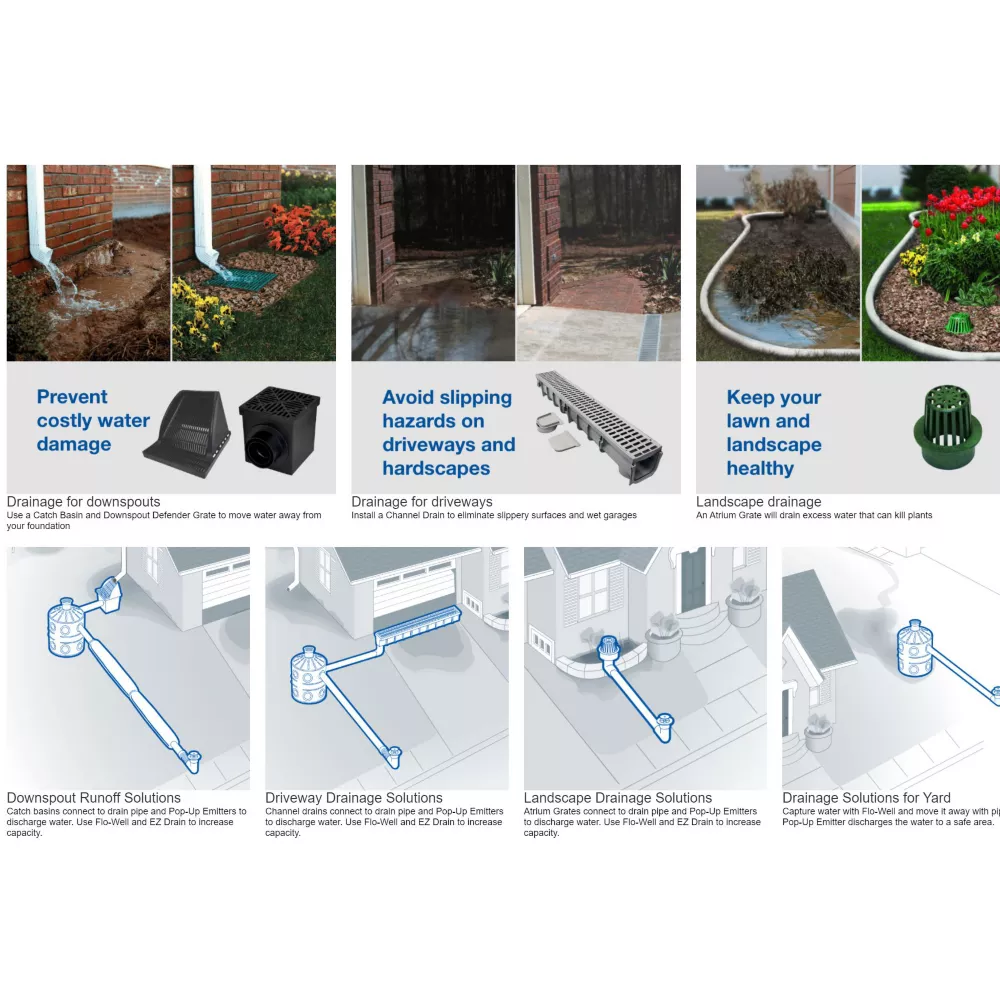

The right solution for draining areas in yards prone to flooding, the Flo-Well Dry Well System is installed underground to collect, temporarily store, and slowly release excess water into the ground. Prevents water damage and eliminates traditional drainage problems such as standing water in yards. The gravel-free interior provides 250% more detention volume than comparable sized gravel dry wells. What is a dry well? Traditionally an underground hole filled with heavy stone and gravel, with the Flo-Well Dry Well drainage system only a small amount of gravel is needed at the base of the tank to prevent scouring, and no heavy equipment is needed to install. Water collected upstream with a catch basin or channel drain is carried by pipes into the Flo-Well Dry Well, and seeps out through the open bottom and weep holes (punched out as needed). For local areas that require stormwater detention and infiltration on property, the Flo-Well Dry Well System is an accepted product, either installed by itself or as part of a larger integrated setup. The Flo-Well Dry Well also works well with rain gardens and bioswales to manage the flow and absorption of runoff from impervious surfaces. We're here to help! NDS offers free tools such as the Flo-Well Drainage calculator, Home Drainage Center, and NDS Stormwater Drainage mobile app to help make your project a success. The preferred choice of contractors, NDS is dedicated to helping you with the products, tools, and support you need to get the job done right the first time.- Protect property from water damage by collecting, detaining, and infiltrating stormwater runoff
- Flo-Well Dry Wells are ideal for both residential and commercial locations including yards, playgrounds, golf courses, and wash-down areas
- Side panels, when assembled, form a 24 in. dia. X 24 in. tall cylinder; with addition of cover the overall height is 28-3/4 in. with 50 gallons storage capacity

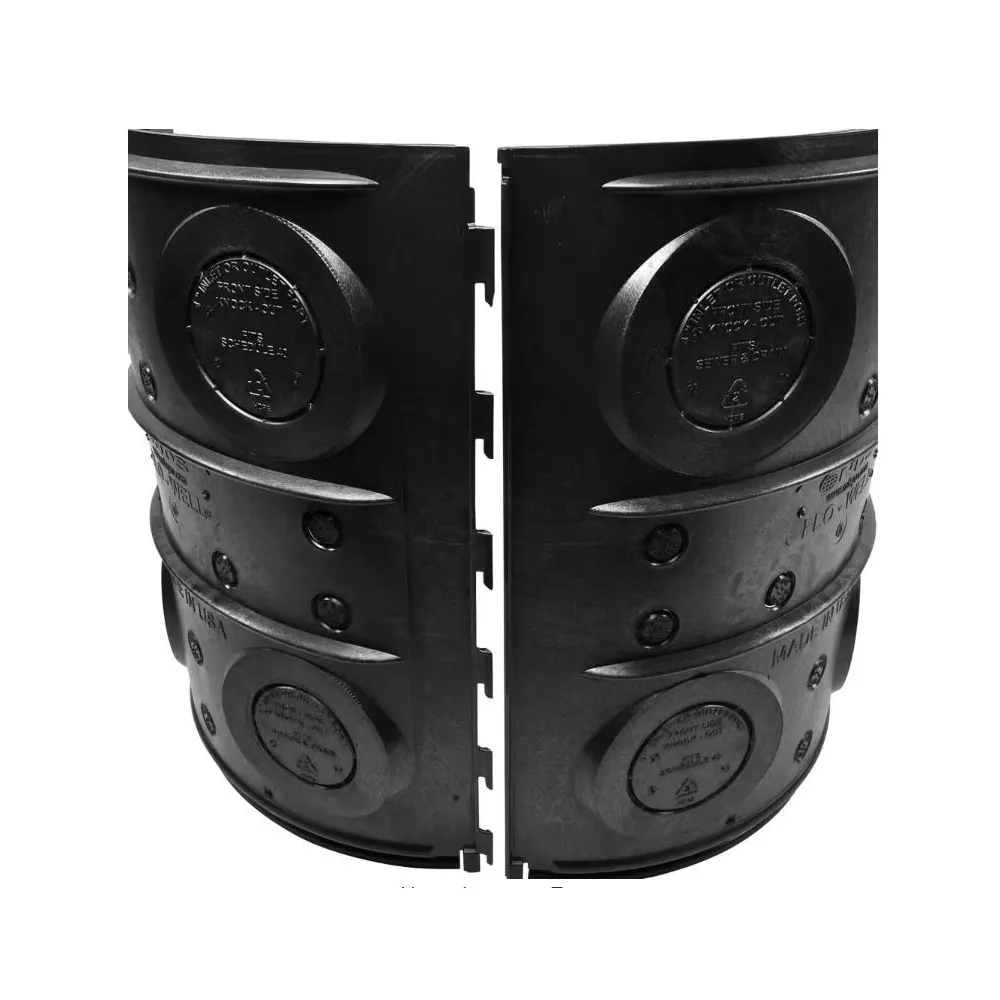

- Special ribbed design on side panels adds structural strength for long-lasting durability; no need to pack gravel inside
- Connect to 4 in. Sewer and Drain Pipe & Fittings through top cover knockout; 12 side-panel knockout points connect to 4 in. Sewer and Drain and Schedule 40 Pipes; knockout points stay securely in place if not needed
- Gravel-free interior provides 250% greater water holding capacity than comparable gravel-filled dry wells
- The Flo-Well Dry Well can be buried or stacked up to 8 ft. deep and supports pedestrian traffic including lawn tractors

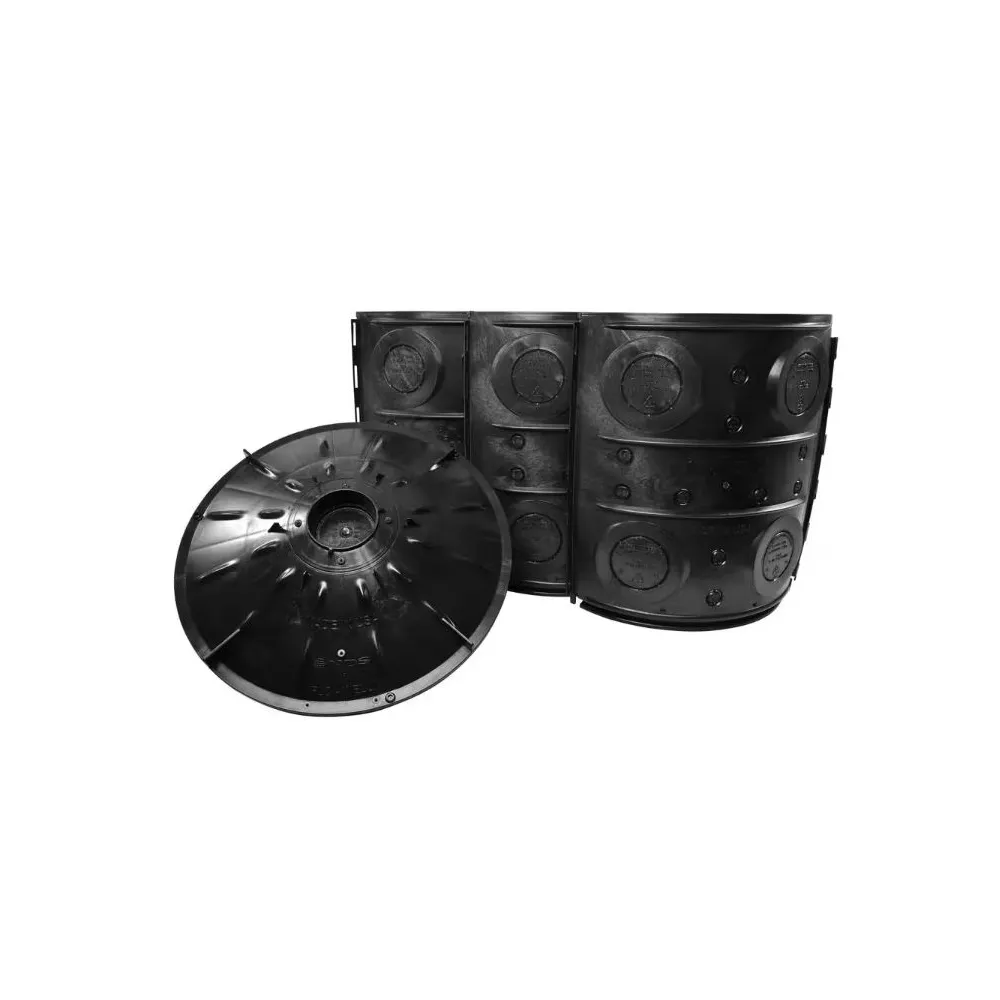

- Comes with 3 side panels and top cover, unassembled
- Made in the USA
NDS 50 gal Flo-Well Stormwater Dry Well System Kit 3 Sided and Top Culvert Parts & Accessories Home Improvement> Plumbing> Culverts> Culvert Parts & Accessories
| Specification | Description |
|---|---|
| Brand | NDS |
| Country of Origin | Made in USA |
| Culvert Accessory Type | Other |
| Features | The right solution for draining areas in yards prone to flooding, the Flo-Well Dry Well System is installed underground to collect, temporarily store, and slowly release excess water into the ground. Prevents water damage and eliminates traditional drai |
| Inside Diameter | 23.75 in. |
| Outside Diameter | 24 in. |
| Package Quantity | 1 |
| Primary Color | Black |
| Primary Material | ABS |
| Product Length | 28.75 in. |
| Product Weight | 0.27 Kg |
| Recommended Usage | Storm, Drainage |
| Wall Type | Single Wall |
| Warranty | 1 year |
| Manufacturer PartNumber | FWAS24 |
