NDS Pro Series 5 in x 40 in Drain and Grate Kit Gray Culvert Parts & Accessories Home Improvement

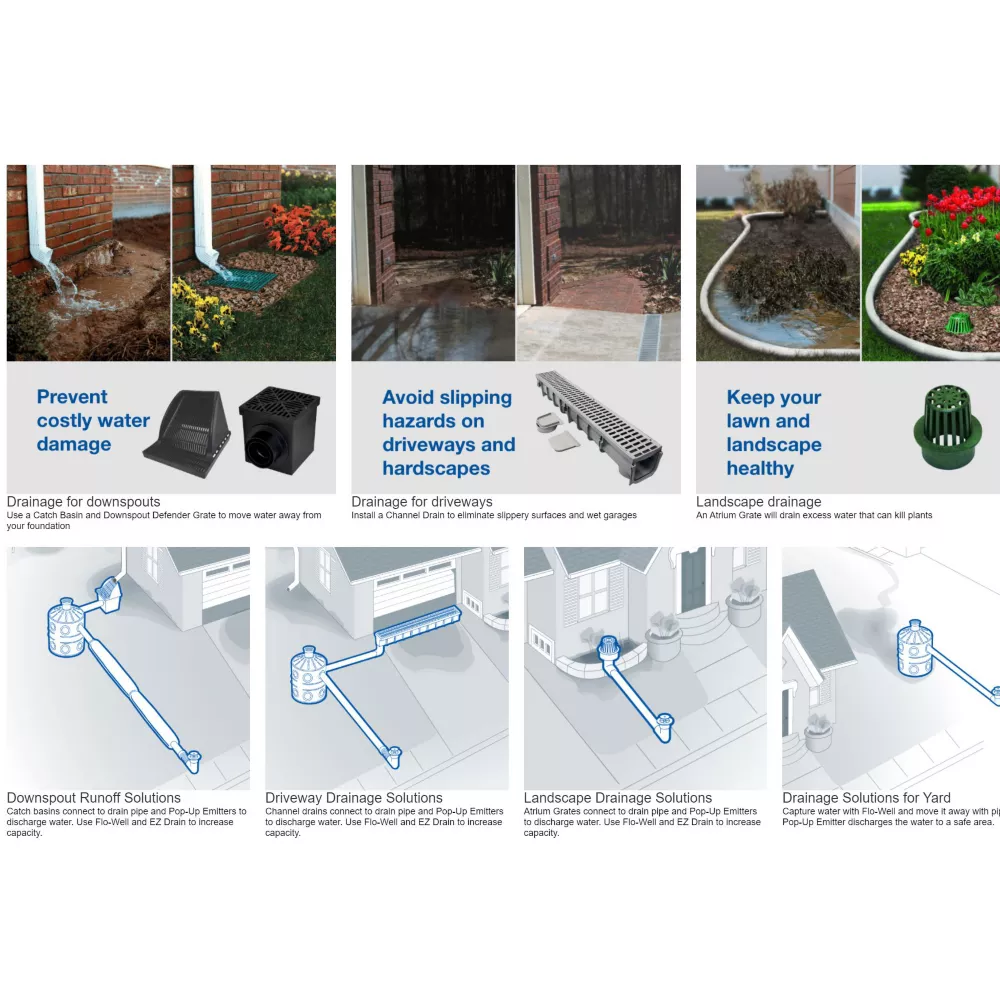

Drain excess water flooding hardscapes to prevent costly property damage with the 5 in. Pro Series Channel Drain, Deep Profile, the most durable modular drain system in its class. Captures moderate flows from driveways, patios, courtyards, walkways, & sports facilities, & conveys to drain pipe. Kit includes a 4-3/4 in. deep polypropylene channel, polyethylene grates, end cap/outlet, & end cap. Channels snap together with interlocking joints. Cut to 4 in. short increments using saw guides. End outlet, integrated bottom outlet, & side knockouts provide 8 outlet options per channel section. Channel drains, also called trench drains, are long, narrow drains used for surface drainage of hardscapes. Channel drains collect and convey water to drain pipes, which carry the water downstream to discharge with a pop-up emitter, or to percolate into the ground with a dry well or infiltration trench. NDS channel and trench drains are designed for durability, drainage, and performance, and are a proven alternative to traditional concrete drains. NDS offers free tools such as the Home Drainage Center, Calculators, and NDS Stormwater Drainage mobile app to help make your project a success. Founded in 1972, NDS is the preferred choice of professionals and the leader in stormwater management solutions.

Prevent mildew growth, concrete staining, and costly structural damage by capturing and conveying excess surface water to drain pipe for release downstream
The 5 in. Pro Series Channel Drain Kit with Deep Profile Channel is ideal for draining moderate flows from hardscape surfaces such as driveways, concrete and paver patios, courtyards, walkways, and sports facilities

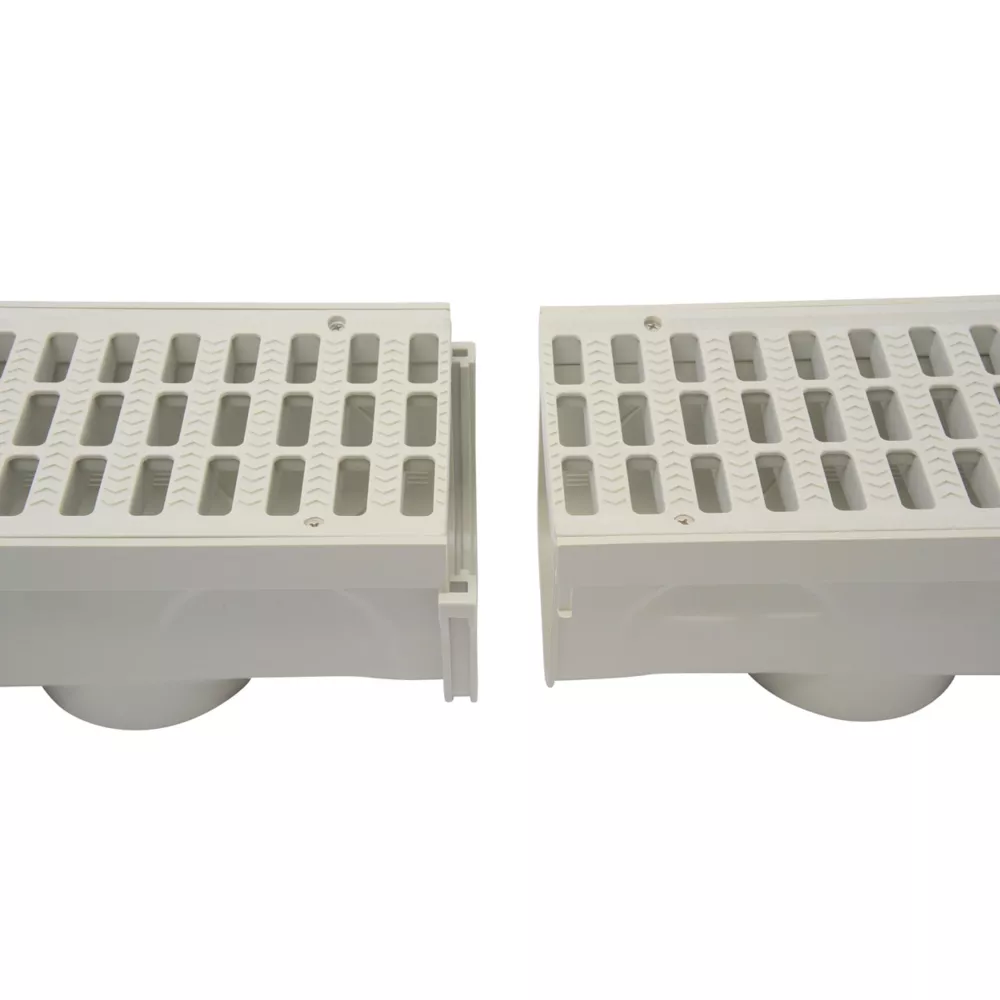

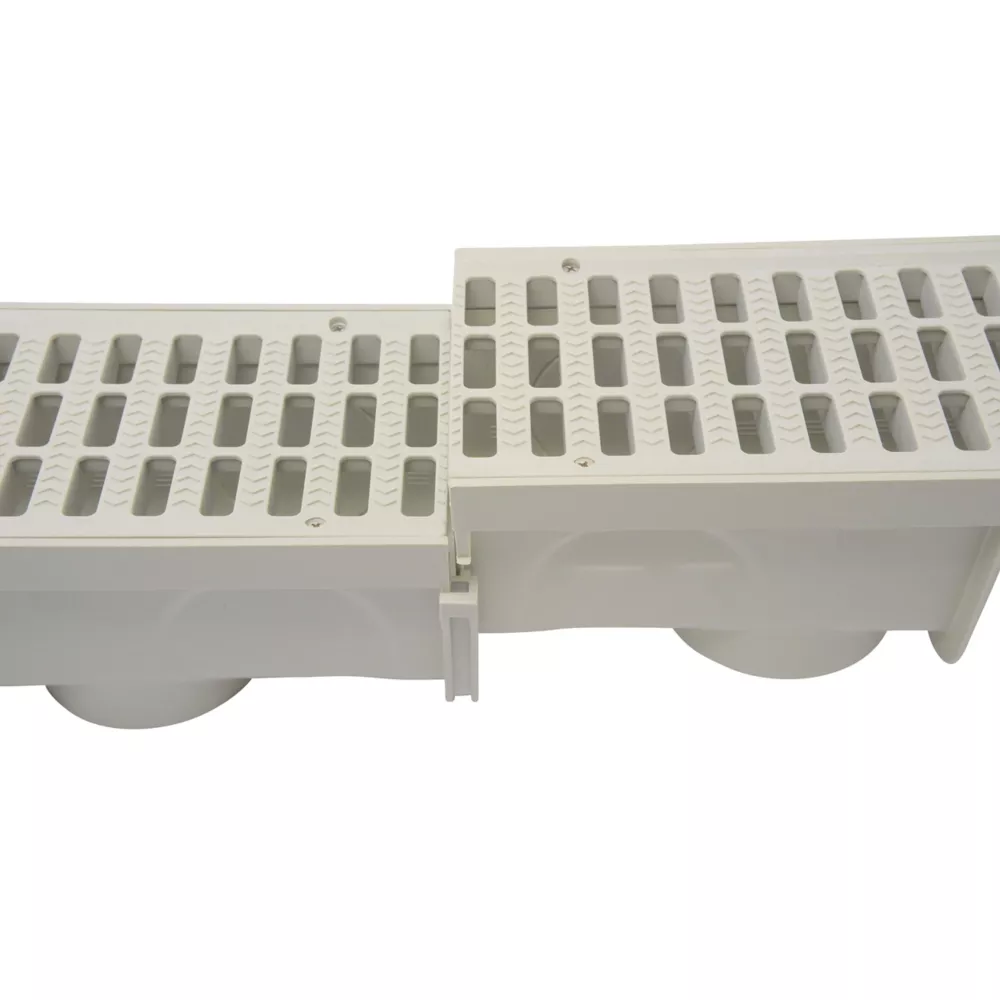

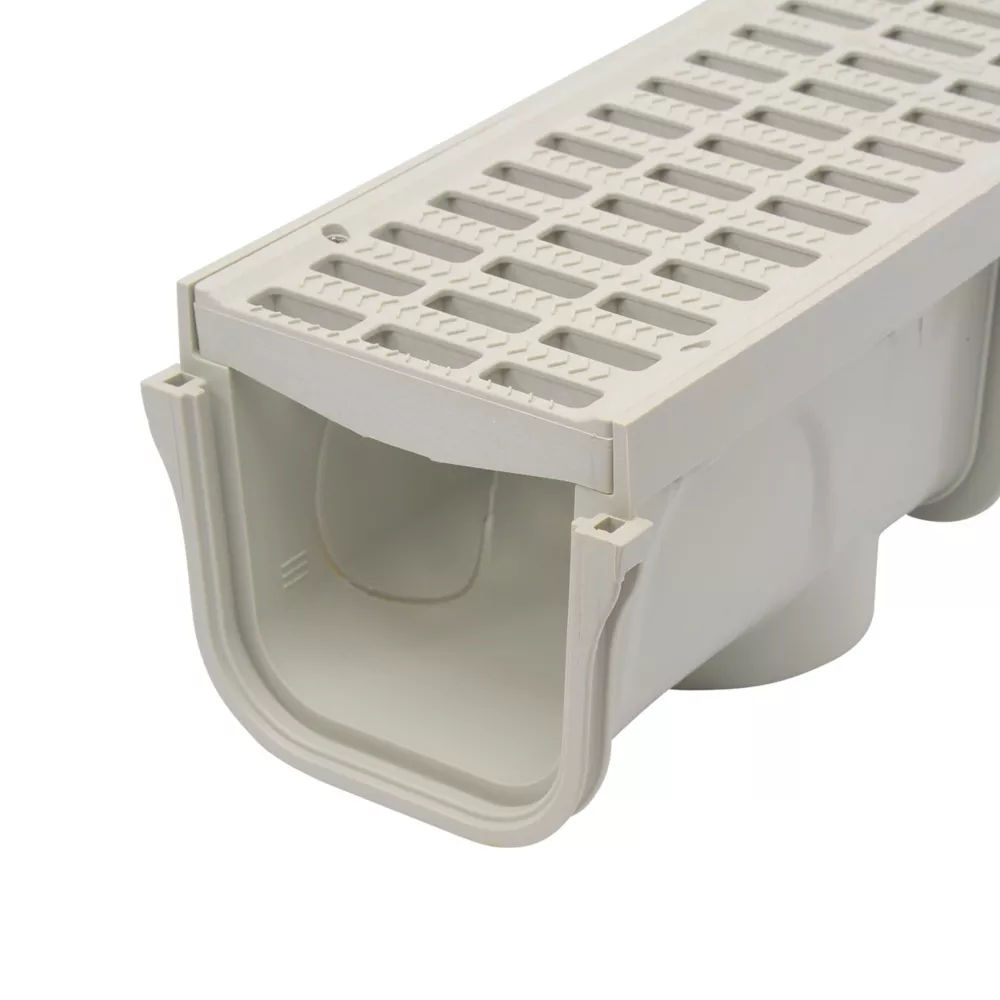

The 5 in. Pro Series Channel Drain is 4-3/4 in. deep and features a modular design with interlocking joints for a secure channel-to-channel connectionno couplings required, easy to cut to size in 4 in. increments with saw guide

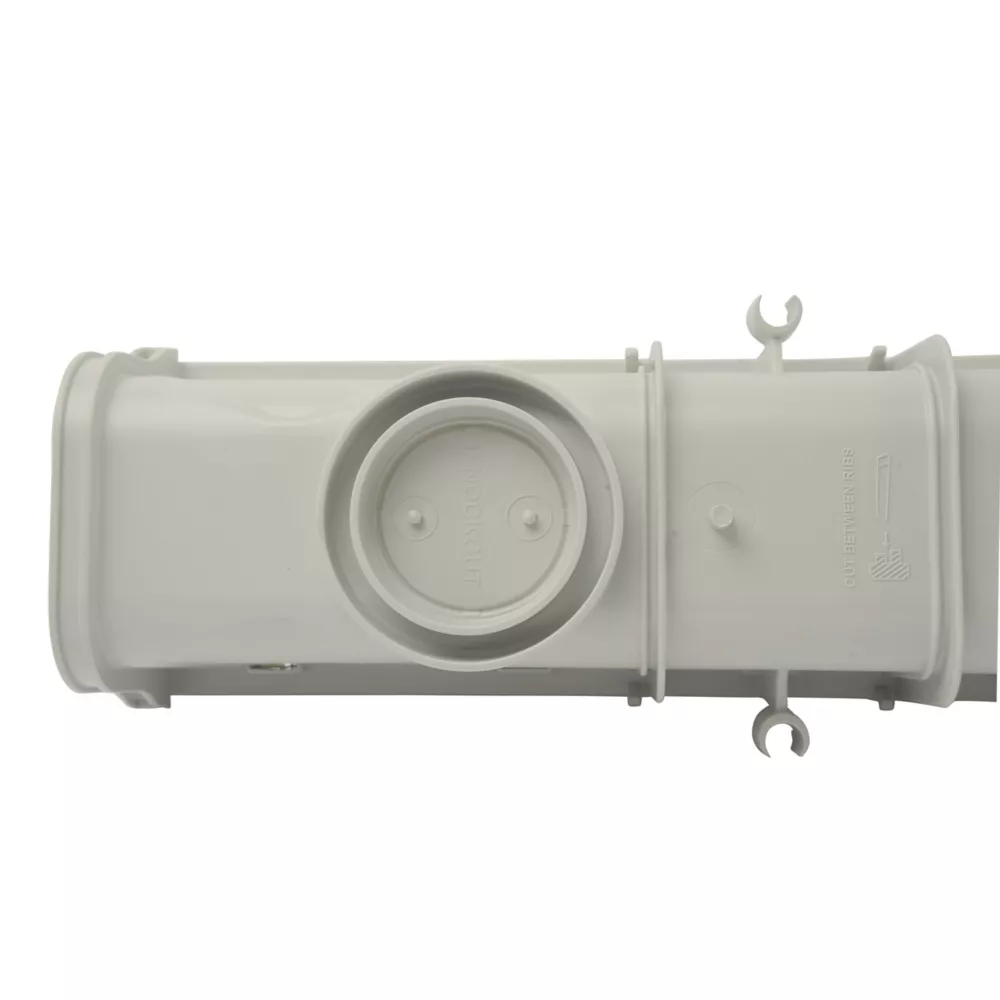

Included end cap/outlet combined with integrated bottom outlet and side-outlet knockouts provide 8 outlet options per channel section
Channel sections connect together with interlocking joints; bottom outlet connects to 3 in. & 4 in. Sewer and Drain Fittings; side outlets to 3 in. Sewer and Drain Pipe; end outlet to 3 in. Sewer and Drain Pipe & 4 in. Sewer and Drain Fittings
23.5 sq. in. per linear ft. open surface area
72 GPM per ft. flow rate
Rated for NDS Class B Loads (up to 175 psi) when properly installedrecommended for medium-duty pneumatic tire traffic, autos, and light trucks at speeds less than 20 mph; ADA compliant

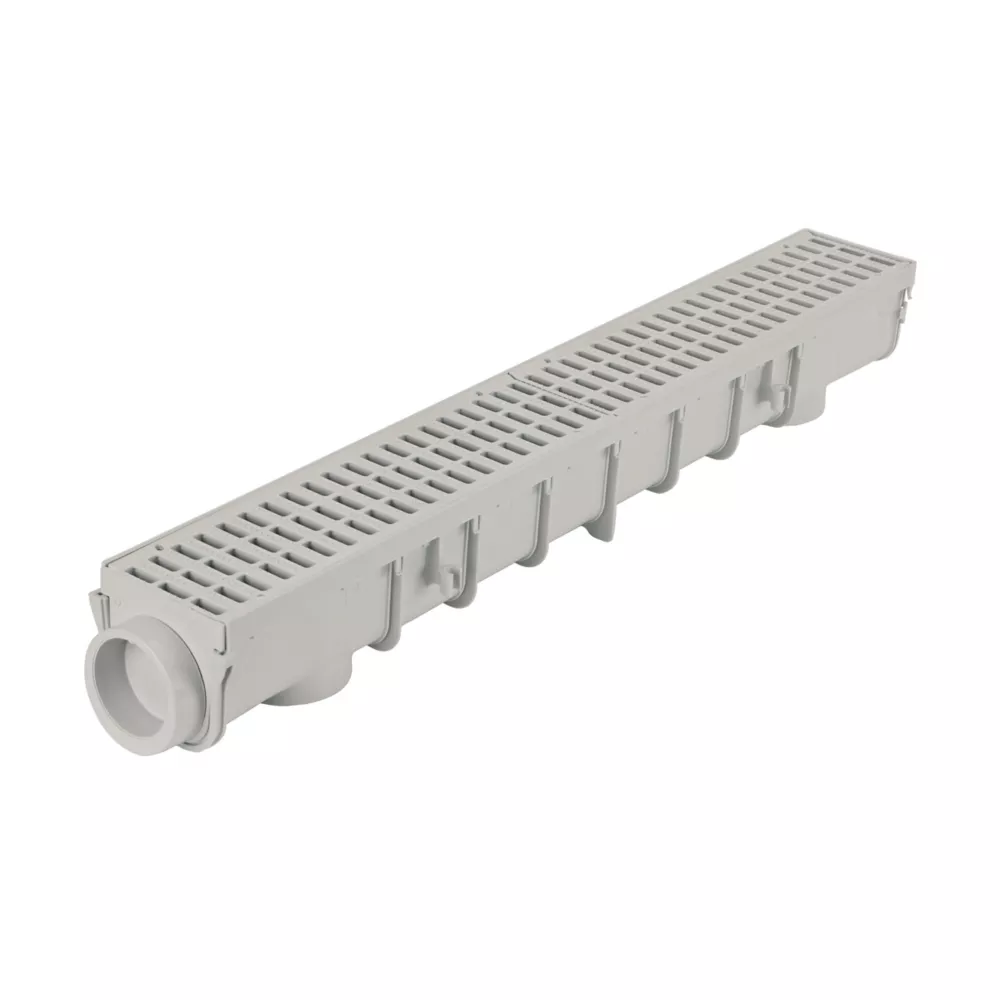

5 in. Pro Series Channel Drain kit comes with a channel drain, polyethylene channel grates, end cap/outlet, and end cap
Made in USA

NDS Pro Series 5 in x 40 in Drain and Grate Kit Gray Culvert Parts & Accessories Home Improvement> Plumbing> Culverts> Culvert Parts & Accessories

Specification	Description
Brand	NDS
Country of Origin	Made in USA
Culvert Accessory Type	Other
Features	Kit includes channel, plastic grates, end cap/outlet, end cap
Inside Diameter	4.75 in.
Outside Diameter	5 in.
Package Quantity	1
Primary Color	Gray
Primary Material	HDPE
Product Length	40 in.
Product Weight	6.85 Ib.
Recommended Usage	Storm, Drainage
Wall Type	Single Wall
Warranty	1 year
Manufacturer PartNumber	864G

NDS Pro Series 5 in. x 40 in. Channel Drain and Grate Kit, Gray Specifications expand/collapse Specification Description Brand NDS Country of Origin Made in USA Culvert Accessory Type Other Features Kit includes channel, plastic screens, end cap/outlet, end cap Inside diameter 4.75 in. Outside diameter 5 in. Package Quantity 1 Primary Color Gray Primary Material HDPE Product Length 40 in. Product Weight 6.85 lb. Recommended Use Storm, Drain Wall Type Single Wall 1 Year Warranty Manufacturer Part Number 864G
