NDS rainwater collection basin 1200BKIT Culvert Pipe Culverts

Trouble with stormwater flooding your lawn, patio, or landscaping? You're not alone. For many homeowners, that means excess water isn't able to properly drain. If the problem isn't fixed, it can lead to a bigger problemand costly damage to your property. Here's how to fix it. Drain water where it doesn't need to be with a stormwater catch basin. The 12 in. Square Catch Basin is ideal for handling heavy flows from lawns, landscaped areas, under downspouts, patios, and walkways. The catch basin, or catch drain, does more than "catch" wateras part of a complete drainage system, it works stealthily underground to direct water to connected drain pipes which carry the water to a discharge point such as a pop-up emitter, or to percolate into the ground with a dry well or infiltration trench. Kit includes a 2-opening basin made of polypropylene, 2 outlet adapters, and 1 plug which fits in either outlet adapter, and polyethylene grate to block leaves and debris from entering the drainage system. The storm drain with grate is rated for NDS Class B loads when properly installed. Built-in basin sump is easy to access and clean. Founded in 1972, NDS is the preferred choice of professionals and the leader in stormwater management solutions with proven products, tools, and support to help you get the job done right.

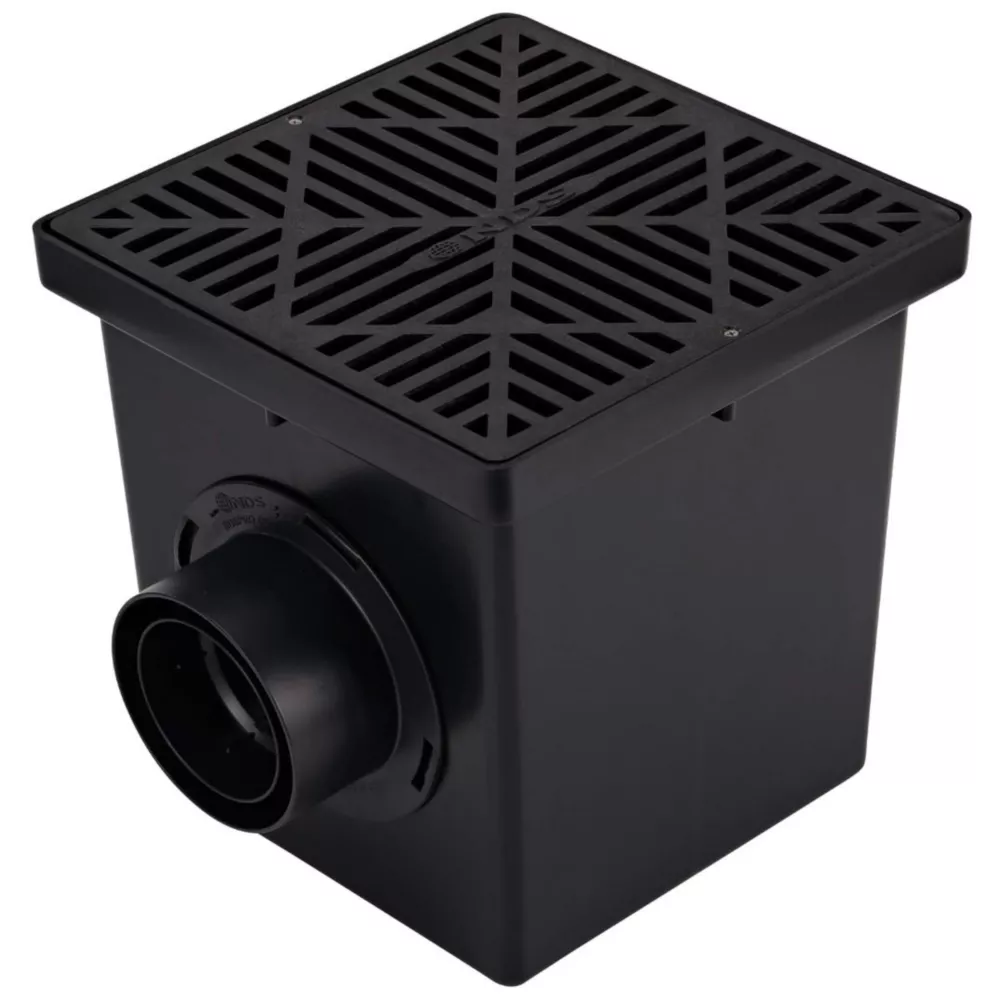

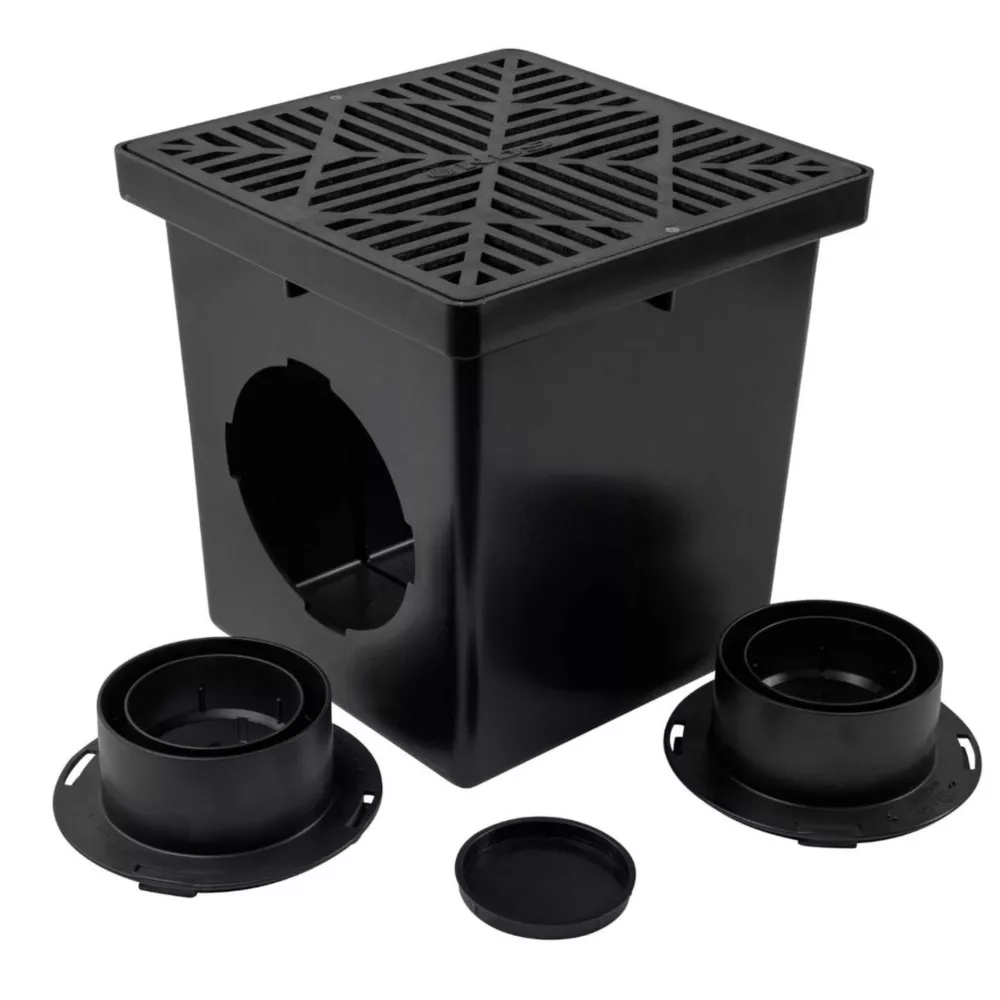

12 in. Square Catch Basin Drain Kit with 2-Opening Catch Basin, Black Plastic Grate, 2 Outlet Adapters, 1 Outlet Plug
Collect stormwater runoff and standing water on your property and direct to drain pipes before it causes costly property damage

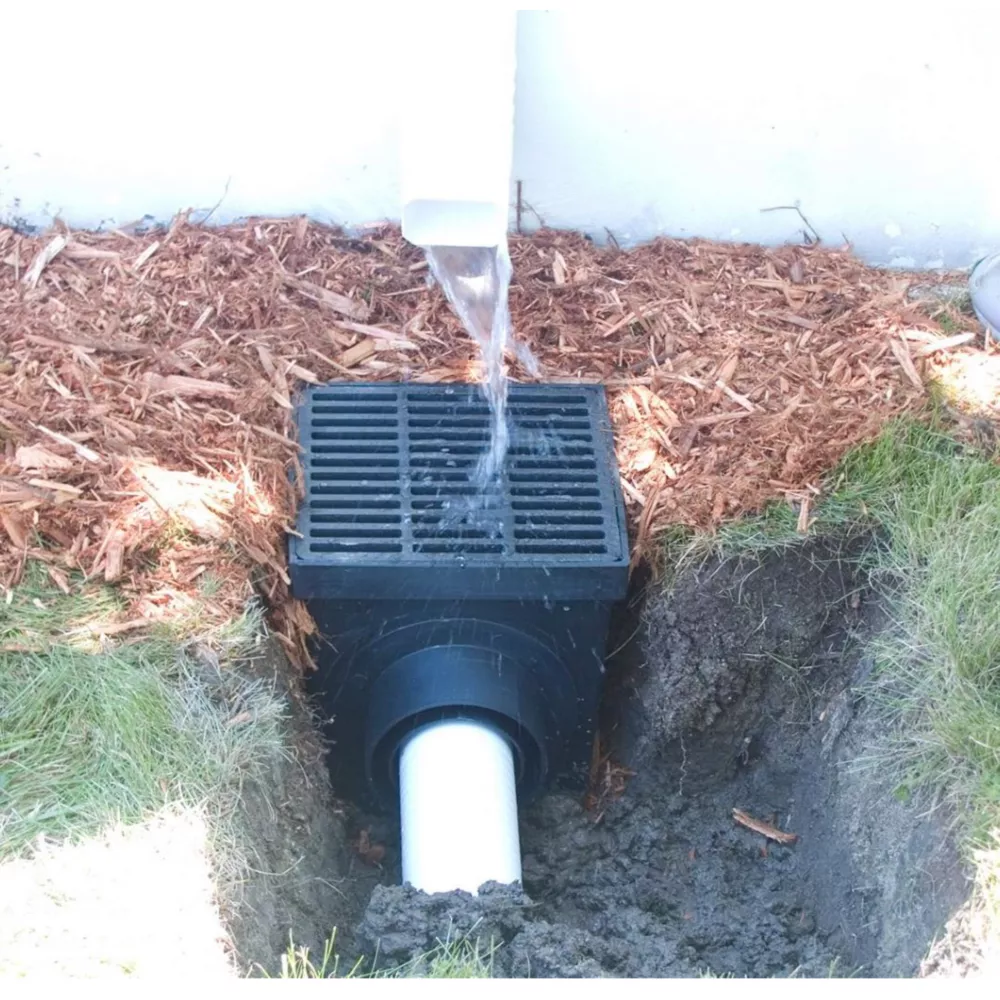

Manage heavy flows of water from lawns, landscaped areas, under downspouts, patios, and walkways

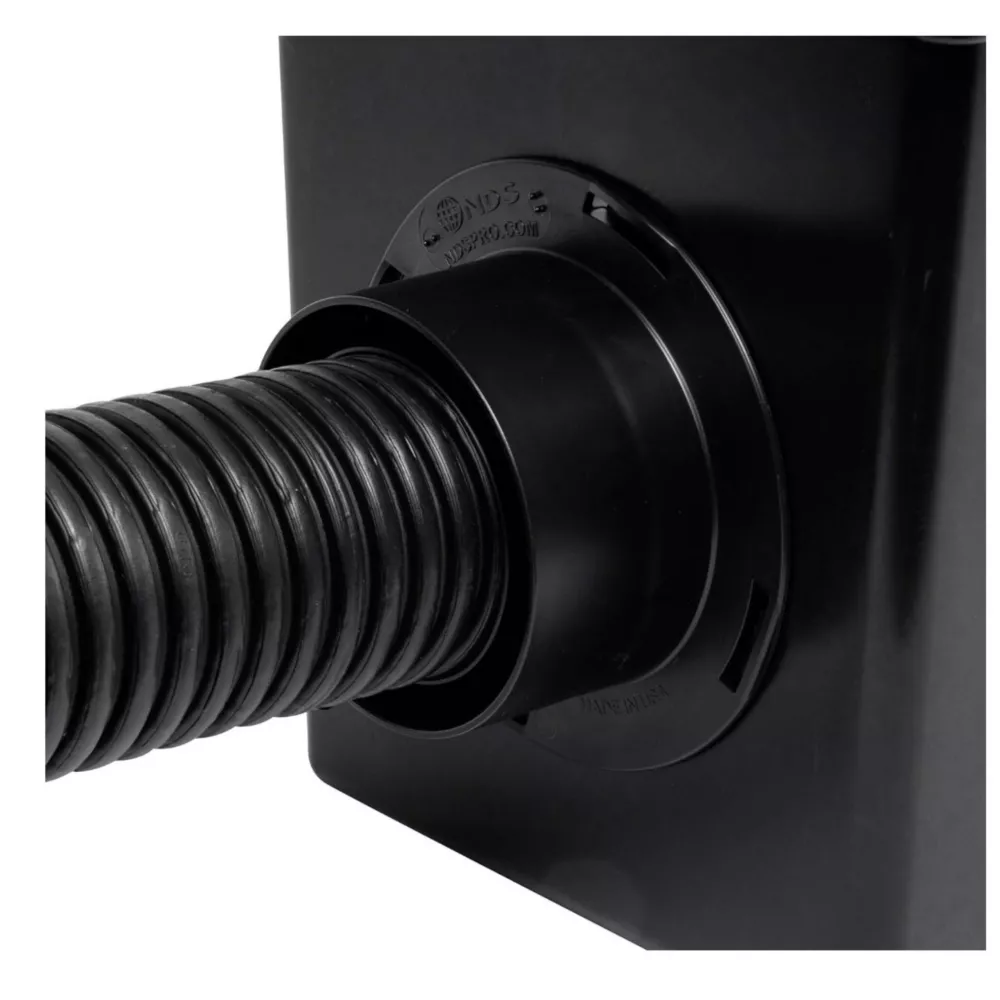

Keyed side openings lock outlet adapters in place; knockout on bottom for additional keyed opening if needed
Four weephole knockouts on bottom to eliminate stagnant water
Connects to 3 in. & 4 in. sewer and drain pipes, 3 in. & 4 in. single-wall corrugated pipes, 3in. & 4 in. triple-wall pipes, and 3 in. & 4 in. DWV/Sch. 40 pipes using included outlet adapters; additional outlet adapters sold separately for connections to 6 in. and 8 in. drain pipes
12 in. square grate has an open surface area of 53.1 sq. in.
162 GPM flow rate for 12 in. square plastic grate
Rated for NDS Class B loads (up to 175 psi) when properly installed with graterecommended for medium-duty pneumatic tire traffic, autos, and light trucks at speeds less than 20 mph
Made in USA

NDS rainwater collection basin 1200BKIT Culvert Pipe Home Improvement> Plumbing> Culverts> Culvert Pipe

Specification	Description
Brand	NDS
Country of Origin	Made in USA
Features	The 12 in. Square Catch Basin is ideal for handling heavy flows from lawns, landscaped areas, under downspouts, patios, and walkways.
Inside Diameter	12 in.
Outside Diameter	12.38 in.
Package Quantity	1
Primary Color	Black
Primary Material	HDPE
Product Length	12.38 x 12.38 x 13 in.
Product Weight	4 lb.
Recommended Usage	Storm, Drainage
Wall Type	Single Wall
Warranty	1 year
Manufacturer PartNumber	1200BKIT

NDS Stormwater Catch Basin, 1200BKIT Specifications expand/collapse Specification Description Brand NDS Country of Origin Made in USA Features 12" square catch basin is ideal for handling large flows from lawns, landscaped areas, under downspouts, patios and driveways . Inside diameter 12 in. Outer diameter 12.38 in. Package Quantity 1 Primary Color Black Main Material HDPE Product Length 12.38 x 12.38 x 13 in. Product weight 4 lbs. Recommended Use Storm, Drain Wall Type Single Wall Warranty 1 Year Manufacturer Part Number 1200BKIT
