NDSRTL rainwater collection basin Culvert Pipe Culverts

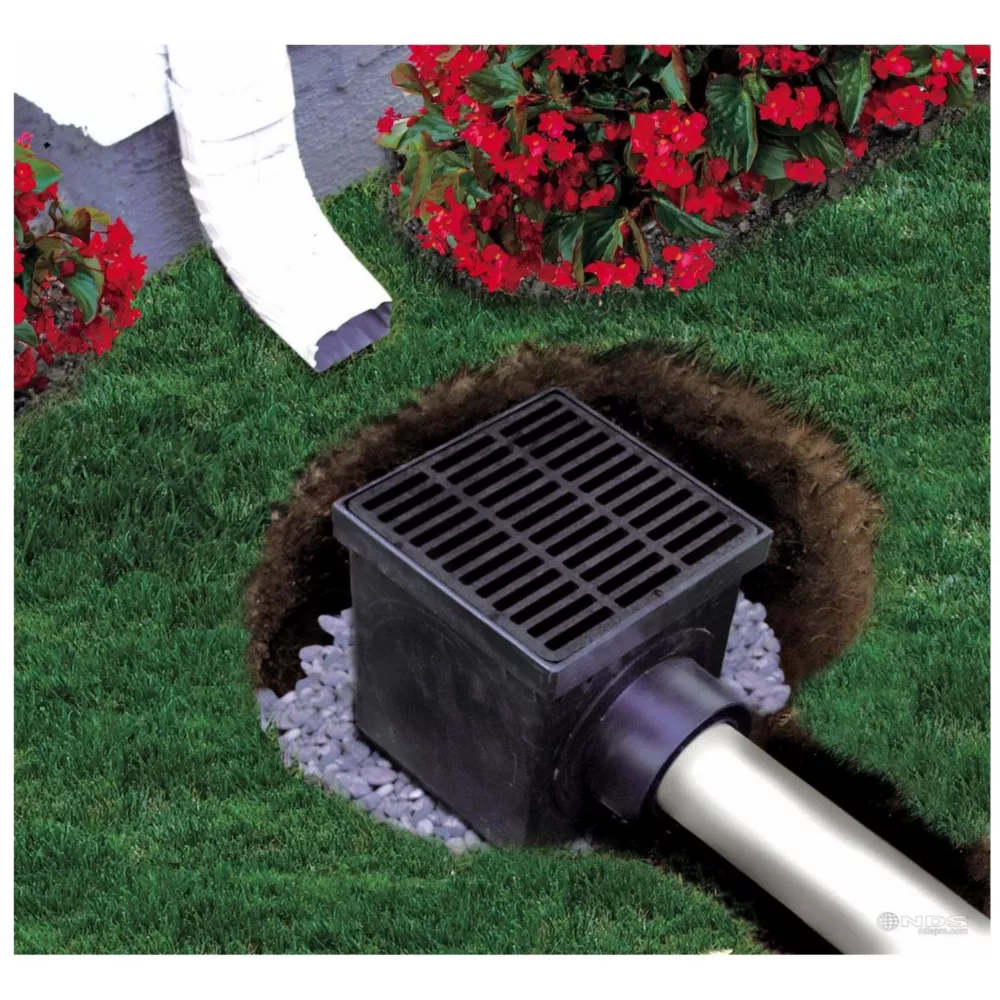

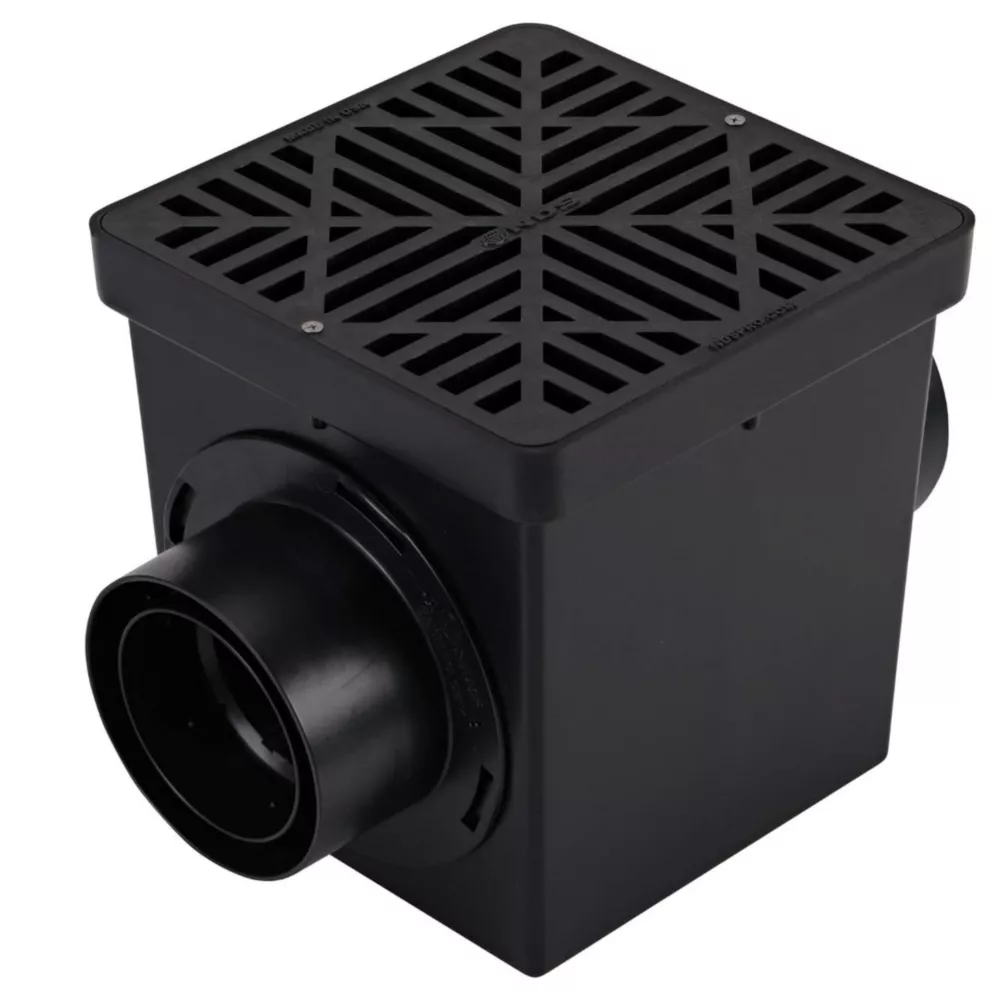

9 in. Square Catch Basin Drain Kit with 2-Opening Catch Basin, Black Plastic Grate, 2 Outlet Adapters, 1 Outlet Plug Does your lawn or downspout areas around your home flood from rain? Soggy lawns and murky puddles aren't just eyesores. Water that can't properly drain can seep into your foundation, destroy turf, and erode the soil. Here's how to fix it. Drain water from where it doesn't need to be with a catch basin on lawns, landscaped areas, under downspouts, patios, walk ways even where runoff from neighboring property can pool up in your yard. Use the 9x9 catch basin as part of a complete drainage system to collect and direct heavy flows of water to drain pipe and take it away to a discharge point downstream such as a pop-up emitter or to percolate into the ground with dry well or infiltration trench. Built-in sump is easy to access and clean. Founded in 1972, NDS is the preferred choice of professionals and the leader in stormwater management solutions with proven products, tools, and support to help you get the job done right.

Collect stormwater runoff and standing water on your property and direct to drain pipes before it causes costly property damage
Manage moderate flows of water; ideal for lawns, landscaped areas, under downspouts, patios, walkways
Keyed side openings lock outlet adapters in place; cutout guide on bottom for additional keyed opening if needed
Four weephole knockouts on bottom to eliminate stagnant water

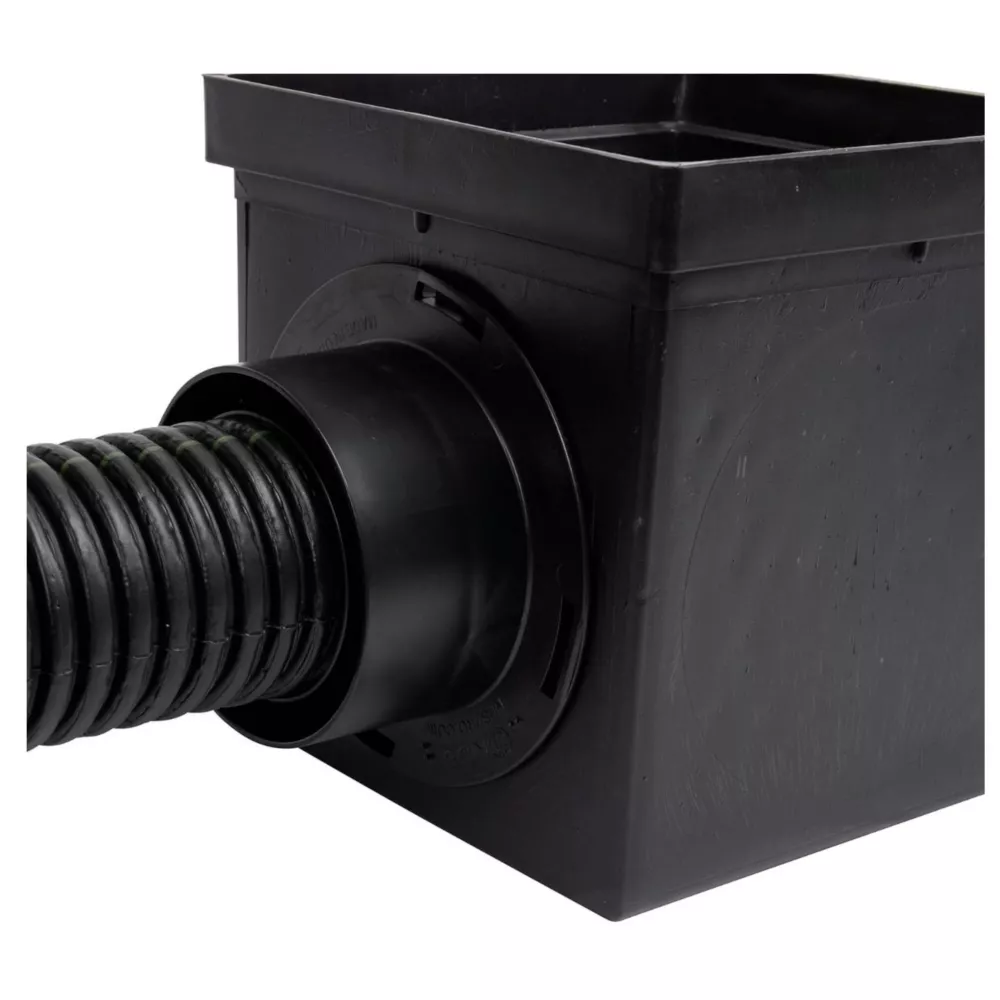

Connects to 3 in. & 4 in. sewer and drain pipes, 3 in. & 4 in. single-wall corrugated pipes, 3 in. & 4 in. triple-wall pipes, and 3 in. & 4 in. DWV/Sch. 40 pipes using included outlet adapters; additional outlet adapters sold separately for connections to 6 in. and 8 in. drain pipes
39.5 sq. in. open surface area for 9 in. square plastic grate
121 GPM flow rate for 9 in. square grate
Rated for NDS Class B loads (up to 175 psi) when properly installed with graterecommended for medium-duty pneumatic tire traffic, autos, and light trucks at speeds less than 20 mph; ADA compliant
Kit includes 9 in. Catch Basin Drain with 2 side openings and cutout guide for bottom opening, 2 Outlet Adapters, 1 Plug, 9 in. Square Plastic Grate
Made in USA

NDSRTL rainwater collection basin Culvert Pipe Home Improvement> Plumbing> Culverts> Culvert Pipe

Specification	Description
Brand	NDS
Country of Origin	Made in USA
Features	9 in. Square Catch Basin Drain Kit with 2-Opening Catch Basin, Black Plastic Grate, 2 Outlet Adapters, 1 Outlet Plug
Inside Diameter	9 in.
Outside Diameter	9.38 in. sq.
Package Quantity	1
Primary Color	Black
Primary Material	HDPE
Product Length	9.38 x 9.38 x 10.06 in.
Product Weight	3.93 lb.
Recommended Usage	Storm, Drainage
Wall Type	Single Wall
Warranty	1 year
Manufacturer PartNumber	900BKIT

NDS Stormwater Catch BasinRTL Specifications Expand/Collapse Specification Description Brand NDS Country of Origin Made in USA Features 9" Square Sump Drain Kit with 2-Opening Sump, Black Plastic Grate, 2 Outlet Adapters, 1 Outlet Plug Inside Diameter 9 in. Outer Diameter 9.38 in. m² Package Quantity 1 Primary Color Black Main Material HDPE Product Length 9.38 x 9.38 x 10.06 in. Product weight 3.93 lbs. Recommended Use Storm, Drain Wall Type Single Wall Warranty 1 Year Manufacturer Part Number 900BKIT
