ORACLE Lighting 2019-2024 RAM Rebel/TRX Front Bumper Flush LED Light Bar System White LED 5885-001 Light Bars Truck & Automotive

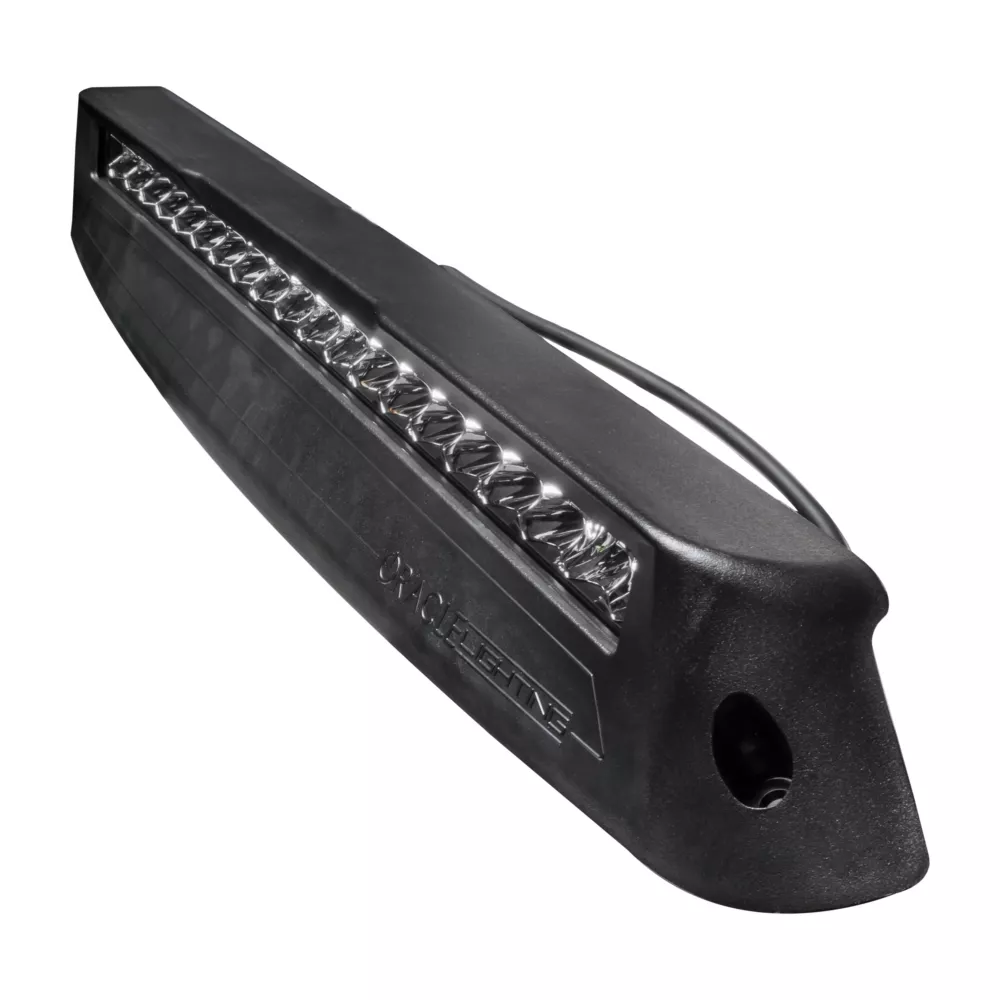

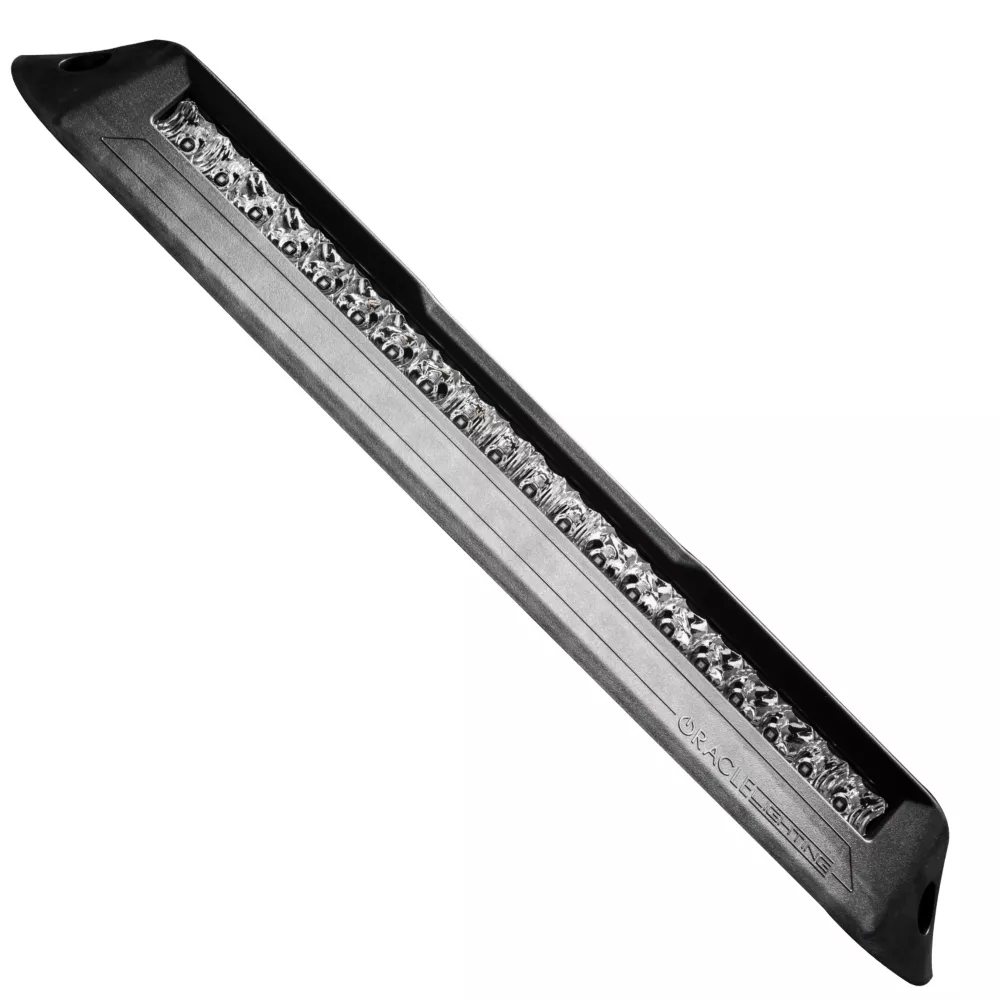

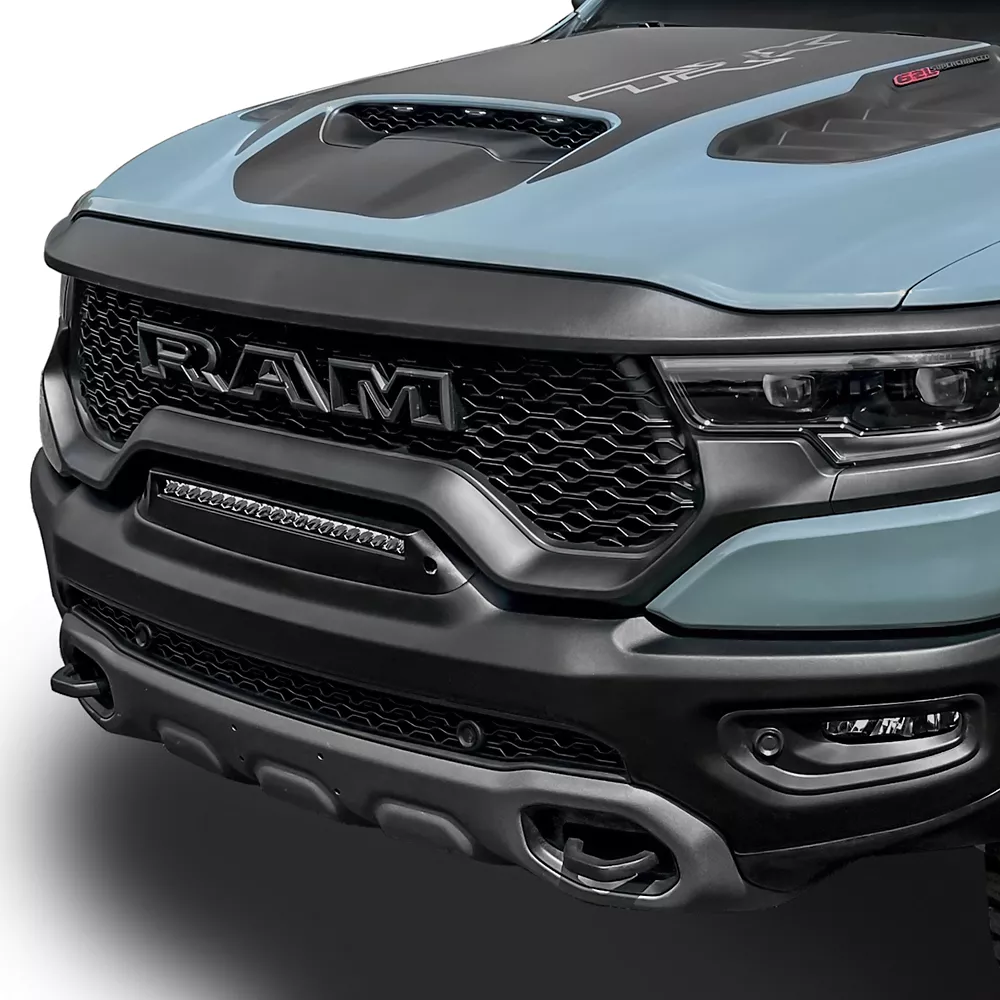

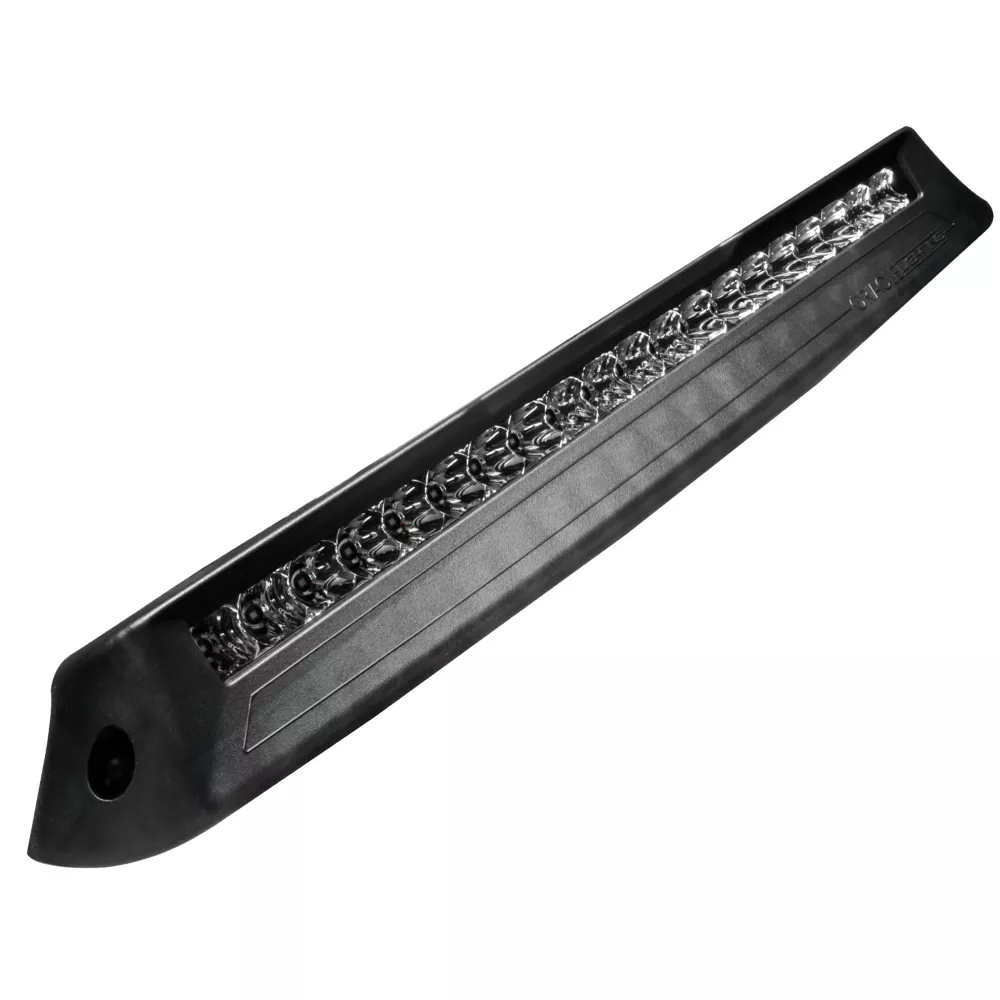

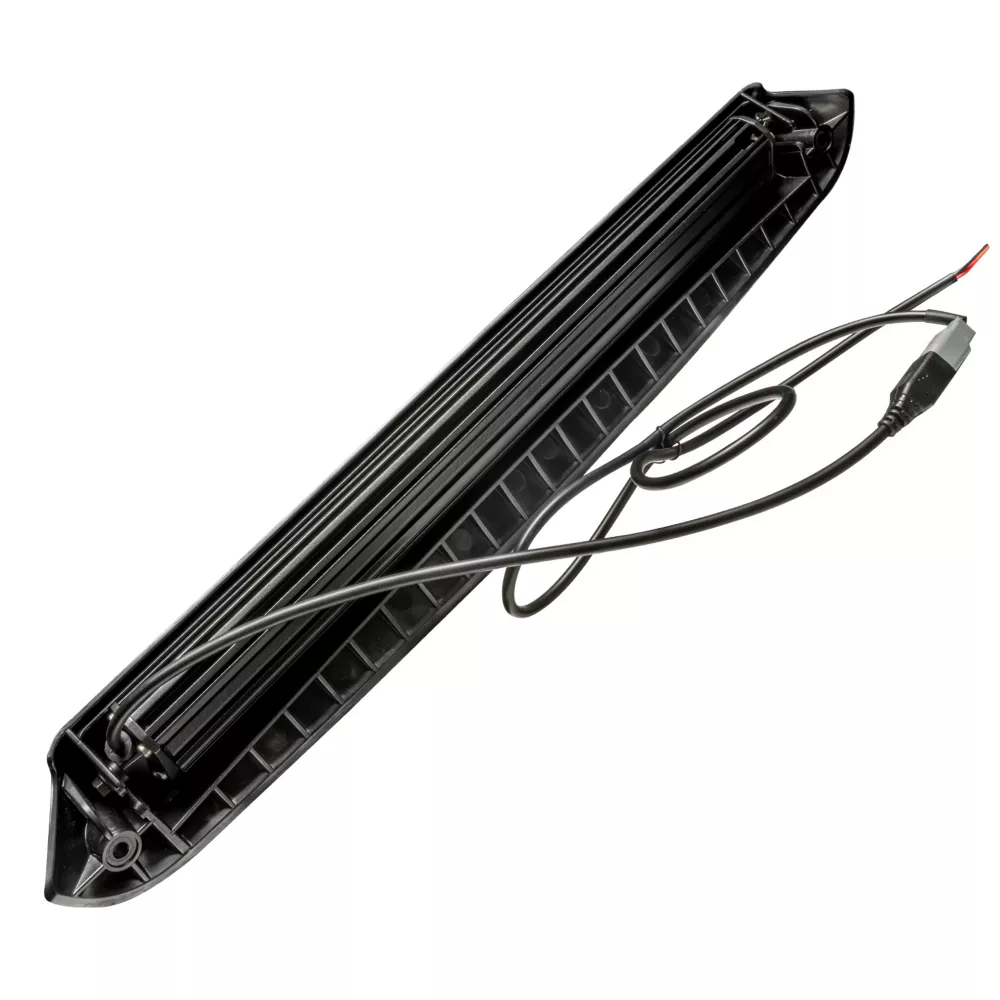

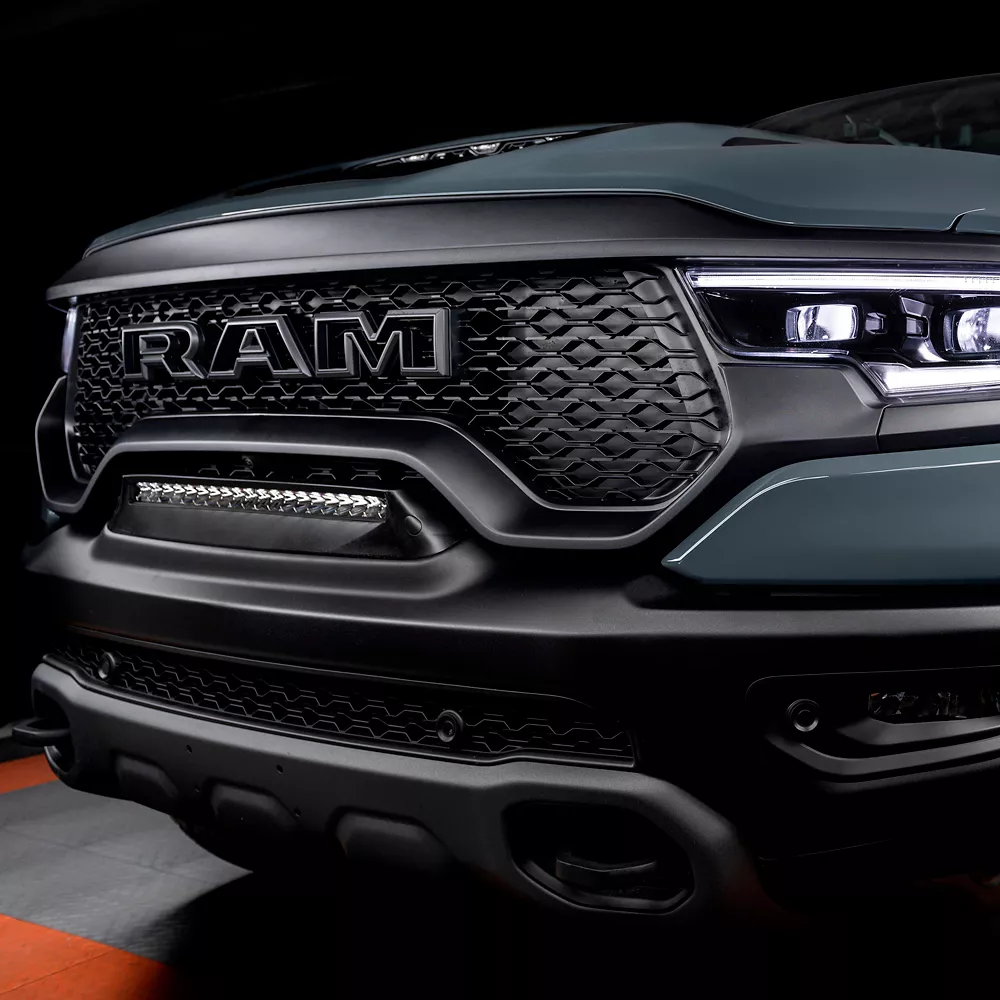

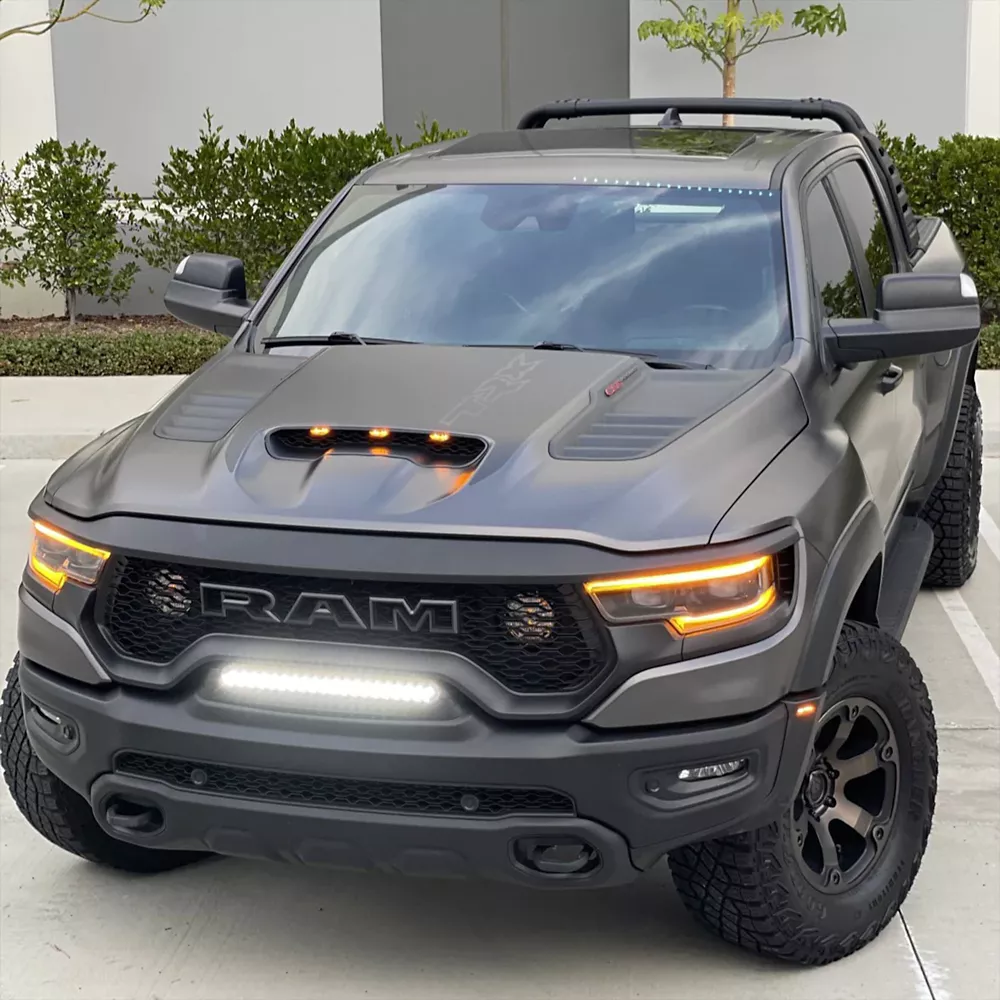

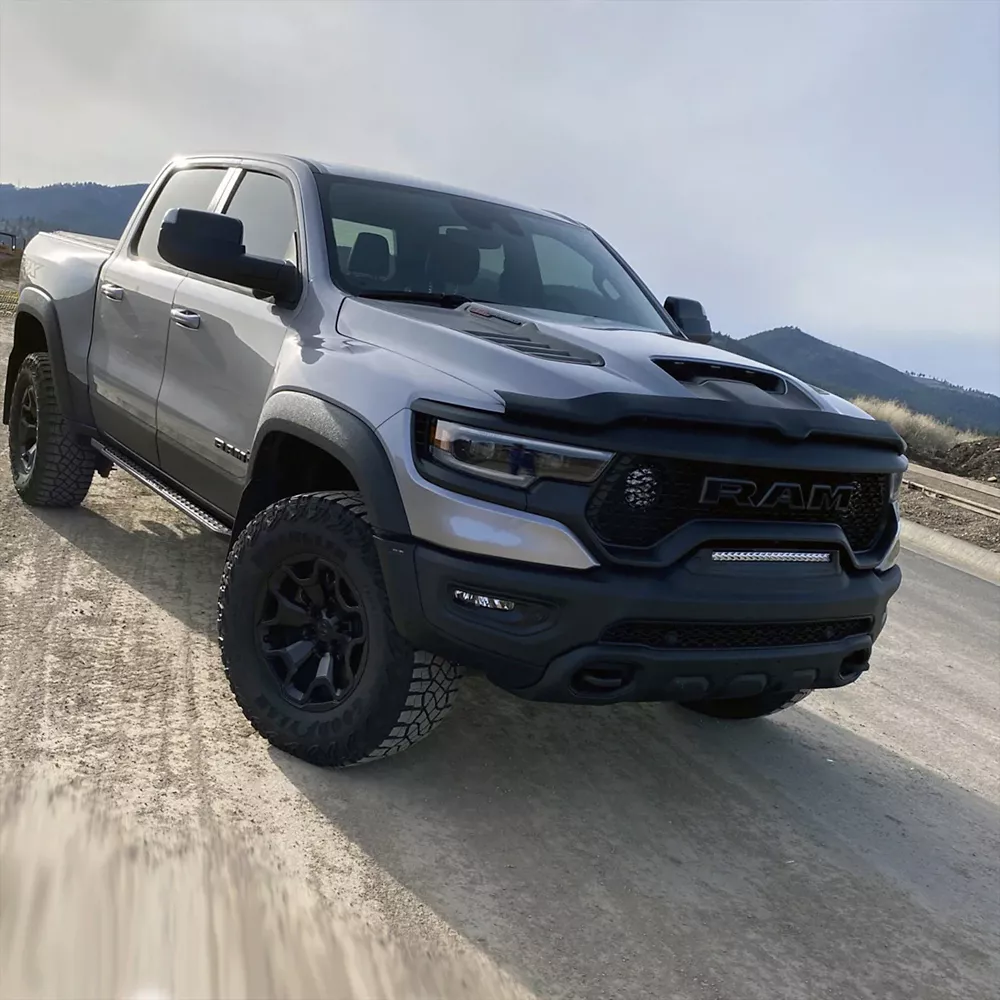

This unique new lighting system from ORACLE Lighting provides functional forward LED lighting while maintaining a factory appearance. Our high-powered 100W LED light bar is fitted into a housing that is designed to mimic the shape of the original factory bumper and integrate into the front end of the 2019+ RAM 1500 TRX or Rebel. The lighting system is installed using rivet nuts, which require 2 holes 3/8" to attach the bar to the bumper. Wiring can easily connect to the factory AUX switches, if your truck is not equipped with AUX switches, we recommend you add our switched light bar wiring harness PART #2088-504. The projection of the light bar is a mixed beam with 8 of the LEDs using a flood (45° angle) beam and 12 of the LEDs using a spot (25° angle) beam the user gets the advantages of both a wide field of vision and a long narrow beam. With the average Apex Angle of 33° (8x45° + 12x25°) and calculating based on 14000Lm the total candela of the light is 54107.70cd.

Housing: Polycarbonate
Lens: Optically Clear Lexan
Watts: 100W (20x 5W LED)
Amperage: 7.5A @ 12VDC
LED: Osram CRDP LED Chip
Lumen Output: 12,000lm
LED Life: 50,000+ Hours
Optics: Mixed Spot/ Flood
Color Temperature: 5500K
Ingress Protection: IP69K
Input Voltage: 9V-36V DC
COMPATIBILITY: 2019-2024 RAM 1500 Rebel / 2022-2024 RAM 1500 TRX

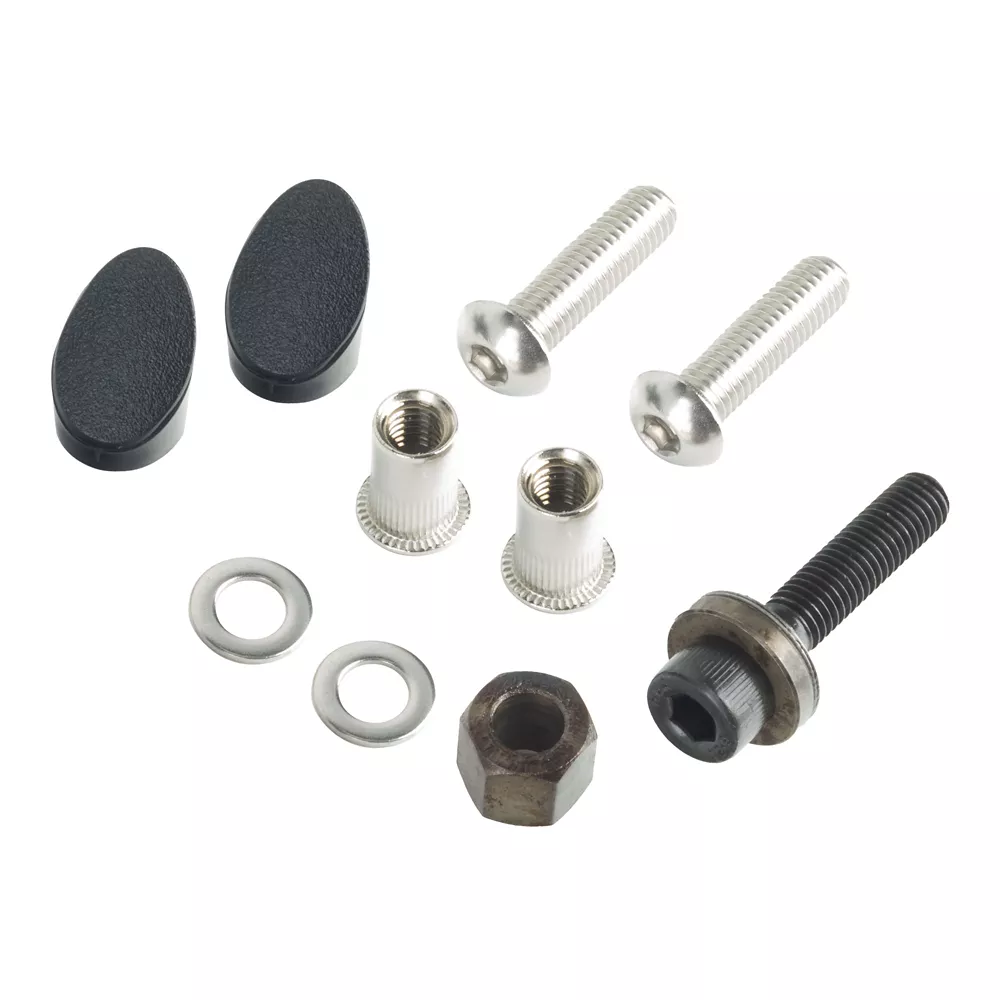

PACKAGE CONTENTS: Front Bumper Flush LED Light Bar System, Mounting Hardware

ORACLE Lighting 2019-2024 RAM Rebel/TRX Front Bumper Flush LED Light Bar System White LED 5885-001 Light Bars Truck & Automotive> Automotive Lighting> Light Bars

Specification	Description
Brand	ORACLE Lighting
Country of Origin	Imported
Battery Size	N/A
Bulb Count	20
Bulb Type	LED
Compatibility	2019-2024 RAM Rebel/TRX
Coverage Area	2,000 ft.
Features	This unique new lighting system from ORACLE provides functional forward LED lighting while maintaining a factory appearance.
Finish	Black
Housing Color	Black
Indoor/Outdoor	Outdoor
Light Color	White
Light Type	Bar Lights
Lumen Rating	14,000Lm
Mounting Location	Vehicle Mounted
Mounting Type	Bolt-On
Package Quantity	1
Power Type	12 Volt, 12V
Primary Material	Polycarbonate
Product Height	30 in.
Product Length	6 in.
Product Weight	4 lb.
Product Width	6 in.
Voltage	12V
Wattage	100W
Manufacturer PartNumber	5885-001
