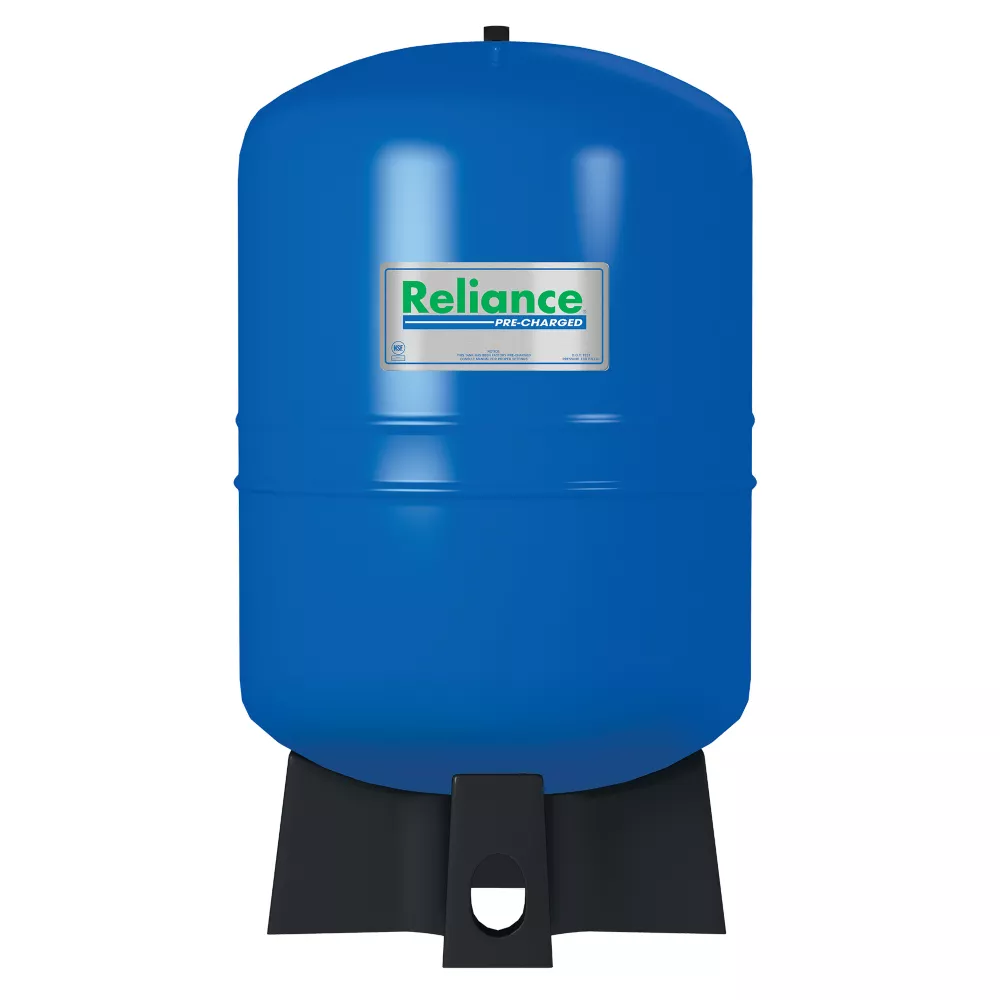

Outbuilding 36 gal Vertical pressurized well tank Pressure Tanks Farm & Ranch

The Reliance Vertical Pressurized Well Tank is factory pre-charged for efficiency. The air charge valve is conveniently located for easy pressure adjustment.

Fused interior water chamber, proven protection against internal corrosion
Corrosion-resistant base, maximum life, base rotates for easy alignment to pipe connection
Slotted and notched for maximum air flow, reduced condensation build-up
Air charge valve is conveniently located for easy pressure adjustment
Butyl rubber parabolic diaphragm eliminates rubbing on the tank wall or rolling over on itself
Designer finish; high gloss exterior powder coat provides positive protection against corrosion and UV Rays

Outbuilding 36 gal Vertical pressurized well tank Pressure Tanks Farm & Ranch> Tanks & Pumps> Pressure Tanks

Specification	Description
Brand	Reliance
Country of Origin	Made in USA
Capacity	36 gal.
Drawdown at 30 PSI	11.2 gal.
Inlet Diameter	0.75 in.
Maximum Water Temperature	0 in.
Outlet Diameter	0.75 in.
Precharge Pressure	38 PSI
Primary Color	Blue
Primary Material	Steel
Product Height	33.25 in.
Product Length	20.75 in.
Product Weight	45 lb.
Product Width	20.75 in.
Tank Orientation	Vertical
Warranty	5 Year
Manufacturer PartNumber	100130741

Reliance 36 gal. Vertical Pressurized Well Tank Specifications expand/collapse Specification Description Brand Reliance Country of Origin Made in USA Capacity 36 gal. Draft at 30 PSI 11.2 gal. Inlet diameter 0.75 in. Maximum water temperature 0 in. Outlet diameter 0.75 in. Precharge Pressure 38 PSI Primary Color Blue Primary Material Steel Product Height 33.25 in. Product length 20.75 in. Product weight 45 lbs. Product width 20.75 in. Tank orientation 5 year vertical warranty, manufacturer part number 100130741
