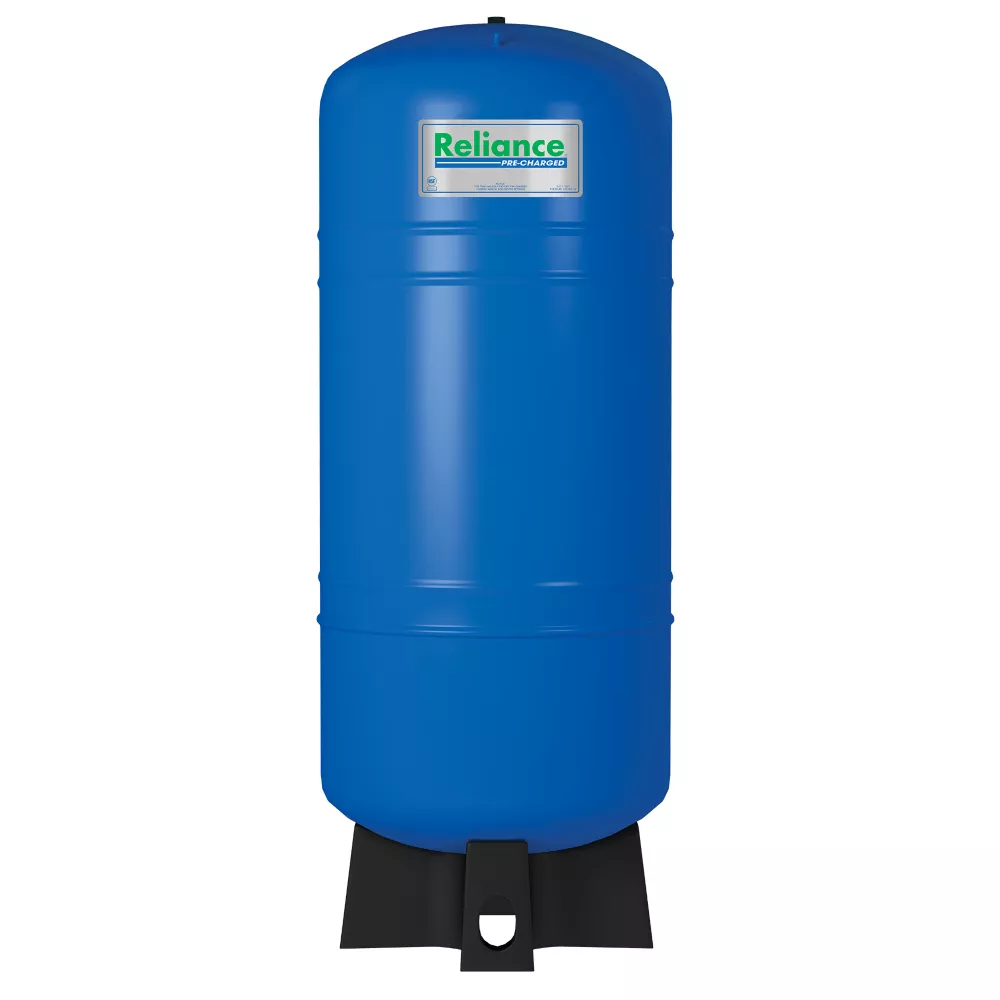

Outbuilding 86 gal Vertical pressurized well tank Pressure Tanks Farm & Ranch

The Reliance Vertical Pressurized Well Tank is factory pre-charged for efficiency. The air charge valve is conveniently located for easy pressure adjustment.

Fused interior water chamber, proven protection against internal corrosion
Corrosion-resistant base, maximum life, base rotates for easy alignment to pipe connection
Slotted and notched for maximum air flow, reduced condensation build-up
Air charge valve is conveniently located for easy pressure adjustment
Butyl rubber parabolic diaphragm eliminates rubbing on the tank wall or rolling over on itself
Designer finish - high gloss exterior powder coat provides positive protection against corrosion and UV Rays

Outbuilding 86 gal Vertical pressurized well tank Pressure Tanks Farm & Ranch> Tanks & Pumps> Pressure Tanks

Specification	Description
Brand	Reliance
Country of Origin	Made in USA
Capacity	86 gal.
Drawdown at 30 PSI	26.7 gal.
Inlet Diameter	0.75 in.
Maximum Water Temperature	0 in.
Outlet Diameter	1 in.
Precharge Pressure	38 PSI
Primary Color	Blue
Primary Material	Steel
Product Height	59.25 in.
Product Length	23.75 in.
Product Weight	105 lb.
Product Width	23.75 in.
Tank Orientation	Vertical
Warranty	5 Year
Manufacturer PartNumber	100130767

Reliance 86 gal. Vertical Pressurized Well Tank Specifications expand/collapse Specification Description Brand Reliance Country of Origin Made in USA Capacity 86 gal. Draft at 30 PSI 26.7 gal. Inlet diameter 0.75 in. Maximum water temperature 0 in. Outlet diameter 1 in. Precharge Pressure 38 PSI Primary Color Blue Primary Material Steel Product Height 59.25 in. Product length 23.75 in. Product weight 105 lbs. Product width 23.75 in. Tank orientation 5 year vertical warranty, manufacturer part number 100130767
