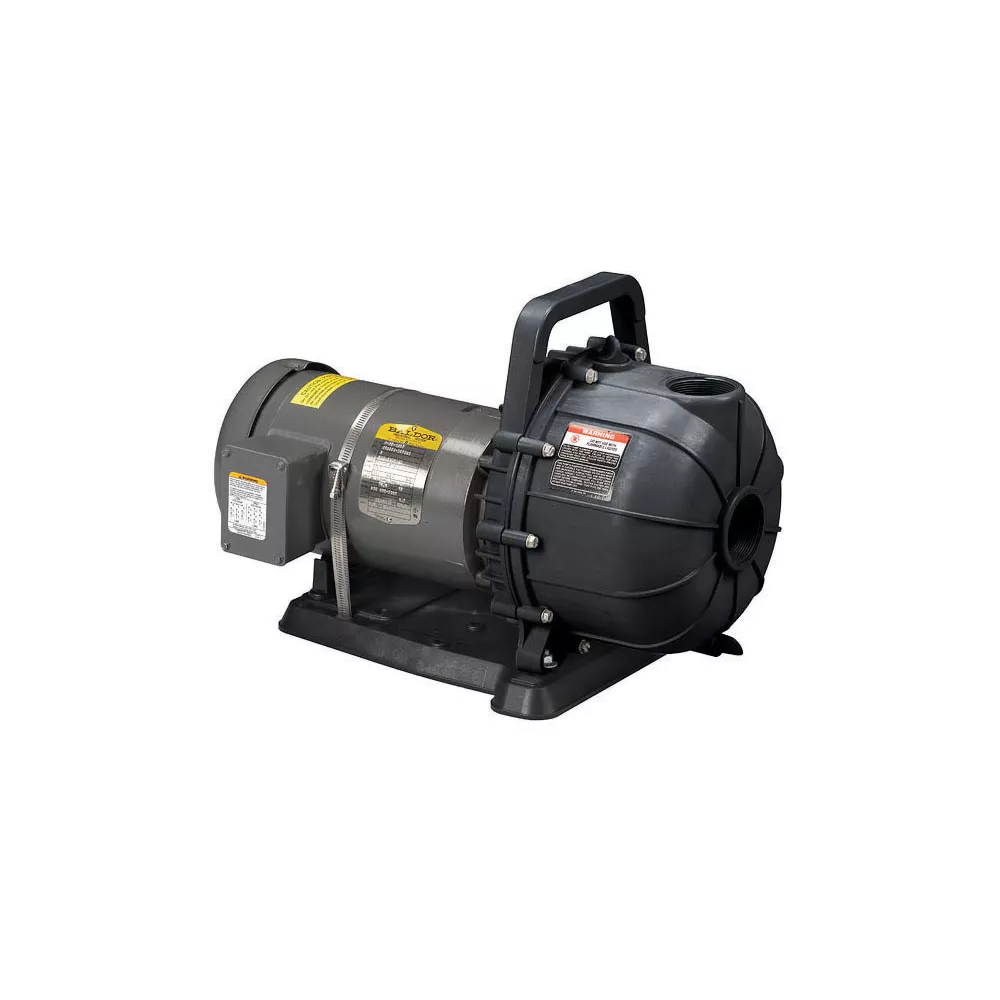

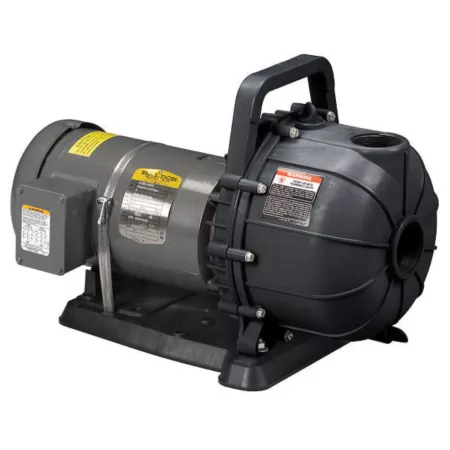

Pacer 2 HP Electric Chemical and Clear Water Transfer Pump 230/460 V 110 GPM 3 Phase Electric Motor Transfer Pumps Farm & Ranch

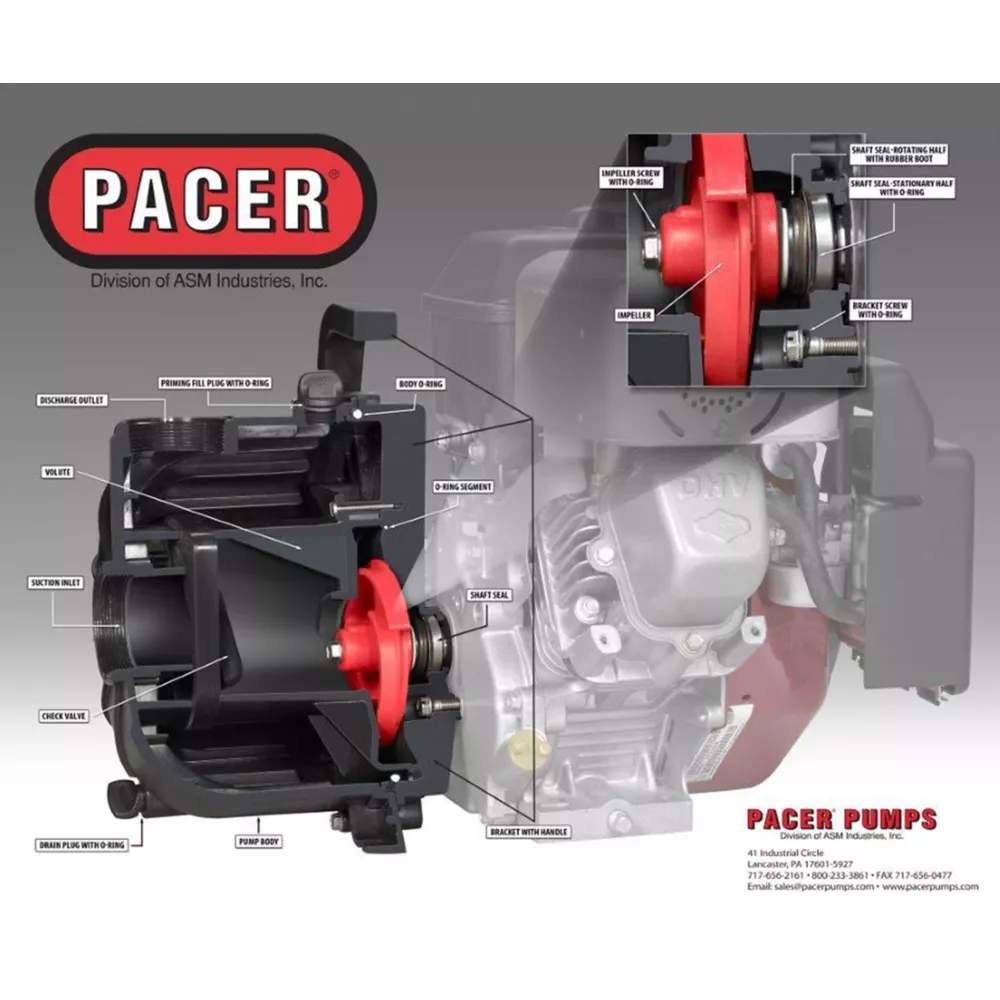

Pacer's S' Series Self-Priming Centrifugal pumps are lightweight and chemically resistant for general service on water, salt water, waste water, agricultural chemicals, and mild acids and bases. They feature stainless steel internal and external fasteners and EPDM elastomers The pumps are molded of tough, engineered thermoplastics. All pumps include a built-in check valve, feature easy servicing and during pumping, a self-cleaning double volute keeps pump free of settled solids. It features a 2" port on the inlet and discharge connections with NPT threads for easy connections. It is powered by a 2 hp, three-phase electric motor with flow rates of up to 110 GPM or 70 ft. TDH at 60 Hz for powerful pumping. It is recommended this pump is installed by a certified electrician. Please Call Pacer with any chemical compatibility or application questions.

2" Suction & Discharge ports
110 Max GPM
70 ft. Max TDH
Suction Lift to 25 ft.
Built in check valve
Tough glass reinforced polyester
Stainless steel hardware
EPDM Elastomers
2 HP Three phase electric motor
230/460 V
For use in Aquaculture, Agriculture, Marine and Industrial
Molded & Assembled in the USA (Lancaster, PA)

1-year Limited manufacturer warranty

Pacer 2 HP Electric Chemical and Clear Water Transfer Pump 230/460 V 110 GPM 3 Phase Electric Motor Transfer Pumps Farm & Ranch> Tanks & Pumps> Transfer Pumps

Specification	Description
Brand	Pacer
Country of Origin	Made in USA
Body Material	Polyester
Compatible Pipe Material	Plastic
Discharge Connection	Threaded Female
Discharge Diameter	2 in.
Discharge Rate at 0 ft.	110 GPM
Discharge Rate at 10 ft.	90 GPM
Engine Displacement	2 HP
Features	2 in. Suction and Discharge NPT ports, 110 Max GPM, 70 ft. Max TDH, 25 ft. suction lift, Built in check valve, Stainless steel hardware, 2 HP three phase electric motor, Molded and assembled in the USA
Horsepower	2 HP
Hose Diameter	2 in.
Impeller Material	Polyester
Inlet Connection	Threaded Female
Inlet Diameter	2 in.
Maximum Flow Rate	110 GPM
Maximum Head Lift	70 ft.
Maximum Operating Pressure	25 PSI
Maximum Operating Temperature	130 deg. F
Maximum Suction Lift	25 ft.
Minimum Operating Pressure	0 PSI
Minimum Operating Temperature	-10 deg. F
Power Type	Electric
Product Height	20 in.
Product Length	30 in.
Product Weight	72 lb.
Product Width	13 in.
Pump Mechanism	Centrifugal
Motor Type	Electric
Voltage	230,460 V
Warranty	1 Year Limited
Manufacturer PartNumber	P-58-12E4-D2.0C
