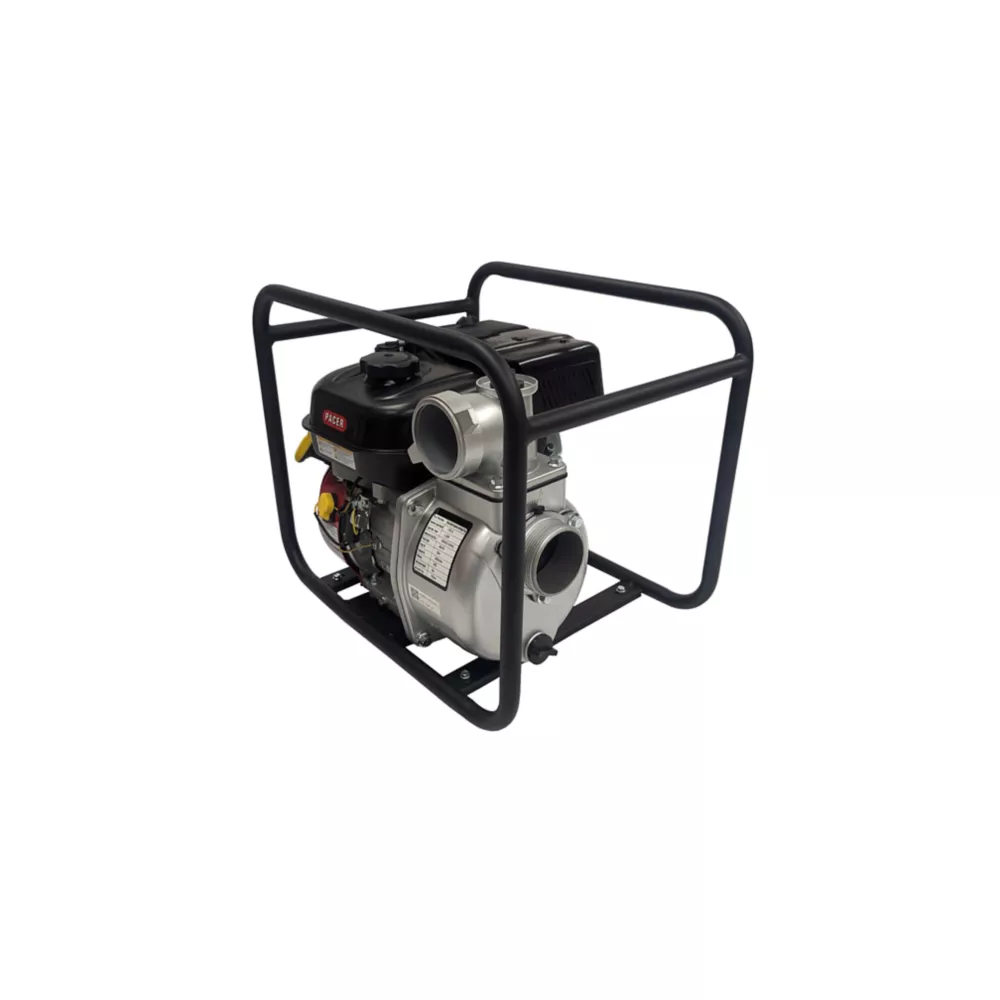

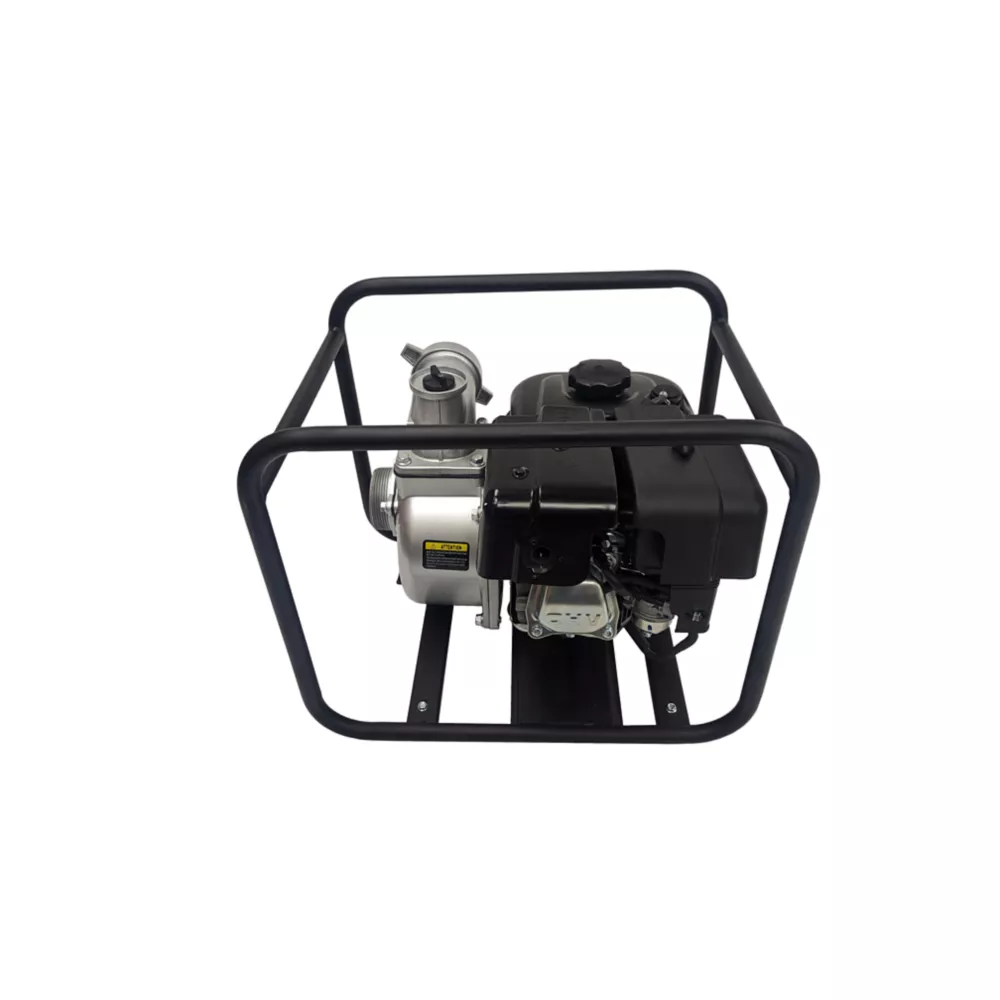

Pacer 3 in Metal Clear Water Transfer Pump 220 GPM Transfer Pumps Farm & Ranch

Pacer's MWP' Series Self-Priming Centrifugal pumps are lightweight, portable. and are great for general service on water. They feature a cast aluminum housing, Buna elastomers and a silicon carbide seal. It features a 3" port on the inlet and discharge connections with NPT threads for easy connections. It is powered by a 7 HP gasoline engine with flow rates of up to 220 GPM. This motor has a low oil shut-off and meets EPA standards. Please Call Pacer with any chemical compatibility or application questions.

Cast Aluminum Housing
Cast Iron Impeller
3" Suction and Discharge
Max Flow 220 GPM
Max TDH 88 ft
Buna Elastomers
Silicon Carbide Shaft Seal
Low Oil Alert
7 hp Gasoline engine

Pacer 3 in Metal Clear Water Transfer Pump 220 GPM Transfer Pumps Farm & Ranch> Tanks & Pumps> Transfer Pumps

Specification	Description
Brand	Pacer
Country of Origin	Imported
Body Material	Cast aluminum
Compatible Pipe Material	Metal, Thermoplastic, Aluminum
Discharge Connection	Threaded Male
Discharge Diameter	3 in.
Discharge Rate at 0 ft.	220 gpm
Discharge Rate at 10 ft.	180 gpm
Engine Displacement	212 cc
Features	Cast aluminum housing, cast iron impeller, buna elastomers, silicon carbide shaft seal, low oil alert
Hose Diameter	3 in.
Impeller Material	Cast Iron
Inlet Connection	Threaded Male
Inlet Diameter	3 in.
Maximum Flow Rate	220 gpm
Maximum Head Lift	88 ft.
Maximum Operating Pressure	38 PSI
Maximum Operating Temperature	130 deg. F
Maximum Suction Lift	15 ft.
Minimum Operating Pressure	0 PSI
Minimum Operating Temperature	0 deg. F
Power Type	Gas
Product Height	18 in.
Product Length	21 in.
Product Weight	60 lb.
Product Width	17 in.
Pump Mechanism	Centrifugal
Motor Type	Gasoline
Warranty	1 year limited
Manufacturer PartNumber	MWP-3

Pacer 3 in. Metal, Clear Water Transfer Pump 220 GPM Specifications expand/collapse Specification Description Brand Pacer Country of Origin Imported Body Material Cast Aluminum Compatible Hose Material Metal, Thermoplastic, Aluminum Discharge Connection Male Threaded Discharge Diameter 3 in. Discharge Rate at 0 ft. 220 gpm Discharge Rate at 10 ft. 180 gpm Engine Displacement 212 cc Features Cast aluminum housing, cast iron impeller, buna elastomers, silicon carbide shaft seal, low level alert oil Hose diameter 3 in. Impeller Material Inlet Fitting Cast Iron Male Threaded Inlet Diameter 3 in. Maximum flow 220 gpm Maximum head lift 88 ft. Maximum operating pressure 38 PSI Maximum operating temperature 130 degrees. F Maximum suction height 15 feet. Minimum operating pressure 0 PSI Minimum operating temperature 0 deg. F Power Type Gas Product Height 18 in. Product length 21 in. Product weight 60 lbs. Product widtht 17 in. Pump Mechanism Motor Type Centrifugal Gasoline 1 Year Limited Warranty Manufacturer Part Number MWP-3
