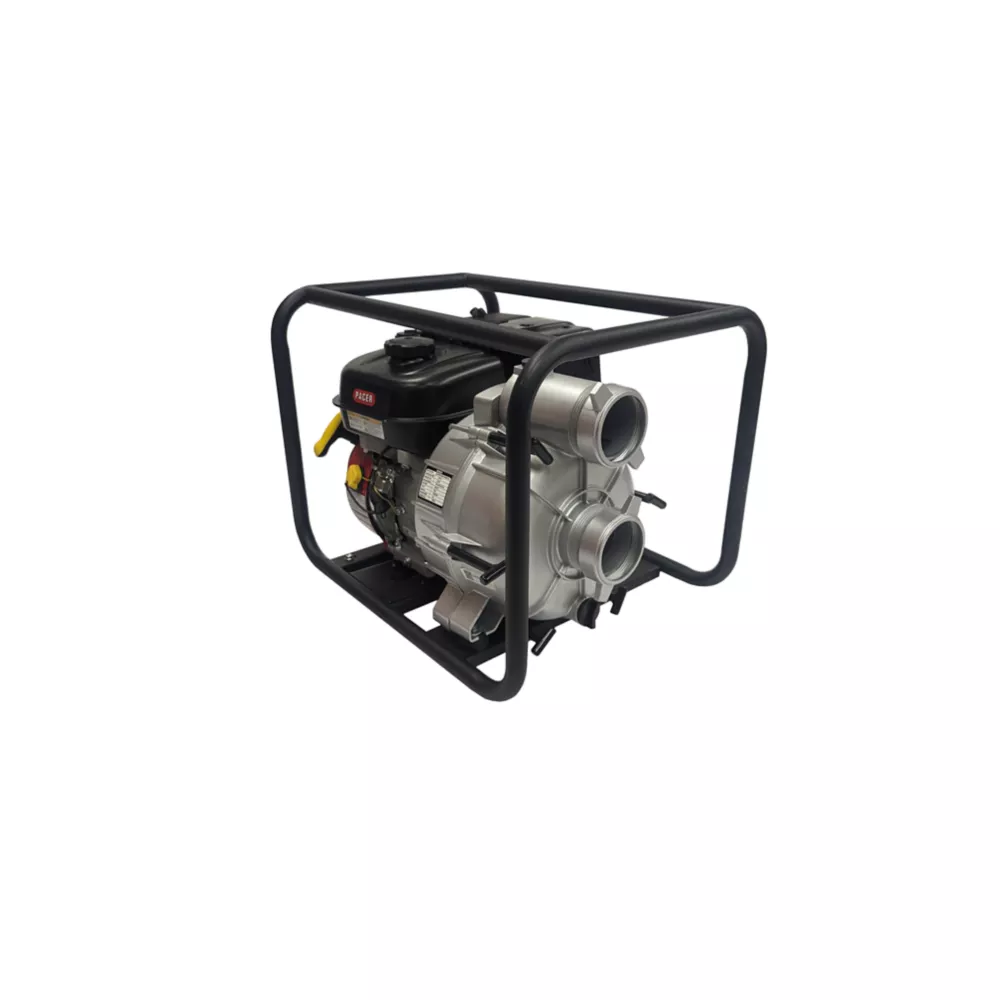

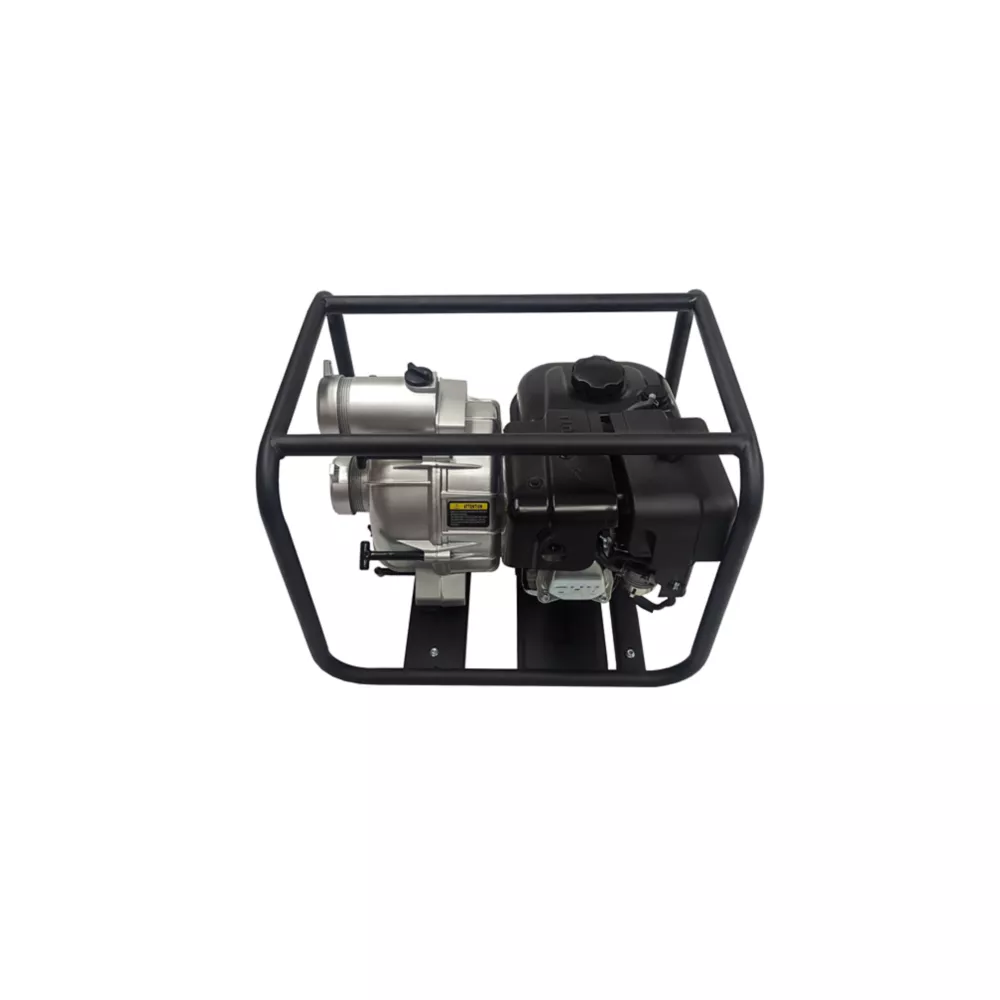

Pacer 3" Metal Semi Trash Can 264 GPM Transfer Pump Transfer Pumps Farm & Ranch

Pacer's MST' Series Self-Priming Centrifugal pumps are semi-trash and can handle soft solids. They feature a cast aluminum housing, Buna elastomers and a silicon carbide seal. It features a 3" port on the inlet and discharge connections with NPT threads for easy connections. It is powered by a 7 HP gasoline engine with flow rates of up to 264 GPM. This motor has a low oil shut-off and meets EPA standards. Please Call Pacer with any chemical compatibility or application questions.

Cast Aluminum Housing
Cast Iron Impeller
3" Suction and Discharge
Max Flow 264 GPM
Max TDH 82 ft
Buna Elastomers
Silicon Carbide Shaft Seal
Low Oil Alert
7 hp Gasoline engine
Semi-Trash

Pacer 3" Metal Semi Trash Can 264 GPM Transfer Pump Transfer Pumps Farm & Ranch> Tanks & Pumps> Transfer Pumps

Specification	Description
Brand	Pacer
Country of Origin	Imported
Body Material	Cast aluminum
Compatible Pipe Material	Metal, Steel, Thermoplastic, Aluminum
Discharge Connection	Threaded Male
Discharge Diameter	3 in.
Discharge Rate at 0 ft.	264 gpm
Discharge Rate at 10 ft.	210 gpm
Engine Displacement	212 cc
Features	Cast iron impeller, cast aluminum housing, buna elastomers, silicon carbide shaft seal, semi trash pump, low oile alert
Hose Diameter	3 in.
Impeller Material	Cast Iron
Inlet Connection	Threaded Male
Inlet Diameter	3 in.
Maximum Flow Rate	264 gpm
Maximum Head Lift	82 ft.
Maximum Operating Pressure	35 PSI
Maximum Operating Temperature	130 deg. F
Maximum Suction Lift	15 ft.
Minimum Operating Pressure	0 PSI
Minimum Operating Temperature	0 deg. F
Power Type	Gas
Product Height	18 in.
Product Length	23 in.
Product Weight	88 lb.
Product Width	18 in.
Pump Mechanism	Centrifugal
Motor Type	Gasoline
Warranty	1 year limited
Manufacturer PartNumber	MST-3
