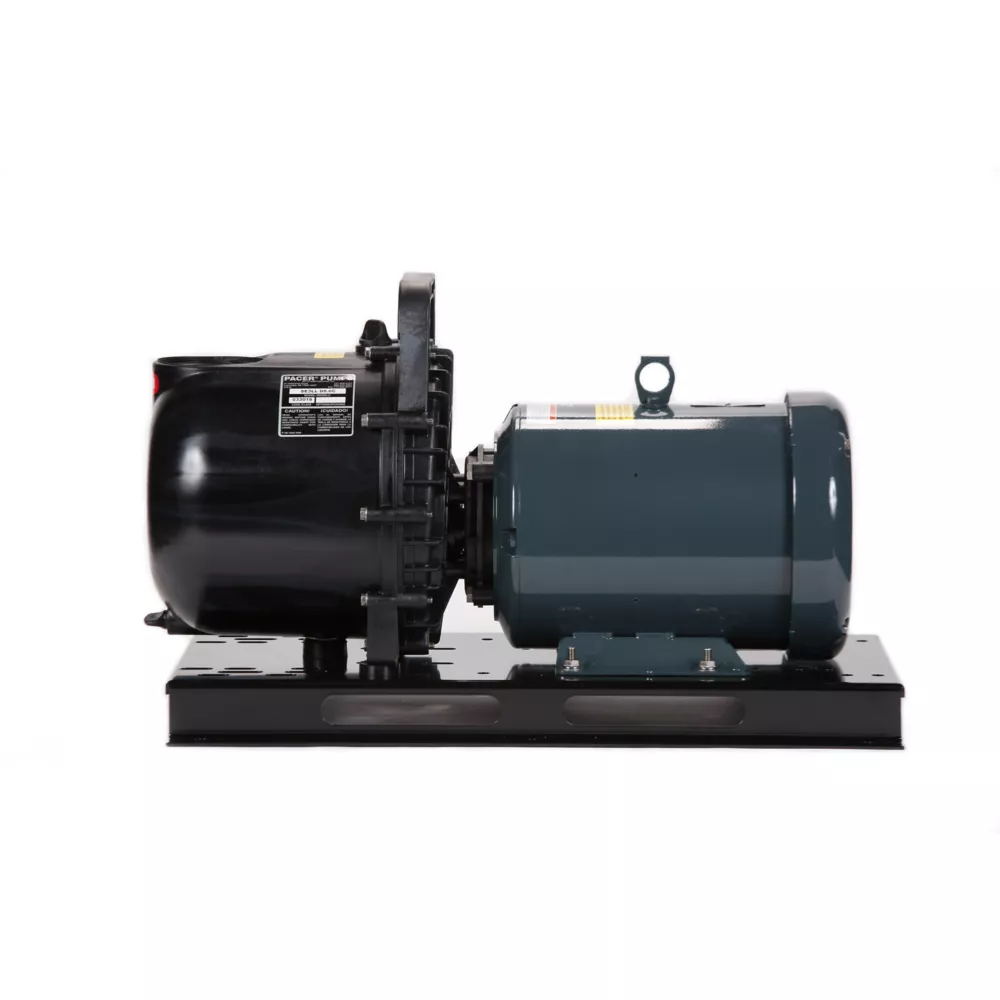

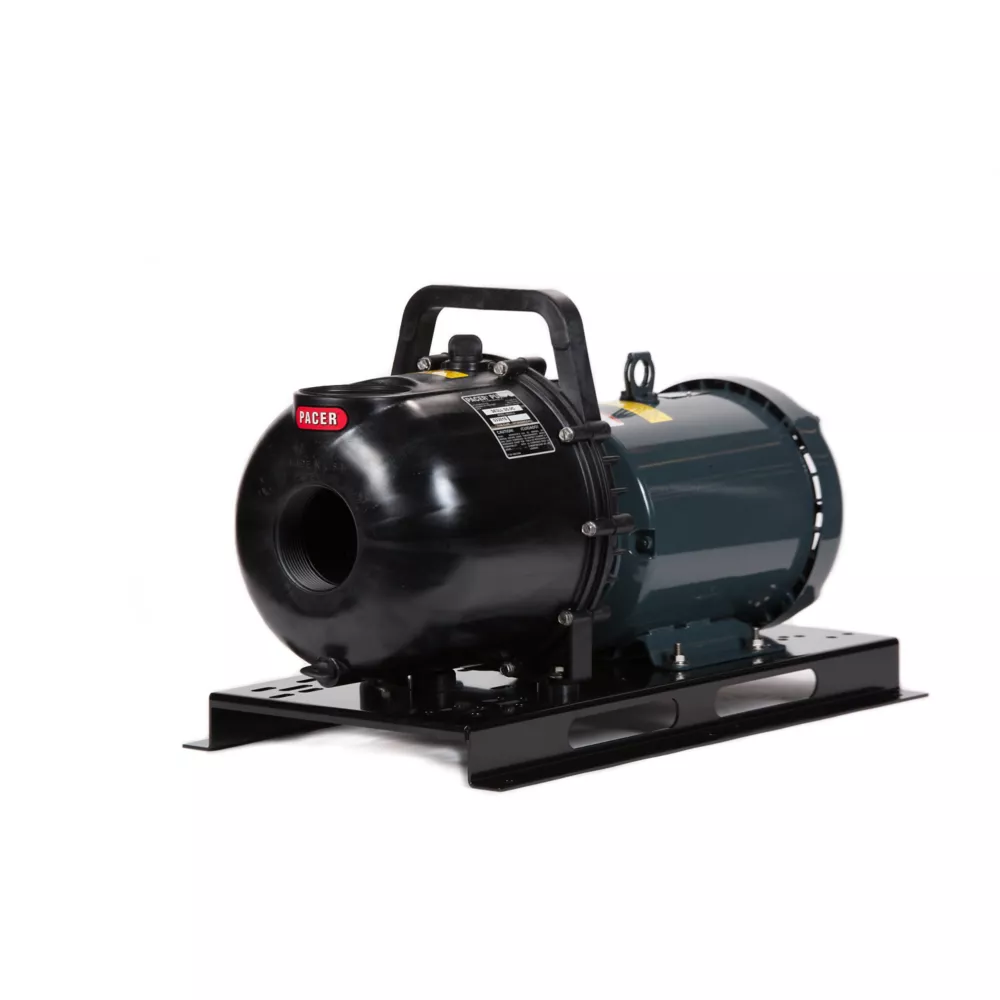

Pacer 5 HP Electric Water Transfer Pump 230V 280 GPM Single Phase Electric Motor Utility Pumps Farm & Ranch

Pacer's S' Series Self-Priming Centrifugal pumps are lightweight and chemically resistant for general service on water, salt water, waste water, agricultural chemicals, and mild acids and bases. They feature stainless steel internal and external fasteners and EPDM elastomers The pumps are molded of tough, engineered thermoplastics. All pumps include a built-in check valve, feature easy servicing and during pumping, a self-cleaning double volute keeps pump free of settled solids. It features a 3 in. port on the inlet and discharge connections with NPT threads for easy connections. It is powered by a 5 hp, single-phase electric motor with flow rates of up to 280 GPM or 120 ft. TDH at 60 Hz for powerful pumping. Please Call Pacer with any chemical compatibility or application questions.

3 in. Suction & Discharge ports
280 Max GPM
75 ft. Max TDH
Suction Lift to 25 ft.
5 HP Single phase electric motor (230V)
Built in check valve
Tough glass reinforced polyester
Stainless steel hardware
For use in Aquaculture, Agriculture, Marine and Industrial
Molded & Assembled in the USA (Lancaster, PA)

1-year Limited manufacturer warranty

Pacer 5 HP Electric Water Transfer Pump 230V 280 GPM Single Phase Electric Motor Utility Pumps Farm & Ranch> Tanks & Pumps> Utility Pumps

Specification	Description
Brand	Pacer
Country of Origin	Made in USA
Body Material	Polyester
Compatible Pipe Material	Plastic
Discharge Connection	Threaded Female
Discharge Diameter	3 in.
Discharge Rate at 0 ft.	280 GPM
Discharge Rate at 10 ft.	260 GPM
Engine Displacement	5HP Single Phase electric
Features	Self-Priming, 280 GPM, Suction lift to 25 ft., Max TDH 75 ft., Built in check valve, Centrifugal pump, EPDM elastomers, Polyester Plastic, SS Hardware internal and external, Molded and Assembled in the USA
Horsepower	5 HP
Hose Diameter	3 in.
Impeller Material	Polyester
Inlet Connection	Threaded Female
Inlet Diameter	3 in.
Maximum Flow Rate	280 GPM
Maximum Head Lift	75 ft.
Maximum Operating Pressure	38 PSI
Maximum Operating Temperature	130 deg. F
Maximum Suction Lift	25 ft.
Minimum Operating Pressure	0 PSI
Minimum Operating Temperature	-10 deg. F
Power Type	Electric
Product Height	18 in.
Product Length	30 in.
Product Weight	127 lb.
Product Width	16 in.
Motor Type	Single Phase
Utility Pump Type	Centrifugal
Voltage	230v
Warranty	1 Year Limited
Manufacturer PartNumber	P-58-13L4-C5.0C
