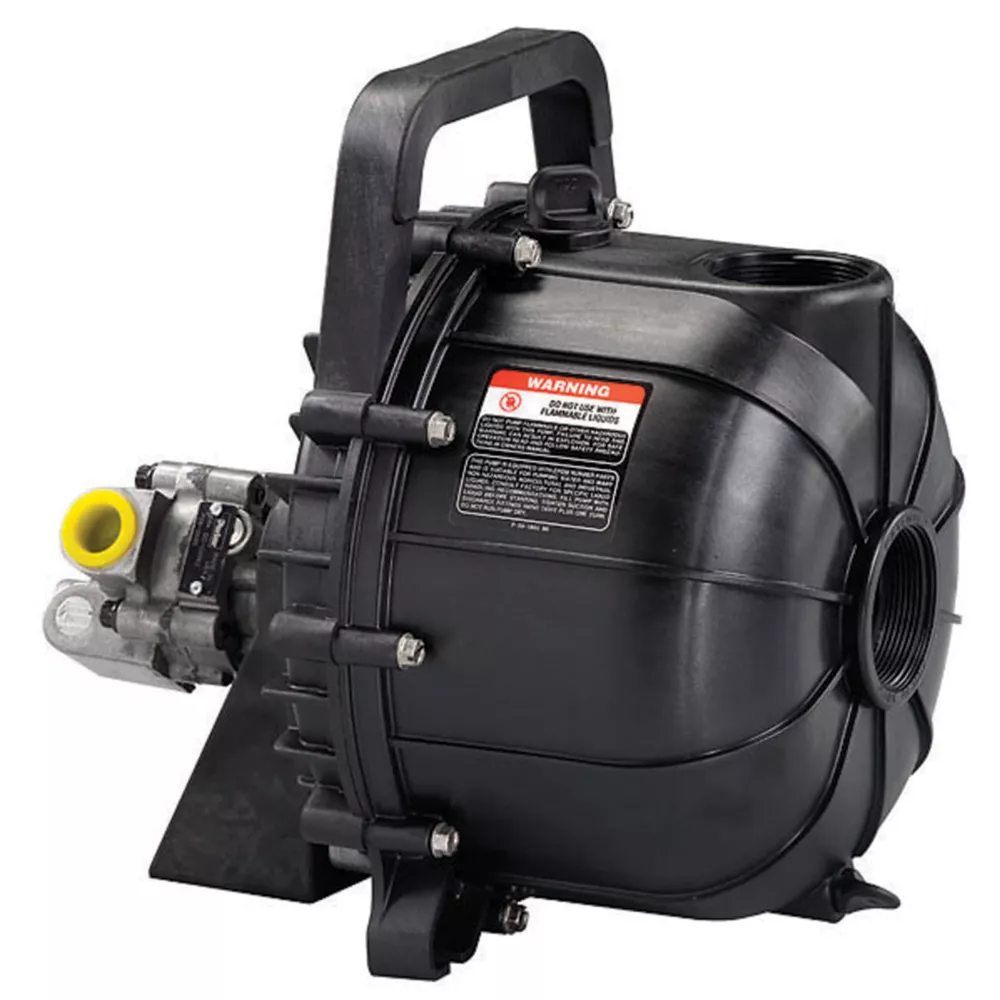

Pacer Chemical and Clear Water Transfer Pump 240 GPM Hydraulic Motor Transfer Pumps Farm & Ranch

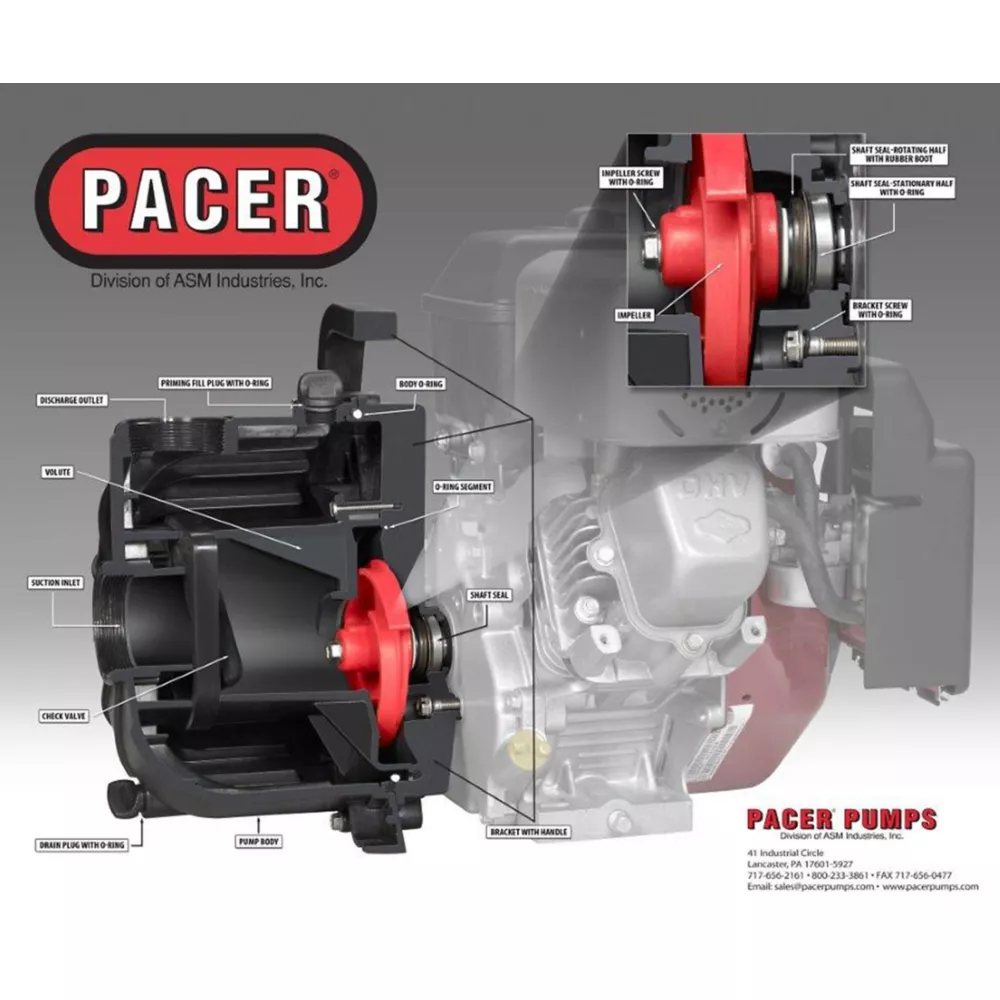

Pacer's S' Series Self-Priming Centrifugal pumps are lightweight and chemically resistant for general service on water, salt water, waste water, agricultural chemicals, and mild acids and bases. They feature stainless steel internal and external fasteners and EPDM elastomers The pumps are molded of tough, engineered thermoplastics. All pumps include a built-in check valve, feature easy servicing and during pumping, a self-cleaning double volute keeps pump free of settled solids. It features a 2" port on the inlet and discharge connections with NPT threads for easy connections. It is powered by a Hydraulic motor with flow rates of up to 240 GPM or 75 ft. TDH. Please Call Pacer with any chemical compatibility or application questions.

2" Suction & Discharge ports
240 Max GPM
75 ft. Max TDH
Suction Lift to 25 ft.
Built in check valve
Tough glass reinforced polyester
Stainless steel hardware
EPDM Elastomers
Parker Hydraulic motor
For use in Aquaculture, Agriculture, Marine and Industrial
Molded & Assembled in the USA (Lancaster, PA)

1-year Limited manufacturer warranty

Pacer Chemical and Clear Water Transfer Pump 240 GPM Hydraulic Motor Transfer Pumps Farm & Ranch> Tanks & Pumps> Transfer Pumps

Specification	Description
Brand	Pacer
Country of Origin	Made in USA
Body Material	Polyester
Compatible Pipe Material	Plastic
Discharge Connection	Threaded Female
Discharge Diameter	2 in.
Discharge Rate at 0 ft.	240 GPM
Discharge Rate at 10 ft.	220 GPM
Engine Displacement	1,200 PSI 9GPM
Features	2 in. Suction and discharge, 240 Max GPM, 75 TDH Max, 25 ft. suction lift, Parker Hydraulic Motor, Built in check valve, Stainless Steel hardware, Molded & assembled in the USA
Hose Diameter	2 in.
Inlet Connection	Threaded Female
Inlet Diameter	2 in.
Maximum Flow Rate	240 GPM
Maximum Head Lift	75 ft.
Maximum Operating Pressure	34 PSI
Maximum Operating Temperature	130 deg. F
Maximum Suction Lift	25 ft.
Minimum Operating Pressure	0 PSI
Minimum Operating Temperature	-10 deg. F
Power Type	Other
Product Height	14 in.
Product Length	18 in.
Product Weight	17 lb.
Product Width	14 in.
Pump Mechanism	Centrifugal
Motor Type	Hydraulic Motor
Warranty	1 Year limited Manufacturer
Manufacturer PartNumber	P-58-12J4-HYC

Pacer Chemical and Clear Water Transfer Pump, 240 GPM, Hydraulic Motor Driven Specifications expand/collapse Specification Description Brand Pacer Country of Origin Made in USA Body Material Polyester Compatible Hose Material Plastic Discharge Connection Female Threaded Discharge Diameter 2 in. Discharge Rate at 0 ft. 240 GPM Discharge Rate at 10 ft. 220 GPM Motor Displacement 1,200 PSI 9 GPM Features 2 in. suction and discharge, 240 GPM maximum, 75 TDH maximum, 25 ft. suction lift, hydraulic motor Parker, integral check valve, stainless steel hardware, cast and assembled in the USA Pipe diameter 2 in. Threaded inlet fitting Female inlet diameter 2 in. Maximum flow 240 GPM Maximum head lift 75 feet. Maximum operating pressure 34 PSI Maximum operating temperature 130 deg. F Maximum suction height 25 feet Minimum operating pressure 0 PSI Minimum operating temperature -10 deg. F Power Type Other Product Height 14 in. Longheight of product 18 in. Product weight 17 lbs. Product width 14 in. Pump Mechanism Motor Type Centrifugal Hydraulic Motor 1 Year Limited Manufacturer's WarrantyManufacturer Part Number P-58-12J4-HYC
