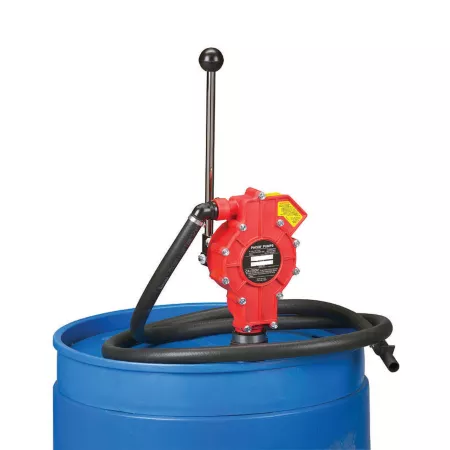

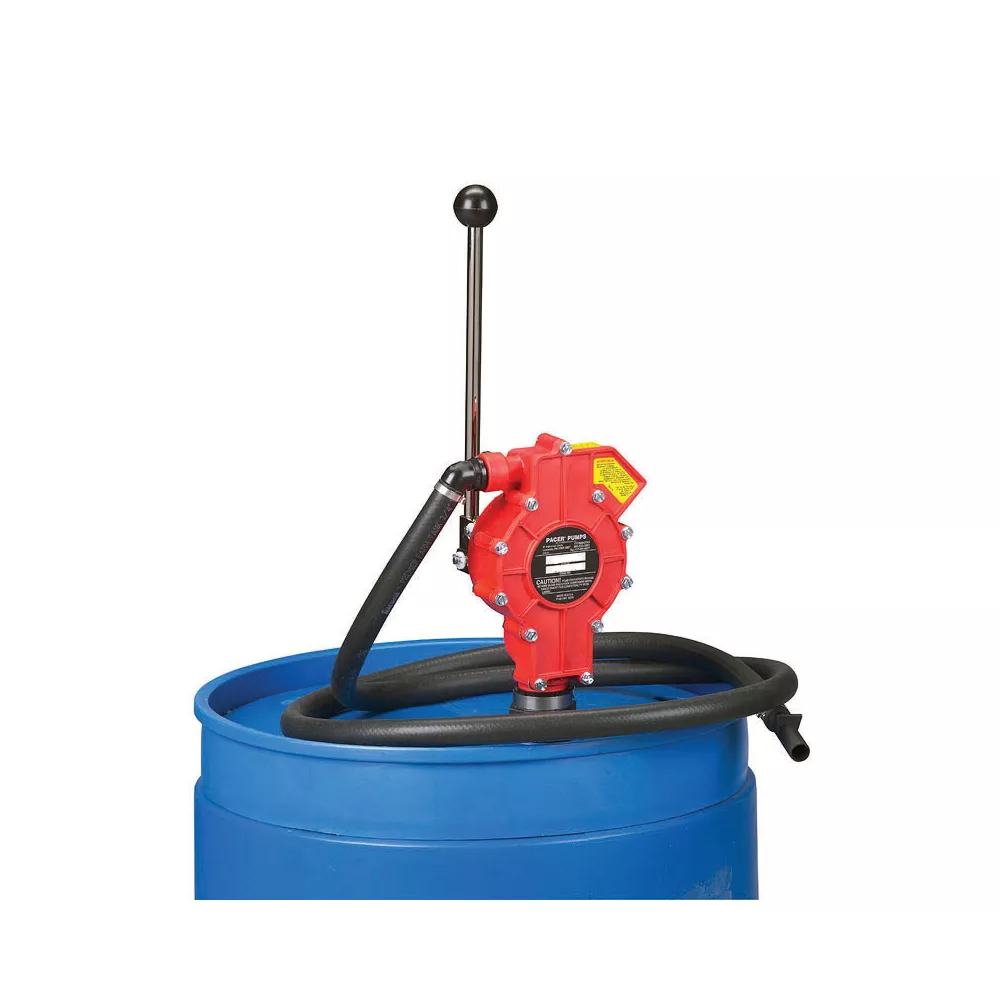

Pacer Poly Piston Manual Hand Pump for Agricultural Chemicals Transfer Pumps Farm & Ranch

The HPN series is a hand operated piston pump that helps eliminate dumping and pouring of solutions. This pump can handle low to medium volumes of water, oils, lubricants and mild chemicals, with viscosity capabilities up to 2,000 SSU. It features a two-position pump handle which can help control the discharge and it has a self-lubricating piston ring. The Pacer Pumps HPN 1A hand drum pump includes everything you'll need to move liquids into and out of heavy drums and barrels, including the pump body, assorted valves and valve seals, an O-ring and piston ring, the pump's handle, an 8-foot discharge hose and a polyester suction tube. It is engineered from durable thermoplastics and can be used in a wide range of applications. Please refer to chemical compatibility chart and always refer to the chemicals MSDS sheets before selecting a pump. If you have chemical compatibility or application questions, please contact the sales/technical support team at Pacer Pumps.

Double acting, Hand operated piston pump
Engineered from Durable Thermoplastics
Viscosities up to 2000 SSU
Two position pump handle
Self-lubricating piston ring - Operates wet or dry for long life
Barrel Bung adapter included
Refer to Chemical Compatibility for the best fit
Controlled Discharge Rate - 1 qt on every complete forward & backward cycle
Internal suction screen
Polyester Pump Body
Viton O-rings
Cork Nitrile Gasket
Discharge Hose - 8' EPDM w/ Polyester elbow & Nozzle
Suction Tube - 2 Piece 1" Polyester, 34" long with Polyester coupling
Molded & Assembled in the USA (Lancaster, PA)

1-year Limited manufacturer warranty

Pacer Poly Piston Manual Hand Pump for Agricultural Chemicals Transfer Pumps Farm & Ranch> Tanks & Pumps> Transfer Pumps

Specification	Description
Brand	Pacer
Country of Origin	Made in USA
Body Material	Polyester
Compatible Pipe Material	Plastic
Discharge Connection	Threaded Female
Discharge Diameter	1 in.
Discharge Rate at 0 ft.	0 gpm
Discharge Rate at 10 ft.	0 ft.
Engine Displacement	0 cc
Features	Double acting hand operated piston pump, Viscosities up to 2000 SSU, Self-lubricating piston ring, Engineered durable thermoplastics, Includes suction tube and discharge hose
Hose Diameter	1 in.
Inlet Connection	Threaded Female
Inlet Diameter	1 in.
Maximum Flow Rate	0 GPM
Maximum Head Lift	15 ft.
Maximum Operating Pressure	10 PSI
Maximum Operating Temperature	70 deg. F
Maximum Suction Lift	15 ft.
Minimum Operating Pressure	0 PSI
Minimum Operating Temperature	40 deg. F
Power Type	None
Product Height	9 in.
Product Length	21 in.
Product Weight	10 lb.
Product Width	9 in.
Pump Mechanism	Diaphragm
Motor Type	Hand Operated
Warranty	1 Year Limited
Manufacturer PartNumber	P-59-0002-1A

Pacer Manual Poly Piston Hand Pump for Agriculture Chemicals Specifications expand/collapse Specification Description Brand Pacer Country of Origin Made in USA Body Material Polyester Compatible Hose Material Plastic Discharge Connection Female Threaded Discharge Diameter 1 in. Discharge flow at 0 ft. 0 gpm Discharge rate at 10 ft. 0 ft. Engine Displacement 0 cc Features Double-acting manual piston pump, viscosities up to 2000 SSU, self-lubricating piston ring, durable thermoplastics, includes suction tube and discharge pipe. Pipe diameter 1 in. Female threaded inlet fitting Inlet diameter 1 in. Maximum flow 0 GPM Maximum head lift 15 feet. Maximum operating pressure 10 PSI Maximum operating temperature 70 degrees. F Maximum suction height 15 feet. Minimum operating pressure 0 PSI Minimum operating temperature 40 deg. F Power Type None Product Height 9 in. Product length 21 in. Product weight 10 lbs. Widecore of product 9 in. Pump Mechanism Diaphragm Motor Type Manual 1 Year Limited Warranty Manufacturer Part Number P-59-0002-1A
