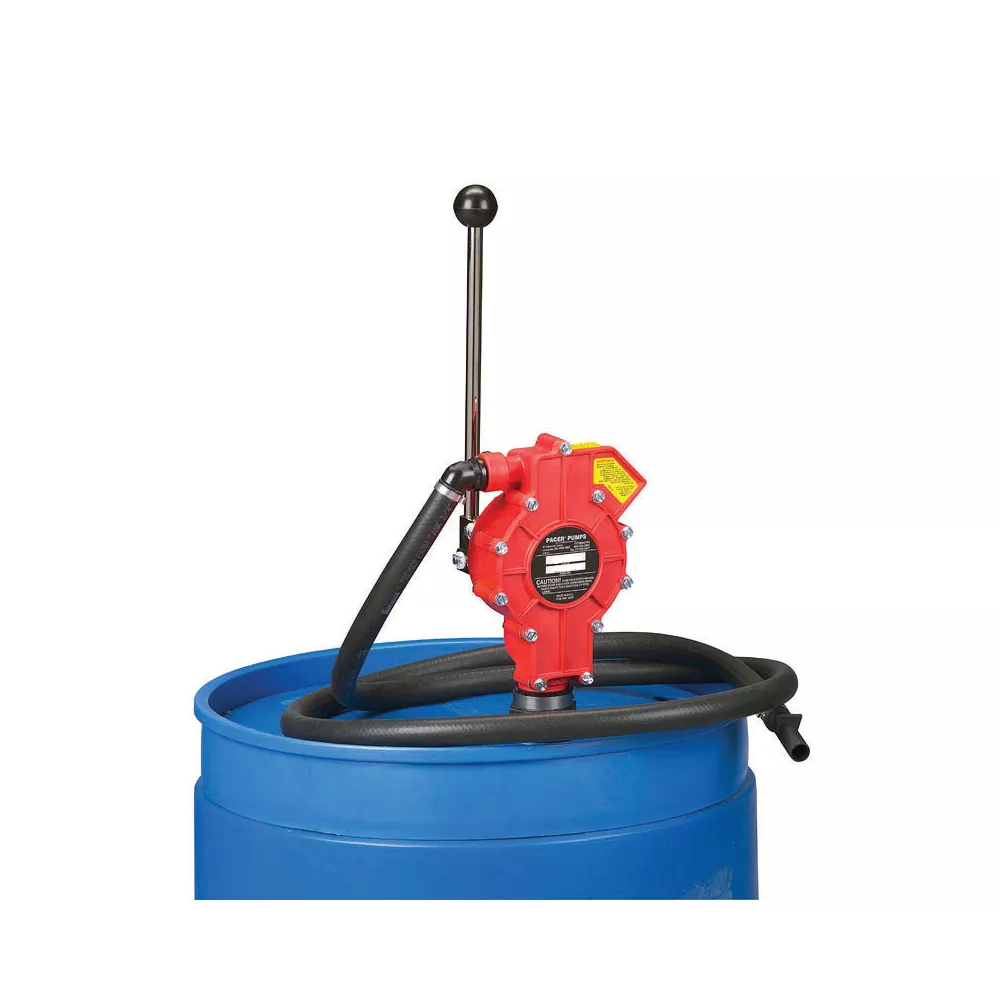

Pacer Poly Piston Manual Hand Pump for Fuel Oil Fuel Transfer Pumps Truck & Automotive

The HPN series is a hand operated piston pump that helps eliminate dumping and pouring of solutions. This pump can handle low to medium volumes of water, oils, lubricants and mild chemicals, with viscosity capabilities up to 2,000 SSU. It features a two-position pump handle which can help control the discharge and it has a self-lubricating piston ring. The Pacer Pumps HPN 2A hand drum pump includes everything you'll need to move liquids into and out of heavy drums and barrels, including the pump body, assorted valves and valve seals, an O-ring and piston ring, the pump's handle, an 8-foot discharge hose and a polyester suction tube. It is engineered from durable thermoplastics and can be used in a wide range of applications. Please refer to chemical compatibility chart and always refer to the chemicals MSDS sheets before selecting a pump. If you have chemical compatibility or application questions, please contact the sales/technical support team at Pacer Pumps.

Double acting, Hand operated piston pump
Engineered from Durable Thermoplastics
Viscosities up to 2000 SSU
Two position pump handle
Self-lubricating piston ring - Operates wet or dry for long life
Barel Bung adapter included
Refer to Chemical Compatibility for the best fit
Controlled Discharge Rate - 1 qt on every complete forward & backward cycle
Ideal for petroleum products such as diesel fuel
Internal suction screen
Polyester Pump Body
Viton O-rings
Discharge Hose - Nitrile w/Polyester elbow & nozzle
Suction Tube - 2 Piece 1" Polyester, 34" long with Polyester coupling
Molded & Assembled in the USA (Lancaster, PA)

1-year Limited manufacturer warranty

Pacer Poly Piston Manual Hand Pump for Fuel Oil Fuel Transfer Pumps Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Pumps

Specification	Description
Brand	Pacer
Country of Origin	Made in USA
Body Materials	Polyester
Compatible Fluids	Other
Discharge Connection	Threaded Female
Discharge Diameter	1 in.
Duty Cycle	1qt
Features	Double acting, Hand operated piston pump, Engineered from Durable Thermoplastics, Viscosities up to 2000 SSU, Two position pump handle, Self-lubricating piston ring - Operates wet or dry for long life, Suction and Discharge hose included
Hose Diameter	1 in.
Inlet Connection	Threaded Female
Inlet Diameter	1 in.
Intended Use Grade	Standard
Maximum Flow Rate	0GPM
Maximum Head Lift	15 ft.
Maximum Operating Pressure	10 PSI
Maximum Operating Temperature	70 deg. F
Minimum Operating Pressure	0 PSI
Minimum Operating Temperature	40 deg. F
Power Type	None
Product Height	9 in.
Product Length	21 in.
Product Weight	10 lb.
Product Width	9 in.
Warranty	1 Year Limited
Manufacturer PartNumber	P-59-0002-2A

Pacer Manual Poly Piston Hand Pump for Fuel Oils Specifications expand/collapse Specification Description Brand Pacer Country of Origin Made in USA Body Materials Polyester Compatible Fluids Other Discharge Connection Female Threaded Discharge Diameter 1 in. Duty Cycle 1 Quart Features Double-acting manual piston pump, designed from durable thermoplastics, viscosities up to 2000 SSU, two-position pump handle, self-lubricating piston ring - Operates wet or dry for long life , suction and discharge pipe included Pipe diameter 1 in. Female threaded inlet fitting Inlet diameter 1 in. Intended Use Grade Standard Maximum Flow 0 GPM Maximum Head Lift 15 feet. Maximum operating pressure 10 PSI Maximum operating temperature 70 degrees. F Minimum operating pressure 0 PSI Minimum operating temperature 40 deg. F Power Type None Product Height 9 in. Product Length 21 in. Product Weight10 lb. Product Width 9 in. 1 Year Limited Warranty Manufacturer Part Number P-59-0002-2A
