Pioneer Hydraulic Connect Pressurized Bit 1/2 in 3/4 in 16 ORB Hydraulic Hoses Tractor Repair & Parts

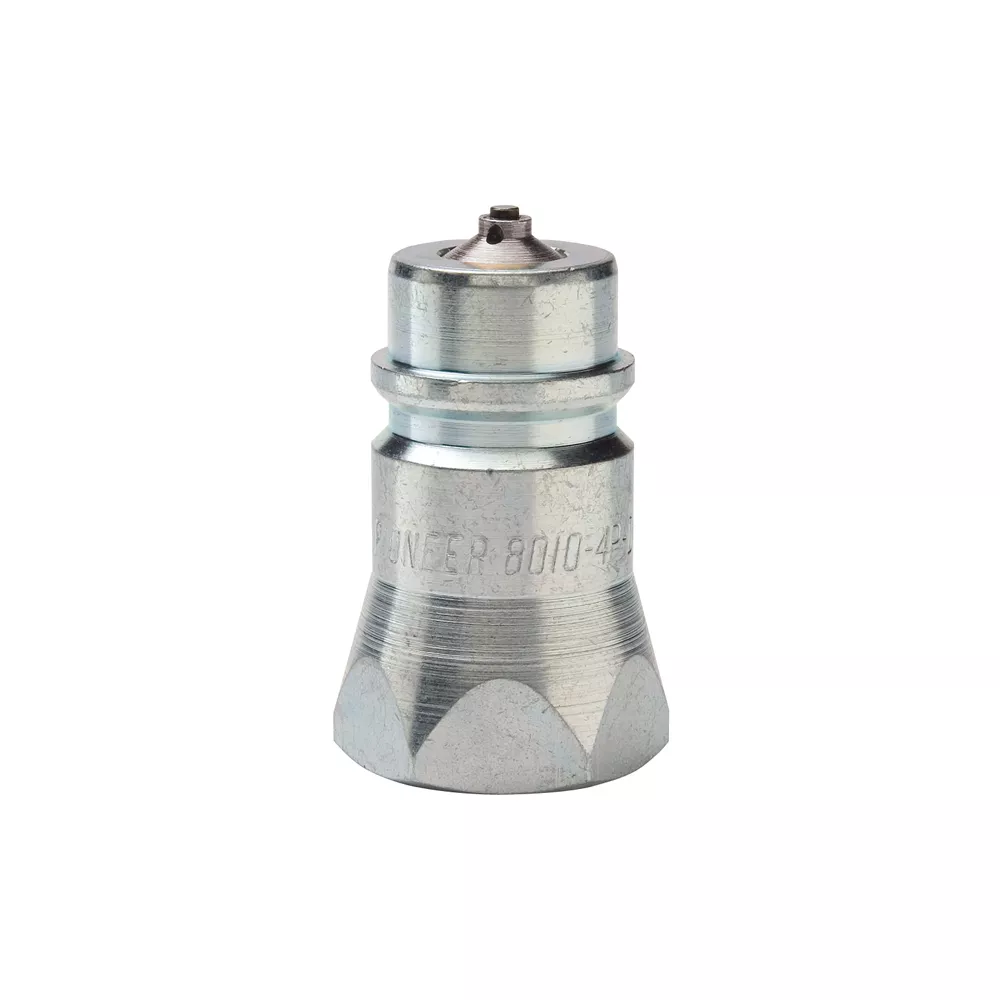

For couplings that need to stand up to force, use the Pioneer 1/2 in. Connect Under Pressure Hydraulic Tip. Equipped with a 3/4 in. thread and 16 ORB fitting, this high-pressure hydraulic tip for tractors is designed to hold up under extreme pressure. The hydraulic tip is compatible with Pioneer model number VP8010-15P-DC for convenience.

1/2 in. connect under pressure hydraulic tips
Compatible with Pioneer model number VP8010-15P-DC
Equipped with a 3/4 in. hydraulic tip thread and a 16 ORB fitting
Hydraulic tips are ideal for couplings that need to stand up to force

Pioneer Hydraulic Connect Pressurized Bit 1/2 in 3/4 in 16 ORB Hydraulic Hoses Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Hoses

Specification	Description
Brand	Pioneer
Country of Origin	Made in USA
Brand Compatibility	Universal
Compatibility	Universal ISO 5675
End 1 Diameter	0.75 in.
End 2 Diameter	0 in.
Features	Connect Under Pressure
Hose Type	Hydraulic Hose
Maximum Operating Pressure	3,000 PSI
Maximum Temperature	250 deg. F
Minimum Temperature	-40 deg. F
Model Compatibility	Universal
Primary Material	Steel
Product Height	1.95 in.
Product Length	1.23 in.
Product Weight	0.195 lb.
Product Width	1.23 in.
Manufacturer PartNumber	VP8010-15P-DC-CS

Pioneer 1/2 in. Connect Under Pressure Hydraulic Tip, 3/4 in., 16 ORB Specifications expand/collapse Specification Description Brand Pioneer Country of Origin Made in USA Brand Compatibility Universal Compatibility Universal ISO 5675 Tip Diameter 1 0.75 in. End diameter 2 0 in. Features Connect Under Pressure Hose Type Hydraulic Hose Maximum Working Pressure 3,000 PSI Maximum Temperature 250 Degrees. F Minimum temperature -40 degrees. Model Compatibility F Universal Main Material Steel Product Height 1.95 in. Product length 1.23 in. Product weight 0.195 lbs. Product width 1.23 in. Manufacturer part number VP8010-15P-DC-CS
