Piusi USA 12V 3000 Battery Kit Vane Fuel Pump with Manual Nozzle 12 GPM Fuel Transfer Pumps Truck & Automotive

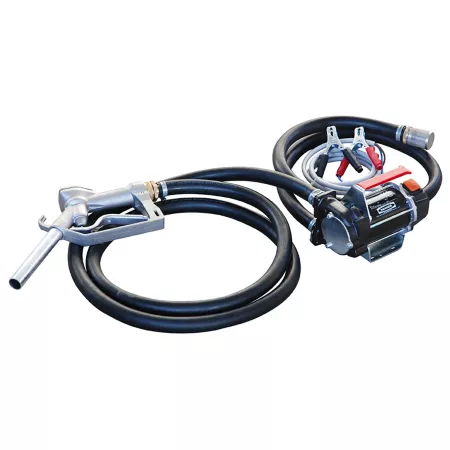

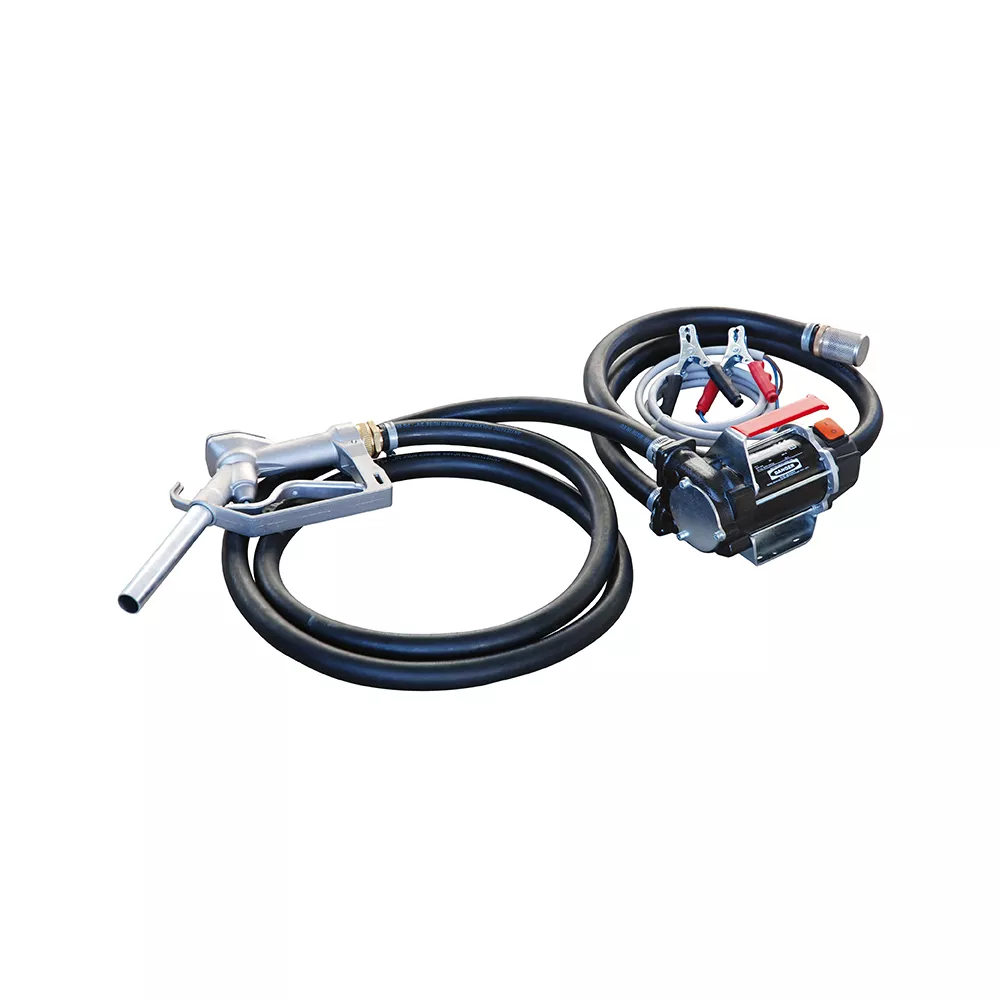

The Piusi USA 12V 12 GPM Battery Kit 3000 Vane Fuel Pump with Manual Nozzle is a portable diesel transfer pump unit created with the flexibility to be quickly installed. Available in 12VDC or 24VDC, this compact electric vane pump is self-priming and comes with 13 ft. of dispensing hose and manual nozzle. The portable fuel transfer pump is suitable for all those conditions in which the user has to transfer and dispense diesel in safe conditions, when, for example, only a battery power supply is available. The battery kit fuel transfer pump diesel dispenser has been designed to ensure a reliable and safe diesel transfer and dispensing in situations where the operation of refueling earth-moving machinery is complex. It offers a suction capacity up to 6.5 ft. An on/off switch makes operating the fuel pump easy.

Self-priming vane pump with a portable design for effortless mobility
Flow rate up to 12 GPM ensures a quick transfer with a duty cycle of 30 minutes
Voltage: 12VDC
Wattage: 260W
Amperage: 22A
Cast iron diesel transfer pump body makes the Battery Kit robust and durable
Fixed brush motor with permanent magnet stator for optimal operation
Suction capacity up to 6.5 ft.
Terminal board with switches and fuses to protect the fuel transfer pump against overload
6.5 ft. cables with clips for battery connection
13 ft. delivery hose (hose interior 3/4 in.)
Aluminum manual nozzle offers durability and easy filling
Bottom suction filter guarantees the quality of the diesel delivered, free from impurities
Mobile and ready-to-use portable fuel transfer pump for transferring and dispensing diesel in safe conditions when only a battery power supply is available
On/off switch makes operating the fuel pump easy

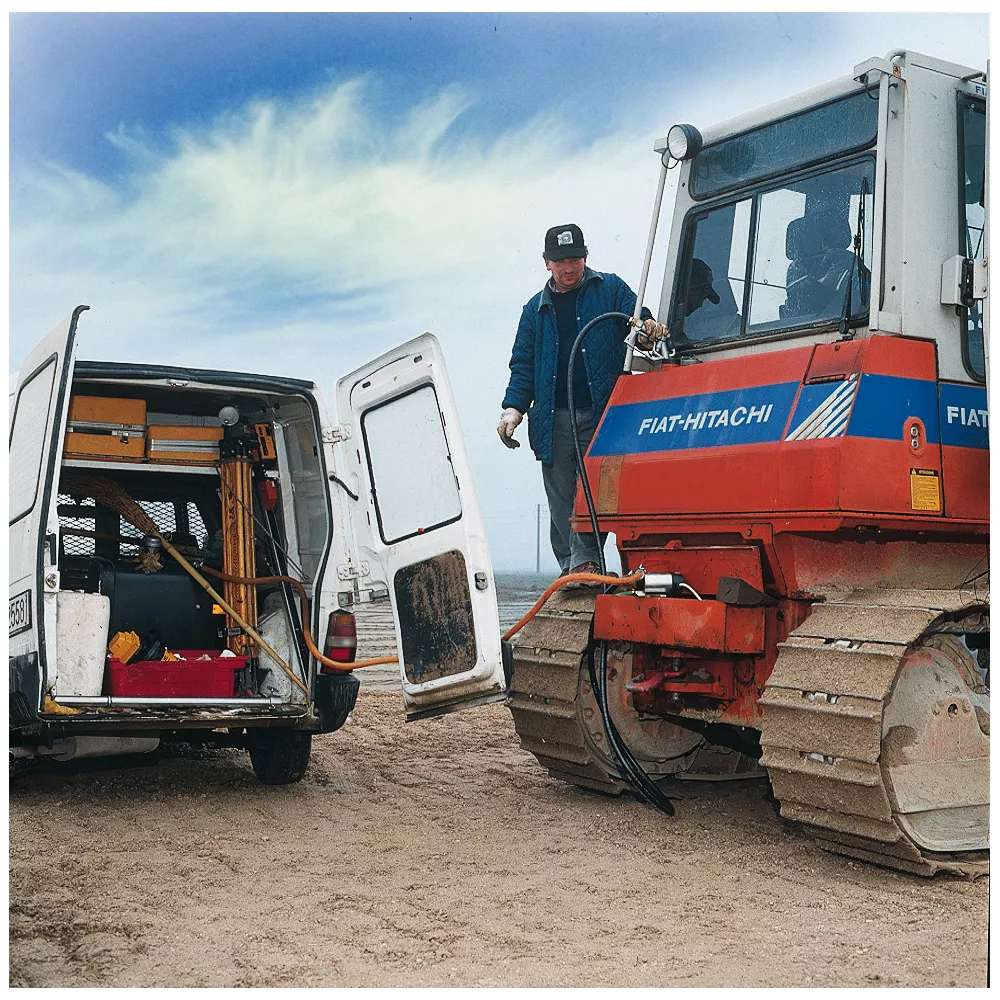

Ideal fuel pump for refueling earth-moving machinery and construction, marine, off-road, and agricultural applications
Lightweight, small pump size and handle applied to the body allow easy use
Flexible design for easy installation
Ideal fuel transfer pump for diesel and oil

Piusi USA 12V 3000 Battery Kit Vane Fuel Pump with Manual Nozzle 12 GPM Fuel Transfer Pumps Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Pumps

Specification	Description
Brand	Piusi USA
Country of Origin	Imported
AC or DC Powered	DC
Amperage	22A
Body Materials	Cast iron
Compatible Fluids	Diesel
Discharge Connection	Threaded Male
Discharge Diameter	1 in.
Duty Cycle	30 min.
Features	Self-Priming
Inlet Connection	Threaded Female
Inlet Diameter	1 in.
Intended Use Grade	Commercial
Maximum Flow Rate	12 GPM
Maximum Head Lift	1 in.
Power Cord Length	6.5 ft.
Power Type	12 Volt
Product Height	7 in.
Product Length	12 in.
Product Weight	15 lb.
Product Width	12 in.
Voltage	12V
Manufacturer PartNumber	F0022500C

Piusi USA 12V Battery Kit 3000 Vane Fuel Pump with Manual Nozzle, 12 GPM Specifications expand/collapse Specification Description Brand Piusi USA Country of Origin Imported AC or DC Power Supply DC Amperage 22A Body Materials Cast Iron Compatible Fluids Diesel Discharge Connection Male Threaded Discharge Diameter 1 in. Duty cycle 30 min. Features Self-priming inlet connection 1 in. threaded female inlet diameter. Intended Use Commercial Grade Maximum Flow 12 GPM Maximum Head Lift 1 in. Power cord length 6.5 ft. Power Type 12 Volt Product Height 7 in. Product length 12 in. Product weight 15 lbs. Product width 12 in. Voltage 12 V Manufacturer part number F0022500C
