Piusi USA EX50 UL 1/8 HP 120V Basic+ Electric Fuel Pump Kit 15 GPM Auto Nozzle Fuel Transfer Pumps Truck & Automotive

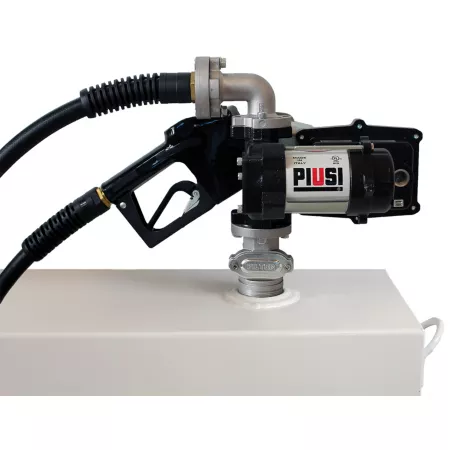

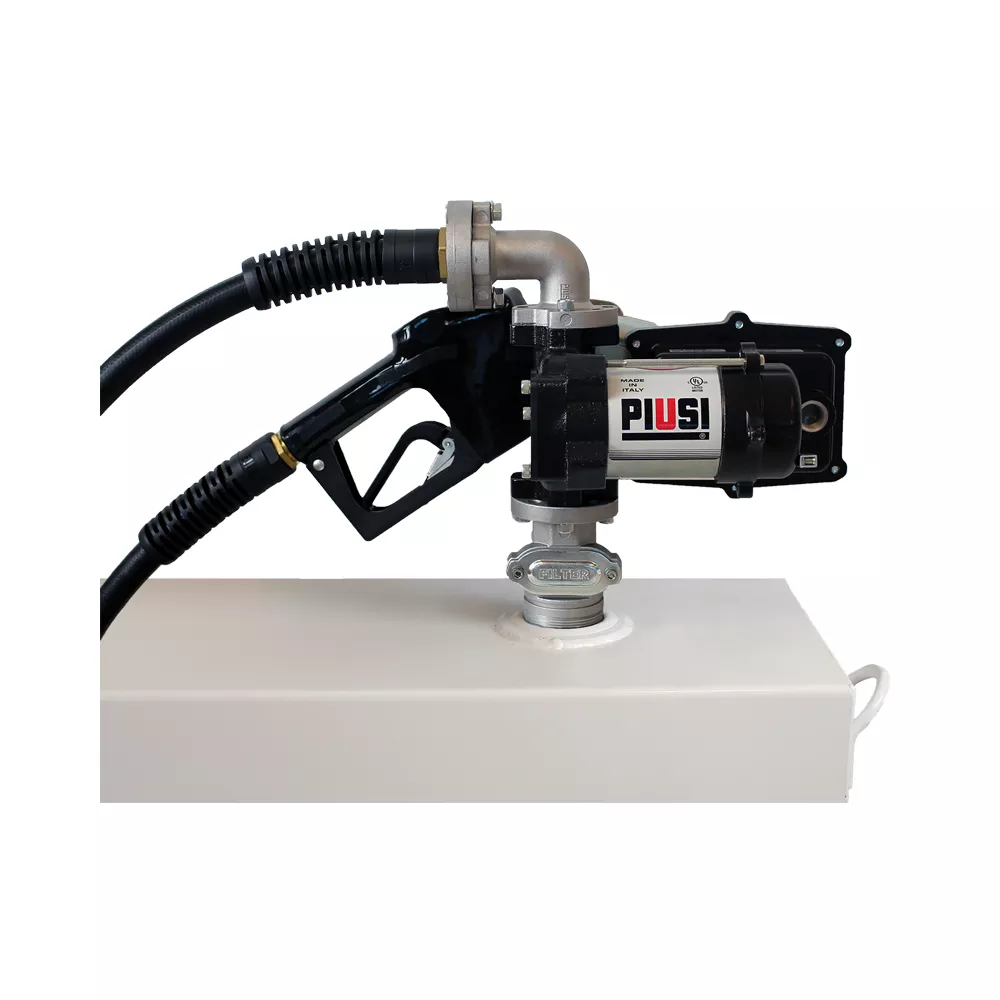

The EX50 120VAC 15GPM UL Basic+ Fuel Transfer Pump Kit is designed for dispensing gasoline, diesel and kerosene. Utilizing a grooved rotor and spring-loaded vanes, it is able to deliver higher flow rates at the nozzle; even with all of the common accessories (longer hose, filter, meter, auto nozzle). A true 15GPM at the nozzle! This fuel transfer pump kit includes a 15GPM 12V fuel transfer pump, auto-nozzle, delivery hose, downtube, and tank connector.

Anti-kink premium hose prevents the hose from kinking
Flanged components allow the fuel transfer pump unit to be installed or replaced without the use of sealant, making connections quick and easy
Bypass valve and spring-loaded, reinforced vanes are built-in to ensure efficiency and longevity
120V/60Hz
Amperage: 1.7A
Automatic shut-off nozzle
13 ft. dispense hose
Duty Cycle: 30 minutes on, 30 minutes off
UL/cUL-listed fuel transfer pump motor suitable for Class 1, Group D area
Thermal overload protection to prevent overheating
30% more compact with 30% more flow rate
Bung mount with integrated filter strainer keeps the pump free from debris

Piusi USA EX50 UL 1/8 HP 120V Basic+ Electric Fuel Pump Kit 15 GPM Auto Nozzle Fuel Transfer Pumps Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Pumps

Specification	Description
Brand	Piusi USA
Country of Origin	Imported
AC or DC Powered	AC
Amperage	1.7A
Body Materials	Cast iron
Compatible Fluids	Gasoline
Discharge Connection	Threaded Male
Discharge Diameter	1 in.
Duty Cycle	30 min. on/off
Features	Self-Priming
Horsepower	1/8 HP
Hose Diameter	0.75 in.
Inlet Connection	Threaded Female
Inlet Diameter	1 in.
Intended Use Grade	Commercial
Maximum Flow Rate	15 GPM
Maximum Head Lift	6 ft.
Maximum Operating Pressure	16 PSI
Maximum Operating Temperature	110 deg. F
Minimum Operating Pressure	10 deg. F
Minimum Operating Temperature	1 PSI
Power Type	Electric
Product Height	11 in.
Product Length	24 in.
Product Weight	30 lb.
Product Width	16 in.
Voltage	120V
Warranty	2 year
Manufacturer PartNumber	F0037451C

Piusi USA 1/8 HP 120V Electric EX50 UL Fuel Pump Basic+ Kit, 15 GPM, Auto Nozzle Specifications expand/collapse Specification Description Brand Piusi USA Country of Origin Imported AC or DC Power Supply AC Amps 1.7 A Body Materials Cast Iron Compatible Fluids Fuel Discharge Fitting Male Threaded Discharge Diameter 1 in. Duty cycle 30 min. On/Off Features Self-Priming Power 1/8 HP Hose Diameter 0.75 in. Inlet fitting Female threaded Inlet diameter 1 in. Intended Use Commercial Grade Maximum Flow Rate 15 GPM Maximum Lift Height 6 Feet Maximum Operating Pressure 16 PSI Maximum Operating Temperature 110 deg. F Minimum operating pressure 10 degrees. F Minimum Operating Temperature 1 PSI Power Type Electric Product Height 11 in. Product length 24 in. Product weight 30 lbs. Product width 16 in. Voltage 120 V Warranty 2 years Manufacturer part number F0037451C
