Piusi USA K24-UL Fuel Meter 2-32 GPM 1 in NPT-M/F Fuel Transfer Tank Accessories Truck & Automotive

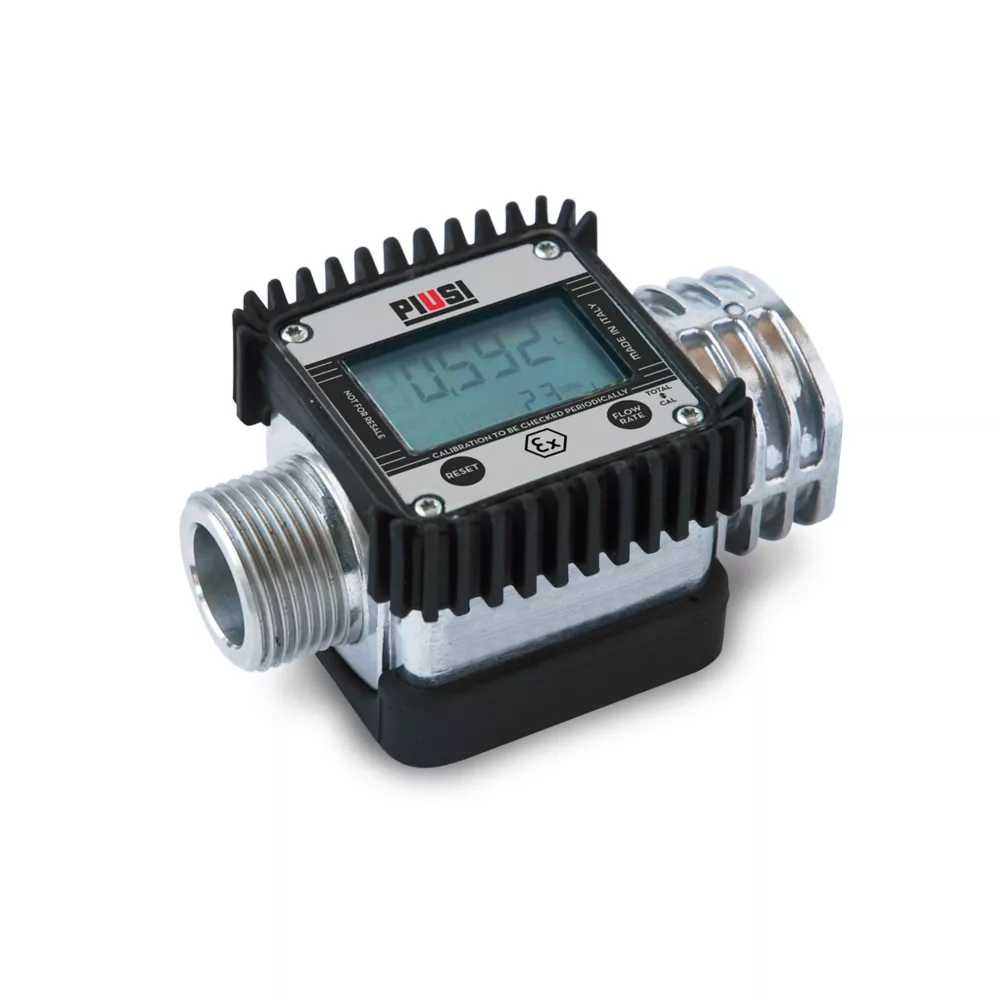

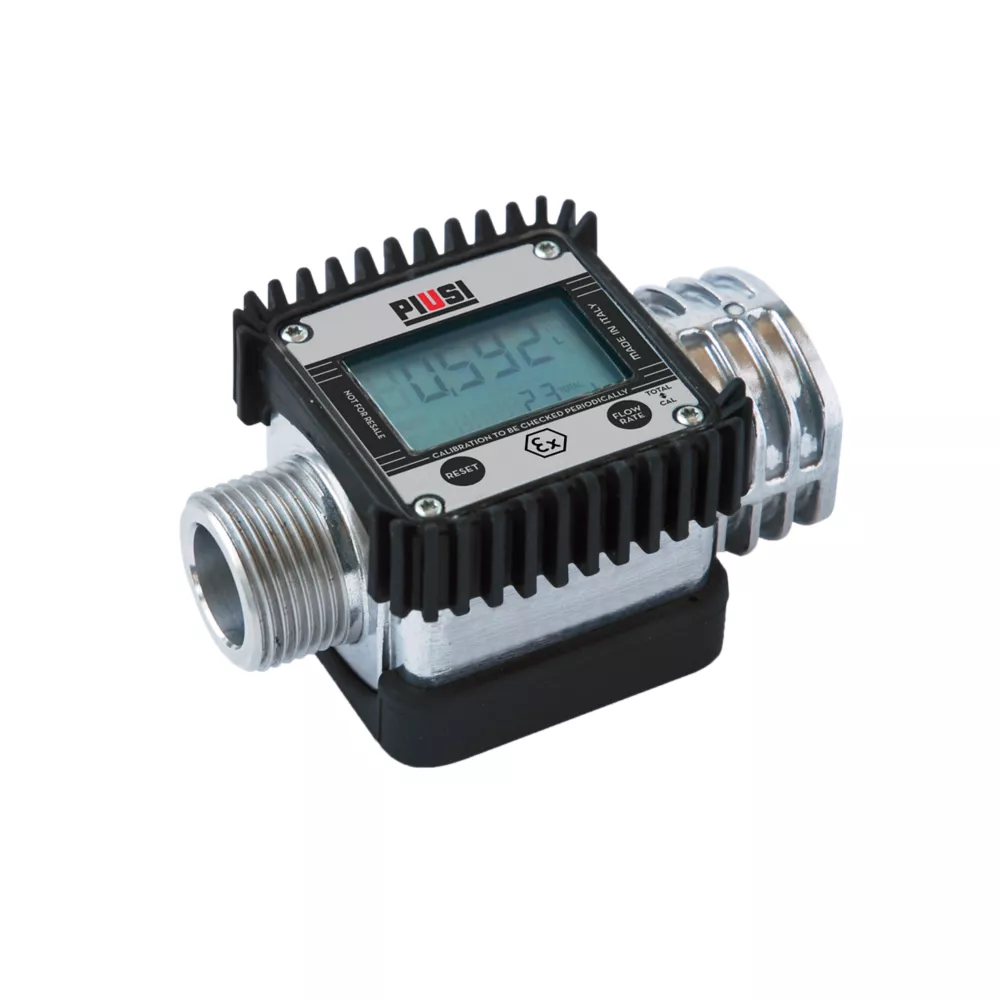

The UL-approved Piusi K24 Digital Turbine Meter is suitable for use with gasoline, diesel, and kerosene. This turbine flow meter is easy to install and comes equipped with a rotatable screen, sturdy aluminum casing, and sealed electronic card, making the K24 fuel meter the ideal digital flow meter for fluid monitoring under any condition. Accurate for flow rates of 2-32GPM.- Reinforced aluminum body gives the digital turbine flow meter strength
- Bi-directional flow capability
- Digital screen can be adjusted to various positions
- Turbine flow meter can be mounted directly on the nozzle or inline by the pump
- Robust, protective rubber casing and sealed internals make the digital flow meter versatile for use in any condition
- Accuracy +/- 1% for precise results
- Ideal flow meter for agriculture, fleet, industrial, marine, and off-road applications
- Impulse-type signals: Single-channel, reed switch
- 5-digital partial total from 0.1 to 99999 to suit your needs
- 6-digit total from 1 to 99999
- Resettable total available for flexible use
- Flow rate: 2 - 32 GPM
- Repetitiveness: 0.2%
- Loss of pressure: <0.4 PSI at 30 GPM
- Turbine meter can be calibrated (batch total) to help you get the job done
Piusi USA K24-UL Fuel Meter 2-32 GPM 1 in NPT-M/F Fuel Transfer Tank Accessories Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Tank Accessories
| Specification | Description |
|---|---|
| Brand | Piusi USA |
| Country of Origin | Imported |
| AC or DC Powered | DC |
| Body Materials | Aluminum |
| Compatible Fluids | Gasoline |
| Discharge Connection | Threaded Male |
| Discharge Diameter | 1 in. |
| Duty Cycle | S 1 not applicable |
| Features | Rotating face, field calibrateable |
| Hose Diameter | 1 in. |
| Inlet Connection | Threaded Female |
| Inlet Diameter | 1 in. |
| Intended Use Grade | Commercial |
| Maximum Flow Rate | 32 GPM |
| Maximum Head Lift | S 1 not applicable |
| Maximum Operating Pressure | 50 PSI |
| Maximum Operating Temperature | 110 deg. F |
| Minimum Operating Pressure | 1 PSI |
| Minimum Operating Temperature | 10 deg. F |
| Power Type | Battery |
| Product Height | 6 in. |
| Product Length | 1 in. |
| Product Weight | 1 lb. |
| Product Width | 6 in. |
| Warranty | 2 Year |
| Manufacturer PartNumber | F00408U0A |
