Piusi USA PIUSIBOX PRO 12V 12 GPM Manual Nozzle Fuel Transfer Pumps Truck & Automotive
The 12GPM PiusiBox 12V Pro Fuel Transfer Pump Kit is a complete transfer kit that has been specifically designed for easy portability and maintenance. This modern and practical diesel fuel transfer pump solution for on-the-go refueling is useful in agricultural, construction and marine industries where remote machinery is used. Each kit is equipped with the Bypass 3000, a reliable self-priming diesel vane fuel transfer pump. The 12V fuel transfer pump's compact size, ease of installation and dependability were all taken into consideration in the design of the PiusiBox.- A powerful and reliable self-priming diesel fuel transfer pump
- 12GPM for efficient operation
- Available in both 12VDC and 24VDC versions
- Portable fuel transfer pump offers an ideal solution for on-the-go and emergency on-site fueling

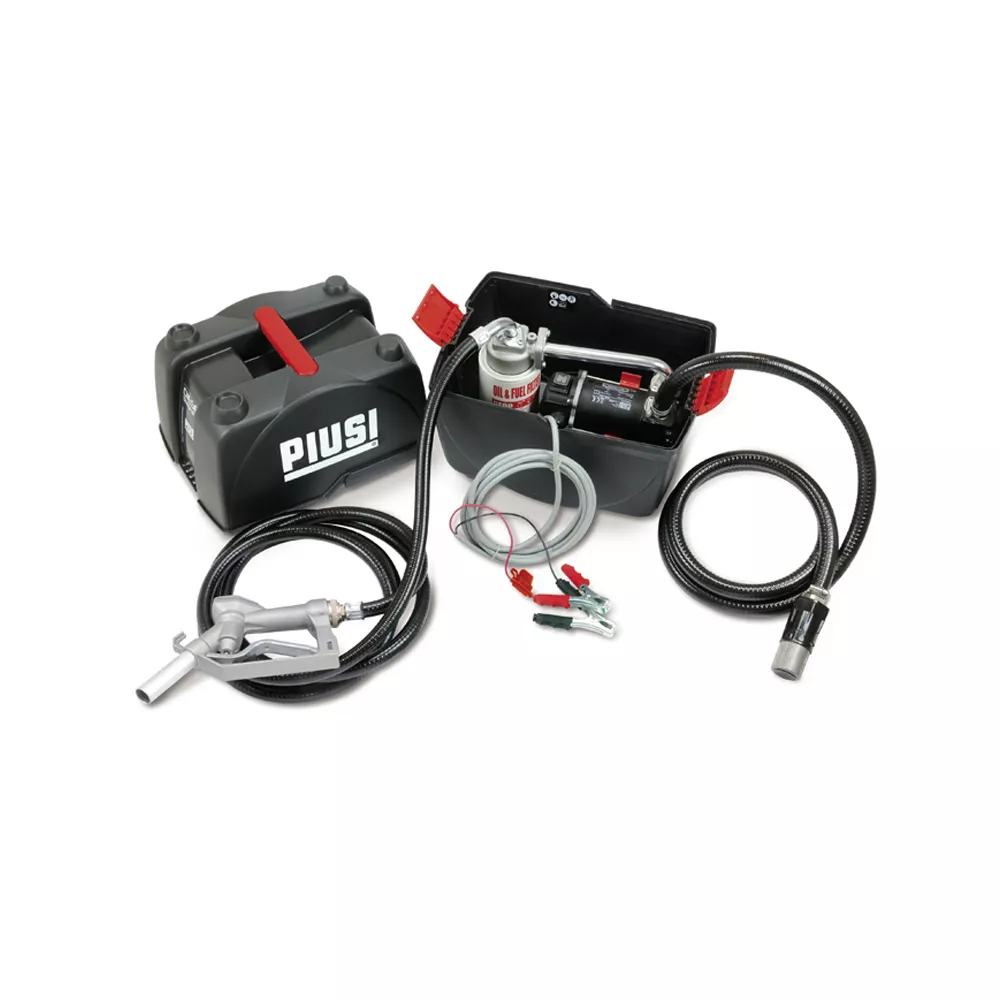

- Kit includes the Bypass 3000 12V fuel transfer pump, 20 ft. of hose that can be cut to length, a low-flow-resistant manual nozzle and a pair of Piusi gloves
- Vantage valve can be shut after dispensing to prevent fuel spillage
- Mesh valve filter and particulate filter complement each other to protect against tank residue and debris

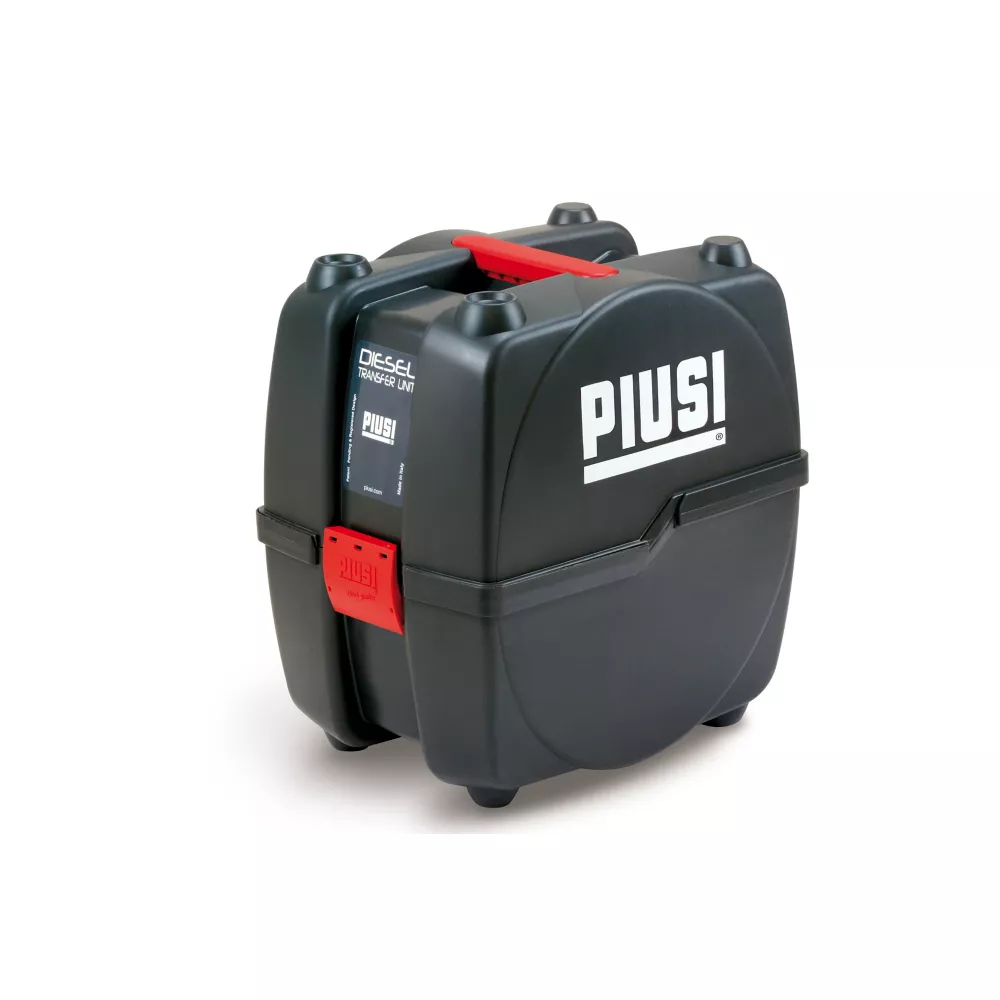

- All components are stored in a compact and easy stow-away box to keep the system protected and clean
Piusi USA PIUSIBOX PRO 12V 12 GPM Manual Nozzle Fuel Transfer Pumps Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Pumps
| Specification | Description |
|---|---|
| Brand | Piusi USA |
| Country of Origin | Imported |
| AC or DC Powered | DC |
| Amperage | 12A |
| Body Materials | Polypropylene, Steel |
| Compatible Fluids | Diesel |
| Discharge Connection | Threaded Male |
| Discharge Diameter | 0.25 in. |
| Duty Cycle | 30 min. on30 min. off |
| Features | Self-Priming |
| Horsepower | 14 HP |
| Hose Diameter | 0.25 in . 75 in. |
| Inlet Connection | Threaded Male |
| Inlet Diameter | 0.75 in. |
| Intended Use Grade | Commercial |
| Maximum Flow Rate | 12GPM |
| Maximum Head Lift | 6.5 ft. |
| Maximum Operating Pressure | 15 PSI |
| Maximum Operating Temperature | 110 deg. F |
| Minimum Operating Pressure | 1 PSI |
| Minimum Operating Temperature | 10 deg. F |
| Power Cord Length | 6 ft. |
| Power Type | Electric, 12 Volt, None |
| Product Height | 22 in. |
| Product Length | 15 in. |
| Product Weight | 26 lb. |
| Product Width | 15 in. |
| Voltage | 12VDC |
| Warranty | 2 Year |
| Manufacturer PartNumber | F0023101B |
