Piusi USA SuzzaraBlue Tote Basic Kit 0.5 HP 12V 9 GPM Manual Nozzle Fuel Transfer Pumps Truck & Automotive

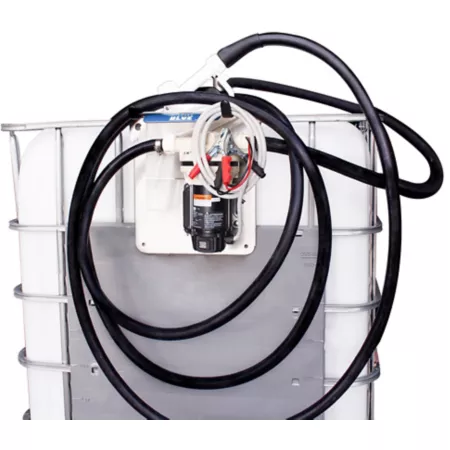

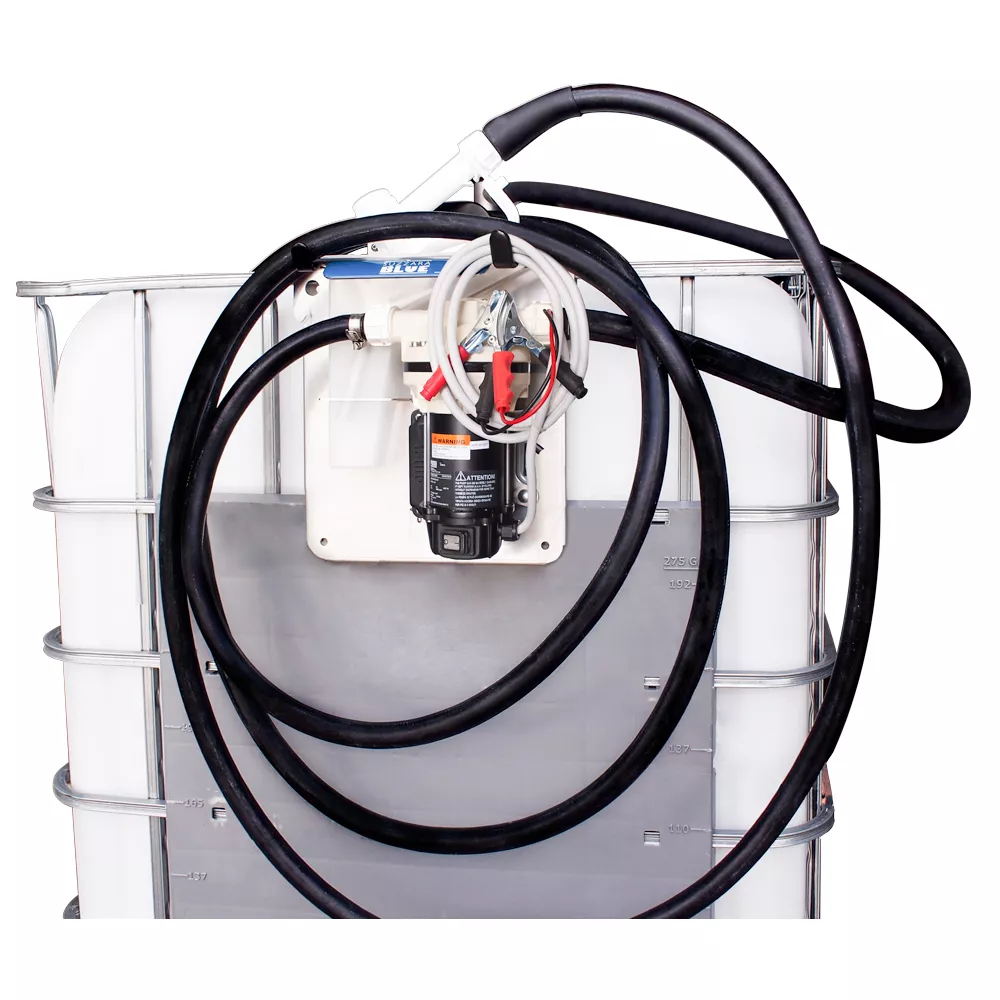

SuzzaraBlue DEF 12VDC Basic Tote Kit is the industry standard for transferring Diesel Exhaust Fluid! It is a self-priming 9GPM diaphragm pump equipped with a 6.5 minute timer board to avoid fluid overheating. The unique membrane design breaks up DEF crystallization, as opposed to stalling, and is good for drum, tote and mini bulk applications.

7-9 GPM flow rate
12VDC
20 min. on/ 20 min. off duty cycle for ample refilling
Piusi DEF transfer pump offers 25 psi maximum discharge pressure
6.7 ft. suction height (without check valve)
3/4 in. inner hose diameter
6 ft. cables with clamps

Piusi USA SuzzaraBlue Tote Basic Kit 0.5 HP 12V 9 GPM Manual Nozzle Fuel Transfer Pumps Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Pumps

Specification	Description
Brand	Piusi USA
Country of Origin	Imported
AC or DC Powered	DC
Amperage	22A
Body Materials	Polypropylene
Compatible Fluids	Diesel Exhaust Fluid
Discharge Connection	Threaded Male
Discharge Diameter	1 in.
Duty Cycle	20 min. on/off
Features	Self-Priming
Horsepower	0.5 HP
Hose Diameter	0.75 in.
Inlet Connection	Threaded Male
Inlet Diameter	1 in.
Intended Use Grade	Commercial
Maximum Flow Rate	9 GPM
Maximum Head Lift	6 ft.
Maximum Operating Pressure	23.5 PSI
Maximum Operating Temperature	110 deg. F
Minimum Operating Pressure	1 PSI
Minimum Operating Temperature	12 deg. F
Power Cord Length	6 ft.
Power Type	12 Volt
Product Height	11 in.
Product Length	19 in.
Product Weight	22 lb.
Product Width	15 in.
Voltage	12V
Warranty	2 year
Manufacturer PartNumber	F00201A9C

Piusi USA 0.5 HP 12V SuzzaraBlue Tote Basic Kit, 9 GPM, Manual Nozzle Specifications expand/collapse Specification Description Brand Piusi USA Country of Origin Imported AC or DC Power Supply DC Amperage 22A Body Materials Polypropylene Compatible Fluids Diesel Exhaust Fluid Discharge Connection Threaded Male Discharge Diameter 1 in. Duty cycle 20 min. On/Off Features Self-Priming Power 0.5 HP Hose Diameter 0.75 in. Inlet Connection Threaded Male Inlet Diameter 1 in. Intended Use Commercial Grade Maximum Flow Rate 9 GPM Maximum Head Lift 6 Feet Maximum Operating Pressure 23.5 PSI Maximum Operating Temperature 110 deg. F Minimum operating pressure 1 PSI Minimum operating temperature 12 deg. F Power cord length 6 ft. Power Type 12 Volt Product Height 11 in. Product length 19 in. Product weight 22 lbs. Product width 15 in. Voltage 12 V Warranty 2 years Manufacturer part number F00201A9C
