Piusi USA Three25 0.67 HP 120V 9 GPM Automatic/Meter/Filter/Coupler Electric Fuel Pump Kit Fuel Transfer Pumps Truck & Automotive

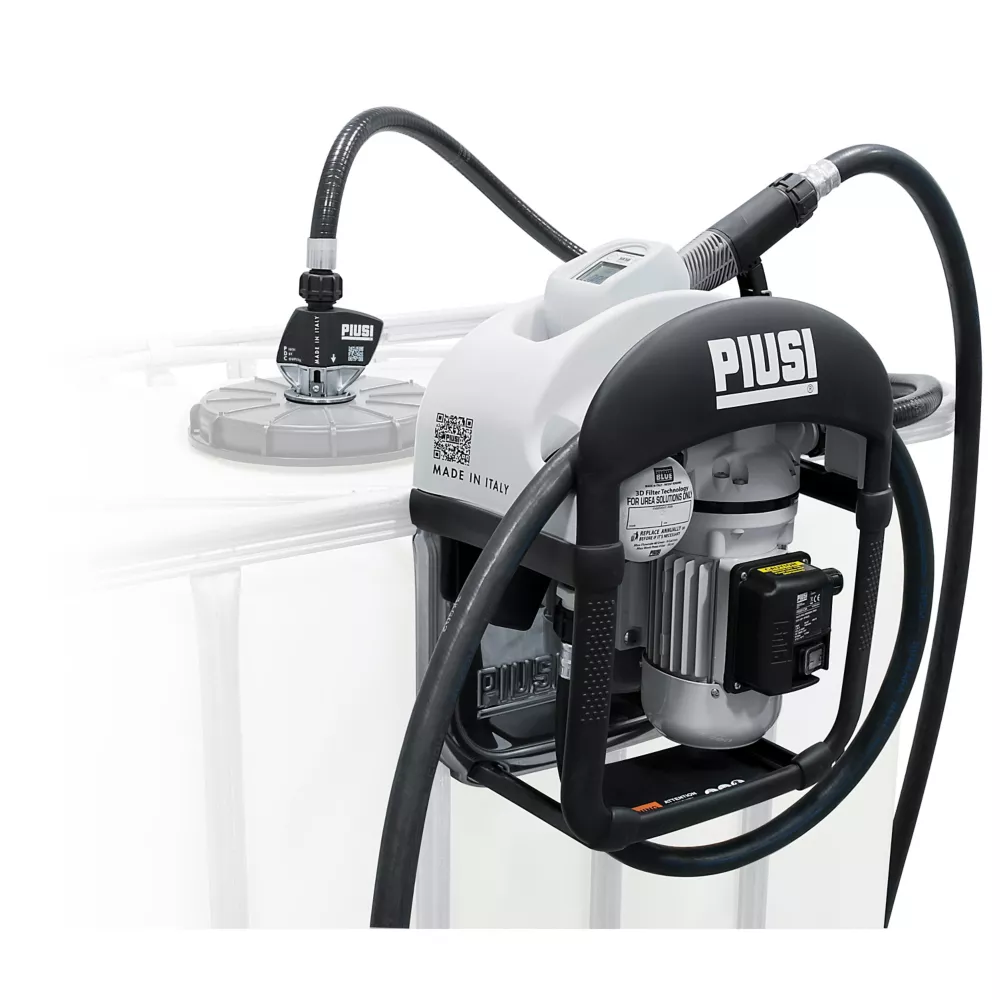

The Piusi Three25 DEF 120V Kit is the perfect solution for a DEF IBC tote or mini bulk application. The system is equipped with the SuzzaraBlue heavy-duty industry standard 9GPM DEF transfer pump, an easily transferable side-mount bracket, an automatic metered nozzle, a DEF filter, the PDC coupler, 20 ft. of crimped dispense hose and 1.5 ft of crimped suction hose.

3D DEF filter helps maintain the quality of the DEF dispensed and extend the life of the catalyst

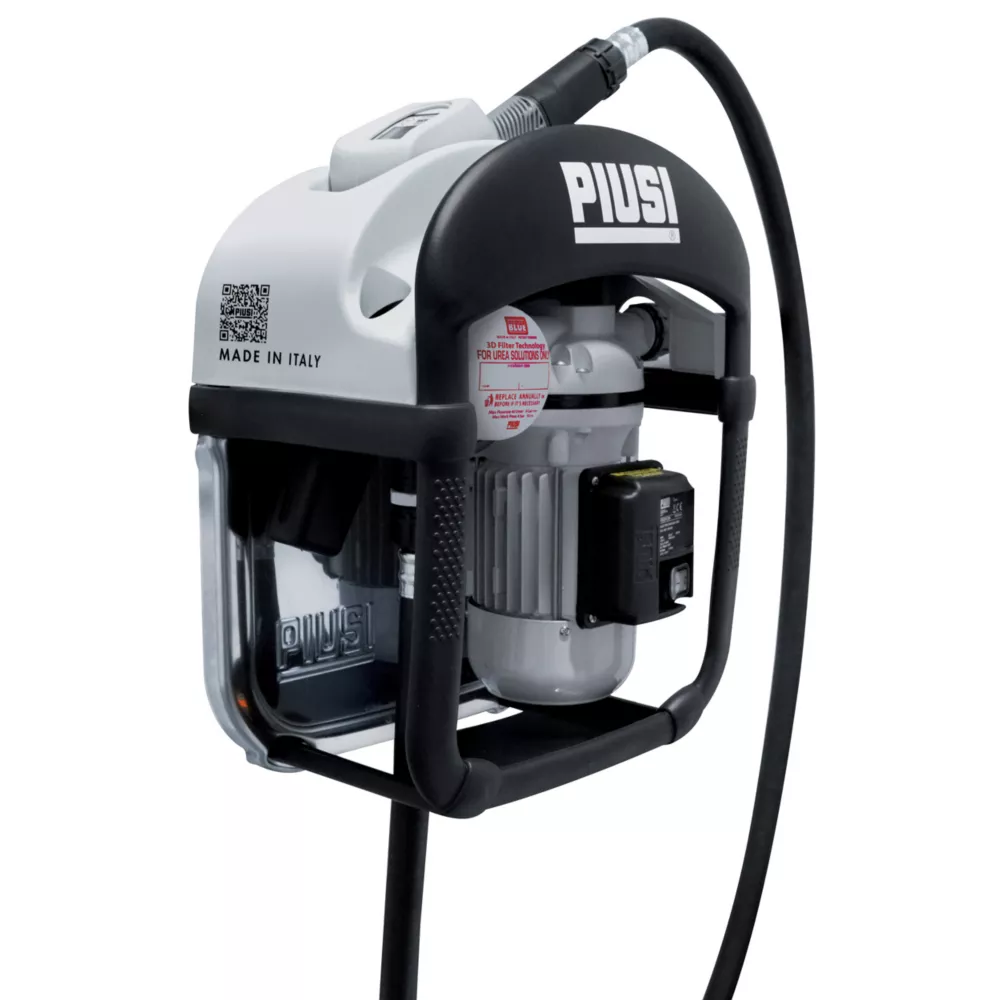

DEF transfer pump system with a stainless steel bracket and roll bar protection
Piusi DEF coupler (PDC)
Security lock bracket system for safe use of the DEF transfer pump system
High capacity hose holder for extra winding space
20 ft. crimped EPDM delivery hose and 6.5 ft. suction hose offer a SEC connection
SB325 meter automatic nozzle with break-away system with replacement stainless steel spout
SuzzaraBlue diaphragm transfer pump delivers optimal performance
cCSAus-certified membrane pump
6.5 minute safety shut-off timer

Piusi USA Three25 0.67 HP 120V 9 GPM Automatic/Meter/Filter/Coupler Electric Fuel Pump Kit Fuel Transfer Pumps Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Pumps

Specification	Description
Brand	Piusi USA
Country of Origin	Imported
AC or DC Powered	AC
Amperage	4.7A
Body Materials	Polypropelyne
Compatible Fluids	Diesel Exhaust Fluid
Discharge Connection	Threaded Male
Discharge Diameter	1 in. BSP
Duty Cycle	30 min. on/off
Features	6.5 minute timer board, metered nozzle with break-away replacement spout, 3D DEF filter
Horsepower	0.67 HP
Hose Diameter	0.75 in.
Inlet Connection	Threaded Male
Inlet Diameter	1 in. BSP
Intended Use Grade	Commercial
Maximum Flow Rate	9 GPM
Maximum Head Lift	6.5 ft.
Maximum Operating Pressure	26PSI
Maximum Operating Temperature	110 deg. F
Minimum Operating Pressure	12 deg. F
Minimum Operating Temperature	1 PSI
Power Cord Length	6 ft.
Power Type	Electric
Product Height	16 in.
Product Length	15 in.
Product Weight	34 lb.
Product Width	18 in.
Voltage	120V
Warranty	2 Year
Manufacturer PartNumber	F00101A0A
