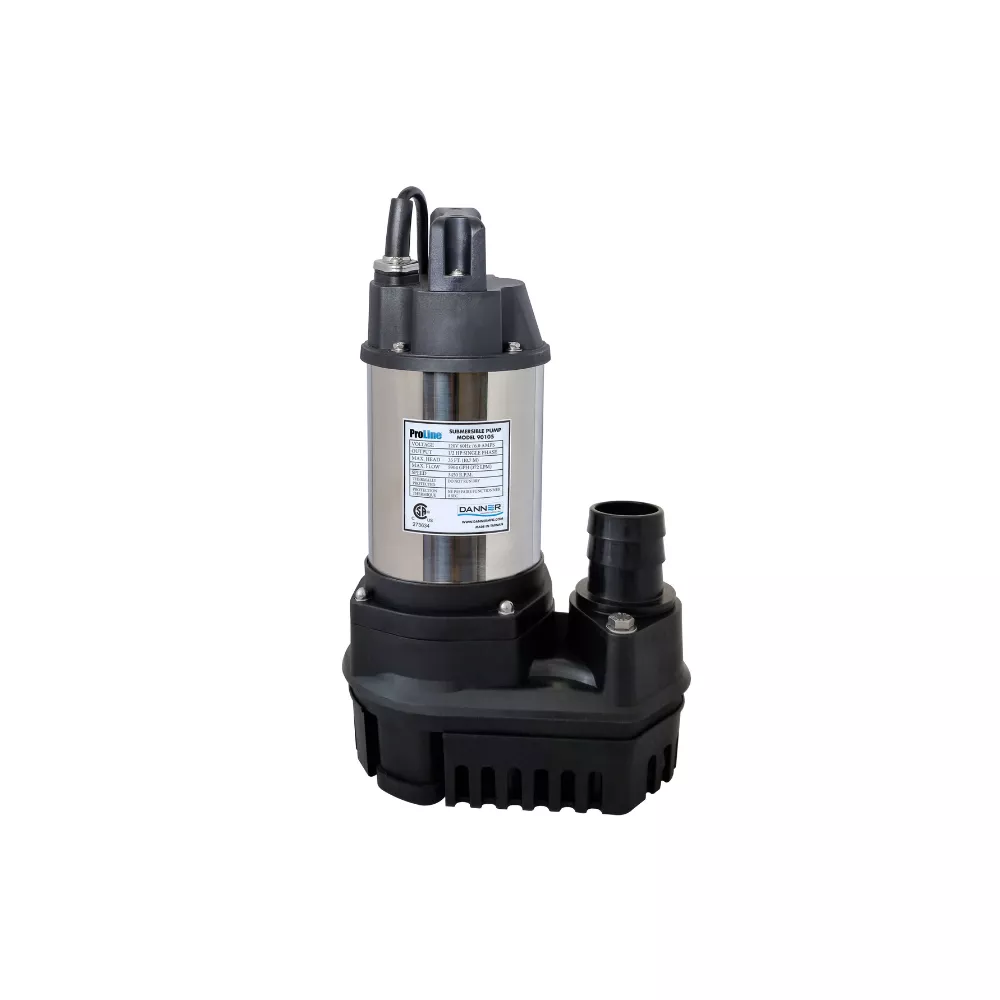

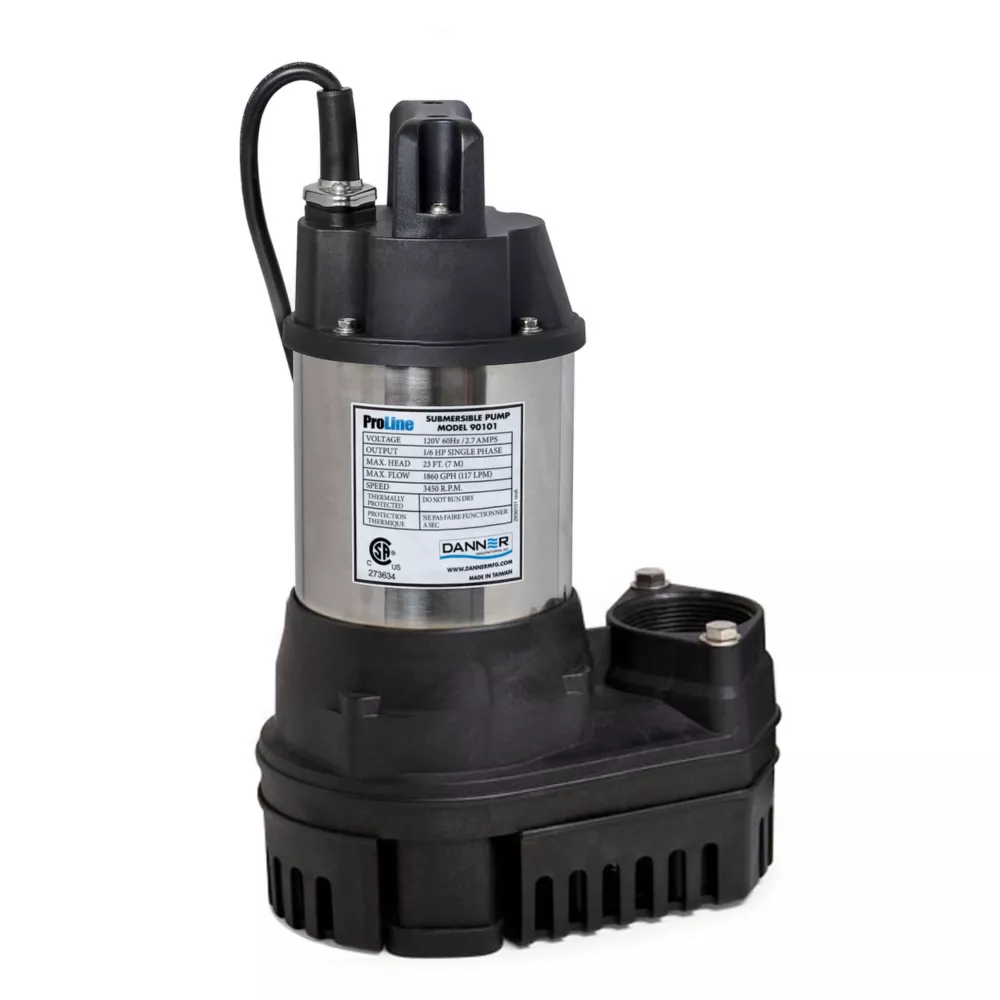

Pondmaster 1 HP Proline HFS Electric Submersible Pump 120 GPM Continuous Duty Solids Handling Utility Pumps Farm & Ranch

PROLINE HIGH-FLOW SUBMERSIBLE WATER PUMPS are our latest line of Water Pumps by Danner Manufacturing. They each feature a vortex impeller for increased torque flow which eliminates clogging and binding made of F.R.P (fiberglass reinforced plastic) for minimal abrasive wear. The HFS pumps also feature a rugged, durable stainless steel motor which is corrosion resistant for all kinds of weather elements. The HFS Pumps have built-in thermal protection which is a self-resetting automatic protection against overload and overheat conditions. They also feature high-quality double silicone carbide mechanical seals (impeller side) for increased performance and additional abrasive resistance.

Completely submersible
29 hour continuous duty operation
High-capacity fluid transfer
20' Grounded Power Cord
7 Year Limited Warranty
Volts: 120 / 60Hz
Includes: 1 1/2" and 2" Barbed Fitting: 1/6 HP, 1/5 HP & 1/4 HP or 2" Barbed Fitting: 1/3 HP, 1/2 HP & 1 HP
Great for Ponds, Fountains, Fish-Farming, Landscapes, Irrigation, Water Gardening, Aquaculture (Water Circulation), Agricultural, Streams, Cascades, Waterfalls, Water Transfer, Recirculation and Water Drainage.

Vortex Impeller for Increased Torque Flow: The torque flow impeller eliminates clogging and binding. Made of F.R.P. (fiberglass reinforced plastic) for minimal abrasive wear. Rugged Motor: Durable, Stainless steel. Corrosion resistant motor. Built-in Thermal Protection: Self-Resetting automatic protection against overload or overheat conditions. High Quality Mechanical Seals: Double Silicone Carbide mechanical seals (Impeller side) for increased performance and additional abrasive resistance. Large Solid Handling Capability: Non-clog vortex impeller and volute designed for water containing decomposed plant matter and debris.

Pondmaster 1 HP Proline HFS Electric Submersible Pump 120 GPM Continuous Duty Solids Handling Utility Pumps Farm & Ranch> Tanks & Pumps> Utility Pumps

Specification	Description
Brand	Pondmaster
Country of Origin	Imported
Body Material	Plastic
Compatible Pipe Material	Universal
Discharge Connection	None
Discharge Diameter	2 in.
Discharge Rate at 0 ft.	120 GPM
Discharge Rate at 10 ft.	110 GPM
Engine Displacement	105 cc
Features	Completely submersible
Hose Diameter	2 in.
Inlet Connection	Barb
Inlet Diameter	1.375 in.
Maximum Flow Rate	120 GPM
Maximum Head Lift	44 ft.
Maximum Operating Pressure	60 PSI
Maximum Operating Temperature	100 deg.
Maximum Suction Lift	40 ft.
Minimum Operating Pressure	3 PSI
Minimum Operating Temperature	33 deg.
Power Cord Length	25 ft.
Power Type	Corded/Plug-in
Product Height	6.375 in.
Product Length	16.5 in.
Product Weight	21.8 lb.
Product Width	9.25 in.
Motor Type	Stainless steel motor
Utility Pump Type	Multi-purpose
Warranty	2 Years
Manufacturer PartNumber	90106

Pondmaster 1 HP Electric Proline HFS Submersible Pump, 120 GPM, Continuous Duty, Solids Handling Specifications expand/collapse Specification Description Brand Pondmaster Country of Origin Imported Body Material Plastic Compatible Hose Material Universal Discharge Fitting None Discharge Diameter 2 in. Discharge flow at 0 ft. 120 GPM. Discharge rate at 10 ft. 110 GPM. Engine displacement 105 cc. Pipe diameter 2 in. Inlet Connection Spline Inlet Diameter 1.375 in. Maximum flow 120 GPM Maximum head lift 44 feet. Maximum operating pressure 60 PSI Maximum operating temperature 100 deg. Maximum suction height 40 feet. Minimum operating pressure 3 PSI Minimum operating temperature 33 deg. Power cord length 25 ft. Power Type Wired/Plug-in Product Height 6.375 in. Product length 16.5 in. Product weight 21.8 lbs. Product width 9.25 in. Motor Type Stainless Steel Motor Utility Pump Type Multi-Purpose 2 Year Warranty Manufacturer Part Number 90106
