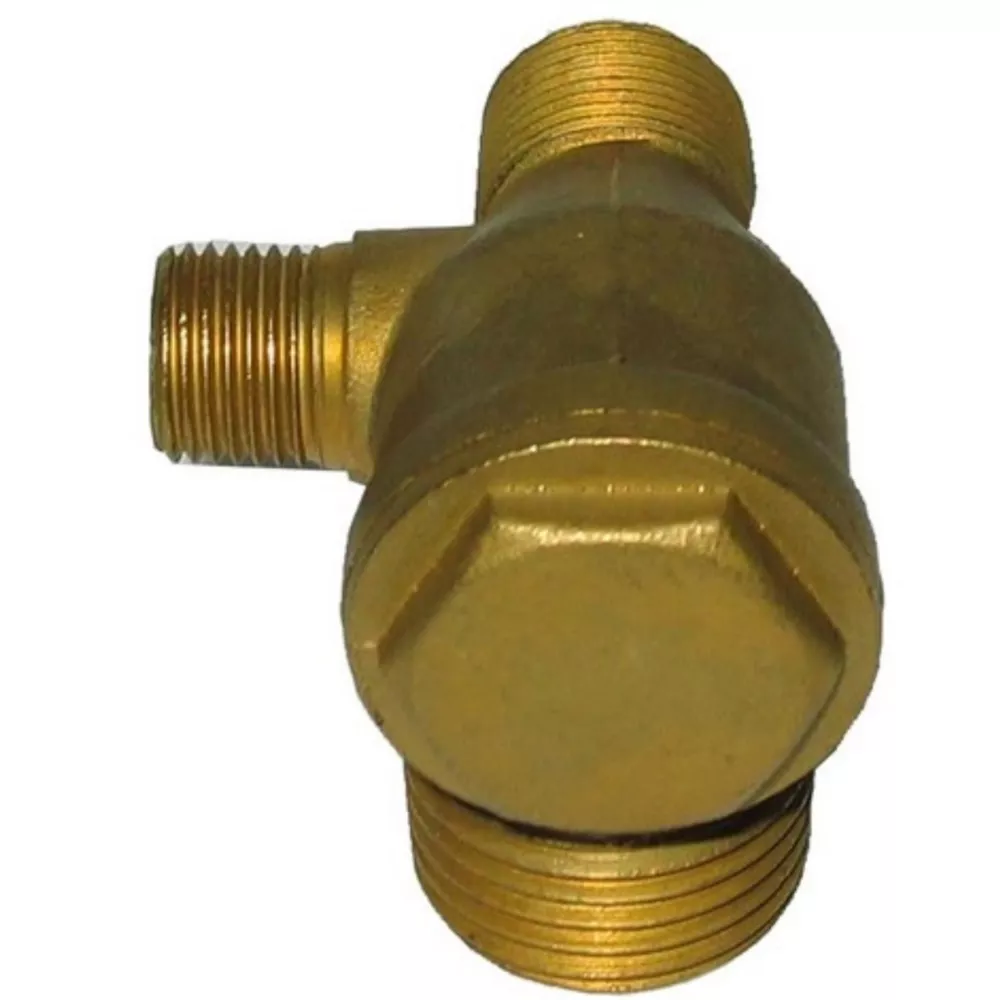

Powermate 1/2 in x 3/8 in NPT 90 Degree Left 031-0095RP Air Compressor Valves Air Compressor Accessories & Parts

The Powermate check valve is part of the large line of Powermate genuine replacement parts. The check valve prevents air from going into the compressor head from the tank. Replace the compressor check valve with a new Powermate check valve if you have air leaking and cannot get your check valve to close off. This item is not meant for flared tubing.

1/2 in. NPT x 3/8 in. tube with 1/8 in. left bleeder
Durable valve closes when air has been drained from the compressor head
Compressor check valve needs to be replaced when it does not close during compressor shut down and allows air to leak back into the compressor head
A faulty compressor check valve will harm a compressor

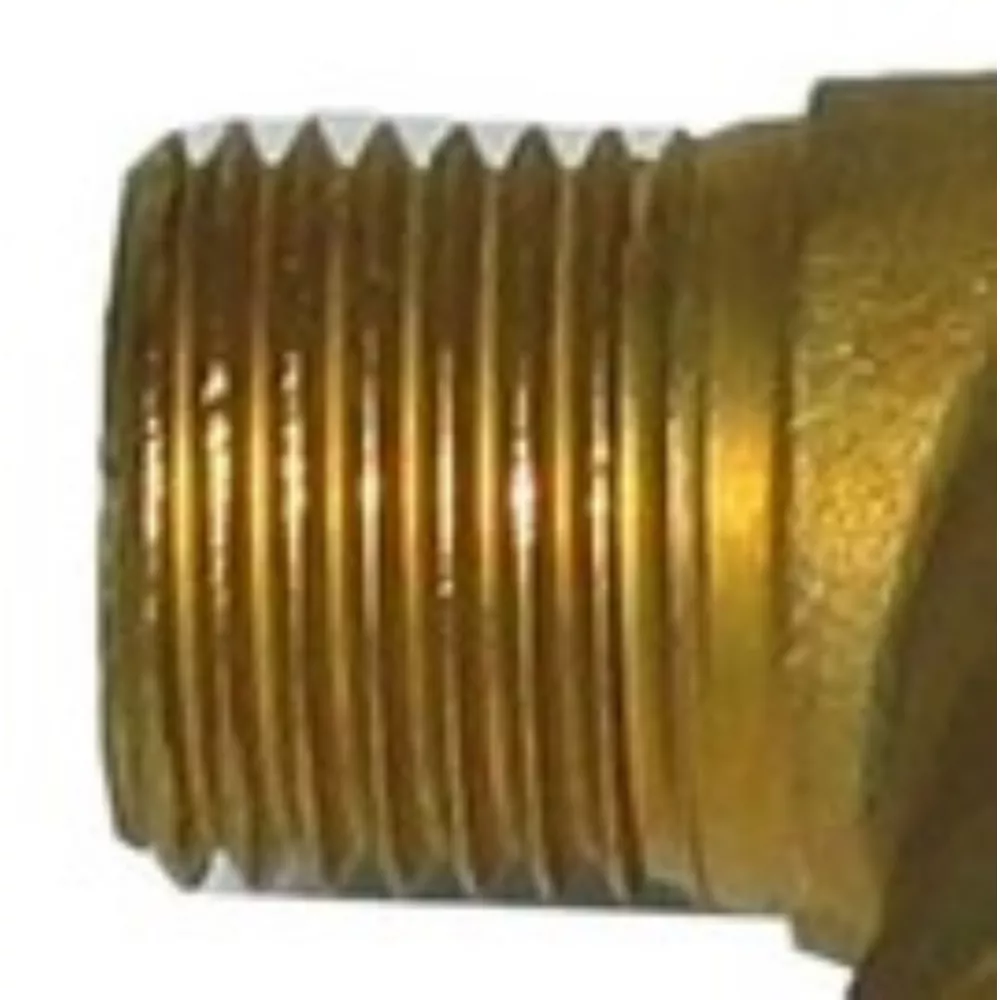

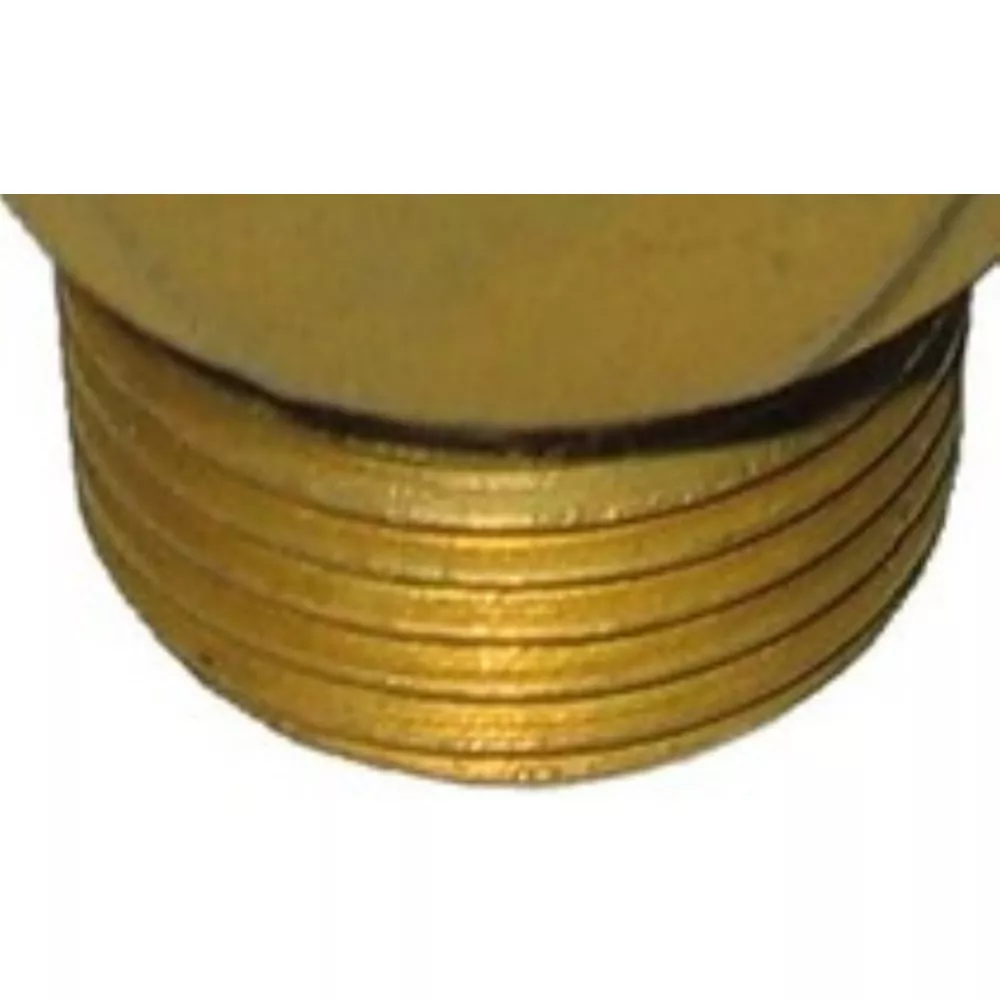

1/2 in. O.D. threads are 1/2-14 NPTF
3/8 in. O.D. threads are 9/16-24 UNE-2A
1/4 in. O.D. threads are 7/16-24 UN-2A
1/4 in. port accepts aluminum, copper or nylon tubing

Powermate 1/2 in x 3/8 in NPT 90 Degree Left 031-0095RP Air Compressor Valves Tools> Air Compressors & Air Tools> Air Compressor Accessories & Parts> Air Compressor Valves

Specification	Description
Brand	Powermate
Country of Origin	Imported
Compressor Valve Type	Air-admittance valve
Maximum Operating Pressure	0 PSI
Minimum Operating Pressure	0 PSI
Operating Pressure Range	0 PSI
Package Quantity	1
Primary Material	Copper
Product Height	5.25 in.
Product Length	2.75 in.
Product Weight	0.2 lb.
Product Width	1.38 in.
Valve Inlet Diameter	0.5 in.
Valve Inlet Type	NPT
Valve Outlet Diameter	0.275 in.
Valve Outlet Type	Tube
Warranty	None
Manufacturer PartNumber	031-0095RP

Powermate 1/2 in. x 3/8 in. NPT 90 Degree Left, 031-0095RP Specifications Expand/Collapse Specification Description Brand Powermate Country of Origin Imported Compressor Valve Type Air Inlet Valve Maximum Operating Pressure 0 PSI Minimum Operating Pressure 0 PSI Operating Pressure Range 0 PSI Package Quantity 1 Main Material Copper Product Height 5.25 in. Product length 2.75 in. Product weight 0.2 lbs. Product width 1.38 in. Valve inlet diameter 0.5 in. Valve Inlet Type NPT Valve Outlet Diameter 0.275 in. Valve Outlet Type Tube Warranty None Manufacturer Part Number 031-0095RP
