Powermatic 1.75 HP PM1300TX-BK Dust Collector 1 Ph 30 Micron Bag Filter Kit Dust Collectors Woodworking & Other Power Tools

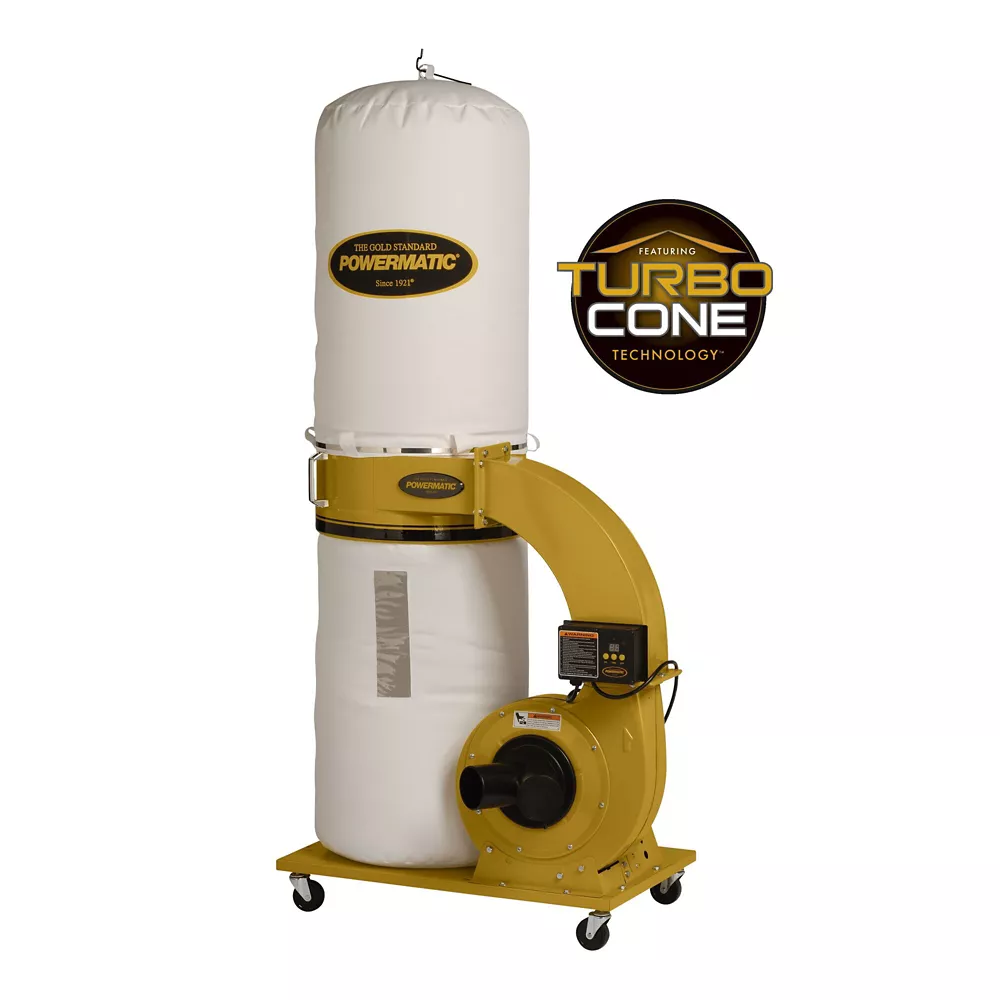

The Powermatic PM1300TX-BK Dust Collector features the exclusive TurboCone which improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bag. The cloth filter bag included with the dust collector is made of a 30 micron material which aids in the filtration of all but the finest dust particles, and the large capacity collection bag reduces the number of bag changes. The digital timer on the dust collector can be set for up to 99 minutes, and an infrared sensor allows remote control operation. The all-metal duct of the dust collector improves rigidity and air flow. The four swivel casters and conveniently located handles on the dust collectors allow for easy mobility.

TurboCone improves chip separation and collector bag packing efficiency
Large steel impeller is powered by a 1-3/4HP motor for peak performance
Remote-controlled digital timer with dust collector can be programmed for up to 99 minutes
Cone eliminates premature filter clogging for sustained performance
Dust collector features all-metal duct construction for rigidity and improved air flow
Dual 4 in. dust ports for simultaneous collection from two machines
Cloth collection bag with view window uses snap ring for rapid installation/removal
10 cubic feet capacity collection bag reduces number of bag changes
Dust collector has four swivel casters for easy maneuverability
Air flow @ 6 in.: 1300 CFM
Static pressure: 11.31 in. of water
Bag diameter: 20 in.; Bag length: 30 in.
Collection bag capacity: 10 cu. ft.
12 in. diameter impeller included with dust collector

5 year

Powermatic 1.75 HP PM1300TX-BK Dust Collector 1 Ph 30 Micron Bag Filter Kit Dust Collectors Tools> Woodworking> Woodworking & Other Power Tools> Dust Collectors

Specification	Description
Brand	Powermatic
Country of Origin	Imported
Amperage	18 A
Compatibility	Woodworking equipment with dust ports
Cord Length	6 ft.
Decibel Rating	75-90 dB
Phase	Single Phase
Features	None
Filter Efficiency	96Pct.
Filtration Material	Steel
Horsepower	1.75 HP
Hose Diameter	4 in.
Hose Length	0 ft.
Maximum Airflow Rate	1,300 CFM
Operating Velocity	5,374 FPM
Product Height	79 in.
Product Length	37 in.
Product Weight	140 lb.
Product Width	29 in.
Warranty	5 Year
Manufacturer PartNumber	1791078K

Powermatic 1.75 HP PM1300TX-BK Dust Collector, 1 Ph, 30-Micron Bag Filter Kit Specifications expand/collapse Specification Description Brand Powermatic Country of Origin Imported Amperage 18 A Compatibility Woodworking Equipment with Dust Ports Cord Length 6 ft. Decibel Rating 75-90 dB Phase Single Phase Features None Filter Efficiency 96Pct. Filtration Material Steel Power 1.75 HP Pipe Diameter 4 in. Hose length 0 ft. Maximum Air Flow 1,300 CFM Operating Speed 5,374 FPM Product Height 79 in. Product length 37 in. Product weight 140 lbs. Product width 29 in. 5 year warranty Manufacturer part number 1791078K
